2003 Ford Taurus Serpentine Belt Diagram and Routing Instructions
If you’re working on the serpentine belt of a 2003 Ford Taurus, understanding the correct routing is key to avoiding costly mistakes. The serpentine belt drives multiple components in the engine, including the alternator, power steering pump, air conditioning compressor, and water pump. Refer to the accurate diagram to ensure proper installation and prevent damage to these parts.
The diagram for the 2003 Ford Taurus serpentine belt shows a single belt running through various pulleys, with the tensioner maintaining the correct tension. Ensure the belt’s path matches the diagram exactly, as incorrect routing can cause slippage or premature wear on engine components.
To replace the serpentine belt, first, locate the tensioner pulley and use a wrench or belt tool to relieve tension. Once the belt is off, compare the new belt with the old one to confirm proper length and size before installation. Use the diagram to double-check the alignment of the new belt on each pulley.
2003 Ford Taurus Serpentine Belt Diagram

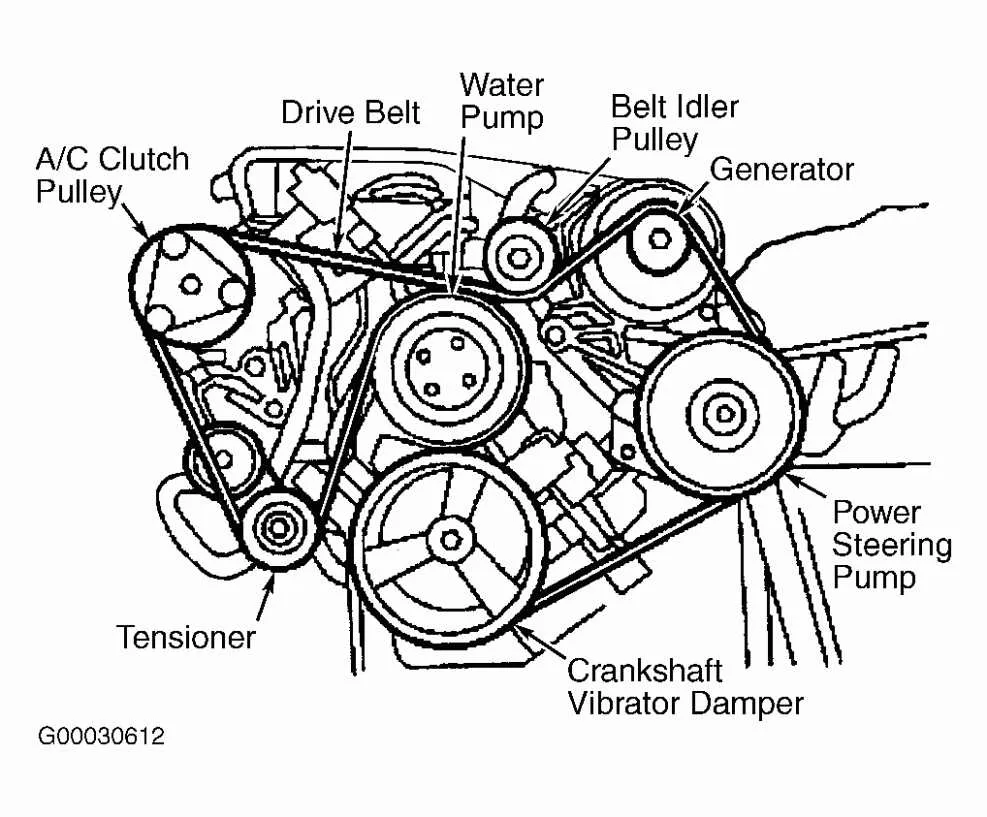

The serpentine belt for the 2003 Ford Taurus plays a critical role in driving multiple engine components, including the alternator, power steering pump, and air conditioning compressor. For an accurate replacement or maintenance, it’s important to follow the correct routing. The diagram below shows the exact path for the serpentine belt on a 2003 Ford Taurus, ensuring all components function properly.
The belt routes clockwise, starting at the crankshaft pulley, which drives the belt through several components. First, it moves to the power steering pump, then goes over the air conditioning compressor. Next, the belt routes to the alternator, followed by the idler pulley and tensioner pulley. The tensioner maintains the correct amount of slack to keep the belt in optimal working condition. A precise diagram helps ensure each part is correctly aligned and helps avoid misalignment that could lead to premature wear or failure.
When replacing the serpentine belt, always check for cracks, fraying, or signs of excessive wear. The tensioner should also be inspected for proper function. If the belt is not routed correctly, it could cause damage to components or lead to belt slippage, affecting the vehicle’s performance.
Having the correct diagram allows you to replace the belt with confidence, ensuring that your Taurus runs smoothly without any issues. Make sure to consult the vehicle’s manual for any specific torque settings for pulleys or recommended maintenance intervals.
Understanding the Serpentine Belt Layout for 2003 Ford Taurus
The 2003 Ford Taurus uses a single serpentine belt to drive multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. It’s crucial to ensure the belt is properly routed to maintain efficient engine performance.
Start by identifying the path for the serpentine belt. The layout follows a specific sequence around the pulleys. The belt wraps around the crankshaft pulley at the bottom, moves up to the power steering pump, and loops around the alternator. It continues to the air conditioning compressor, and then to the water pump. The final section loops around a tensioner pulley that keeps the belt tight.
To replace or inspect the serpentine belt, always use the tensioner pulley to relieve pressure. This will allow the belt to be removed without causing damage. Keep an eye on the alignment of the belt during installation, as even a slight misalignment can cause premature wear or malfunction.
Check for any signs of wear such as fraying, cracks, or missing teeth. A damaged serpentine belt can lead to loss of power to critical components like the alternator or power steering, which can impact driving performance and safety.
If you’re unsure about the belt’s condition, it’s advisable to consult a diagram for the 2003 Ford Taurus or seek professional help to ensure everything is properly aligned.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2003 Ford Taurus
First, gather the necessary tools: a socket set, a serpentine belt tool, a new serpentine belt, and gloves. Make sure the car is parked on a flat surface and the engine is cool before beginning.
1. Locate the Serpentine Belt: Open the hood and locate the serpentine belt on the front of the engine. It wraps around the pulleys and drives various accessories, such as the alternator and power steering pump.
2. Release Tension: Use a serpentine belt tool or a wrench to relieve tension from the belt. Insert the tool into the tensioner pulley and rotate it to loosen the belt. This will allow you to easily remove the belt from the pulleys.
3. Remove the Old Belt: Once the tension is released, carefully slide the serpentine belt off the pulleys. Take note of the belt routing. You can use a diagram (usually located on the radiator support or under the hood) to help remember the belt’s path.
4. Inspect Components: Before installing the new belt, inspect the pulleys and the tensioner. Make sure there is no wear or damage. If the tensioner or pulleys show signs of wear, consider replacing them as well.
5. Install the New Serpentine Belt: Place the new belt around the pulleys, following the diagram. Start from the bottom or top, depending on the routing direction. Ensure the belt sits properly on all pulleys and aligns correctly with the grooves.
6. Apply Tension: Use the serpentine belt tool to apply tension to the new belt. Rotate the tensioner pulley to tighten the belt. Make sure the belt has the proper tension by checking that it’s securely in place but not overly tight.
7. Check the Belt’s Path: Double-check the routing to ensure the belt is correctly positioned. Make sure it’s seated evenly on all pulleys.
8. Test the Installation: Start the engine and observe the belt in motion. Listen for any unusual sounds or squealing, which could indicate improper installation or tension.
9. Finish Up: After confirming everything is in working order, turn off the engine. Clean up your tools, and close the hood.
Common Issues and Troubleshooting Tips for the Serpentine Belt System
If you hear squealing noises coming from the engine, check the serpentine belt for wear or damage. A worn-out belt can slip, causing friction and noise. Inspect the belt for visible cracks, frays, or missing chunks. Replace the belt if necessary.
Misalignment of the serpentine belt is another frequent issue. This can occur when pulleys or components like the alternator or power steering pump shift position. To fix this, check all pulleys for alignment using a straight edge and realign any mispositioned components.
Slipping can also occur if the tensioner loses its ability to maintain proper belt tension. If the tensioner appears worn or loose, replace it to prevent further damage. If you’re unsure, use a belt tension gauge to confirm proper tension levels.
Overheating of the serpentine belt can be caused by the pulley system working incorrectly. Ensure all pulleys rotate freely without friction or resistance. Replace any seized pulleys immediately to avoid further belt wear.
If you notice the belt becoming loose over time, inspect the tensioner spring. A weakened spring can result in inadequate tension and belt slipping. Replacing the tensioner will often resolve this problem.
Another potential issue is improper installation. Make sure the serpentine belt follows the exact routing specified in the vehicle’s manual. An incorrect routing can cause premature belt wear or failure.
Finally, examine the pulleys for any signs of rust or dirt build-up, which can affect their smooth operation. Clean the pulleys to maintain optimal performance and prevent additional strain on the serpentine belt.
