2001 Ford Focus Serpentine Belt Diagram and Routing Guide

If you’re working on a 2001 Ford Focus, understanding the serpentine belt diagram is crucial for proper maintenance and repair. The serpentine belt is responsible for driving several components of your engine, including the alternator, power steering pump, air conditioning compressor, and water pump. Without a functioning serpentine belt, your vehicle won’t run efficiently, and could even cause serious engine damage. The diagram will help you identify the correct path for the belt, ensuring everything runs smoothly.

The 2001 Ford Focus uses a single serpentine belt to power multiple accessories, and its configuration may vary depending on the engine type. Typically, it wraps around the crankshaft pulley, idler pulleys, tensioner, and the components it drives. Knowing the correct order and tension is important for both installation and maintenance. Make sure to check the belt for any signs of wear, such as cracking or fraying, as these could indicate the need for replacement.

Check the diagram before installation: Before installing the new serpentine belt, refer to the belt routing diagram found either under the hood or in your vehicle’s manual. The routing guide ensures the belt runs in the correct direction and fits snugly in all grooves, preventing slippage or premature wear. If you’re unsure, always cross-reference with a professional or check manufacturer specifications to avoid mistakes that could lead to further engine problems.

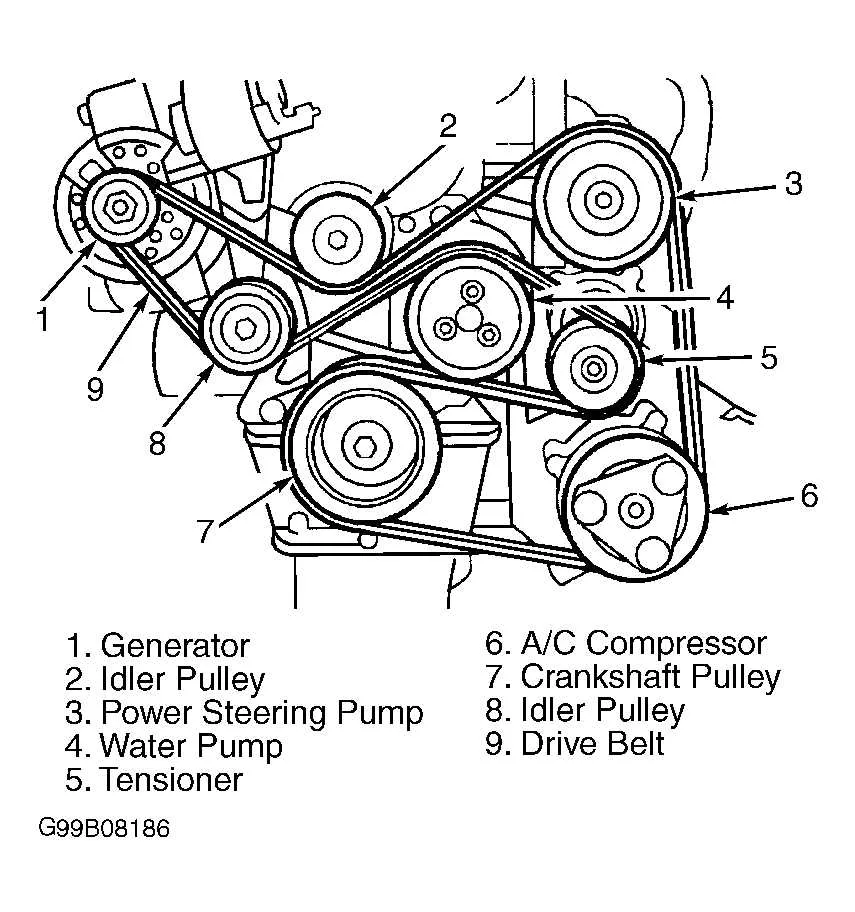

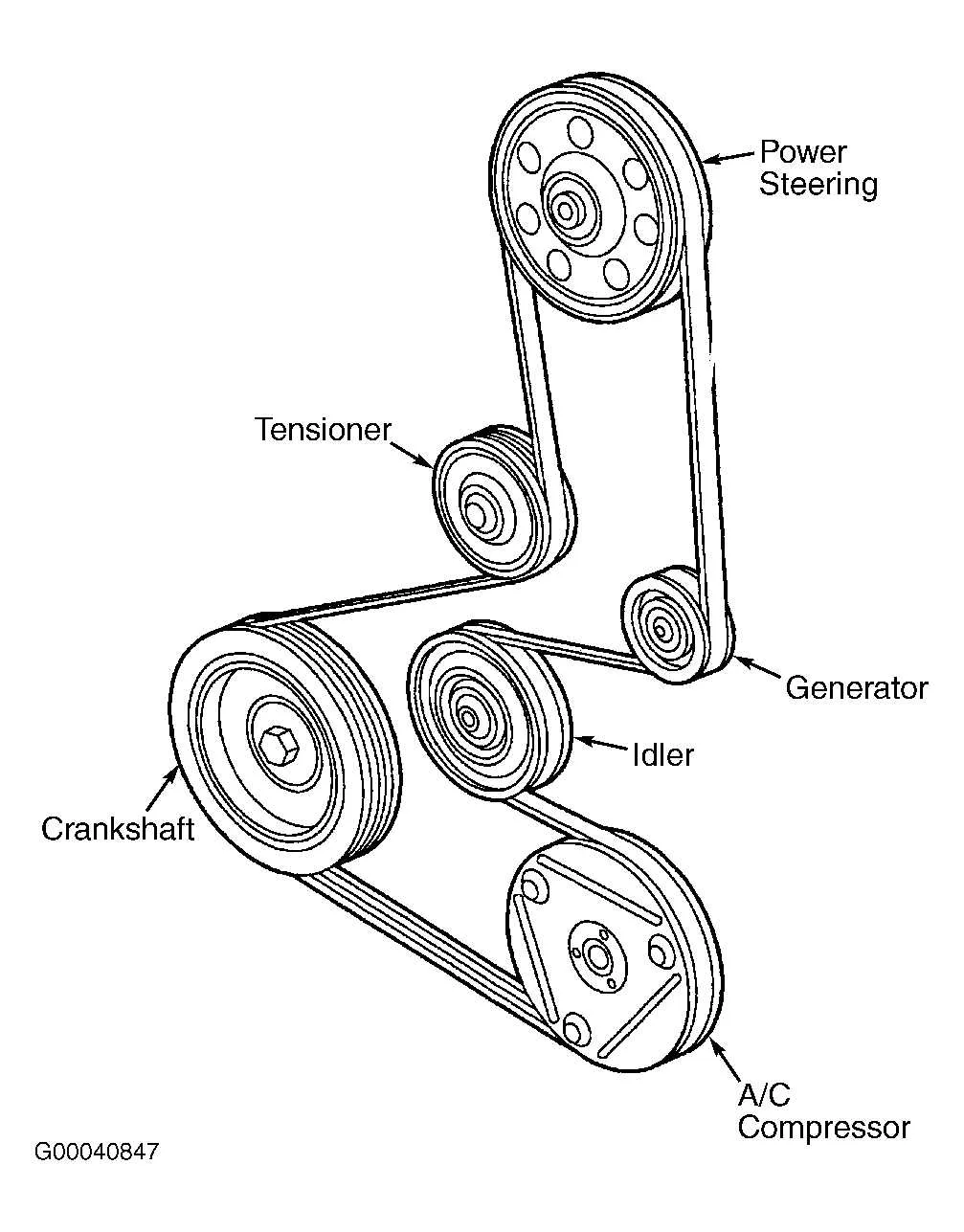

2001 Ford Focus Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2001 Ford Focus, it’s important to follow the correct path for the belt routing. The diagram typically shows the belt looping around the alternator, power steering pump, water pump, and air conditioning compressor. A tensioner pulley keeps the belt tight, and it’s critical to ensure the belt moves smoothly across all pulleys without slack.

Check for wear or damage before replacing the belt. If the belt has cracks, frays, or signs of excessive wear, replacement is necessary. Make sure to align the belt according to the diagram for smooth operation and to prevent damage to other engine components. If you’re unsure, refer to the service manual or a repair guide for further details on routing specifics.

Use a tool like a serpentine belt tool or a socket wrench to relieve tension from the tensioner pulley when installing or removing the belt. Always check that the belt is properly seated on all pulleys before starting the engine to avoid issues.

How to Locate the Serpentine Belt Diagram on a 2001 Ford Focus

To find the serpentine belt diagram on a 2001 Ford Focus, follow these steps:

• Check the engine bay for a label. Look near the radiator or on the upper part of the engine, typically on the plastic covers or near the front of the engine block. The diagram is usually printed on a sticker or a metal tag.
• If the diagram is not visible in the engine bay, check the vehicle’s owner’s manual. It often contains detailed diagrams, including the serpentine belt layout.
• Visit an online Ford service manual or forum. Many car owners and mechanics share detailed images and diagrams for specific models, including the 2001 Ford Focus.
• If all else fails, consider contacting a Ford dealership. They can provide the correct serpentine belt diagram based on your vehicle’s VIN (Vehicle Identification Number).

The diagram shows how the serpentine belt routes around various components like the alternator, power steering pump, and air conditioning compressor. Knowing its exact layout helps you when replacing or adjusting the belt. Keep an eye out for wear on the belt to avoid unnecessary issues later.

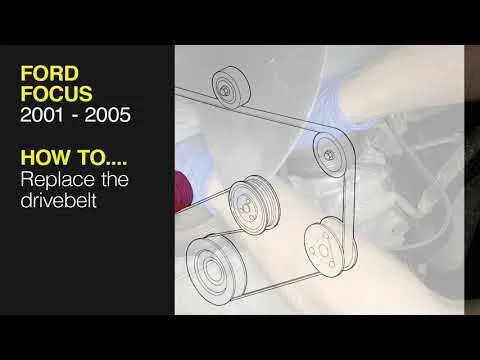

Step-by-Step Guide to Replacing the Serpentine Belt on a 2001 Ford Focus

First, gather the necessary tools: a socket set, a serpentine belt tool or a 3/8-inch ratchet, and a new serpentine belt for your 2001 Ford Focus.

1. Locate the Serpentine Belt: Open the hood and locate the serpentine belt on the front of the engine. The belt wraps around various pulleys, including the alternator, power steering pump, and air conditioning compressor.

2. Release Tension from the Belt: Find the tensioner pulley. Use the serpentine belt tool or ratchet to rotate the tensioner counterclockwise, relieving tension from the belt. This will allow you to remove the belt from the pulleys.

3. Remove the Old Belt: With the tension released, slide the serpentine belt off the pulleys carefully. Take note of the belt’s routing, as you’ll need to install the new belt in the same pattern.

4. Inspect the Pulley System: Check the condition of the pulleys and tensioner. If there is any damage or unusual wear, replace the faulty components before installing the new belt.

5. Install the New Serpentine Belt: Begin by placing the new belt over the pulleys, following the same path as the old one. Ensure the belt is seated properly on all pulleys, and double-check the routing against the diagram (typically located under the hood).

6. Reapply Tension: Rotate the tensioner pulley clockwise to apply tension to the new belt. Ensure the belt is tight but not overly stretched.

7. Check the Installation: Double-check the belt’s alignment on all pulleys and ensure there’s no slack. Turn the engine by hand to make sure the belt moves smoothly without slipping.

8. Start the Engine: Start the engine and observe the belt in action. Listen for any unusual noises and confirm that the belt is operating without issue.

By following these steps, you’ll have the serpentine belt replaced on your 2001 Ford Focus quickly and efficiently.

Troubleshooting Common Serpentine Belt Issues in a 2001 Ford Focus

If the serpentine belt on your 2001 Ford Focus is making noise, slipping, or showing signs of wear, you need to inspect it right away. Start by visually checking for any cracks, fraying, or missing chunks. A worn-out serpentine belt can cause the engine to overheat, power steering failure, and battery charging issues.

One of the most common problems is belt slippage. If you notice squealing noises, especially when starting the car or accelerating, this could indicate that the belt is slipping on the pulleys. The problem might be caused by a worn-out belt or an issue with the tensioner pulley that’s not applying enough pressure.

Next, check the tensioner. If it’s not holding the belt tightly, it could cause the belt to lose traction. If the tensioner pulley feels loose or is not moving freely, replace it. Tighten the belt if necessary, but make sure it’s not too tight, as this can put excess strain on the engine components.

Another sign of a failing serpentine belt is the power steering cutting out or the alternator not charging the battery properly. These systems rely on the belt to function. If the belt is broken or slipping, the battery might not charge, or the steering could become heavy. In such cases, inspect the belt for obvious damage or wear, and replace it if needed.

Finally, check the alignment of the pulleys. If they are misaligned or damaged, the serpentine belt may not track correctly, leading to premature wear or slipping. Inspect the pulleys for smooth operation and replace any faulty parts.
