Ford Fusion 2007 Serpentine Belt Diagram and Routing Guide
To properly maintain the 2007 Ford Fusion, knowing the exact serpentine belt routing is key. The serpentine belt drives multiple accessories like the alternator, power steering pump, and air conditioning compressor. If you notice squealing noises or loss of power steering, it may be time to inspect the belt or its components.
Here’s the step-by-step guide to the correct serpentine belt configuration for the 2007 Ford Fusion. The belt should pass through the tensioner, alternator, idler pulleys, and power steering pump. Pay close attention to the belt’s orientation and routing path to ensure everything runs smoothly.
If you’re replacing the serpentine belt, make sure to check the pulleys for wear and tear. A worn pulley can cause the new belt to wear prematurely. Always double-check the belt’s tightness and alignment before starting the engine. Use the diagram as your reference to ensure the belt is installed correctly for optimal engine performance.

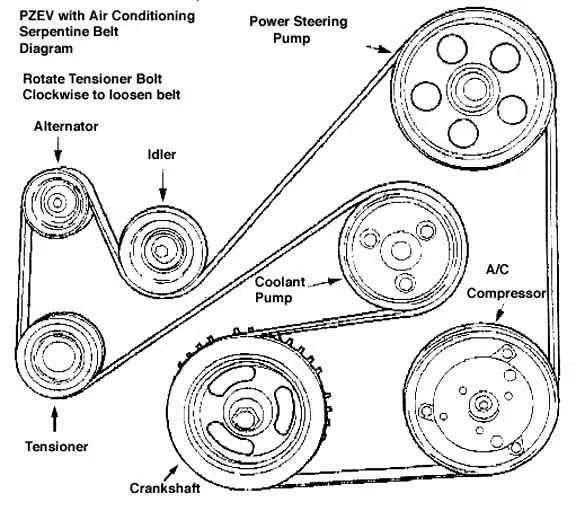

07 Ford Fusion Serpentine Belt Diagram
For the 2007 Ford Fusion, the serpentine belt is a critical component that drives several engine accessories, such as the alternator, power steering pump, and air conditioning compressor. Here’s the diagram for the serpentine belt routing, ensuring smooth operation and avoiding unnecessary wear.
The belt routing follows a simple path: starting from the crankshaft pulley, the belt moves over the alternator pulley, then around the tensioner and idler pulleys. It continues to the power steering pump, air conditioning compressor, and water pump, before returning to the crankshaft pulley. Pay close attention to the routing order when replacing or inspecting the belt.
Ensure the belt tension is correct before installation. A loose or tight belt can lead to excessive wear or slipping. Always replace the belt if it shows signs of cracking, fraying, or wear. If you’re unsure about the condition of the belt, inspecting the diagram can help guide you during replacement or maintenance.
For accurate installation, refer to the diagram included in the vehicle’s manual or online resources. It provides a visual reference for the exact routing path, ensuring your belt is installed correctly to maintain optimal engine performance.
How to Identify the Serpentine Belt Routing on 07 Ford Fusion
To identify the serpentine belt routing on a 2007 Ford Fusion, follow these straightforward steps:
- Locate the Belt Routing Diagram: Check under the hood for a decal or label that shows the serpentine belt routing. This diagram is typically found near the front of the engine bay, often on the radiator support or near the engine itself.
- Inspect the Belt Path: Study the diagram carefully to understand the direction of the serpentine belt. The diagram will show you the path the belt follows around pulleys, tensioners, and other components. Make sure to note the specific direction of the belt around the components like the alternator, power steering pump, and water pump.
- Check the Belt Tensioner: The tensioner plays a critical role in maintaining the correct tension. On the 2007 Fusion, the tensioner is usually positioned near the bottom of the engine and will show up on the diagram as a pulley with an arm. The belt needs to loop around this pulley with enough slack for proper tension adjustment.
- Ensure Correct Pulley Sequence: Starting from the crankshaft pulley, follow the belt’s path and make sure the belt winds around each pulley in the correct order. The sequence of pulleys must match exactly what’s shown on the diagram to avoid belt misalignment or slippage.
- Use a Belt Tool for Removal or Installation: If you’re planning to replace or reinstall the serpentine belt, a serpentine belt tool can help release tension from the tensioner pulley. This tool makes it easier to move the tensioner and remove or install the belt without damaging components.
If the label is missing or damaged, you can refer to online resources or repair manuals for a diagram specific to your 2007 Ford Fusion model. Make sure to double-check the routing before you start the engine to avoid belt damage.
Step-by-Step Guide to Replacing the Serpentine Belt on a 07 Ford Fusion
To replace the serpentine belt on a 2007 Ford Fusion, follow these straightforward steps:
1. Gather the necessary tools and materials: You will need a new serpentine belt, a ratchet wrench, a socket set, and a serpentine belt tool or a 3/8-inch drive ratchet to release the tensioner.
2. Locate the serpentine belt diagram: Before starting, find the belt routing diagram for your Fusion. This is typically located on the radiator support or under the hood. If you can’t find it, take a photo of the belt setup for reference.
3. Release tension from the belt: Insert the ratchet into the tensioner pulley and rotate it counterclockwise to relieve pressure on the serpentine belt. Once the tension is released, slide the belt off the pulleys.
4. Remove the old serpentine belt: Carefully remove the belt from all pulleys. Take note of the path it follows, as you will need to install the new belt in the same direction.
5. Compare the new belt with the old one: Lay the new serpentine belt next to the old one to ensure they match in length, width, and rib design. This step ensures compatibility before installation.
6. Install the new serpentine belt: Starting at the lowest pulley, loop the new belt over the pulleys, following the exact route of the old belt. Make sure the belt sits properly in the grooves of each pulley.
7. Reapply tension: Use the ratchet to rotate the tensioner pulley counterclockwise again, and slide the belt into place. Release the ratchet to allow the tensioner to secure the belt tightly.
8. Inspect the installation: Double-check that the belt is aligned properly on each pulley and sits securely in the grooves. A misaligned belt could cause unnecessary wear or damage to the components.
9. Test the system: Start the engine and observe the serpentine belt in action. Ensure it runs smoothly without any squeaks or unusual noise, which could indicate improper installation.
Replacing the serpentine belt on your 07 Ford Fusion is a manageable task with the right tools and a little attention to detail. By following these steps, you can restore the smooth operation of your vehicle’s accessory system in no time.
Common Issues with the Serpentine Belt System in 07 Ford Fusion
If you notice squealing noises, power steering failure, or overheating, it could be related to the serpentine belt system. One common issue is belt wear and tear, often caused by age, heat, or contaminants. Over time, the belt can crack, fray, or even snap, leading to complete failure of the accessories it powers.
Another problem is the misalignment of the belt. This usually happens due to a worn-out pulley or tensioner. Misalignment increases friction, causing the belt to wear out faster and affecting the overall performance of the system. This often results in noise and can put additional strain on the alternator, air conditioning compressor, and other components.
Loose tensioners are another concern. A faulty tensioner won’t maintain the proper tension on the belt, causing it to slip. When the belt slips, you might experience poor engine performance or the loss of accessory functions such as air conditioning or charging. Replacing a faulty tensioner is a simple fix that can save more costly repairs down the road.
In some cases, oil or coolant leaks from nearby engine components can contaminate the serpentine belt. This lubrication causes the belt to lose its grip on the pulleys, leading to slipping and premature wear. Regularly inspecting the belt for any signs of contamination can help catch this problem before it becomes more serious.
Pay attention to any unusual noises or warning lights. If the belt fails, the alternator will stop working, draining the battery, and the engine could overheat due to a non-functioning water pump. A regular inspection of the serpentine belt system can prevent these issues from catching you by surprise.
