Detailed Serpentine Belt Routing Diagram for 2002 Ford Focus Engine Components
Locate the serpentine belt routing by referencing the diagram specific to the 2002 Ford Focus. The belt wraps around the crankshaft pulley, alternator, power steering pump, and AC compressor, forming a continuous loop that drives multiple engine components simultaneously.
Check tension and alignment while installing a new belt. Ensure the tensioner pulley maintains proper pressure to prevent slippage and premature wear. Misalignment can lead to squealing noises or damage to pulleys and accessories.
Replace worn components before fitting the belt. Inspect idler pulleys, tensioners, and the belt itself for cracks, glazing, or frayed edges. Installing a new belt on damaged pulleys reduces lifespan and can cause the system to fail unexpectedly.
Follow the diagram exactly during installation. For the 2.0L Zetec engine, the belt starts at the crankshaft, moves to the water pump, then the alternator, and loops around the tensioner and AC compressor. Small deviations can compromise performance and safety.
Regular inspection extends the life of the serpentine system. Check for unusual noises, visible wear, or looseness at every oil change. Early detection prevents sudden breakdowns and maintains consistent engine operation.

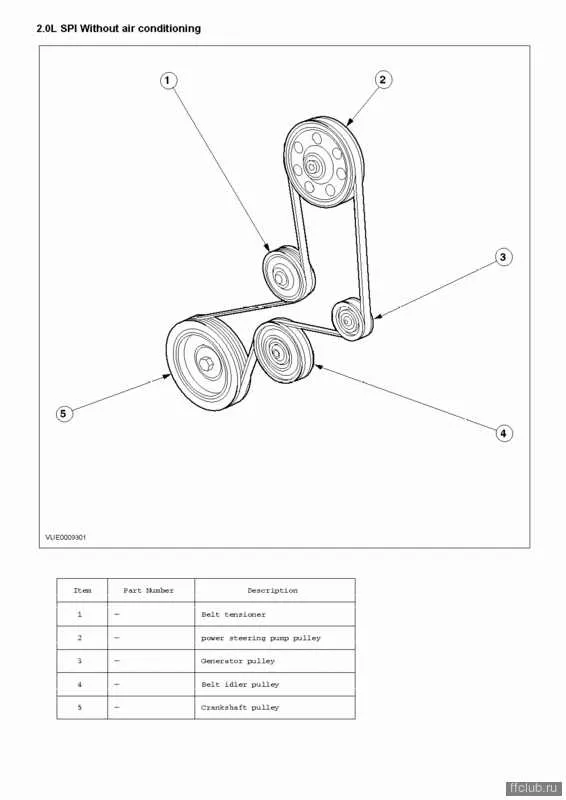

02 Ford Focus Serpentine Belt Diagram
Locate the serpentine belt on the front of the engine, wrapping around the alternator, power steering pump, A/C compressor, and crankshaft pulley. For a 2002 Ford Focus with a 2.0L engine, the belt follows a clockwise path starting at the crankshaft pulley: up to the A/C compressor, around the idler pulley, over the alternator, down to the power steering pump, and back to the crankshaft.
Ensure the belt sits correctly in each pulley groove. Misalignment can lead to squealing, premature wear, or belt slipping. Use a belt tensioner tool to relieve tension before removal and verify tension after installation. The tensioner sits near the top of the engine and requires a 3/8-inch ratchet or breaker bar to rotate.
Inspect each pulley while replacing the belt. Look for signs of wobble, rust, or worn bearings that could damage the new belt. Confirm that the belt length matches the diagram for your engine variant, as Focus models with automatic AC or different alternator configurations may have slight routing differences.
Mark the routing with chalk or take a photo before removal for reference. After installation, rotate the engine manually two full turns to seat the belt properly and check for smooth movement across all pulleys. Replace the belt every 60,000 miles or sooner if cracks, fraying, or glazing appear.
Locate Each Component on the 2002 Ford Focus Engine
Begin with the crankshaft pulley at the bottom center of the engine; it drives the serpentine belt and aligns with the tensioner and alternator pulley. Move upward to the alternator on the passenger side, identifiable by its wiring harness and cooling vents. Just below it, find the power steering pump with its fluid reservoir attached.
On the driver side, locate the AC compressor near the lower front of the engine; it has a clutch assembly that engages with the belt. Above it, the water pump pulley sits centrally, slightly left of the crankshaft pulley, with a smooth surface for the belt to glide over. The idler pulley positions near the center of the belt path, keeping proper tension and alignment.
The serpentine belt tensioner mounts to the front of the engine block, angled to press against the belt automatically. Trace the belt routing around each pulley: it leaves the crankshaft, wraps around the water pump, passes over the alternator, loops through the AC compressor, glides past the idler, and returns to the crankshaft. Ensure each pulley spins freely and the tensioner applies steady pressure before reassembly.
Check the accessory brackets holding each component in place; they indicate exact positions and angles for proper belt alignment. Use the belt diagram engraved on the radiator support or the inside of the hood for a precise guide. Mark each pulley location with chalk or tape if the diagram is faded, helping to reinstall the belt correctly without twisting or misalignment.
Step-by-Step Belt Routing Instructions
Locate the serpentine belt tensioner on the 2002 Ford Focus engine. Use a wrench to rotate the tensioner clockwise, relieving tension on the belt. Carefully slide the belt off the tensioner pulley while keeping it looped around the remaining pulleys.
Refer to the routing diagram to identify each pulley: crankshaft, alternator, power steering, A/C compressor, and idler pulleys. Begin looping the belt around the crankshaft pulley first, ensuring it sits fully in the pulley grooves.
Route the belt over the alternator pulley next, maintaining alignment with the ribbed grooves. Continue by guiding the belt over the power steering pulley, then around the A/C compressor pulley. Keep the belt snug but not twisted at any point.
Position the belt over the idler pulley and double-check each segment against the diagram. Slowly release the tensioner, allowing it to press against the belt and create proper tension. Rotate the crankshaft manually two full turns to verify smooth movement and correct alignment on all pulleys.
| Pulley | Position in Routing |
|---|---|
| Crankshaft | Bottom center |
| Alternator | Upper left |
| Power Steering | Upper right |
| A/C Compressor | Lower right |
| Idler Pulley | Center |
Inspect the belt for correct seating on each pulley. If the belt is misaligned, repeat the routing process until all pulleys are properly engaged. Tighten the tensioner securely to maintain consistent belt tension during operation.
Identify Tensioner and Pulley Positions for Replacement
Locate the serpentine belt tensioner on the front of the 2002 Ford Focus engine, positioned above the crankshaft pulley near the alternator. The tensioner features a spring-loaded arm with a square or hex mounting point for a wrench to release tension.
Identify all pulleys in the belt path to ensure proper alignment during replacement:
- Crankshaft Pulley: Large pulley at the bottom center; drives the entire belt system.
- Alternator Pulley: Upper-left side; smaller and smooth, typically ribbed.
- Power Steering Pulley: Right side of engine; often slightly larger than the alternator pulley.
- AC Compressor Pulley: Lower-left, ribbed surface matching the belt grooves.
- Idler Pulley: Located near tensioner; maintains proper belt alignment.
Release tension by rotating the tensioner arm clockwise using a wrench on the mounting point. Remove the old belt carefully, noting the routing around each pulley. Inspect all pulleys for wear, wobble, or noise before installing the new belt.
Align the new belt following the exact routing diagram. Rotate the tensioner again to slip the belt over the last pulley, ensuring full engagement on all grooves. Spin the pulleys by hand after installation to verify smooth movement and correct tension.
