X304 Lawn Mower Drive Belt Diagram and Troubleshooting Guide

To replace or repair the drive belt of the X304 lawn mower, understanding its layout is critical. The diagram provides a clear representation of the belt’s path, helping you identify each connection point and ensure proper reinstallation. Start by inspecting the belt for wear and tear before proceeding with the replacement.

The drive belt connects the engine to the mower deck and is responsible for transferring power to the cutting blades. A worn or broken belt can lead to a loss of power, resulting in ineffective mowing. Ensure you have the correct replacement belt model for your X304 to avoid compatibility issues.

Use the provided diagram to carefully align the belt with the designated pulleys. Take note of the tension and routing instructions to avoid misalignment. Misrouted belts can lead to premature wear or even damage to the engine components.

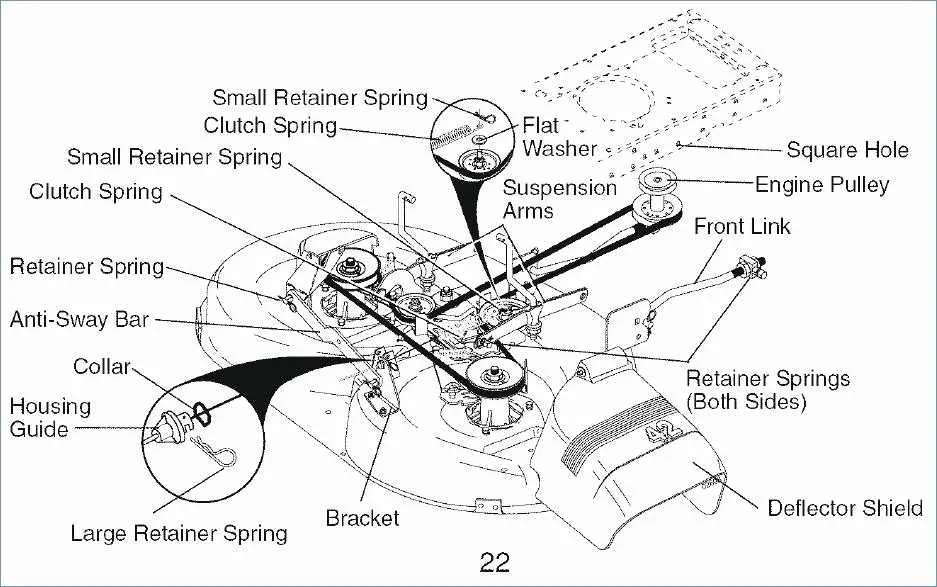

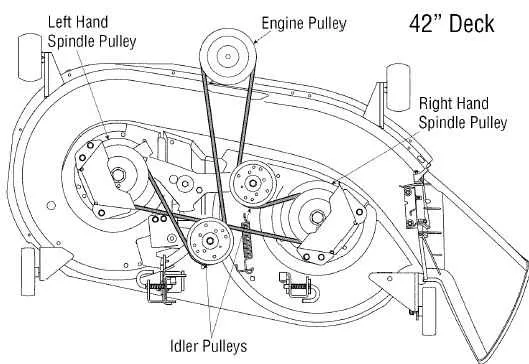

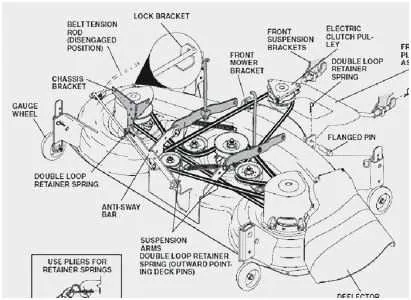

X304 Lawn Mower Drive Belt Diagram

The X304 lawn mower drive belt is a critical component responsible for transferring power from the engine to the cutting deck and wheels. To maintain optimal performance, refer to the diagram to understand the proper routing and placement of the belt.

Start by identifying the location of the drive pulley on the engine and the idler pulleys on the chassis. The belt runs from the engine’s drive pulley, through the idler pulleys, and connects to the cutting deck and wheels. Pay attention to the direction in which the belt moves, ensuring that it is routed according to the diagram to avoid slippage or wear.

If the belt is loose or damaged, replace it promptly by loosening the tensioner and removing the old belt. Install the new belt by following the diagram’s path and ensuring it is seated properly on each pulley. Once installed, check the belt’s tension before use to avoid further issues.

Regularly inspect the belt for signs of wear, such as cracks, fraying, or stretching. Replacing the belt as needed can help prevent more serious mechanical issues down the line and ensure your mower operates smoothly.

Identifying the Correct Drive Belt for X304 Lawn Mower

To ensure smooth operation of your X304 lawn mower, it is important to choose the right drive belt. The belt must be compatible with the specific model of your mower to avoid malfunction or damage.

Here’s how to identify the correct drive belt for your X304 lawn mower:

• Check the Model Number: Verify that the belt matches the part number listed for your X304 model. You can find this information in the user manual or on the manufacturer’s website.
• Measure the Length: The length of the belt should match the specifications provided in the mower’s manual. An incorrect length can cause the belt to slip or break.
• Verify the Width: Measure the width of the belt to ensure it fits the grooves of the pulleys. If the belt is too wide or too narrow, it will not function correctly.
• Material Type: Confirm that the belt is made of durable material, such as rubber or Kevlar, designed to withstand the stresses of lawn mower operations.

For best results, purchase belts from authorized dealers or the manufacturer to guarantee compatibility with your mower’s system.

Step-by-Step Guide to Replacing the Drive Belt on X304 Lawn Mower

First, disconnect the battery to prevent any accidental starts. Use a wrench to remove the negative terminal from the battery to ensure safety during the repair process.

Next, lift the mower deck to access the drive belt. Depending on the model, you may need to use a jack or lift the deck manually. Secure the deck in place with the locking mechanism to avoid it shifting while you work.

Remove any debris around the belt area to ensure a clean working environment. Check the current belt for any visible damage and take note of its routing path for reinstallation.

Release the tension on the belt by loosening the tensioner pulley. You may need a socket wrench or other tool to accomplish this. Carefully slide the belt off the pulleys and remove it from the mower deck.

Install the new drive belt by following the same routing path as the original belt. Ensure that the belt is seated properly on each pulley, paying close attention to the tensioner pulley to avoid slack.

Once the new belt is in place, re-tighten the tensioner pulley to apply the correct tension to the belt. The belt should have a slight amount of slack when the tensioner is properly adjusted.

Lower the mower deck and reattach the battery. Test the mower by starting it and running it for a short period. Verify that the new belt operates smoothly and doesn’t slip or make unusual noises.

If everything is functioning properly, the replacement is complete. Store any tools and clean up the work area.

Troubleshooting Common Drive Belt Issues on X304 Lawn Mower

Check for visible wear or fraying on the drive belt. If you notice any signs of damage, replace the belt immediately to prevent further issues. Ensure the belt is properly tensioned–if it’s too loose or too tight, the mower’s performance will suffer. Adjust the tension according to the manufacturer’s specifications.

Inspect the pulleys for any signs of damage or misalignment. Misaligned or damaged pulleys can cause the belt to slip or break. Spin each pulley by hand to check for smooth operation and make sure they are free of debris. Clean the pulleys if necessary.

Examine the belt routing against the diagram. Incorrect belt routing is a common issue and can cause the mower to malfunction. Ensure the belt follows the exact path specified in the user manual.

If the mower experiences unusual noise or vibration, inspect the belt for slack or improper alignment. Sometimes, a loose belt can cause the mower to run inefficiently, making strange sounds. Tighten the belt and check the alignment again.

Finally, check the condition of the clutch and brake mechanisms. If the clutch isn’t engaging properly, it can affect belt movement. Similarly, if the brake is not fully disengaged, it can cause unnecessary strain on the belt, leading to premature wear.
