Check the drive belt diagram before replacing or adjusting any part of your Wright Stander mower. The correct routing ensures proper tension, steady power transfer, and reduces the risk of slippage during operation.

The diagram clearly shows how the belt connects the pulleys, including the engine pulley, idler pulleys, and transmission pulley. By following this layout, you avoid misalignment that can cause premature wear or loss of performance.

Always compare the diagram with the actual belt path while working. If you notice differences caused by wear, missing hardware, or incorrect installation, adjust the setup immediately. A properly routed belt extends service life and keeps the mower running smoothly without unexpected downtime.

:::

Wright Stander Drive Belt Diagram

To fix or replace the drive belt on your Wright Stander, follow this clear and simple belt diagram. First, locate the belt path based on the model’s specifications. Each model may have slight variations in the routing, so always refer to the diagram specific to your Stander series.

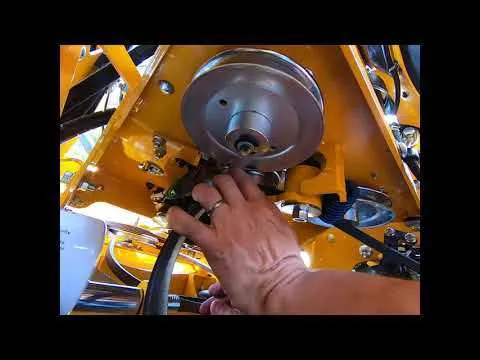

The belt connects the engine pulley to the transmission, driving the mower’s wheels. Begin by removing any covers or shields obstructing the belt area. After that, you’ll need to release tension from the spring-loaded idler pulley, which allows for easier belt removal.

For models with a dual belt system, pay attention to how each belt is routed around the pulleys. One belt typically powers the right wheel, while the other powers the left. Double-check both routes to avoid any mistakes during reinstallation.

Once the old belt is off, check the pulleys for wear or damage. Smooth pulleys with no grooves are a good sign, but replace any that are damaged. Install the new belt by reversing the removal process, ensuring the belt is correctly tensioned. Use the diagram as your guide to ensure the belt is routed properly across all pulleys.

After the installation, test the mower by running it at a low speed to verify that the drive mechanism is functioning correctly. If there’s any slipping or irregular movement, the belt might need additional adjustment or tension.

Referring to the Wright Stander drive belt diagram is key to a smooth and efficient repair process. By following each step carefully, you’ll ensure the mower is back to working condition in no time.

Identifying the Correct Drive Belt Pathway

To properly install the drive belt on a Wright Stander, start by consulting the specific belt diagram for your model. This diagram indicates the precise routing to avoid belt wear and ensure smooth operation.

Follow these steps to accurately identify the correct pathway:

• Check the pulley arrangement: Identify all pulleys involved in the belt system. Pay close attention to both idler pulleys and the main drive pulley.
• Understand the direction of rotation: The belt should loop in a way that matches the direction of the engine and transmission pulleys.
• Refer to the tensioner system: Most Wright Stander models include an adjustable tensioner. Make sure the belt is routed over the tensioner in the correct orientation for proper tensioning.
• Verify the alignment: The belt should run parallel to the pulleys. Misalignment can cause premature wear.

Double-check the routing once installed to ensure no areas are under excessive strain or misaligned. An incorrectly installed belt may lead to slipping, excessive wear, or even system failure.

Test the system by manually rotating the pulleys before starting the engine. This can confirm that the belt moves smoothly and properly engages with all components.

Steps to Replace a Worn or Broken Drive Belt

To replace a worn or broken drive belt, follow these straightforward steps:

1. Disconnect the Power Source: Always disconnect the power before working on your machine. This prevents accidents and ensures safety during the process.

2. Access the Drive Belt Area: Depending on your model, remove any covers or panels that block access to the drive belt. Use the appropriate tools to avoid damaging any parts.

3. Inspect the Belt: Before removing the old belt, examine it closely for signs of wear, cracking, or other damage. This gives you insight into how it failed and helps you identify any additional parts that might need attention.

4. Remove the Old Belt: Loosen any tensioners or idler pulleys holding the belt in place. Carefully remove the belt by sliding it off the pulleys. Make sure to note the belt’s routing for easy installation of the new one.

5. Install the New Belt: Place the new belt on the pulleys, following the exact routing of the old one. Ensure the belt fits properly and is aligned with the pulleys. Check for any slack in the belt to avoid issues with tension.

6. Adjust Tension: Tighten the tensioner or idler pulley until the belt is taut but not overly tight. The belt should have slight movement but should not be too loose.

7. Reassemble the Machine: Reattach any covers or panels that were removed. Double-check that everything is secured before moving to the next step.

8. Test the Machine: Reconnect the power and test the machine. Run it briefly to ensure the new belt is functioning correctly and the machine is operating smoothly.

Replacing a drive belt is a simple task if you follow these steps carefully. Make sure to use the correct replacement belt for your machine to avoid further issues. Regular maintenance will extend the lifespan of your equipment.

Troubleshooting Misalignment and Slippage Issues

Check the alignment of the drive belt regularly. Misalignment often causes uneven wear and slippage. To verify alignment, observe the position of the pulleys and ensure they are parallel and correctly positioned. Use a straight edge or laser alignment tool to confirm this. If the pulleys are misaligned, adjust them using the appropriate tools. Improper alignment can lead to belt wear, reduced performance, and increased slippage.

If slippage occurs, inspect the tension of the belt. A loose belt won’t provide enough grip and may slip under load. Tighten the belt according to the manufacturer’s specifications. Over-tightening can cause excessive wear on bearings and pulleys, so maintain the recommended tension.

Examine the condition of the belt. Cracks, tears, or glazing on the belt surface can lead to slippage. Replace damaged belts promptly. Additionally, check the pulleys for any wear or damage that could compromise belt grip. If the pulleys are worn down, replace or repair them to restore proper function.

Another potential issue is contamination on the belt or pulleys. Dirt, oil, or grease can cause the belt to slip, even if it’s properly tensioned. Clean both the belt and pulleys using a suitable cleaning agent to remove debris and restore friction.

Lastly, if the drive belt has been replaced recently, ensure you’re using the correct type of belt. An incorrect belt size or material can result in improper tension and misalignment. Refer to the manufacturer’s specifications for the correct belt type and size.
