Troy Bilt Super Bronco Drive Belt Diagram and Installation Guide
Replacing or adjusting the drive belt on your Troy Bilt Super Bronco is straightforward once you have the right diagram to guide you. Knowing the correct routing of the belt helps avoid unnecessary wear and ensures smooth operation. For those unfamiliar with the process, start by locating the belt diagram, usually found on the underside of the mower’s deck or in the user manual. This visual will show you how the belt should wrap around the pulleys and ensure proper tension.
The diagram serves as an invaluable reference for both assembly and troubleshooting. If the belt has slipped or frayed, it’s crucial to follow the diagram to reattach or replace it correctly. Pay close attention to the direction of the belt on each pulley and how it interacts with the engine components. A common mistake is misrouting, which can cause the belt to slip off or wear out faster.
When replacing the belt, take the time to inspect the pulleys for damage. If any are worn or cracked, replace them before installing the new belt. Adjust the tension to match manufacturer specifications to avoid under or over-tightening, both of which can affect the mower’s performance. With a proper belt routing, you’ll maintain your Troy Bilt Super Bronco’s efficiency and extend its lifespan.

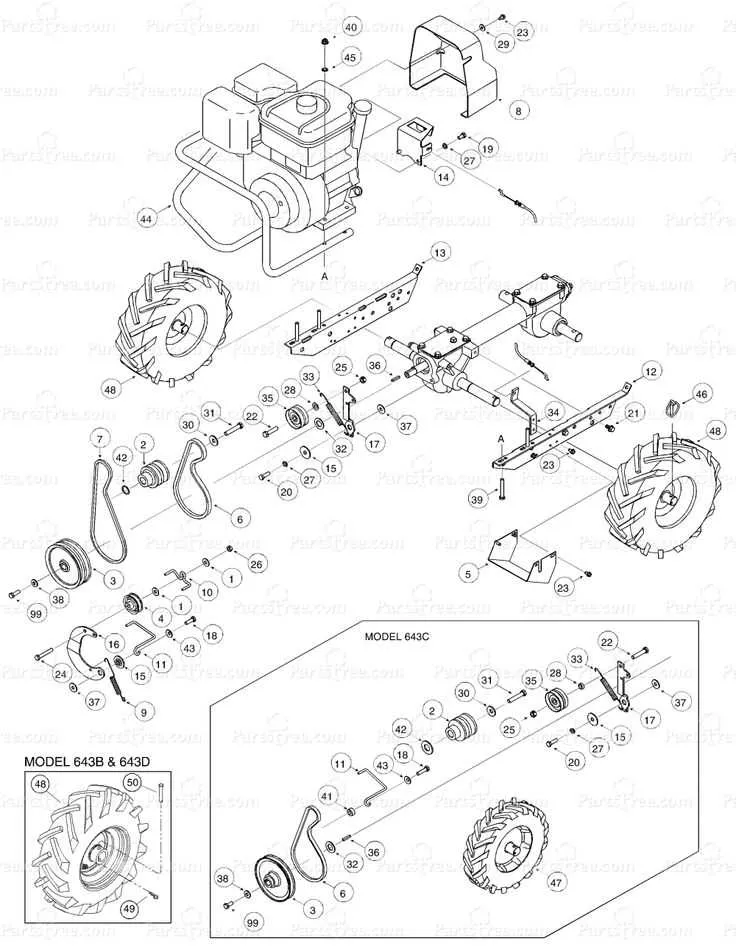

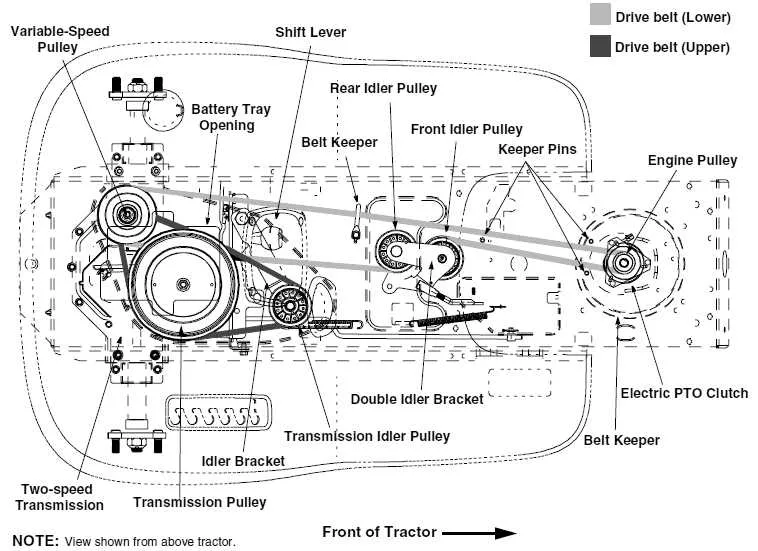

Troy Bilt Super Bronco Drive Belt Diagram
For a seamless operation of your Troy Bilt Super Bronco, having a clear understanding of the drive belt layout is key. The drive belt connects various components of the mower, ensuring smooth power transfer from the engine to the wheels. The belt’s positioning and tension play a major role in its functionality, so it’s vital to follow the correct diagram for replacement or adjustment.
The drive belt on the Super Bronco typically runs from the engine pulley to the transmission pulley, and from there, it engages the wheels. The belt follows a specific routing path, which includes a few key pulleys that guide it through the system. If your mower isn’t moving or you’re experiencing slippage, a misaligned or worn-out belt is often the culprit.
To replace or adjust the belt, follow this step-by-step process:
- Begin by removing the mower deck and any covers that might obstruct access to the belt.
- Locate the tensioner pulley and release any tension by either loosening or removing the mounting bolt.
- Carefully remove the old belt from the pulleys, noting the path it follows for proper reinstallation.
- Install the new belt, following the routing diagram exactly. Ensure the belt sits snugly on all pulleys and the tensioner pulley is properly adjusted.
- Test the mower to confirm the belt is operating correctly, with no slippage or excessive noise.
Checking the drive belt regularly for wear or misalignment can help avoid costly repairs down the line. If you don’t have a diagram, consult your mower’s manual for the specific routing of the drive belt, or find one online tailored to your model.
How to Identify the Correct Drive Belt for Troy Bilt Super Bronco
Check the model number of your Troy Bilt Super Bronco before selecting a drive belt. This ensures compatibility with the correct belt size and specifications. The model number is typically located on the frame or the user manual.
Next, verify the length and width of the existing drive belt. The dimensions are critical to ensure a proper fit. A belt that is too long or too short can cause misalignment and performance issues. Measure the old belt or consult the manual for the manufacturer’s recommended size.
If you are replacing a worn-out belt, look for any markings on the belt itself, such as part numbers or model information. This can provide an accurate reference to find the exact replacement.
It’s also important to consider the material of the drive belt. Most Troy Bilt Super Bronco models use belts made from rubber or similar durable materials designed for heavy-duty use. Ensure the material matches the original to avoid premature wear or failure.
Here’s a quick guide to help you identify the correct belt specifications:
| Model Number | Drive Belt Part Number | Length (inches) | Width (inches) | Material |
|---|---|---|---|---|
| Super Bronco 17.5 HP | 754-04060 | 89.5 | 0.5 | Rubber |
| Super Bronco 20 HP | 754-04060 | 89.5 | 0.5 | Rubber |
| Super Bronco 22 HP | 754-04060 | 89.5 | 0.5 | Rubber |
Consult the Troy Bilt website or your owner’s manual for specific part numbers, as variations in models may require different belt sizes or materials.
Lastly, inspect the belt routing diagram to confirm the correct installation direction. The diagram can usually be found near the engine or in the service manual. Proper alignment prevents damage to both the belt and the engine components.
Step-by-Step Guide to Replacing the Drive Belt on Troy Bilt Super Bronco
Begin by disconnecting the spark plug wire to prevent accidental starts. Raise the front of the mower to provide enough clearance to work underneath it.
Next, remove the deck. Use a wrench to detach the fasteners holding it in place. Once removed, set the deck aside for easy access to the drive belt system.
Locate the drive belt. You will typically find it running along the engine pulley and the transmission pulley. Identify the tension on the belt by pressing gently with your hand. If it’s loose or frayed, it’s time to replace it.
To remove the old belt, carefully release the tension by loosening the idler pulley. The belt will come off the pulleys once it’s no longer under tension. Make a note of the belt’s routing before removing it completely to guide you during the installation of the new belt.
Install the new drive belt by following the same routing as the old one. Ensure the belt sits properly on each pulley, particularly around the engine and transmission pulleys. Double-check that the belt is aligned correctly to avoid future issues.
Once the belt is in place, adjust the idler pulley to apply the correct tension. The belt should be tight enough to avoid slipping, but not overly tight to cause wear. You may need to adjust the tension slightly to achieve optimal performance.
Reattach the deck and secure it with the fasteners you removed earlier. Lower the mower back to its normal position, reconnect the spark plug wire, and test the new belt by starting the mower and engaging the drive.
Common Issues and Troubleshooting Tips for Drive Belts on Troy Bilt Super Bronco
If your Troy Bilt Super Bronco drive belt is malfunctioning, here are some key areas to inspect:
- Belt Slipping: If the belt isn’t gripping properly, check for wear or improper tension. A loose or worn belt can slip off or not engage properly. Adjust the tension or replace the belt if needed.
- Belt Breakage: A broken belt is usually a sign of overuse or a misalignment. Ensure the belt is installed correctly, following the manufacturer’s diagram, and inspect for any signs of damage. Replace the belt if it appears cracked or frayed.
- No Power to Wheels: If the belt is intact but the mower isn’t moving, check for debris buildup in the pulley system. Clean any obstruction, and check the belt for proper routing. Misrouted belts may not engage the drive system properly.
- Excessive Noise: Unusual noises often indicate a misaligned belt or pulley. Inspect the pulleys for debris or wear and ensure the belt is properly routed according to the diagram. Replace worn pulleys if necessary.
- Overheating of the Belt: If the belt feels too hot during operation, this may be caused by excessive friction. Verify the tension settings are correct. Tighten the belt slightly, but avoid over-tightening, which can also cause wear.
Regularly check for these issues to ensure the longevity and smooth performance of your Troy Bilt Super Bronco’s drive system.
