Troy Bilt Mustang 50 Drive Belt Diagram and Maintenance Guide

To replace or maintain the drive belt on your Troy Bilt Mustang 50, it’s important to follow the correct diagram and procedure. Start by ensuring the machine is completely off, and the spark plug is disconnected to avoid any accidents. The drive belt is responsible for transferring power from the engine to the wheels, and any misalignment or wear can cause operational issues.

First, locate the belt diagram for your specific model. It’s often found in the user manual or on a sticker near the engine or mower deck. The diagram will show you how the drive belt should be routed through the various pulleys and components. Make sure to compare the existing setup with the diagram before disassembling anything.

Once you’ve confirmed the correct routing, proceed with removing the old belt by loosening any tensioners. Inspect the pulleys for wear or debris that may have caused belt damage. Replace the belt with a new one, ensuring it follows the diagram precisely for smooth operation.

After installation, check the tension and alignment of the belt. A belt that’s too loose or too tight can cause premature wear. Test the mower in a low gear to verify everything is working as expected. Proper maintenance of the drive belt ensures your Troy Bilt Mustang 50 operates at peak efficiency and minimizes downtime.

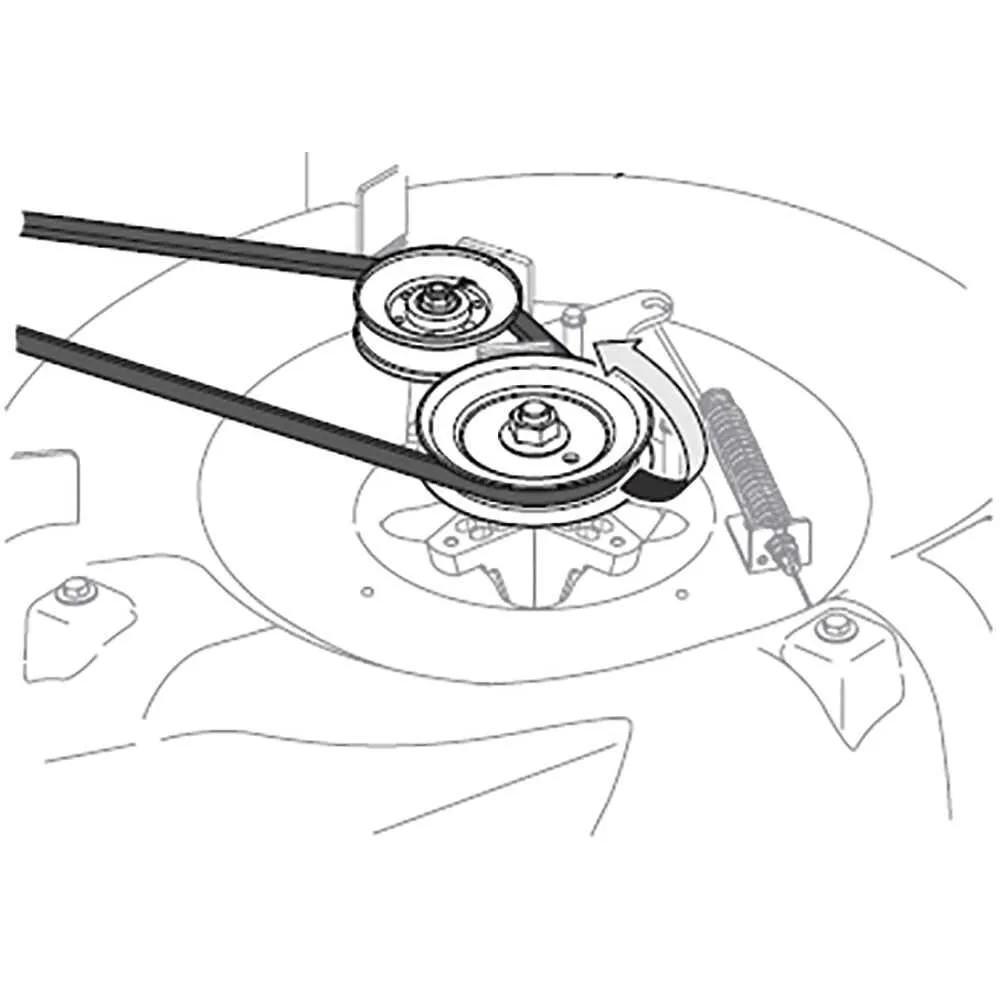

Troy Bilt Mustang 50 Drive Belt Diagram

For a smooth running of your Troy Bilt Mustang 50, the drive belt plays a vital role in transmitting power to the wheels. If you’re experiencing issues with the drive belt, having the correct diagram is key to troubleshooting or replacing it. The diagram helps ensure the belt is properly routed, preventing unnecessary wear and damage.

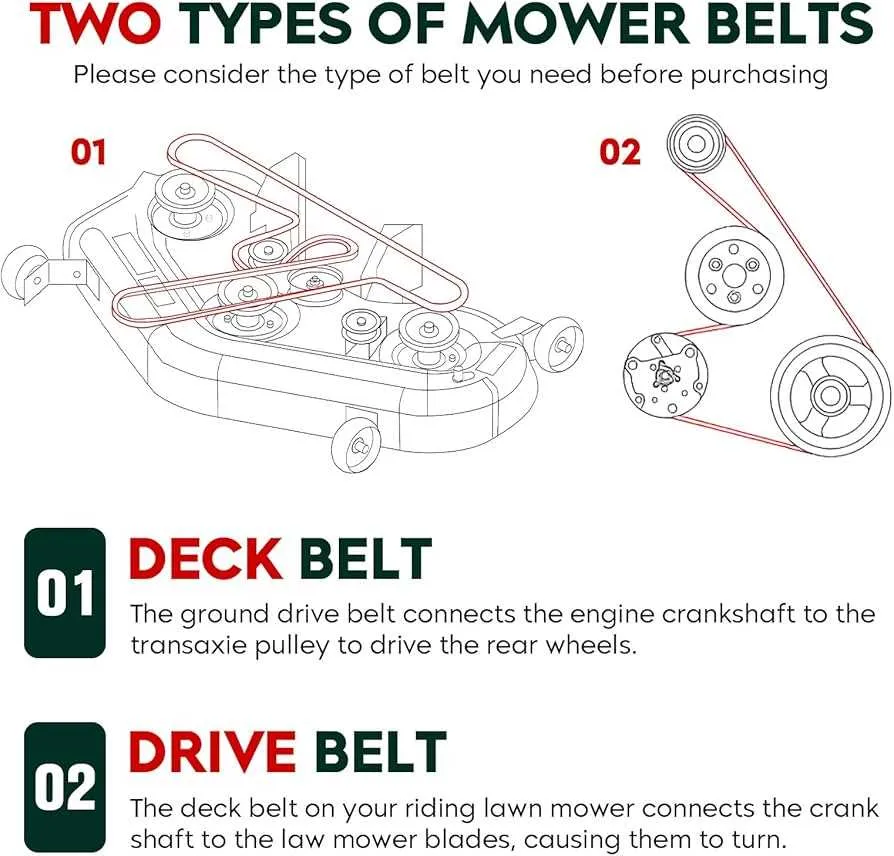

The drive belt is routed through various pulleys on the Mustang 50, starting at the engine and looping around the drive system to the wheels. It’s essential to align the belt in accordance with the diagram for optimal tension and performance. The diagram typically outlines the path for the belt to follow, including how it loops around the engine pulley, idler pulleys, and the transaxle pulley system. Make sure to check the belt tension as outlined in the diagram, ensuring it is neither too loose nor too tight.

If you’re replacing the drive belt, ensure you have the correct replacement part designed for the Mustang 50. A mismatch in belt size can lead to slippage or failure to transmit power. Always check the manufacturer’s recommendations for the specific part number and ensure that the new belt matches the diagram’s specifications.

Consult the Troy Bilt Mustang 50 manual or an online resource for a clear, detailed diagram. Some online resources even offer step-by-step guides for installation or troubleshooting, so don’t hesitate to use them if you’re unsure about the procedure.

How to Identify the Correct Drive Belt for Your Troy Bilt Mustang 50

Check the model and serial number of your Troy Bilt Mustang 50. These numbers are typically located on the chassis, near the seat or under the hood. Make a note of them, as the correct drive belt depends on the model year and specifications.

Next, refer to the owner’s manual for the specific belt size. The manual usually provides the exact belt part number that fits your mower. If the manual is missing, you can find it online by entering your mower’s model number on the Troy Bilt website or other trusted resources.

If you don’t have access to the manual, measure the old drive belt. Measure its length, width, and thickness. The length is the most critical factor, as it directly affects the belt’s fit and functionality. Use a flexible tape measure to ensure accuracy.

Examine the condition of the existing belt. If it is worn or damaged, replacing it with a belt of the same specifications will help maintain optimal performance. Be sure to inspect the grooves and teeth of the belt as well, as different belts feature varying designs suited for specific drive systems.

For exact replacement, consult the model year and manufacturer specifications. Troy Bilt provides a list of compatible replacement parts for each model, ensuring the proper fit and performance. For convenience, belts are also available through local dealerships or authorized parts distributors.

Lastly, when purchasing a new belt, avoid substitutes or generic options that don’t match the required specifications. Using the right drive belt will prevent future issues and keep your mower running smoothly.

Step-by-Step Guide to Installing the Drive Belt on a Troy Bilt Mustang 50

Begin by safely elevating the mower. Use a jack or lifting device to raise the back of the mower for better access to the drive system.

Next, locate the drive belt. It will be on the side of the mower, running from the engine pulley to the transmission pulley. Take note of its routing before removal, as this will guide you during installation.

Remove the old belt by loosening the tension. You may need to release the belt keeper or tensioner spring. Use a wrench to loosen the tensioner, and then slide the belt off the pulleys.

Inspect the pulleys for any wear or debris that could affect performance. Clean any dirt or grass buildup to ensure smooth operation.

Now, install the new drive belt. Begin by placing it around the engine pulley, then route it carefully over the transmission pulley. Follow the same path as the old belt, ensuring it sits securely in the grooves.

Once the belt is in place, adjust the tensioner to ensure the correct tension. The belt should be tight but not overly stretched. Verify that it sits properly on all pulleys, with no slack or misalignment.

Recheck the routing and make sure everything is secure. Tighten any fasteners or components that may have been loosened during the process.

Finally, lower the mower and test the drive system. Start the engine and engage the drive. Listen for any unusual noises and confirm that the belt is functioning properly.

Common Issues with the Drive Belt and How to Troubleshoot Them

If your Troy Bilt Mustang 50 drive belt isn’t working properly, it’s usually due to a few common issues that are easy to identify and fix. Here are the most frequent problems and solutions:

• Belt Slipping or Squealing: This usually happens when the belt is too loose or worn. Check for any visible signs of damage like cracks or fraying. If the belt looks fine but still slips, adjust the tension according to the user manual or replace the belt if it’s excessively worn.
• Belt Breakage: A snapped belt is often a result of excessive wear, misalignment, or debris caught in the pulley system. Inspect both the belt and the pulleys for signs of misalignment or damage. Clear away any debris and replace the belt if needed. Ensure the new belt is properly installed and aligned with the pulleys.
• Stretched Belt: Over time, belts stretch and lose their effectiveness. If your belt has become loose or isn’t gripping the pulleys correctly, replace it. Check the belt tension regularly to avoid this issue.
• Belt Alignment: Misalignment can cause uneven wear and decrease performance. Check if the pulleys are aligned and parallel to each other. If they are off-center, adjust or replace the misaligned pulley to prevent further damage to the belt.
• Debris in Pulley System: Dirt, grass, and other debris can clog the pulleys, causing the belt to slip or break. Regularly clean the area around the pulleys and remove any debris that might be obstructing the system. This will extend the life of your belt and improve performance.

By identifying and addressing these issues, you can keep your Troy Bilt Mustang 50 running smoothly and avoid unnecessary repairs.
