Troy Bilt Mustang 42 Drive Belt Diagram and Installation Guide

To ensure your Troy Bilt Mustang 42 operates smoothly, it’s critical to understand the drive belt configuration. The drive belt is responsible for transferring power from the engine to other components, like the wheels and blades. If your mower isn’t functioning properly, one of the first places to check is the belt system. A faulty or misaligned belt can cause major performance issues.

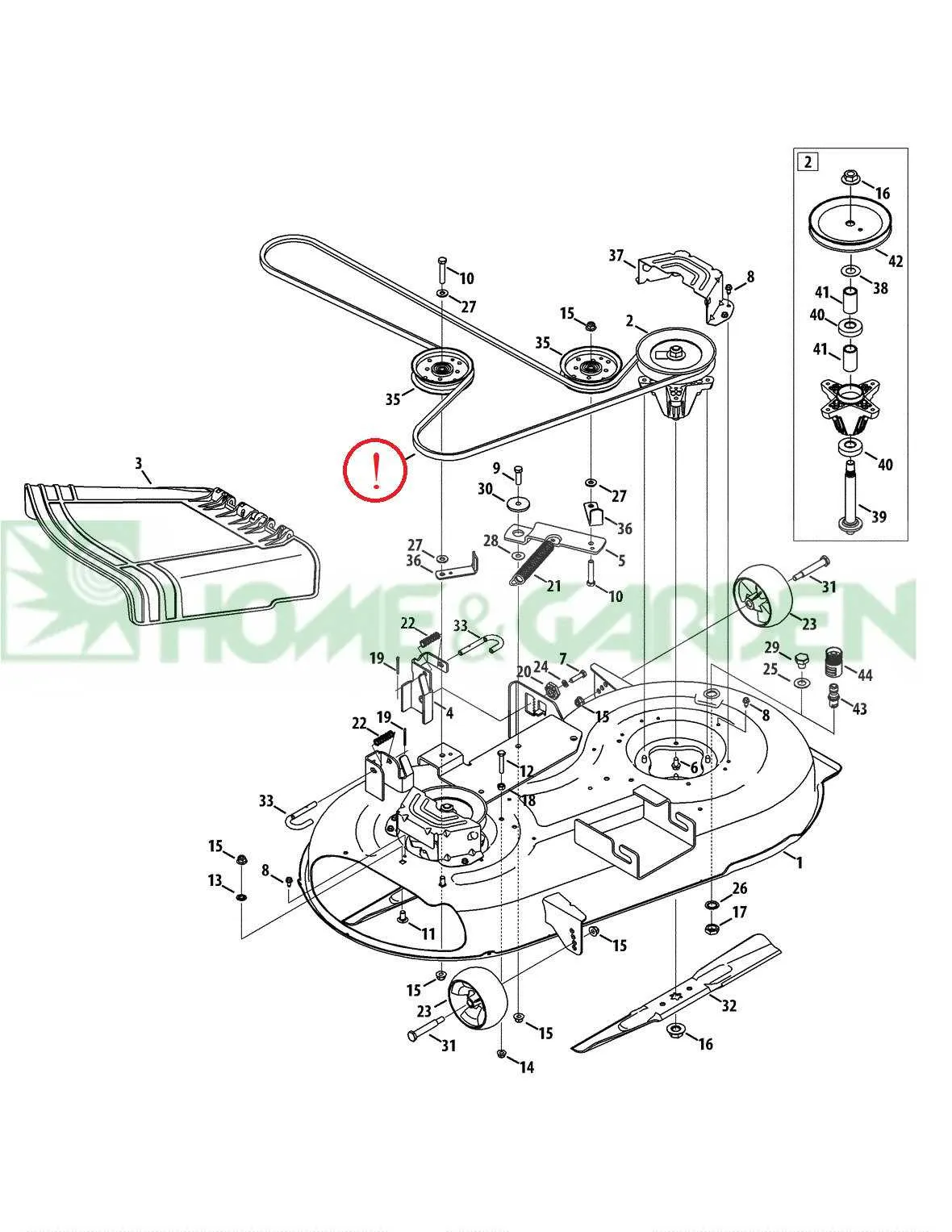

The diagram of the drive belt provides a clear visual of how the belt should be routed through the mower. This visual guide can help you identify potential problems such as wear, tear, or incorrect installation. If the belt is worn or damaged, it must be replaced immediately to avoid further damage to other parts.

Before replacing the belt, ensure you have the right tools and the replacement belt that matches the specifications for the Troy Bilt Mustang 42. The belt routing is crucial for the proper operation of your mower, so be sure to follow the diagram closely when installing the new belt.

If you’re unsure about the installation, consult the manufacturer’s manual or watch tutorial videos to make the process smoother. By following the diagram and using the right parts, you can keep your mower running efficiently for years to come.

Troy Bilt Mustang 42 Drive Belt Diagram

For replacing the drive belt on a Troy Bilt Mustang 42, it’s important to follow the correct routing steps to ensure smooth operation. The drive belt is crucial for transmitting power from the engine to the wheels, so any misalignment can cause performance issues.

Begin by raising the mower deck to its highest position. This will give you better access to the components underneath. Use a socket wrench to remove the bolts securing the belt guard, and then carefully slide the old belt out of place.

When installing the new drive belt, ensure that the flat side of the belt faces the pulleys. This helps maintain proper tension and ensures that the belt remains in place during operation. Check the diagram in your manual to match the exact routing path for the belt around the engine and pulleys.

After positioning the belt, manually rotate the pulleys to check if the belt moves freely without any obstructions. If everything seems in order, secure the belt guard back into place and test the mower to confirm that the belt is functioning correctly.

Regularly inspect the belt for signs of wear and replace it when necessary. Proper maintenance can extend the lifespan of your mower and prevent unnecessary repairs.

Understanding the Components of the Troy Bilt Mustang 42 Drive Belt System

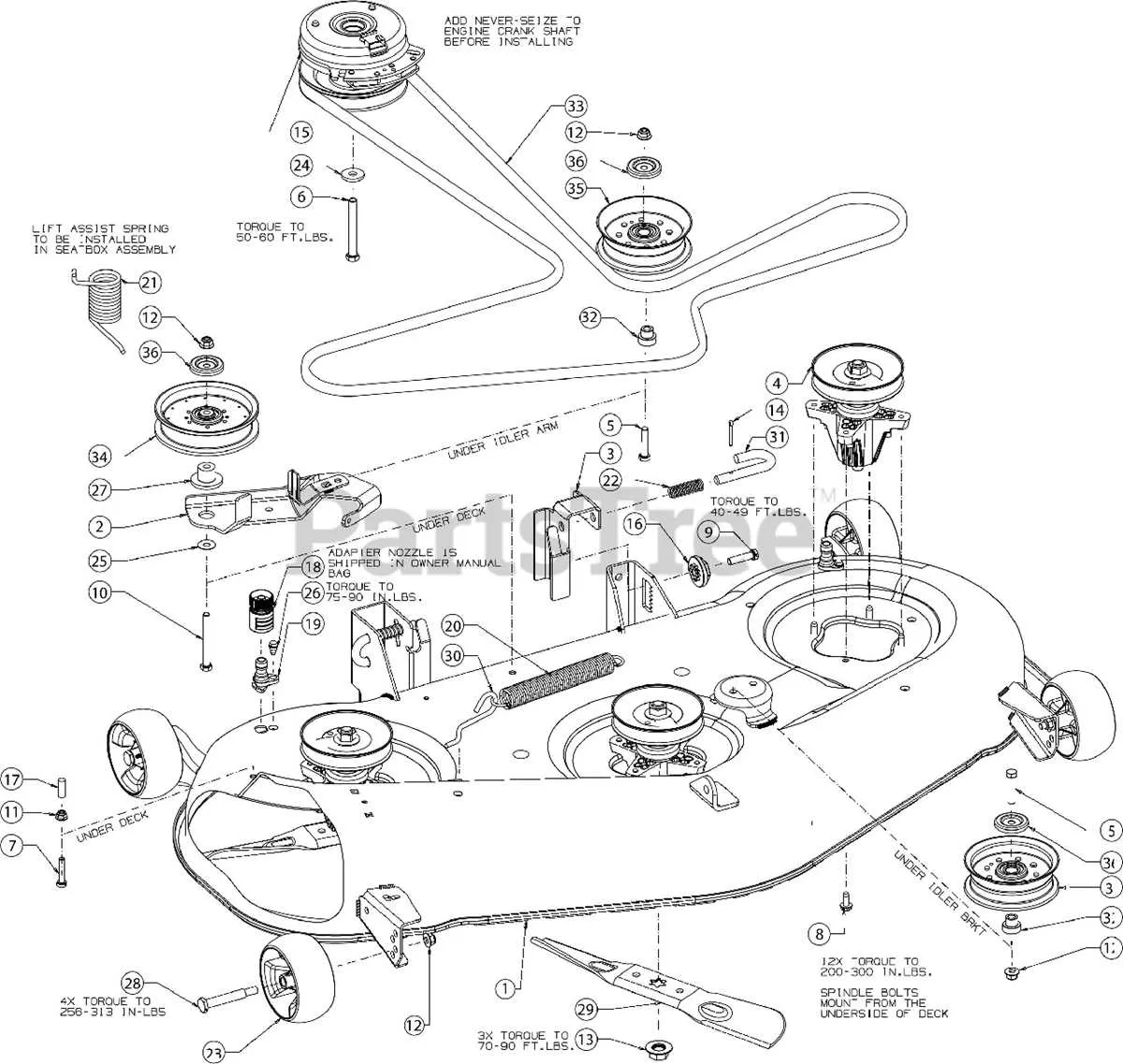

The Troy Bilt Mustang 42 drive belt system consists of several key components that work together to transfer power from the engine to the mower’s cutting blades and other moving parts. The drive belt itself is the core element, ensuring smooth operation and power transmission.

The engine pulley plays a crucial role by rotating the belt, which then moves the belt around the idler pulleys and other components. Idler pulleys maintain proper tension on the drive belt, preventing it from slipping and ensuring optimal performance. The tensioner pulley, typically located near the engine, adjusts the tension as needed during operation.

The drive belt connects to the transmission, transferring power to the wheels and other parts of the mower. Ensuring that the belt remains intact and properly routed is vital for the mower’s functionality. Regular checks for wear, proper alignment, and tension adjustments will extend the lifespan of the belt and improve the overall efficiency of the system.

Replacing worn-out components like the pulleys or the belt itself will help avoid potential malfunctions and improve the performance of the Troy Bilt Mustang 42 mower. Always refer to the manufacturer’s guide for specific maintenance instructions.

Step-by-Step Guide to Replacing the Drive Belt on Troy Bilt Mustang 42

Start by securing the Troy Bilt Mustang 42 on a flat, stable surface. Engage the parking brake to prevent any movement during the replacement process.

Next, remove the mower deck to access the drive belt system. Use a socket wrench to loosen and remove the bolts securing the deck. Once the bolts are removed, carefully slide the deck out from under the mower.

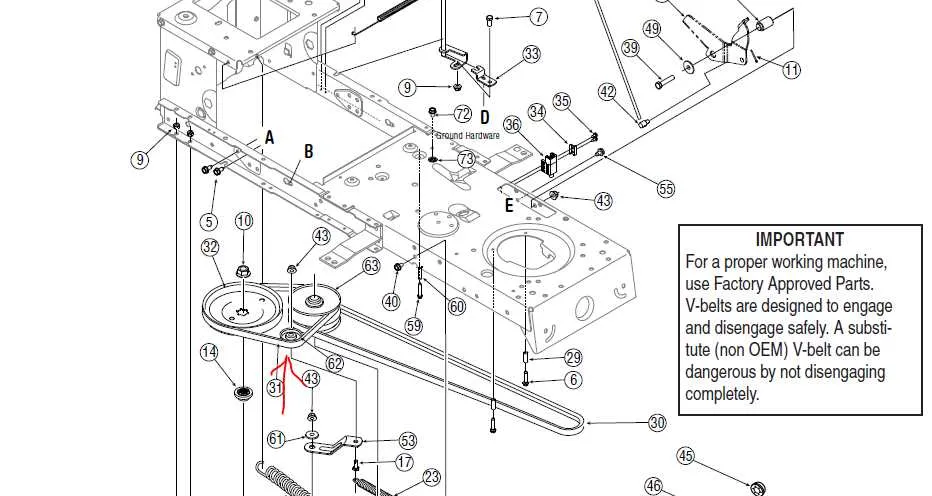

Locate the drive belt. It typically runs from the engine pulley to the rear axle pulley. Identify any tension on the belt by checking its position and alignment. Release any tension by loosening the tensioning mechanism or removing the spring, depending on your model.

Now, carefully slide the old belt off the pulleys. It may require some maneuvering to get the belt free, especially if it’s worn or twisted. Take note of the routing pattern of the belt for reference when installing the new one.

Prepare the new belt by ensuring it matches the correct size for your Troy Bilt Mustang 42. Compare it with the old belt to confirm it is the right fit.

Install the new belt by following the same routing pattern as the old one. Start by placing it over the pulleys, ensuring it sits properly in each groove. Be careful not to twist or kink the belt during installation.

Once the belt is in place, reapply tension to the system. Tighten the tensioner or reattach the spring to ensure the belt is taut but not overly stretched.

Reinstall the mower deck by sliding it back under the mower and securing it with the previously removed bolts. Ensure the deck is aligned properly and all bolts are tightened securely.

Finally, test the new belt by starting the mower and engaging the drive system. Check for any unusual noises or slipping, and adjust the tension if necessary.

Common Issues with the Drive Belt and How to Troubleshoot Them

If your Troy Bilt Mustang 42 drive belt is slipping, first check for wear on the belt. Friction, dirt, or even misalignment can cause this issue. Inspect the belt for cracks or fraying. If any damage is found, replace the belt to restore optimal performance.

A common issue is a noisy drive belt. This noise is often due to improper tension or a misaligned pulley. To fix this, check the belt tension. It should be tight enough to allow proper function without being overly tight, which could lead to additional wear.

Another frequent problem is belt breaking. This could happen if the belt is too old or damaged. Always inspect the belt’s condition and replace it if you notice significant wear. Be sure to also check that all pulleys are correctly aligned and that no debris is obstructing their movement.

Difficulty with engagement or disengagement of the drive system may indicate a problem with the belt’s routing or an issue with the drive system’s spring tension. Ensure the belt is routed according to the manufacturer’s diagram and adjust the spring tension as needed to allow smooth operation.

If the drive belt seems to be slipping or not engaging properly, check for misalignment of the pulleys or an issue with the belt’s tensioning mechanism. Realign the pulleys or adjust the tension to restore proper function.

Regular maintenance of the drive belt, such as cleaning and ensuring proper tension, will prevent most of these issues from occurring. If problems persist, replacing the belt or consulting a professional may be necessary.
