Troy Bilt LTX 1842 Drive Belt Diagram and Replacement Guide

Check the drive belt of your Troy Bilt LTX 1842 regularly to maintain optimal performance. If the belt becomes worn or misaligned, it can affect the mower’s operation, leading to uneven cutting or even mechanical failure. Refer to the drive belt diagram to ensure the belt is correctly routed and in good condition.

The diagram provides a visual guide for identifying the proper placement of the belt around key pulleys. Pay close attention to the routing around the engine and transmission pulleys, as these are critical to the movement and function of the mower. If the belt appears frayed or damaged, replace it immediately to avoid further complications.

Use the diagram to verify that the belt tension is correct. Too much slack can lead to slipping, while excessive tension can strain the mower’s components. A properly adjusted belt ensures smooth operation, reduces wear on the mower, and extends the lifespan of your equipment.

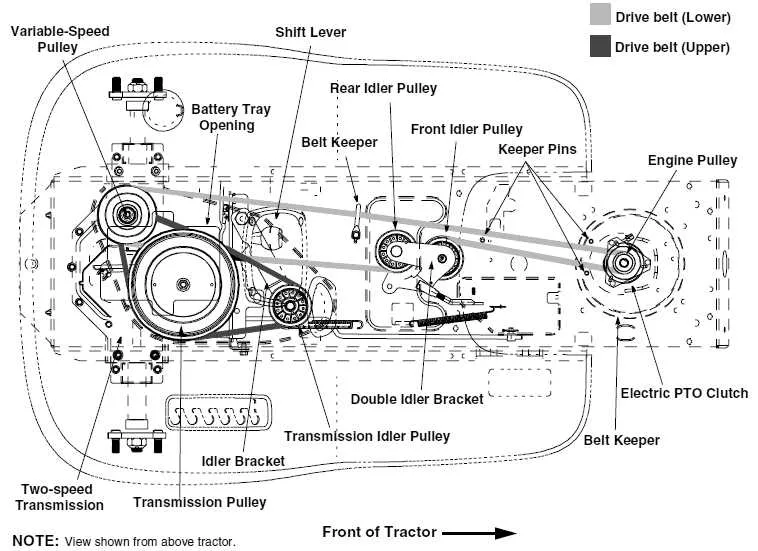

Troy Bilt LTX 1842 Drive Belt Diagram

To properly maintain and repair the drive belt on your Troy Bilt LTX 1842, refer to the detailed diagram to understand how the components interact. The drive belt connects various parts, including the engine, transmission, and pulleys, to ensure smooth operation of the mower.

Start by identifying the position of the drive belt on the diagram. The drive belt runs from the engine pulley to the transmission pulley, passing over the deck pulleys and other components. Pay close attention to the direction of the belt path, as improper routing can lead to issues with performance or even damage to the components.

When replacing the drive belt, ensure that it is installed with the correct tension. A loose or improperly tensioned belt can slip, leading to inefficient power transfer and potential overheating. Check the diagram for the correct routing and belt placement before proceeding with the replacement.

It is important to use the correct replacement belt. Refer to the manufacturer’s specifications for belt size and type to ensure optimal performance. Using an incorrect belt may result in malfunction or excessive wear on the drive components.

Lastly, after installation, manually rotate the pulleys to confirm that the belt moves freely without obstruction. Check for any signs of wear, such as fraying or cracks, and replace the belt immediately if necessary to avoid further damage to the system.

How to Identify the Correct Drive Belt for Troy Bilt LTX 1842

Check the model number on your Troy Bilt LTX 1842 mower. This is usually located on a label near the engine or the frame. Knowing your exact model number helps ensure you select the right replacement belt. The drive belt for the LTX 1842 is designed to handle specific tension and length requirements to ensure optimal performance.

Consult the owner’s manual for belt specifications. The manual provides the part number and detailed measurements, such as the width and length of the correct drive belt. If you no longer have the manual, these details can often be found online or by contacting the manufacturer.

Examine the existing belt for any visible damage or wear, which could affect the belt’s performance. Look for cracks, fraying, or elongation. If the old belt is damaged, it’s a good indicator that you need to replace it with an exact match to prevent further issues with your mower’s functionality.

Use a measuring tape to check the length of the old belt, especially if you are unsure about the belt’s specifications. Measure from end to end along the inside of the belt’s loop. Compare this with the dimensions listed in the manual to ensure compatibility.

If you’re still uncertain, visit a local parts dealer or authorized Troy Bilt service center. They can help you identify the correct drive belt based on your mower’s model and serial number.

Step-by-Step Guide to Replacing the Drive Belt on Troy Bilt LTX 1842

Begin by safely parking your Troy Bilt LTX 1842 on a flat surface. Turn off the engine and remove the ignition key to prevent any accidental starting.

Next, lift the rear of the mower to access the deck. Use a jack or lift if needed for easier access. Secure the mower in place to avoid any shifting during the process.

Remove the deck by loosening the bolts that secure it. This will provide better access to the drive belt system. Keep track of the hardware, as you’ll need it later to reassemble the deck.

Locate the drive belt tensioner. Use a wrench or socket to release the tension by turning the tensioner pulley. Once the tension is released, remove the belt from the pulleys and idlers.

Inspect the belt for wear or damage. If it shows signs of fraying, cracks, or significant stretching, it should be replaced. Choose a replacement belt that matches the exact specifications for the Troy Bilt LTX 1842 model.

Install the new drive belt by threading it through the pulleys in the reverse order of removal. Ensure that it sits correctly in the grooves of each pulley and idler. Pay attention to the direction of the belt as per the manufacturer’s diagram.

Reapply tension to the drive belt by using the tensioner pulley. Make sure the belt is tight and sits properly in all pulleys.

Reattach the mower deck and secure it with the bolts you removed earlier. Tighten them evenly to ensure the deck is aligned correctly.

Lower the rear of the mower and check the belt’s alignment and tension before starting the mower. Ensure everything is securely in place.

Finally, start the engine and test the mower. Make sure the drive belt operates smoothly and that the mower is functioning correctly without any unusual noises or movement.

Common Issues with Troy Bilt LTX 1842 Drive Belt and How to Fix Them

Drive belt slipping is a frequent issue with the Troy Bilt LTX 1842. This typically happens when the belt becomes loose or worn. To fix this, check the tension of the belt. If it’s too loose, adjust the tensioner or replace the belt if it’s frayed or cracked.

Another common problem is the belt snapping. This can occur due to wear and tear, or when the belt is improperly aligned. To avoid this, inspect the belt regularly for signs of wear, ensure it’s properly routed according to the diagram, and replace it when necessary.

If the mower is making unusual noises, such as squealing or grinding, it might be a sign of a misaligned or damaged belt. Check the belt routing and pulleys. Realign or replace any damaged components to prevent further damage to the belt or other parts.

• Check for Belt Wear: Inspect the belt for any signs of fraying, cracking, or excessive wear. Replace it if necessary.
• Adjust Belt Tension: If the belt is too loose, adjust the tensioner to ensure proper tension. A loose belt will not transfer power efficiently, leading to poor performance.
• Inspect Pulleys: Make sure all pulleys are properly aligned and not damaged. Misaligned pulleys can cause excessive wear on the belt.
• Replace the Belt: If the belt shows significant signs of wear or damage, replace it immediately to prevent further issues. Always use the correct replacement belt as per the manufacturer’s specifications.

To prevent belt issues in the future, perform regular maintenance checks. Tighten bolts, lubricate pulleys, and ensure the belt is clean and properly aligned. Taking these steps can help extend the life of your Troy Bilt LTX 1842 drive belt and keep your mower running smoothly.
