Toro Timecutter MX5000 Drive Belt Diagram and Installation Guide

If you’re experiencing issues with your Toro TimeCutter MX5000 drive belt, or simply need a clear reference for maintenance, this diagram will guide you through the exact layout and steps for proper installation. A well-maintained drive belt ensures your mower operates smoothly, without unnecessary wear or breakdowns. Knowing the correct path for your belt and how each component fits together will save you time and frustration during repairs.

The diagram below provides a detailed view of the drive belt routing system. Follow the marked lines carefully to avoid misalignment. For accurate installation, ensure the belt is the right size for your model. Check the tension and adjust as necessary to maintain proper functionality. Regular inspection of the belt’s condition–looking for cracks, fraying, or signs of wear–can prevent future issues and keep your mower running at its best.

For the best results, refer to your Toro TimeCutter MX5000 owner’s manual for any additional model-specific adjustments. If you notice significant wear or damage to the belt, replacing it promptly will prevent further damage to other components. Make sure to take all safety precautions, including turning off the engine and disconnecting the battery before beginning any maintenance tasks.

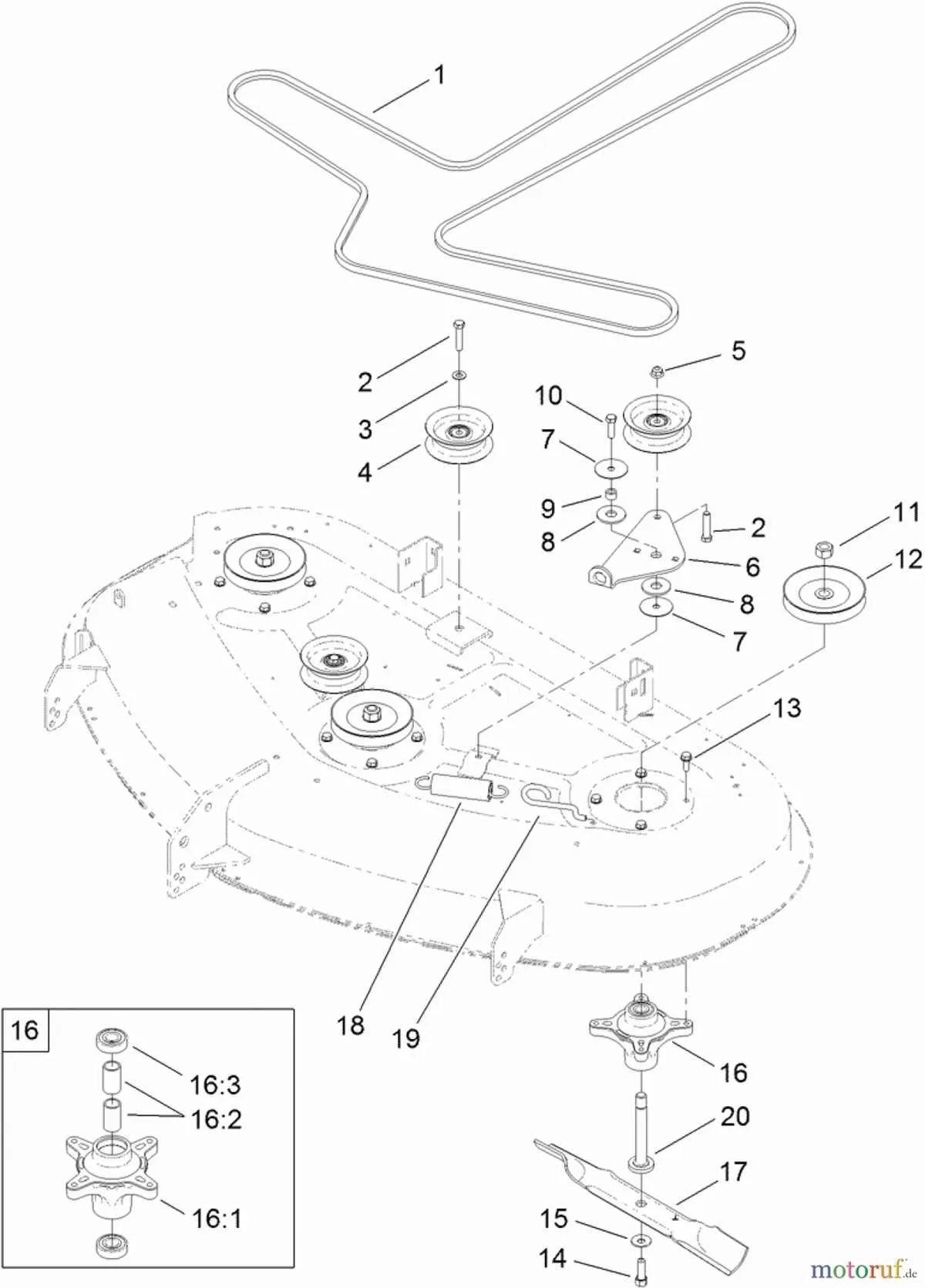

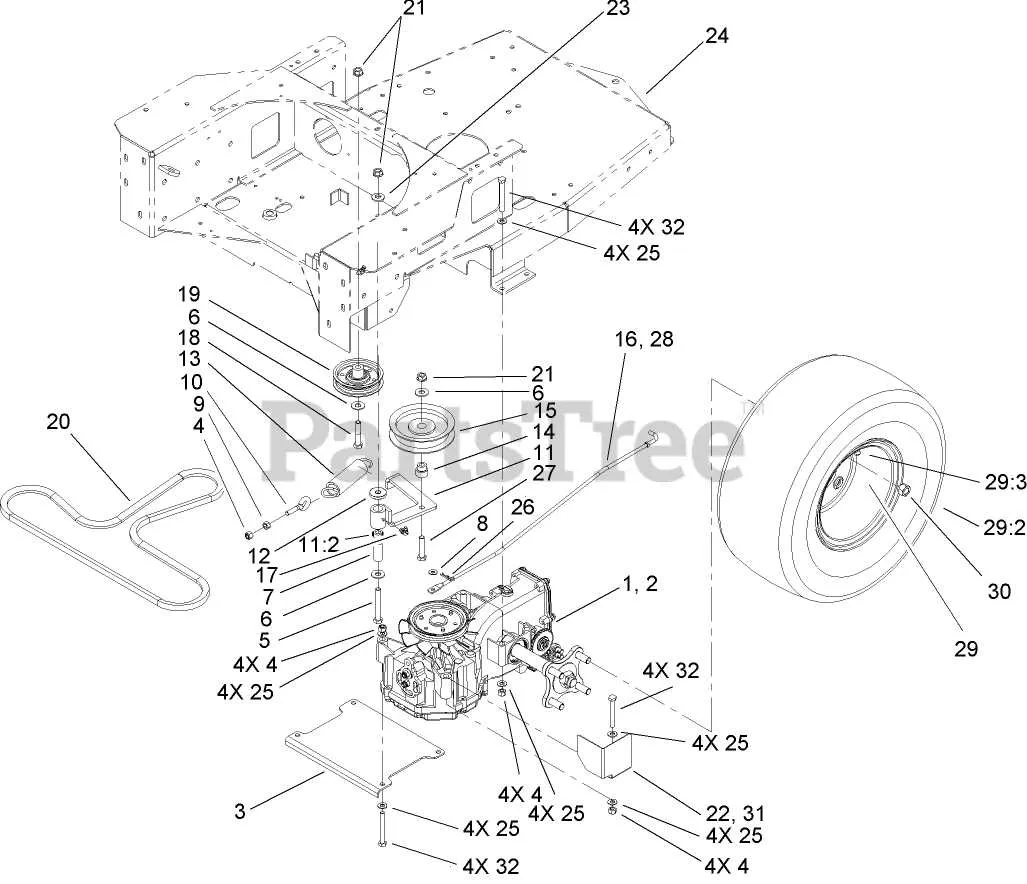

Toro Timecutter MX5000 Drive Belt Diagram

To replace or inspect the drive belt on your Toro Timecutter MX5000, follow this straightforward guide using the belt diagram for accurate positioning. The diagram shows the belt routing between the engine, pulleys, and spindles. Start by removing the mower deck to gain access to the belt system. The drive belt runs from the engine pulley to the transmission pulley, guiding power to the mower’s cutting mechanism.

Inspect the routing carefully, making sure the belt runs smoothly over each pulley, with no twists. The tension of the belt is important for smooth operation–too loose, and the mower will lack power; too tight, and it may wear out prematurely. If you are replacing the belt, ensure the new one matches the dimensions of the original, typically found in the owner’s manual or on the manufacturer’s website.

Once the belt is properly routed, check the alignment of all pulleys to avoid any misalignment that could cause excessive wear or damage. Reassemble the deck, double-check the tension, and test the mower to ensure everything functions as expected. Regularly inspect the belt for signs of wear, and replace it when necessary to keep your mower running at peak performance.

How to Identify the Correct Drive Belt for Toro Timecutter MX5000

To find the right drive belt for your Toro Timecutter MX5000, follow these steps:

• Check the Model Number: Start by locating the model number of your Toro Timecutter MX5000, usually found on the frame or the owner’s manual. This will help you find the exact belt specification for your mower.
• Consult the Manual: The user manual provides the exact part number for the drive belt. If you don’t have it, you can often find a PDF version online by searching for your model.
• Measure the Belt: If you’re replacing an old belt, measure its length and width. The correct belt size is crucial for optimal performance. Check the manual for the exact dimensions.
• Check the Belt Type: There are two common types of belts for the Timecutter MX5000: the main drive belt and the deck drive belt. Be sure to identify which one needs replacing.
• Look for Manufacturer Recommendations: Toro recommends using OEM (Original Equipment Manufacturer) belts for best results. Aftermarket belts may not have the same durability or fit.

Once you’ve gathered this information, you can search online or visit a Toro dealer to find the exact replacement belt. Avoid generic belts to ensure compatibility and longevity.

Step-by-Step Guide to Replacing the Drive Belt on the Toro Timecutter MX5000

First, disconnect the battery to ensure safety while working on your Toro Timecutter MX5000.

Next, lift the mower deck using the lift lever to give yourself more space to work. Use a jack to stabilize the machine if necessary.

Locate the drive belt. You will find it running from the engine pulley to the transmission pulley. Make sure to carefully note the belt’s routing before removal to assist with the installation of the new one.

Loosen the tension on the drive belt by adjusting the idler pulley. Use a wrench to rotate the idler arm and relieve the pressure on the belt.

Remove the old drive belt from the pulleys. Depending on your model, you may need to remove additional components like the deck drive pulley or shields to fully free the belt.

Before installing the new belt, compare it with the old one to ensure it is the correct replacement part. Check the size and number of grooves to confirm compatibility.

Place the new belt onto the pulleys, following the original routing pattern you observed earlier. Start by threading the belt around the engine pulley, then around the transmission pulley, ensuring it sits properly in the grooves.

Once the belt is positioned, rotate the idler pulley back to its original position to apply tension to the belt. Double-check that the belt is aligned and properly tensioned.

Reassemble any components you had to remove and lower the mower deck back into position.

Finally, reconnect the battery and test the mower by starting it up and engaging the drive system to ensure the belt is functioning correctly.

Troubleshooting Common Drive Belt Issues on the Toro Timecutter MX5000

Inspect the drive belt for visible wear and tear. Look for cracks, fraying, or signs of stretching. A worn belt may cause slipping, leading to decreased performance or failure to engage the mower’s drive system.

If the mower isn’t moving or the belt is slipping, check the belt tension. A loose belt can cause poor power transfer. Adjust the tension according to the manufacturer’s guidelines, ensuring it is snug but not overly tight. Excess tension can also lead to premature wear on the belt and pulleys.

Examine the pulleys for damage or misalignment. A misaligned pulley can cause the belt to wear unevenly or get damaged. Spin the pulleys by hand to ensure they turn smoothly without resistance. If they’re damaged or seized, replace them immediately.

Inspect the belt guide and frame for debris. Grass, dirt, or objects can clog the belt path, restricting movement. Clean the area regularly and make sure nothing obstructs the belt’s operation.

If the belt keeps slipping despite these checks, the issue might be with the idler pulley. The idler pulley keeps the correct belt tension. A worn or malfunctioning idler pulley could be the cause of insufficient tension. Replace it if necessary.

Lastly, always use the correct replacement belt as specified in the manual. Using the wrong size or type of belt can lead to improper fit and reduced mower performance.
