LTX 1040 Drive Belt Diagram and Installation Guide
The LTX 1040 drive belt system plays a key role in maintaining the performance and efficiency of your mower. If you’re replacing or adjusting the drive belt, the diagram is your best reference to ensure everything is aligned properly. Take a close look at the belt routing to prevent common issues such as improper tension or misalignment that can lead to belt wear or malfunction.
Locate the correct drive belt diagram for your model. It will show exactly where each part of the belt needs to go, highlighting the path across pulleys, idlers, and other components. Follow this diagram closely to avoid mistakes during reassembly.
Once you’ve consulted the diagram, check for wear and tear on both the belt and the pulleys. A worn-out belt can cause slippage and decrease performance. Make sure all components are clean and free from debris, and ensure the belt has the right tension to function smoothly.

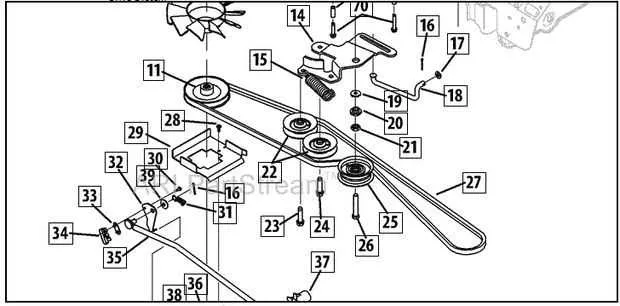

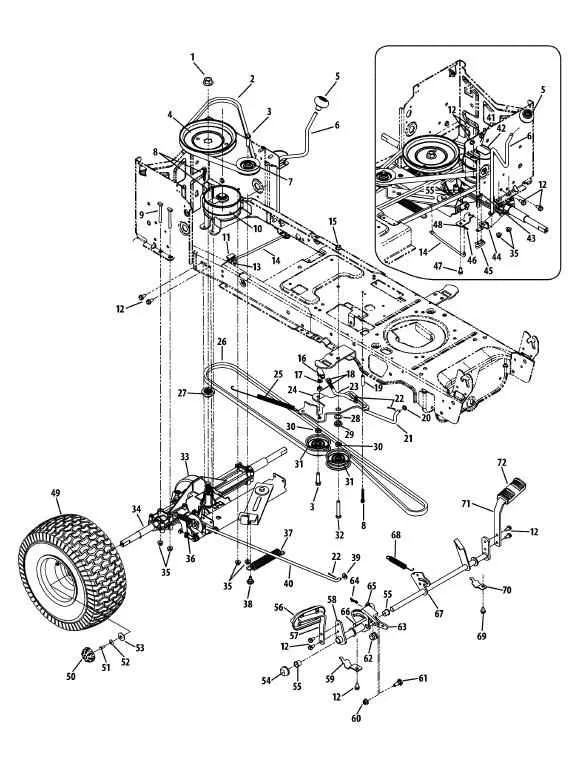

Ltx 1040 Drive Belt Diagram
The Ltx 1040 drive belt diagram is an essential reference for correctly installing or replacing the drive belt on your mower. Follow the visual guide carefully to ensure that the belt is routed through the correct pulleys and components.
Start by ensuring that the mower is turned off and the battery is disconnected to avoid any accidental starts. You’ll need to raise the deck and remove any covers or shields blocking access to the belt system. Once visible, take note of the specific routing directions in the diagram, paying attention to the path the belt follows through the engine and pulleys.
Check the tension of the belt once installed. It should be tight enough to prevent slipping, but not overly tight to avoid unnecessary strain on the system. Regular maintenance, including periodic inspections of the belt for wear, is crucial to maintaining the mower’s performance.
If the belt shows signs of damage or excessive wear, replace it promptly with a manufacturer-approved part. Refer to the diagram to confirm that you have installed the new belt in the correct position to avoid damaging the mower’s internal components.
Step-by-Step Instructions for Installing the Drive Belt on Ltx 1040
First, ensure the mower is on a stable, flat surface and the engine is off. Disconnect the spark plug to prevent accidental starting.
Remove the mower deck by loosening the bolts and sliding it out. This will give you better access to the drive belt area.
Locate the drive belt in the front of the mower under the deck. Take note of how it is routed around the pulleys before removing it. It’s helpful to take a picture or refer to the Ltx 1040 drive belt diagram for reference.
Loosen the tension on the belt by moving the tensioner pulley. You can do this by either loosening its mounting bolt or using a wrench to push it away from the belt.
Carefully remove the old drive belt from the pulleys. If the belt is stuck, gently work it out of place, avoiding damage to the components.
Take the new drive belt and route it over the pulleys following the exact same path as the old one. Make sure the belt sits properly in each pulley groove to ensure smooth operation.
Once the belt is in place, release the tensioner pulley to apply tension to the belt. Double-check that the belt is secure and the tension is correct.
Reassemble the mower deck and tighten all the bolts securely. Reconnect the spark plug.
Start the engine and test the drive system. Ensure the belt runs smoothly without slipping or making unusual noises. If everything is functioning correctly, you’re done!
Common Issues and Troubleshooting Tips for Ltx 1040 Drive Belt
If your Ltx 1040 drive belt isn’t functioning correctly, follow these troubleshooting steps to identify and fix common problems.
- Slipping Belt: If the belt slips, check for proper tension. Over time, the belt may stretch or wear out, reducing tension. Tighten the belt or replace it if necessary.
- Frayed or Worn Belt: Inspect the belt for signs of wear, fraying, or cracks. If the belt is damaged, it’s time to replace it with a new one to ensure smooth operation.
- Noisy Operation: Unusual noise may indicate misalignment or a worn-out pulley. Check the pulleys for any damage or debris, and realign or clean them as needed.
- Drive Belt Not Engaging: If the belt doesn’t engage properly, inspect the clutch mechanism. A faulty clutch can prevent proper tension from being applied to the belt, requiring replacement or adjustment.
- Overheating Belt: An overheating belt often results from excessive friction. Ensure the belt is correctly tensioned and the pulleys are aligned. Also, check the engine for overheating, as this can impact the belt’s performance.
Addressing these issues early can save you time and prevent further damage to your Ltx 1040 drive belt system.
How to Identify Wear and Tear on the Ltx 1040 Drive Belt
Check for visible cracks or fraying along the length of the drive belt. Even small signs of damage can affect the belt’s performance. If you spot any noticeable tears or splits, replace the belt immediately to prevent further damage.
Inspect the belt’s tension. A loose or sagging belt can lead to inefficient operation. Gently press the belt in the middle; it should have some resistance but not be overly tight. If the belt is too loose, adjust the tension or replace the belt if it has lost its elasticity.
Look for signs of glazing. A shiny, smooth surface on the belt usually indicates it has been slipping. This can cause overheating and further deterioration of the belt. If the belt feels smooth to the touch, consider replacing it to maintain optimal performance.
Check for any misalignment of the belt. If the belt is not running in a straight line along the pulleys, it can wear unevenly. Misalignment can lead to excessive wear, noise, and reduced functionality, so make sure the belt is aligned properly and the pulleys are in good condition.
Listen for unusual noises during operation. A squealing or screeching sound often signals a problem with the drive belt. If these sounds persist, inspect the belt for signs of excessive wear, and replace it if necessary.
