Kubota Z121S Drive Belt Diagram and Installation Guide

The Kubota Z121S drive belt diagram is a straightforward tool for understanding the proper routing and placement of the belts in your mower. Having the correct diagram helps prevent misalignments, belt wear, and ensures the mower operates smoothly for longer periods.

Before you start, gather the necessary tools: a wrench set, a socket driver, and your Kubota Z121S owner’s manual. Referencing the diagram regularly can save you time when servicing or replacing the drive belt, as it highlights the correct belt path and tension points.

The diagram provides clarity on how the drive belt connects key components like the engine, transaxle, and deck pulleys. Correct belt placement not only optimizes performance but also reduces unnecessary wear. If you’re replacing the belt, make sure to inspect pulleys and other moving parts for signs of damage or wear.

In case the diagram is unclear or difficult to read, double-check the belt size and specifications listed in the owner’s manual. A mismatched belt can lead to decreased efficiency or mechanical failure, so always ensure compatibility with the manufacturer’s specifications.

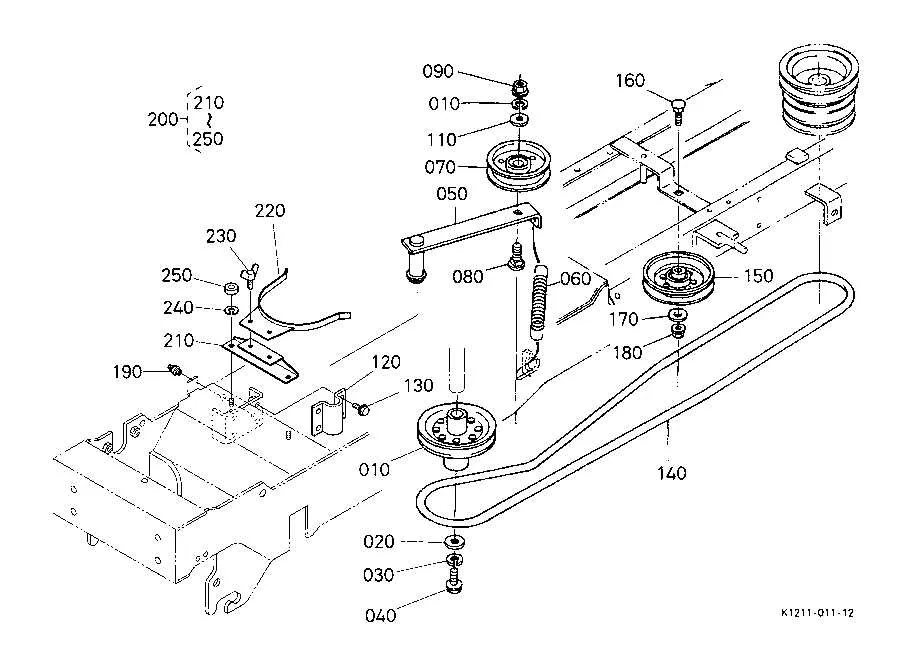

Kubota Z121S Drive Belt Diagram

To replace or maintain the drive belt on your Kubota Z121S, refer to the following steps for a clear understanding of how the system operates and how to navigate its parts. The drive belt transmits power from the engine to the mower deck, ensuring that the blades operate smoothly.

Before beginning any maintenance, turn off the engine and disengage the PTO to ensure safety. Then, remove the deck by loosening the bolts and detaching any guards that might obstruct access. Next, take note of the belt routing by referring to the diagram located on the mower’s deck or the user manual, as this will guide you through the exact path for the new belt.

The Kubota Z121S uses a specific belt system that includes both the drive belt and the deck belt. The drive belt runs from the engine’s pulley to the transmission pulley, where it powers the mower’s forward movement. It’s important to check the condition of all pulleys and tensioners when replacing the belt to avoid unnecessary wear or damage to the new belt.

Ensure the new belt is properly tensioned. If it’s too loose, it can slip or wear out prematurely. If it’s too tight, it may cause excessive strain on the engine or other components. The ideal tension should allow for some flexibility, but not too much play. A belt tension gauge can help with accurate adjustments.

Once the belt is in place, check all connections and tighten them accordingly. Reinstall the mower deck and test the operation of the mower to ensure the belt is working as expected. If you encounter any issues, refer to the diagram to ensure the routing is correct.

Step-by-Step Guide to Identifying Kubota Z121S Drive Belt Components

Start by lifting the mower deck to access the drive belt area. This gives you a clear view of the components that need to be checked.

Next, locate the drive belt, which runs from the engine pulley to the transmission pulley. It’s essential to confirm that the belt is properly tensioned. If it appears loose or damaged, it needs to be replaced.

Check the idler pulleys, which maintain the tension of the drive belt. These are usually mounted on either side of the drive belt and should rotate freely without any grinding noise. Any signs of wear or resistance indicate the need for replacement.

Inspect the engine and transmission pulleys. Ensure that both are in good condition, free of cracks or signs of excessive wear. The engine pulley should rotate smoothly without wobbling.

• Engine Pulley: Located on the engine shaft, it drives the belt.
• Transmission Pulley: Drives the rear wheels, transferring power from the engine.
• Idler Pulley: Maintains belt tension, preventing slipping or damage.
• Drive Belt: Transfers power from the engine to the transmission pulley.

Confirm the routing of the drive belt. The belt should follow a specific path to ensure proper functioning. Refer to the service manual for the correct routing diagram.

Finally, check the belt guard. It prevents debris from interfering with the belt’s operation. Make sure the guard is securely attached and not cracked or bent.

After these checks, if you find any damaged components, replace them before reassembling the mower deck and testing the system. Keep an eye on belt wear during regular maintenance to avoid unexpected issues.

How to Properly Inspect and Replace the Kubota Z121S Drive Belt

Inspect the Kubota Z121S drive belt for wear and damage every 25 hours of operation. Begin by ensuring the engine is turned off and the ignition key is removed. Locate the drive belt on the mower deck and check for visible signs of cracks, fraying, or glazing. The belt should not have excessive slack or be too tight. A worn belt will typically appear shiny or have missing sections of its rubber surface.

If any wear is found, replace the belt immediately to avoid further damage to the mower’s drivetrain. To replace, start by loosening the tensioner pulley. This can be done using a wrench to rotate the pulley arm, releasing tension on the belt. Carefully remove the old belt, noting its routing through the pulleys. It’s important to follow the same path when installing the new belt. Align the new belt properly with all pulleys, ensuring it sits in the grooves correctly.

Once the belt is in place, rotate the tensioner pulley back to apply proper tension. Double-check the alignment of the belt and pulleys to avoid slipping or premature wear. Test the mower briefly to ensure smooth operation. If the mower operates normally, the replacement is complete.

For safety and optimal performance, inspect the drive belt every season or after heavy usage. A timely replacement can prevent breakdowns and extend the life of your Kubota Z121S.

Common Issues with Kubota Z121S Drive Belt and How to Troubleshoot

When your Kubota Z121S drive belt starts showing signs of wear, it’s critical to address the problem quickly to avoid further damage. Here’s how to troubleshoot the most common issues:

1. Belt Slipping

If the belt starts slipping, it can cause a loss of power to the drive system. This is often due to a loose tensioner or worn-out pulleys. Check the tension of the belt; it should have just the right amount of slack. Tighten or replace the tensioner if needed, and inspect the pulleys for any signs of wear or misalignment. If they look damaged, replace them to ensure smooth operation.

2. Squealing Noises

A squealing noise can indicate that the drive belt is either too loose or misaligned. To fix this, adjust the belt tension or align the pulleys to ensure they are properly aligned. Excessive moisture on the belt or contaminants like oil can also cause the squeal, so wipe the belt down and check for any foreign substances that might have built up around it.

3. Cracked or Frayed Belt

Inspect the belt regularly for visible signs of wear, such as cracks, fraying, or glazing. If the belt is damaged, it can’t effectively transfer power and should be replaced immediately. Be sure to use the correct replacement belt designed for the Kubota Z121S to ensure proper fit and function.

4. Belt Breakage

If the drive belt snaps, you will need to replace it immediately. First, check for any underlying issues that may have caused the break, such as misalignment or an improperly tensioned pulley system. Always replace the belt with the manufacturer’s recommended part to avoid compatibility issues.

5. Excessive Vibration

Excessive vibration can be a sign of a damaged belt or a misaligned pulley system. Inspect the pulleys for damage and make sure they rotate smoothly. If the belt shows signs of uneven wear or damage, replace it. Additionally, check the belt guides to ensure they are in proper alignment.

6. Poor Mowing Performance

If the mower isn’t cutting evenly, it could be due to a worn-out drive belt. This issue is usually accompanied by reduced engine power. Inspect the drive system and replace any worn-out parts to restore optimal mowing performance.

Regular maintenance and inspection of the Kubota Z121S drive belt will help prevent these common issues. By staying on top of tension adjustments and inspecting for wear, you can keep your mower running efficiently and avoid costly repairs down the line.
