Ferris Zero Turn Drive Belt Diagram and Maintenance Guide
If you’re working on your Ferris zero turn mower and need to replace or inspect the drive belt, understanding the diagram is key. It provides a clear view of how the drive belt should be routed, ensuring smooth operation and preventing unnecessary wear on the components. Refer to this diagram for an accurate step-by-step guide to replacing or adjusting your mower’s drive belt.
The diagram typically includes details about the belt’s routing path, including the pulleys, idlers, and tensioners. Be sure to check for any misalignments or wear on the pulleys before installing a new belt. This can prevent slipping or premature damage to the new belt, ensuring better performance and longevity of your mower.
In some cases, the diagram may include different configurations depending on the model of the Ferris mower. Be sure to match the diagram to your specific model to avoid mistakes during the installation. If you’re unsure, consulting the manual or contacting a Ferris technician can help clarify the setup.

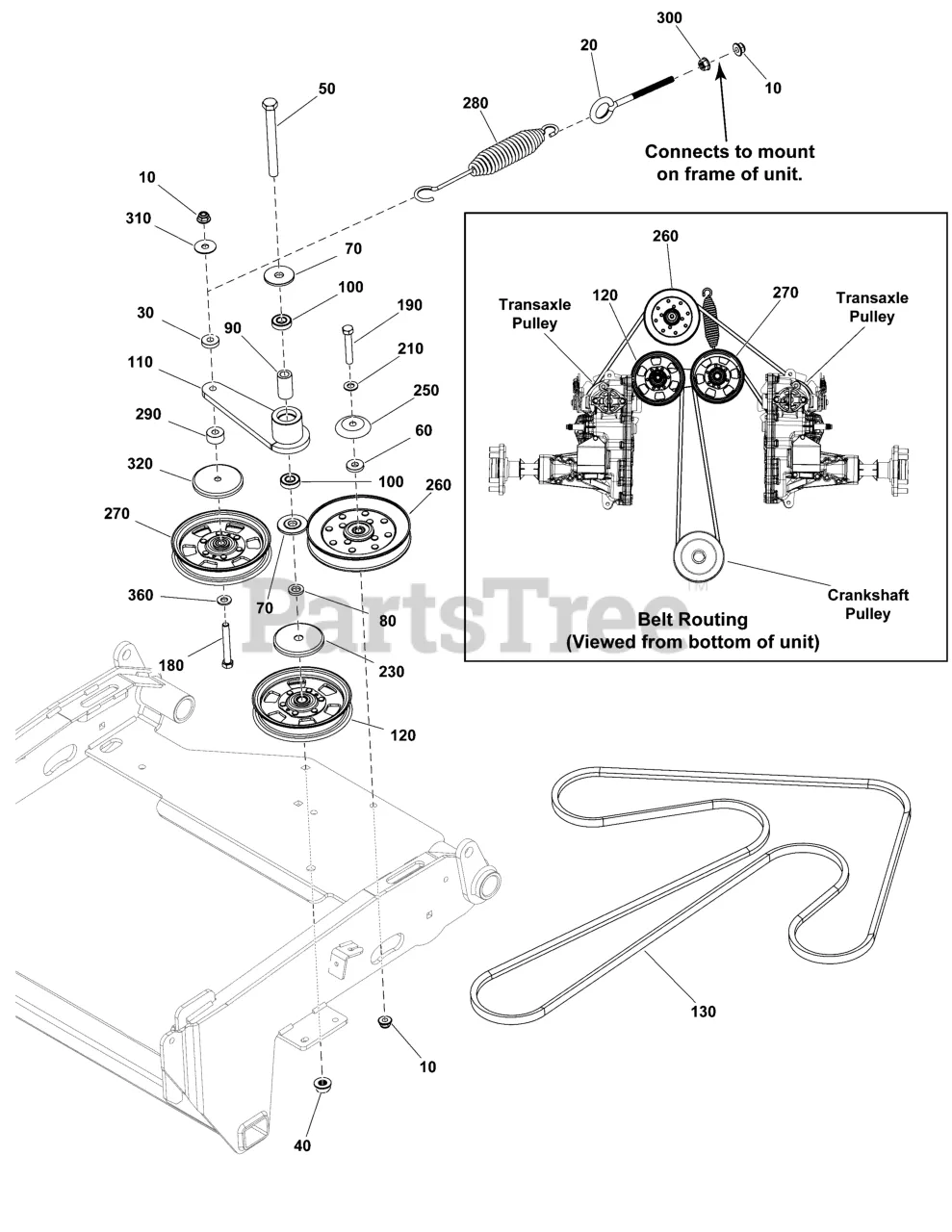

Ferris Zero Turn Drive Belt Diagram
Refer to the diagram of the Ferris Zero Turn drive belt for an accurate guide to routing and replacement. Start by identifying the belt’s path from the engine pulley to the drive system, ensuring the tensioner pulley is correctly positioned. Verify that the belt is placed within the grooves of the pulleys, and that the routing matches the manufacturer’s specifications. A clear view of the diagram can help avoid errors when reinstalling the belt or troubleshooting issues.
Check that the belt is properly aligned, avoiding any slack or undue tension. Ensure that all pulleys and idlers are in good condition and free of debris or wear, as this can affect belt performance. If you are replacing the belt, confirm the correct part number and length to prevent improper fitment. It’s also important to regularly inspect for any cracks, fraying, or signs of wear to maintain smooth operation and avoid unexpected breakdowns.
If the drive system is slipping or making excessive noise, inspect the belt tension and pulleys for alignment. A worn-out or improperly routed belt can significantly impact the performance of your Ferris Zero Turn mower. Having the correct diagram on hand makes maintenance much easier and minimizes the risk of damage during reassembly.
Identifying the Components of the Ferris Zero Turn Drive Belt System
The Ferris Zero Turn drive belt system consists of several key components that work together to transfer power from the engine to the wheels. Understanding these parts is essential for proper maintenance and troubleshooting. Below are the main components to identify:
- Drive Belt: This is the primary component that transfers power from the engine’s drive pulley to the transmission pulleys. It is typically made of rubber or a similar durable material.
- Drive Pulley: Located on the engine, this pulley rotates the drive belt. Its diameter and groove design directly affect belt movement and efficiency.
- Transmission Pulley: This pulley is connected to the wheels and helps control the speed of the mower. It works in tandem with the drive pulley and the belt to ensure proper wheel operation.
- Idler Pulley: The idler pulley maintains the tension of the drive belt, preventing it from slipping off during operation. It’s often spring-loaded for automatic tension adjustment.
- Tension Springs: These springs provide necessary force to keep the drive belt under the correct amount of tension for smooth operation and to prevent slack.
- Belt Guide: The guide helps direct the belt along its correct path to ensure it stays in place and operates smoothly without rubbing against other components.
Inspecting each component regularly helps maintain a functioning drive system. Replace worn-out or damaged parts to avoid system failure and improve overall performance.
Step-by-Step Guide to Replacing the Drive Belt on a Ferris Zero Turn Mower
Ensure the mower is turned off and the key is removed. Disconnect the battery to prevent accidental starts while working.
Lift the mower deck using a jack or appropriate lift for better access to the belt area.
Locate the drive belt. It usually runs between the engine pulley and the mower’s transmission. Remove any debris that could obstruct your work area.
Take note of the belt routing. Refer to the owner’s manual or make a quick sketch. This will help you correctly install the new belt.
Loosen the tension on the belt by removing the belt idler pulley. This is typically done by removing the bolt or pin holding the idler in place.
Remove the old belt from the pulleys, making sure to take note of how it fits around the different pulleys and guide rollers. If you’re unsure, double-check the routing before removing the old one.
Install the new drive belt by following the same routing path. Start by threading it over the engine pulley, then around the deck pulleys, and lastly, around the transmission pulleys.
Reattach the idler pulley to restore tension on the belt. Make sure the belt is securely in place without slack or excess tension.
Test the mower by manually rotating the blades to ensure the belt is properly aligned. Check for any signs of misalignment or resistance.
Reinstall any components you removed for access, such as the deck or the cover over the belt system.
Reconnect the battery and start the mower to verify the belt is functioning correctly. Listen for any unusual sounds that might indicate improper installation.
| Step | Action | Tools Needed |
|---|---|---|
| 1 | Turn off mower and remove the key. | None |
| 2 | Lift the mower deck for better access. | Jack or lift |
| 3 | Locate the drive belt. | None |
| 4 | Take note of the belt routing. | Owner’s manual or sketch |
| 5 | Loosen the tension by removing the idler pulley. | Wrench or socket set |
| 6 | Remove the old belt. | None |
| 7 | Install the new belt following the same routing. | None |
| 8 | Reattach the idler pulley to tension the belt. | Wrench or socket set |
| 9 | Manually rotate the blades to check the alignment. | None |
| 10 | Reconnect the battery and start the mower. | None |
Common Issues with Ferris Zero Turn Drive Belts and How to Troubleshoot Them
If your Ferris zero turn mower is experiencing reduced power, uneven cutting, or difficulty turning, the drive belt might be the cause. Start by checking the belt’s condition for visible wear, cracking, or stretching. A damaged belt can slip or fail to engage the pulleys, leading to these performance issues.
Check the tension of the drive belt. Over time, the belt may lose its tension and cause the mower to struggle with acceleration or deceleration. If the belt feels loose, it can often be adjusted or replaced depending on its overall condition. Consult the owner’s manual for the correct procedure to adjust the tension.
Inspect the pulleys for signs of damage or misalignment. A pulley that is out of place can cause uneven belt wear or prevent the belt from operating smoothly. If the pulleys are misaligned, adjust or replace them as needed. Ensure that they are clean and free of debris that might hinder belt movement.
Another common issue is the accumulation of dirt and grass around the belt system. Debris can cause the belt to slip or wear unevenly. Regular cleaning of the mower’s belt area will prevent this buildup. Always check for any obstructions that might restrict belt movement.
Examine the belt guides and idlers for any malfunctions. Worn-out or damaged guides can cause the belt to shift off its path, leading to poor performance. Replace any worn guides or idlers to restore the proper alignment of the drive system.
If the mower makes unusual noises or the belt seems to be operating erratically, it might be due to an issue with the bearings in the pulleys. Worn bearings can lead to uneven rotation, causing excessive strain on the belt. Inspect the bearings and replace them if they appear damaged.
