Ferris IS700Z Drive Belt Diagram and Installation Guide

To maintain optimal performance and extend the lifespan of your Ferris IS700Z, understanding the drive belt setup is key. A well-maintained belt ensures smooth operation, reduces wear, and prevents costly repairs. Check the diagram below to get a clear view of the drive belt system’s layout and adjust accordingly.

The drive belt is a critical component for transferring power from the engine to the transmission. In the IS700Z model, this system involves multiple pulleys, a tensioner, and the belt itself. Regular inspection of the diagram helps you identify any misalignments or wear that could affect the machine’s functionality.

Follow the schematic closely when replacing or adjusting the belt. Always use the recommended belt type and ensure it’s routed correctly to avoid slippage or excessive strain. Proper tensioning is also necessary–too tight or too loose can lead to premature wear. Consult the diagram for the exact routing path to prevent mistakes and ensure the mower runs efficiently.

Ferris IS700Z Drive Belt Diagram

The Ferris IS700Z drive belt diagram is a vital reference for ensuring proper belt installation and maintenance. Start by identifying the correct orientation for the drive belt as it passes through the system’s pulleys. The main belt drives the transmission, and any misalignment or wear can cause operational issues.

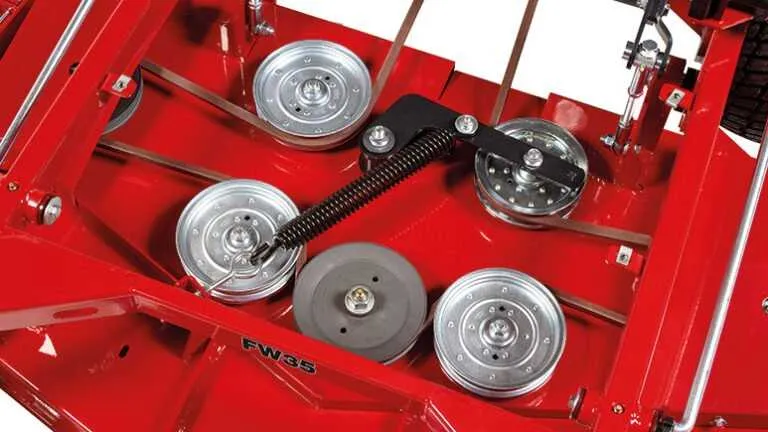

Refer to the diagram to see how the belt wraps around each pulley. The belt should have a slight tension, allowing for smooth movement without excessive slack or tightness. The tension is adjusted using the idler pulleys; check that the idler is properly aligned with the other components.

Always inspect the belt for any signs of damage, such as cracks or fraying, especially where the belt contacts the pulleys. If you notice any wear, replace the belt promptly to avoid further damage to the transmission system.

To ensure long-lasting performance, use only the manufacturer’s recommended belt for replacement. Follow the diagram carefully during reassembly to avoid errors and ensure optimal functionality of your Ferris IS700Z mower.

Understanding the Components of the Ferris IS700Z Drive Belt System

The Ferris IS700Z drive belt system consists of several key components working together to ensure smooth power transmission from the engine to the wheels. Proper understanding of each part is crucial for maintenance and troubleshooting.

1. Drive Belt

The main component is the drive belt, which transmits power from the engine to the transaxle. It should be checked regularly for signs of wear, such as cracking or fraying. Replacing a worn drive belt ensures efficient operation of the mower.

2. Idler Pulley

The idler pulley maintains proper tension on the drive belt. If it becomes worn or damaged, the belt can slip, reducing performance. Regular inspection is recommended to ensure it spins freely and maintains proper tension.

3. Primary Pulley

The primary pulley is attached to the engine and works in tandem with the drive belt. It helps transfer power to the transaxle, driving the wheels. Check the pulley for wear or misalignment, as this can affect performance.

4. Secondary Pulley

Located near the transaxle, the secondary pulley works with the drive belt to engage the transmission system. If the secondary pulley becomes worn or damaged, the vehicle may lose traction, making it difficult to control speed.

5. Transaxle

The transaxle is responsible for driving the wheels. It receives power from the drive belt system and transmits it to the wheels. Regular servicing of the transaxle, along with checking the belt system, is vital to ensure the mower moves as expected.

6. Belt Guides

Belt guides keep the drive belt in position, preventing it from slipping off the pulleys. These parts should be checked for damage or misalignment, as a misaligned guide can cause belt wear and malfunction.

7. Tensioner

The tensioner plays a key role in maintaining the correct belt tension. If the tensioner fails, it can lead to excessive slack or too much tension on the belt, both of which can cause performance issues or damage.

Regular inspection and maintenance of each component in the drive belt system will extend the life of your Ferris IS700Z and ensure reliable performance. Pay attention to signs of wear or damage, and replace parts as needed to keep your mower in top condition.

Step-by-Step Guide to Installing the Drive Belt on the Ferris IS700Z

Begin by raising the mower deck to its highest position. This gives you easy access to the drive system.

Next, remove the mower deck. Start by detaching the pins and lifting the deck off the mounting brackets. Set it aside safely.

Locate the drive belt on the Ferris IS700Z. The belt is routed around several pulleys. Take note of the configuration, either by referring to a diagram or by taking a photo for reference.

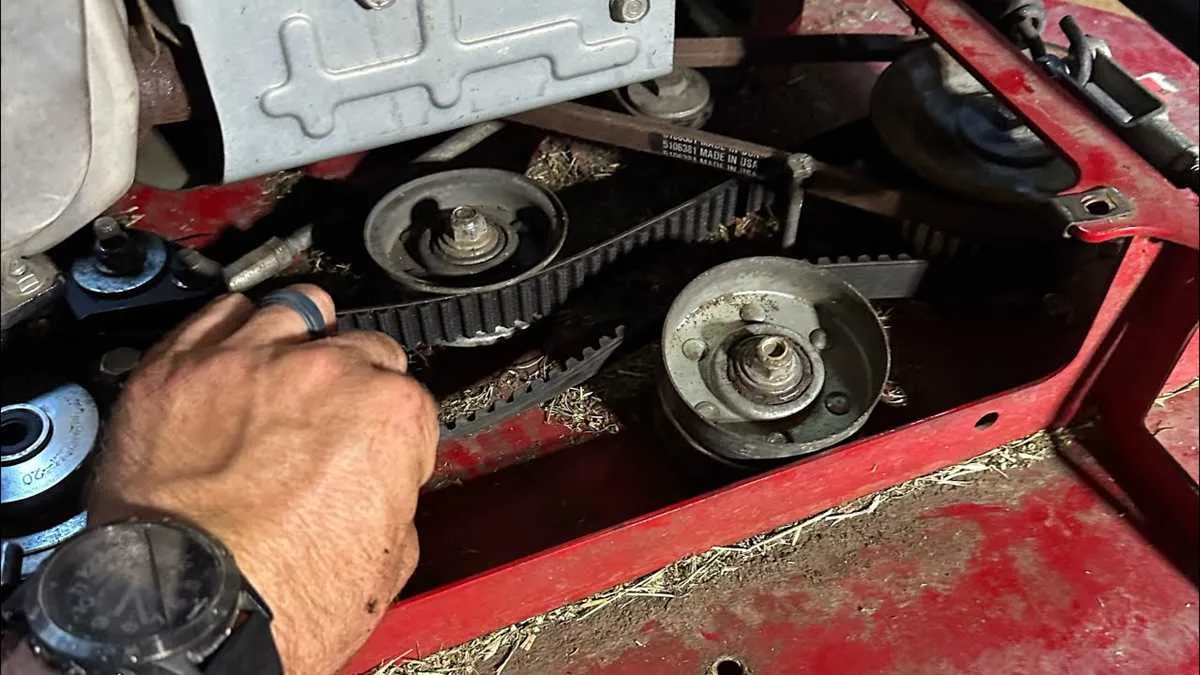

Loosen the tension on the drive belt by adjusting the tensioner pulley. Use a wrench or socket to move the pulley away from the belt, relieving its tension.

Carefully remove the old drive belt from the pulleys. Start from one end and work your way through the system, following the belt’s path around each pulley. Be gentle to avoid damaging any components.

Now, take the new drive belt. Compare it with the old one to make sure the lengths and widths match exactly.

Install the new drive belt by first placing it around the pulleys, following the original routing pattern. Ensure that it sits properly in each groove without twisting.

Once the belt is positioned, move the tensioner pulley back into place to apply tension to the belt. Make sure the belt is tight enough but not overly strained.

Reinstall the mower deck by aligning it with the mounting brackets. Secure the pins to lock it in place.

Test the installation by manually turning the belt. Check for any signs of misalignment or slipping. Run the mower briefly to confirm the drive system is working smoothly.

If everything functions correctly, the installation is complete! You can now use the Ferris IS700Z as usual.

Troubleshooting Common Drive Belt Issues in the Ferris IS700Z

If your Ferris IS700Z is showing signs of drive belt trouble, start by inspecting the tension. A loose belt can cause slipping, leading to poor performance or stalling. Check the belt’s tension according to the manufacturer’s specifications and adjust it if necessary. Use a tension gauge or manual method to ensure the belt is neither too tight nor too loose.

Examine the belt for visible wear, cracks, or fraying. These can reduce efficiency and eventually lead to a complete failure. If any damage is found, replace the belt immediately to avoid more serious issues. Make sure the new belt is the correct part for the IS700Z, as incorrect sizes can cause misalignment and further damage.

Next, inspect the pulleys. Check for rust, dirt, or debris that may cause the belt to slip. Clean the pulleys with a cloth, and look for any signs of wear or misalignment. Misaligned pulleys can cause uneven tension, which stresses the belt. If the pulleys are misaligned, adjust them or replace them if needed.

Ensure that the drive system is properly lubricated. Insufficient lubrication can increase friction, causing the belt to overheat and wear prematurely. Follow the maintenance guidelines for lubrication intervals and use the recommended products.

If the belt makes a squealing noise, it could indicate a misalignment or inadequate tension. Adjust the tension or reposition the pulleys to correct the issue. If the noise persists, recheck for underlying issues, such as a worn pulley or damaged belt.

Lastly, if the belt keeps slipping despite all adjustments, inspect the engine mounting bolts. Loose engine mounts can shift the position of the drive system, affecting belt alignment. Tighten any loose bolts to restore proper alignment and prevent further problems.
