Exmark Quest Drive Belt Diagram and Installation Guide
If you’re working on maintaining or replacing the drive belt on your Exmark Quest, understanding the belt diagram is a crucial step. This diagram clearly outlines the exact path the drive belt follows, helping you avoid mistakes and ensuring that everything is assembled properly. It’s a straightforward tool to guide you through the belt installation process with ease.
The drive belt on your Exmark Quest plays a key role in transmitting power from the engine to the wheels. If the belt is misaligned or worn out, you could face performance issues. Using the diagram, you can quickly identify the correct placement of the belt and avoid unnecessary delays. Always double-check the routing path to ensure you don’t miss any critical steps.
Before starting the replacement, make sure you have the correct belt part number. Refer to your machine’s user manual to find the exact specifications. The belt diagram in the manual will show you how the belt should loop around the pulleys. This visual reference will save you time and reduce the chances of reassembly errors.

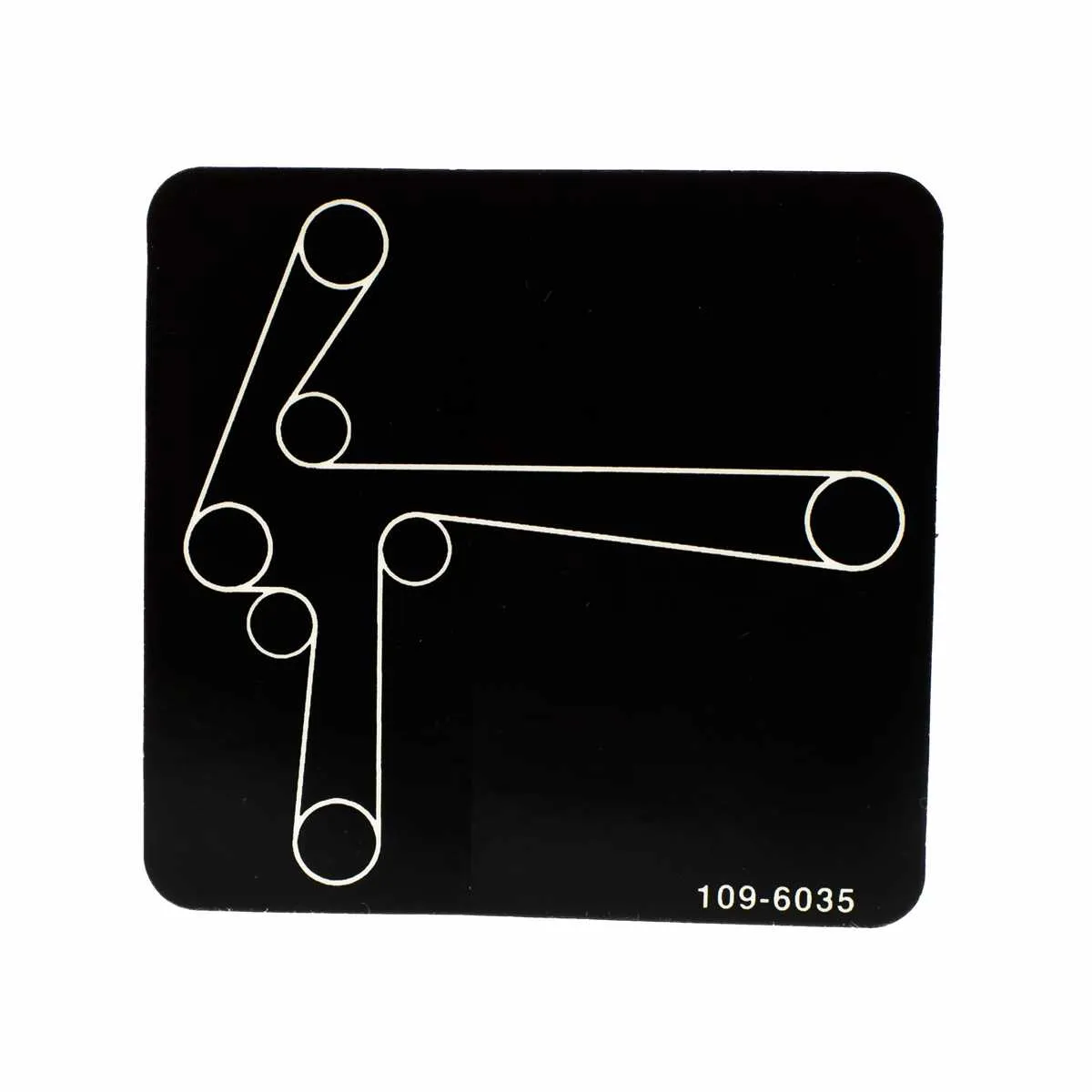

Exmark Quest Drive Belt Diagram
The Exmark Quest drive belt diagram is a vital reference for properly installing or replacing the drive belt. To ensure smooth operation of your Exmark Quest mower, always follow the specific routing as shown in the diagram. The correct belt path ensures proper tension and efficient power transfer from the engine to the wheels.
Start by identifying the primary drive pulley and the secondary pulleys. The belt should first wrap around the engine pulley, followed by the spindle pulleys and the drive wheels. Pay attention to the belt’s position around the idler pulleys as this step affects the tension and efficiency. Double-check that the belt sits correctly in the grooves of the pulleys to avoid slippage or damage.
If the belt seems loose or too tight, adjust the idler pulley accordingly. This adjustment is necessary to maintain the proper belt tension, which helps prevent premature wear. Always replace the belt if you notice signs of fraying or cracking, as a worn belt can decrease performance and cause system failure.
Ensure the diagram is consulted regularly during maintenance checks. The belt routing might differ slightly depending on the Exmark Quest model, so always confirm you’re using the correct diagram for your mower’s specific version.
Identifying Key Components in the Exmark Quest Drive Belt System
Begin by focusing on the main parts that drive the Exmark Quest system: the drive belt, pulleys, tension springs, and idler pulleys. These components work together to ensure smooth power transfer from the engine to the wheels.
- Drive Belt – This is the core of the system, connecting the engine to the drive pulleys. It transfers power and needs to be in good condition to prevent slipping or breaking.
- Pulleys – Both engine and drive pulleys guide the belt’s path. Ensure they’re aligned properly and free of debris to avoid unnecessary wear on the belt.
- Tension Springs – These maintain the right tension on the belt. Check for any signs of wear or corrosion that could lead to improper tension and potential damage to the belt.
- Idler Pulley – Positioned to guide and stabilize the belt, it prevents slack and maintains proper tracking. A malfunctioning idler pulley can cause the belt to slip or misalign.
To check for issues, first inspect the belt for signs of wear, cracks, or fraying. If any damage is visible, replace it immediately. Ensure the pulleys are clean, free of rust, and rotate smoothly. Pay attention to the tension springs, ensuring they’re not stretched or damaged. Lastly, verify the idler pulley’s alignment to avoid uneven wear on the belt.
Step-by-Step Guide to Replacing the Drive Belt on Exmark Quest
To replace the drive belt on your Exmark Quest, start by disconnecting the spark plug wire to ensure safety. This prevents accidental starts while you work on the mower.
Next, elevate the mower using a jack or another lifting method to get clear access to the underside of the machine. Be sure to use appropriate supports to keep it stable during the process.
Locate the drive belt tensioner. This component controls the tightness of the belt, and you will need to release the tension to remove the old belt. Use a wrench to loosen the tensioner, and carefully slide the belt off the pulleys.
With the old belt removed, compare it with the new one to ensure the sizes match. Place the new belt around the pulleys, following the routing diagram for your Exmark Quest. Pay close attention to the direction of the belt’s grooves to ensure proper fit and operation.
Once the new belt is in place, re-engage the belt tensioner to apply the correct tension. You should be able to slide the belt slightly, but it should not be too loose or too tight.
Lower the mower back down and reconnect the spark plug wire. Start the engine and test the mower to ensure the drive belt is functioning smoothly and without unusual noise.
Troubleshooting Common Drive Belt Issues on Exmark Quest Mowers
If your Exmark Quest mower is having trouble with the drive belt, start by checking for any visible signs of damage or wear. Inspect the belt for cracks, fraying, or missing sections. A worn belt should be replaced immediately to prevent further issues.
Next, verify the tension of the belt. A loose belt can slip, reducing the mower’s performance. Use a belt tension gauge or consult the user manual for proper tension settings. Adjust the tension accordingly to ensure smooth operation.
Another common issue is misalignment of the pulleys. If the drive belt isn’t properly aligned, it may wear unevenly or slip off. Check the pulleys to make sure they’re securely mounted and aligned correctly. If you notice any misalignment, adjust or replace the pulleys as needed.
If the mower is experiencing strange noises, such as squeaking or grinding, inspect the drive belt for debris or obstructions. Clean the area thoroughly, removing any grass clippings or dirt that could be causing friction.
In some cases, the drive belt may continue to slip even after adjustments. This can be caused by a defective pulley or an issue with the belt’s material. In this case, replacing the pulley or the belt itself may be necessary.
Finally, make sure you’re using the correct drive belt for your specific Exmark Quest model. Using the wrong belt can lead to improper fit and malfunction. Refer to the user manual or a parts catalog to confirm the right part number for your mower.
