Drive Belt Diagram for Murray Riding Lawn Mower and How to Replace It

If you’re facing issues with the drive belt on your Murray riding lawn mower, it’s crucial to understand how to troubleshoot and replace it. The drive belt transfers power from the engine to the mower’s wheels, enabling movement. Knowing the correct routing and tension for the belt will ensure smooth operation and prevent unnecessary wear on the components.

The first step is to locate the belt diagram, which provides a visual guide for the correct placement and routing of the belt. Usually, the diagram is found on a sticker under the mower’s hood or in the owner’s manual. If you can’t find it, consulting online resources or a dealership for the exact specifications can save you time and effort.

Once you have the diagram, begin by inspecting the condition of the existing belt. Check for cracks, fraying, or other signs of wear. If the belt is damaged, it should be replaced immediately. Follow the diagram carefully to route the new belt through the correct pulleys and tensioner. Pay attention to the direction of the pulleys and the alignment of the belt to avoid misrouting, which can lead to further damage.

Replacing the belt can be done in a few straightforward steps, but ensuring the tension is correct is key to preventing premature wear. Once the new belt is installed, test the mower’s movement to make sure everything is functioning smoothly. With the correct belt in place, your Murray riding mower should be back to its reliable performance in no time.

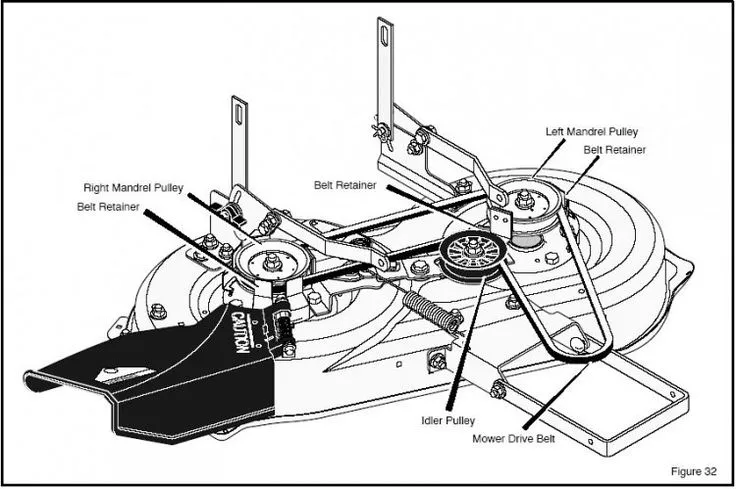

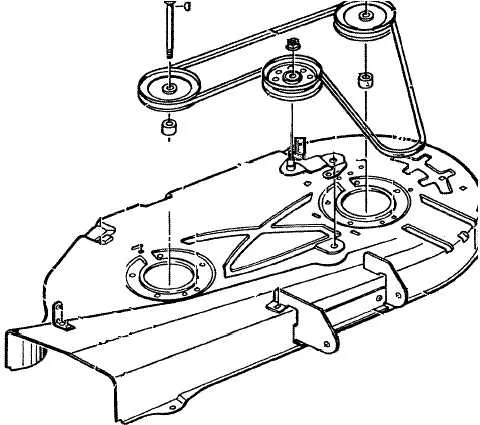

Drive Belt Murray Riding Lawn Mower Belt Diagram

Check your Murray Riding Lawn Mower’s drive belt by following this diagram for accurate placement and adjustment. The drive belt connects the engine to the mower’s wheels, transferring power for movement. Proper alignment ensures smooth operation and prevents premature wear.

Start by identifying the correct belt size and type based on your mower’s model. Refer to the owner’s manual for specifications. Once you have the right belt, use the diagram to map out the route it should follow:

• The belt typically runs from the engine pulley, around the tensioner pulley, and to the rear axle pulley.
• Ensure the belt fits snugly in the groove of each pulley, without slack.
• The belt should be routed according to the diagram, which may vary slightly depending on the mower’s design.

Adjust the tensioner pulley to maintain the proper belt tension. The belt should be tight but not over-stretched. Over-tensioning can cause the belt to wear out faster, while too much slack can cause slipping.

If you notice any fraying or signs of wear on the belt, replace it immediately. A worn or broken belt can cause a loss of power, reducing efficiency and possibly damaging the mower.

For proper maintenance, check the belt regularly. Replace it every season or after every 100 hours of use, whichever comes first, depending on your mowing frequency and conditions.

How to Read the Drive Belt Diagram for Murray Riding Lawn Mowers

Begin by identifying the key components in the diagram: the drive belt, pulleys, and the engine. The belt connects the engine to the wheels, and the pulleys guide its path. Make sure you focus on how the belt wraps around each pulley and where it crosses. This will determine the correct belt routing for smooth operation.

Look for the direction of rotation indicated in the diagram. The arrows typically show the direction in which the pulleys rotate. Understanding this will help you see how the belt moves through the system, ensuring that it doesn’t slip or wear unevenly.

Take note of any tensioners in the diagram. These components maintain the correct tension on the drive belt, preventing it from becoming too loose or tight. Their position relative to the belt will guide your adjustment when replacing or inspecting the belt.

Ensure that the belt’s route around the pulleys is clear. If a diagram shows the belt crossing over itself, this usually means an adjustment or alignment is needed to prevent damage or inefficient operation.

Check for any additional notations on the diagram, like pulley sizes or belt lengths. These details help you select the right replacement belt and ensure proper fitment. Always double-check these measurements before installing a new belt.

Finally, when installing a new belt, follow the diagram exactly. Misrouting the belt can lead to mechanical issues or even damage the mower’s components. If the mower starts making unusual noises or if the belt slips off, review the diagram again to confirm that everything is in place.

Step-by-Step Guide to Replacing the Drive Belt on a Murray Riding Lawn Mower

Begin by ensuring the mower is turned off and the ignition is set to the “off” position. Disconnect the spark plug wire to prevent accidental starting.

Lift the mower using a jack or support it with a suitable stand to access the underside. Check the user manual for the specific height or clearance needed for your model.

Locate the drive belt. It is usually situated on the pulleys near the rear axle. Take note of the current belt’s position or refer to a diagram, which is typically found in the manual.

Release the tension on the belt. This might involve loosening a spring-loaded tensioner or adjusting the idler pulley. Some models require you to remove a bolt or pin to free the tensioner.

Carefully remove the old belt from the pulleys. If the belt is stuck, use a wrench or pliers to gently ease it off. Make sure to observe how the belt is threaded through the pulleys so you can install the new one correctly.

Inspect the pulleys for any signs of damage or wear. If necessary, replace or lubricate the pulleys to ensure smooth operation of the new belt.

Install the new drive belt by following the same path as the old one. Make sure it sits properly on each pulley and is aligned correctly. Avoid twisting or misrouting the belt, as this can cause wear or failure.

Reattach the tensioner or spring to apply the correct tension to the new belt. Check that it is tight but not overly stretched, and ensure it moves freely with no resistance.

Reconnect the spark plug wire. Start the mower to test the new belt’s function. Listen for unusual noises or signs of slipping. If everything operates smoothly, lower the mower back to the ground.

Finally, dispose of the old belt properly and store your tools in their designated place for future use.

Troubleshooting Common Drive Belt Issues on Murray Riding Lawn Mowers

Start by inspecting the drive belt for signs of wear or damage. If the belt appears cracked, frayed, or stretched out, it will need to be replaced. Check the tension of the belt as well–if it’s too loose, the mower won’t drive properly. Adjusting the tension can often solve issues with sluggish movement or difficulty starting. Refer to the belt diagram in your user manual to verify the proper tension settings.

If the mower starts but struggles to move, examine the pulleys. A misaligned pulley can cause the belt to slip or wear unevenly. Tighten or replace any loose or worn pulleys. Similarly, if there’s a grinding noise or the belt is squealing, a misalignment may be the culprit, which can be fixed by ensuring everything is aligned properly.

In cases where the mower won’t move at all, the drive belt could be off the pulley or completely detached. This is usually due to a pulley failure or a belt that has slipped off due to incorrect tension. Reattach or replace the belt and check for any underlying issues with the pulley system that might cause slippage.

Sometimes, grass clippings or debris can get caught around the drive belt, causing it to slip or overheat. Regularly cleaning the area around the belt and pulleys can prevent these blockages from interfering with your mower’s performance.

If the mower still isn’t functioning correctly after addressing the belt and pulleys, inspect the gearbox. A malfunction in the transmission system could also affect the belt’s performance. Ensure that the gearbox is properly lubricated and free of any damaged parts.
