BMW E46 Drive Belt Diagram and Maintenance Guide

To understand the drive belt system of the BMW E46, it’s important to recognize the components involved and how they function together. The drive belt, also known as the serpentine belt, powers several key components such as the alternator, power steering pump, and air conditioning compressor. Make sure to regularly inspect the belt for wear, cracks, or damage to prevent system failures.

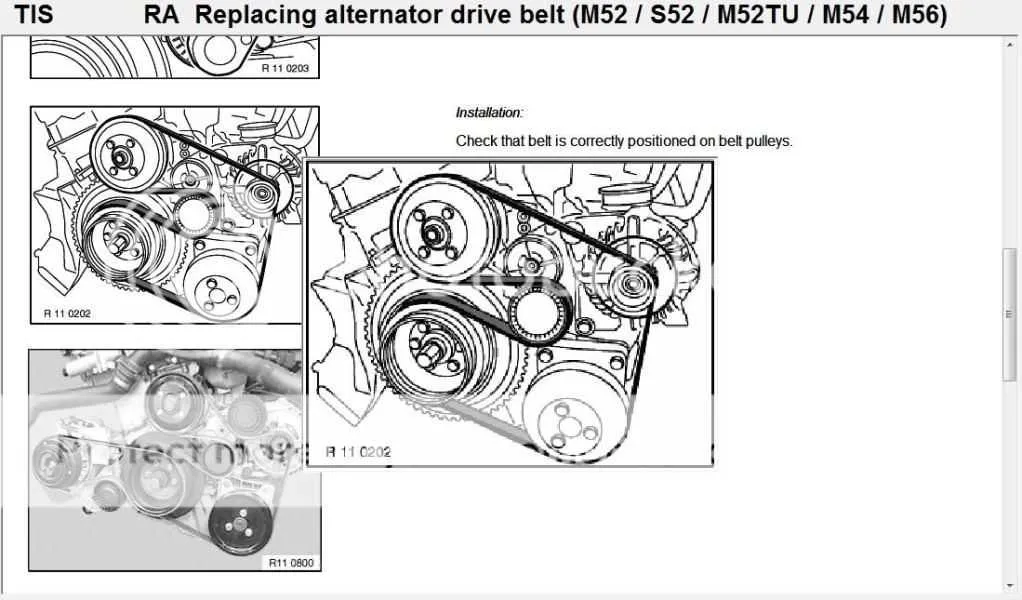

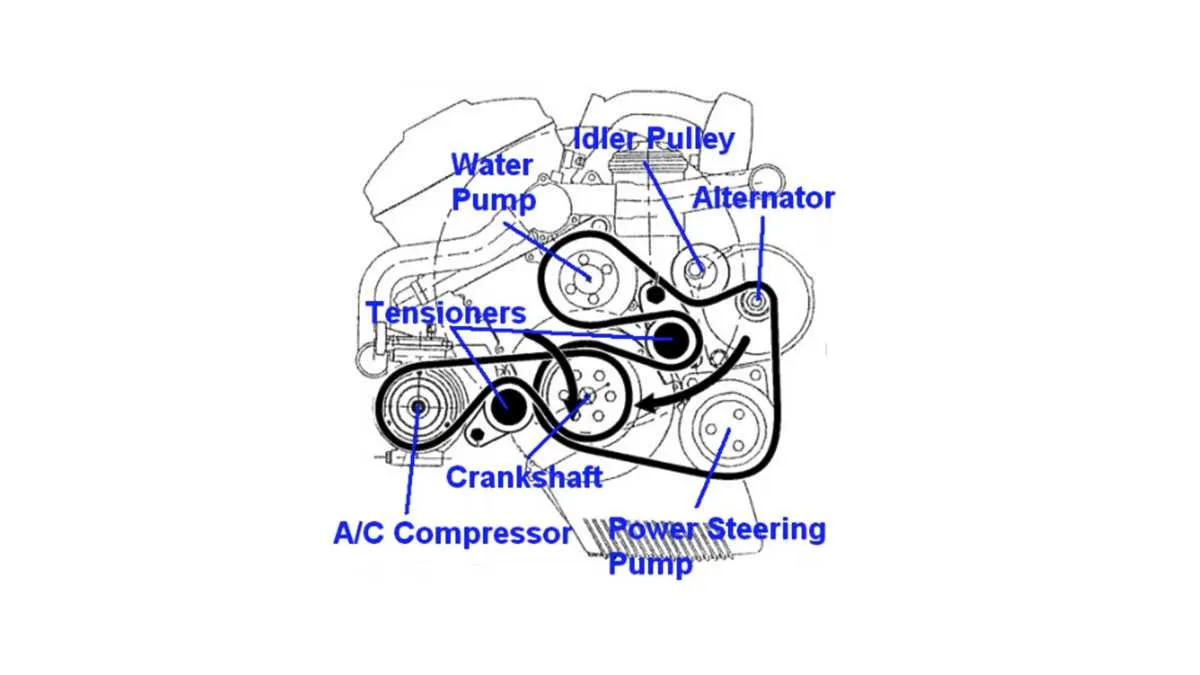

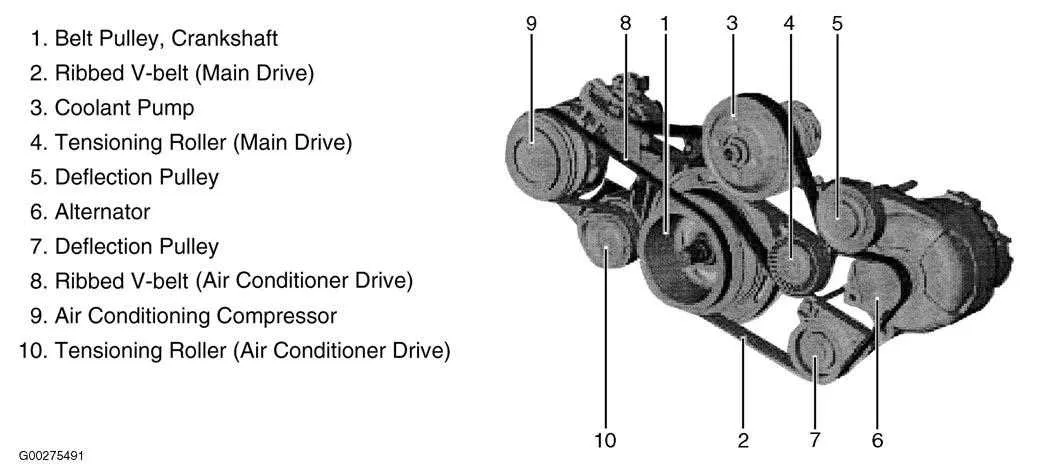

The diagram of the drive belt on the BMW E46 shows how the belt routes through various pulleys and components. Pay attention to the correct positioning to avoid misalignment, which could lead to premature wear or failure. Always use a reliable diagram when replacing or adjusting the belt to ensure proper installation.

If you’re replacing the drive belt yourself, ensure you have the correct tools, including a tensioner tool, to properly release tension and remove the old belt. Verify the belt’s routing by cross-checking with the factory diagram for the specific engine model in your BMW E46.

BMW E46 Drive Belt Diagram

The drive belt system in the BMW E46 plays a key role in powering various engine components such as the alternator, power steering pump, and air conditioning compressor. Understanding the layout and function of this system is crucial for diagnosing issues and performing maintenance.

In the E46, the serpentine belt is routed through a series of pulleys and tensioners. It’s important to inspect the belt for signs of wear, such as cracks or fraying, which could lead to failure. The diagram helps to visually identify the path the belt follows, ensuring it is routed correctly during installation or replacement.

To replace the serpentine belt, you will need to release tension on the belt using the tensioner pulley. After removing the old belt, verify the alignment of all pulleys and check for any debris or damage. Install the new belt by following the diagram’s recommended routing to ensure all components are properly powered.

Regular inspection of the drive belt should be part of your maintenance routine. A properly functioning drive belt is critical for engine performance, and premature failure could lead to a loss of power steering, air conditioning, or alternator output.

Understanding the Layout of the BMW E46 Drive Belt System

The BMW E46 drive belt system plays a key role in transferring power from the engine to various components. The serpentine belt is responsible for driving accessories such as the alternator, power steering pump, air conditioning compressor, and water pump. To ensure proper operation, the layout of the drive belt system should follow a specific route dictated by the pulleys and tensioner mechanism.

The drive belt layout on the E46 is designed to optimize efficiency and minimize wear on the components. Start by checking the alignment of the belt with the pulleys. Any misalignment can cause undue stress on the belt, leading to premature wear or even failure. Ensure that the belt runs smoothly through each pulley, with proper tension applied by the belt tensioner. A loose belt can slip, while a tight one can put excessive strain on the pulleys.

It’s crucial to inspect the condition of the pulleys and tensioners regularly. Any signs of damage or excessive wear can affect the performance of the drive belt system. A common issue is the accumulation of debris or oil on the pulleys, which can cause the belt to slip or wear unevenly. Keep the system clean and well-maintained to avoid these issues.

When replacing the drive belt, follow the manufacturer’s recommended routing diagram to ensure the correct installation. This will prevent complications such as improper tension or misalignment. Additionally, make sure to use the correct belt length and width specified for the E46 to avoid unnecessary strain on the components.

Common Issues and Troubleshooting for the BMW E46 Drive Belt

If the drive belt in your BMW E46 starts to show signs of wear or malfunction, it’s important to address it immediately. A common issue is belt slippage, which typically occurs due to a worn or loose belt. This can lead to decreased performance of components such as the alternator, power steering pump, and air conditioning compressor.

Inspect the belt for visible cracks or fraying. If the belt shows these signs, replacement is necessary. A damaged belt will not maintain proper tension, affecting the engine’s ability to power the auxiliary components. The tensioner pulley often wears out with the belt, so be sure to check its condition. If the pulley is not functioning properly, it will not apply the correct tension to the belt, causing it to slip or squeal.

Another common problem is misalignment. This occurs when pulleys are out of line, usually due to a worn-out pulley bearing or a damaged tensioner. Misalignment can cause the belt to wear unevenly and result in noise or even belt failure. Regularly check the alignment of the pulleys and replace any components showing signs of wear.

Lastly, overheating can cause the drive belt to degrade prematurely. If the engine runs too hot, the excessive heat can affect the rubber material of the belt, causing it to lose flexibility and eventually snap. Keep the engine cooling system in top condition to prevent heat damage to the belt and other engine components.

Step-by-Step Guide to Replacing the Drive Belt on BMW E46

To replace the drive belt on your BMW E46, follow these detailed steps:

1. Ensure the engine is off and cool. Disconnect the negative terminal of the battery.

2. Locate the drive belt and the tensioner pulley. You may need to remove some covers to access the components.

3. Use a wrench or ratchet to relieve tension on the tensioner pulley. Rotate the tensioner clockwise to release the belt.

4. Carefully remove the old belt from all pulleys. Make a note of the belt routing, as you will need to follow this when installing the new belt.

5. Inspect the pulleys and other components for any wear or damage. Replace any parts that show signs of excessive wear.

6. Place the new belt around the pulleys following the original routing. Ensure the belt is properly seated on each pulley.

7. Reapply tension by rotating the tensioner pulley back into place. Ensure the belt is tight but not overly strained.

8. Double-check the belt’s alignment and tension. It should run smoothly without slipping or rubbing against other components.

9. Reconnect the battery terminal and start the engine to verify the belt is functioning properly.

Replacing the drive belt is a straightforward task, but attention to detail is key. Regularly inspect your drive belt to ensure it remains in good condition.
