Dodge Avenger 2013 Serpentine Belt Routing Diagram and Maintenance Guide

To replace or inspect the belts on your 2013 Dodge Avenger, follow the belt routing diagram specific to this model. Knowing the correct belt configuration ensures the smooth operation of key engine components, such as the alternator, power steering pump, and air conditioning compressor.

The serpentine belt on your 2013 Dodge Avenger plays a critical role in driving multiple accessories, so it’s important to confirm its routing before beginning any repairs. A clear diagram will guide you in determining the correct positioning of the belt around pulleys and tensioners.

Here’s a tip: Check the tensioner pulley for wear and ensure it’s properly adjusted to maintain the correct belt tension. Over time, a worn-out tensioner can cause slipping or misalignment, leading to performance issues.

For an easy belt replacement, it’s recommended to have the proper tools on hand. A belt tool or a socket wrench with an extension can help release the tensioner for easier belt removal and installation.

Make sure to double-check the alignment and belt placement before starting your engine. This can save you from unnecessary repairs down the road.

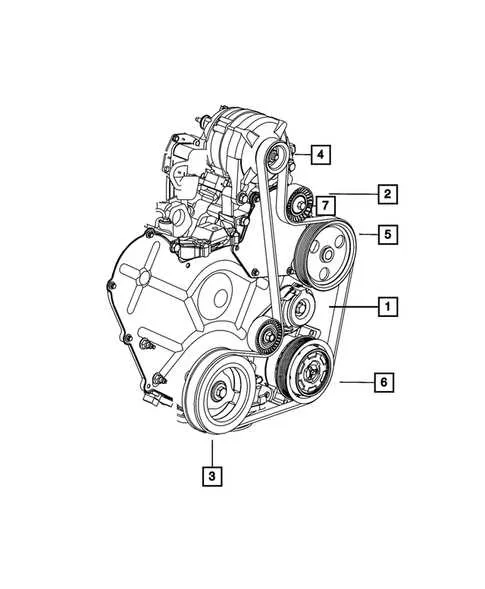

Dodge Avenger 2013 Belt Diagram

The 2013 Dodge Avenger uses a serpentine belt system that drives various components of the engine. To avoid engine damage or component failure, ensure the belt is routed correctly. A properly installed belt helps maintain optimal performance, reducing wear on the alternator, power steering, air conditioning, and other crucial systems.

The serpentine belt on this model runs around a few key pulleys: the crankshaft pulley, alternator pulley, power steering pump, air conditioning compressor, and tensioner. For accurate installation, follow the belt diagram located on the engine bay. If the diagram is not visible, you can find it in the service manual or online for the exact configuration.

Before replacing the belt, inspect it for signs of wear like cracks, fraying, or glazing. Replace the belt at regular intervals as recommended by the manufacturer, typically every 60,000 to 100,000 miles, depending on driving conditions. If you hear squealing or notice performance issues, it could indicate a belt or pulley problem that needs immediate attention.

When installing a new belt, use a belt tensioner tool to apply the correct tension. The tensioner spring-loaded pulley ensures the belt stays tight during engine operation, preventing slippage. Avoid using excessive force during installation to prevent damaging the belt or pulleys.

Check the belt periodically for alignment and wear, and always follow the belt diagram to ensure the routing is correct. A misrouted belt can lead to premature wear or failure of the components it drives.

Understanding the Main Serpentine Belt Routing for Dodge Avenger 2013

The serpentine belt in the 2013 Dodge Avenger is a key component that powers multiple engine accessories. To ensure optimal performance, it’s important to correctly route the belt according to the manufacturer’s specifications. Incorrect routing can cause premature wear, overheating, or damage to components like the alternator or power steering pump.

The serpentine belt should run smoothly across pulleys, with no slack or twists. Start by positioning the belt around the crankshaft pulley, the largest pulley on the engine. Then, route the belt over the water pump pulley, followed by the alternator pulley. Next, guide the belt around the tensioner pulley, ensuring it maintains proper tension to prevent slipping.

Check that the belt also wraps around the power steering pump and air conditioning compressor pulleys. The correct alignment is critical to avoid belt wear and noise. Double-check all pulleys to make sure the belt isn’t misaligned. Make sure the tensioner is engaged properly to maintain proper tension throughout the belt’s life.

If you need to replace the belt, remember to inspect all pulleys for wear, and ensure that the tensioner is functioning properly. A worn-out tensioner can cause the belt to slacken, leading to further damage or failure.

How to Identify the Correct Belt Tensioner and Its Position

Locate the belt tensioner on the engine assembly. On the 2013 Dodge Avenger, the tensioner is typically positioned near the front of the engine, adjacent to the serpentine belt. It may be mounted directly on the engine block or attached to the timing cover, depending on the specific engine model.

To identify the correct tensioner, look for a small pulley with a spring-loaded arm. This arm should be adjustable, and the pulley will be the part that keeps the serpentine belt under tension. Some models include a bolt in the center of the pulley that can be used to rotate it for belt installation or removal.

Use a wrench or socket to turn the tensioner clockwise or counterclockwise. This movement will relieve tension from the belt, allowing you to remove or replace it. Make sure the tensioner arm moves smoothly without resistance or sticking, as this could indicate a worn-out component.

Check the alignment of the tensioner. If it’s misaligned or damaged, it could cause uneven wear on the belt or lead to belt slippage, resulting in poor performance. The pulley should be aligned with the other pulleys in the system for optimal function.

If you’re unsure whether the tensioner is in good condition, inspect the spring mechanism. A properly functioning tensioner should maintain constant pressure on the belt, ensuring it remains taut. A weak or broken spring may cause the belt to slip, leading to engine performance issues.

• Step 1: Locate the tensioner near the serpentine belt.
• Step 2: Identify the spring-loaded arm and pulley mechanism.
• Step 3: Use a wrench to rotate the tensioner and relieve belt tension.
• Step 4: Check the alignment and condition of the pulley and spring.

Common Belt Issues in the Dodge Avenger 2013 and How to Solve Them

If your Dodge Avenger 2013 is experiencing squealing noises, fluctuating engine performance, or battery issues, the serpentine belt could be the culprit. A worn or damaged belt can cause multiple engine problems. Regular inspection and timely replacement are key to preventing further damage.

Start by checking the belt for visible signs of wear such as cracks, fraying, or glazing. These symptoms indicate that the belt needs replacement. If the belt appears loose, it could be a sign of improper tension, which may affect the performance of components like the alternator, air conditioning compressor, and power steering pump.

Ensure the belt is properly aligned with the pulleys. Misalignment can cause excessive wear and uneven tension. If you notice any misalignment, it’s best to check the pulleys for damage or contamination. Clean the pulleys and, if needed, replace any damaged components. Misalignment can also lead to belt slippage, which reduces the efficiency of the engine and affects vehicle performance.

Another common issue is belt tension. Over time, the tensioner can lose its ability to keep the belt tight, leading to belt slippage or poor performance. If the tensioner is faulty, replace it immediately to avoid more serious problems down the road.

If your Avenger’s belt squeals when starting the engine, this is often due to moisture on the belt or low tension. To fix this, inspect the belt and ensure it is properly tensioned. If moisture is the issue, let the engine run for a few minutes, or use a belt conditioner to reduce squeaking.

For long-term maintenance, replace the serpentine belt every 60,000 to 100,000 miles. However, if you notice any issues before this mileage range, it’s best to address them promptly to prevent further complications.
