Dodge 2.4 Engine Belt Diagram and Routing Guide

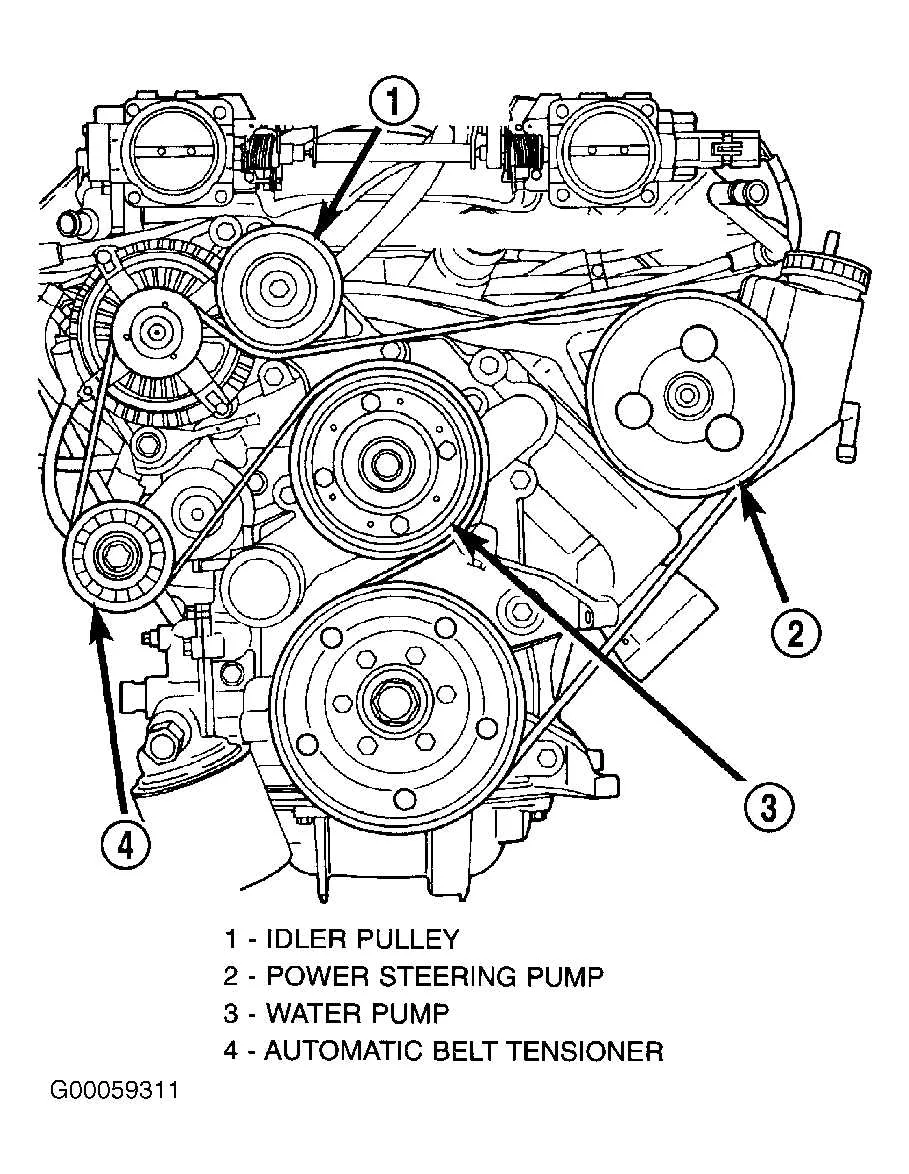

To correctly assemble or troubleshoot the serpentine belt system of a Dodge 2.4L engine, refer to a precise belt routing diagram. The diagram provides a clear overview of how the belt should be positioned, ensuring all components, such as the alternator, power steering pump, water pump, and air conditioning compressor, work together seamlessly.

The serpentine belt diagram outlines the path the belt takes across multiple pulleys. Ensure that the tensioner is properly adjusted to prevent slippage, which can lead to overheating or poor engine performance. If you are replacing the belt, it’s critical to check the condition of the tensioner and pulleys to avoid future issues.

Keep the diagram handy when working on your engine, as it serves as a quick reference to verify the belt’s correct placement. A precise belt configuration ensures smooth engine operation, reduces wear on key components, and helps maintain the overall health of your Dodge 2.4L engine.

Dodge 2.4 Belt Diagram Guide

Check the engine’s belt routing to ensure it follows the proper pattern for the Dodge 2.4. The serpentine belt connects various components, including the alternator, power steering pump, water pump, and air conditioning compressor. Correct belt alignment helps prevent unnecessary wear and damage.

The diagram for the 2.4 engine typically shows the belt running around the crankshaft pulley, moving to the water pump, then the alternator, and finishing at the power steering pump. Pay attention to the tensioner; it keeps the belt tight, ensuring smooth operation of the engine components.

For belt replacement, use the diagram as a reference. Before removing the old belt, use a wrench to release tension from the tensioner. The new belt should be installed with the same routing, making sure it sits properly in each groove. Double-check that it isn’t misaligned or twisted.

Periodically inspect the belt for cracks or excessive wear. Replace it immediately if you notice any signs of damage to avoid further engine issues. Keep the diagram handy for quick reference during maintenance tasks.

How to Read the Dodge 2.4 Belt Diagram for Accurate Belt Routing

To correctly route the belt, begin by identifying the pulleys and components in the diagram. Pay attention to the alternator, power steering pump, air conditioning compressor, and water pump locations. These are your primary reference points. Each pulley is labeled, and the belt routing typically follows a specific path through these components. The diagram shows arrows to indicate the direction in which the belt should travel.

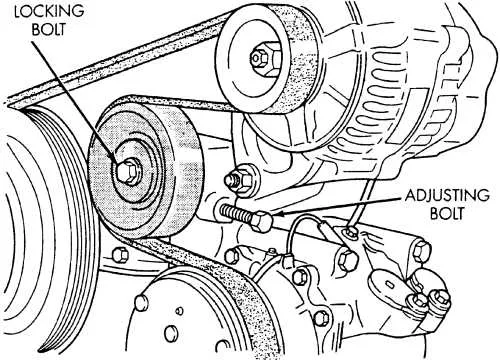

Next, locate the tensioner pulley, which is essential for maintaining the correct belt tension. This pulley is adjustable and often has a specific tool requirement for movement. It’s critical to ensure that the belt is routed over this pulley last, allowing it to maintain the proper tension.

Compare the diagram with the actual engine layout. Verify the position of the pulleys on the engine before starting installation. If any components have been replaced or adjusted, double-check that the layout matches the diagram.

When installing the belt, keep the diagram nearby to reference its path. Ensure the belt is seated properly in each groove, avoiding twisting or misalignment. Once the belt is in place, rotate the crankshaft by hand to ensure everything runs smoothly before starting the engine.

Step-by-Step Instructions for Replacing the Drive Belt on a Dodge 2.4 Engine

Begin by disconnecting the negative terminal of the battery. This prevents accidental electrical shorts while working on the engine.

Next, locate the drive belt and examine the tensioner pulley. You’ll need to release the tension before removing the belt. Use a socket wrench to rotate the tensioner pulley counterclockwise, which will loosen the belt. Carefully slide the belt off the pulleys.

Once the belt is removed, inspect the condition of the pulleys and the new belt. Ensure there is no visible damage or excessive wear on the pulleys. This step helps avoid future issues.

Now, take the new drive belt and route it around the pulleys following the diagram for the Dodge 2.4 engine. Make sure the belt sits properly in each groove. Double-check that the belt aligns with all pulleys before proceeding.

Using the socket wrench, rotate the tensioner pulley again to relieve tension, and slide the belt over the last pulley. Slowly release the tensioner to secure the belt in place.

Ensure the belt is tight and properly aligned on all pulleys. Spin the pulleys by hand to check for smooth movement. If any pulley feels rough or stiff, replace it before finishing the installation.

Finally, reconnect the battery, start the engine, and observe the belt in operation. Listen for any unusual sounds or vibrations. If everything runs smoothly, the replacement is complete.

Common Issues with the Dodge 2.4 Belt Diagram and How to Fix Them

Incorrect belt tension is one of the most common problems. If the belt is too tight or too loose, it can cause premature wear or even snap. Always check the tension regularly and adjust it using a tensioner tool. Make sure it matches the specifications outlined in the belt diagram.

Misalignment of the pulleys can lead to uneven wear and tear on the belt. This can cause slippage and inefficient engine performance. Check the alignment by inspecting each pulley for wear and ensuring they are positioned correctly according to the diagram.

Wear and cracking on the belt itself can lead to failure if not addressed quickly. Examine the belt for visible signs of damage like fraying or cracking. Replace it immediately to avoid potential engine damage. A faulty idler pulley or tensioner can also contribute to this issue, so verify their condition regularly.

A common issue is incorrect routing. If the belt is installed in the wrong sequence, it will not run efficiently and could cause overheating. Always follow the belt diagram precisely, double-checking the path before final installation.

Another frequent problem is oil or coolant leaks that reach the belt. These liquids degrade the rubber, causing the belt to lose flexibility and wear out faster. If you notice any fluid leaks near the belt area, address the source immediately to prevent further damage.

Lastly, a loose or worn-out tensioner pulley can cause the belt to slip or even jump off. If the pulley doesn’t spin freely or seems damaged, replace it. Regularly inspect tensioner pulleys and replace them at recommended intervals to keep everything running smoothly.

By staying proactive with maintenance and addressing these issues early, you can keep your Dodge 2.4 engine running efficiently and avoid costly repairs.
