57 Dodge Hemi Serpentine Belt Diagram and Routing Guide for Proper Engine Assembly
Locate the correct routing for your 5.7 Dodge HEMI serpentine belt by following the manufacturer’s diagram. Accurate belt placement prevents misalignment and reduces wear on the alternator, water pump, and power steering components. Keep the tensioner relaxed when installing the belt to avoid damaging pulleys or creating excess tension.
Identify each pulley before installation. The crankshaft pulley drives the belt, while the alternator, A/C compressor, and idler pulleys maintain proper path and tension. Confirm orientation by comparing the belt grooves to pulley surfaces to ensure smooth rotation and prevent slipping under load.
Use a clear diagram for quick reference. Place the diagram in your workspace to track belt routing visually. This prevents errors, especially with serpentine belts that cross multiple pulleys in complex patterns. Check alignment after installation by rotating the engine manually and observing belt seating across all pulleys.
Replace worn components simultaneously. Inspect the tensioner, idler pulleys, and belt for cracks, glazing, or fraying. Installing a new belt over aged pulleys can accelerate wear and reduce belt lifespan. Proper maintenance extends service intervals and keeps engine accessories running reliably.
Maintain proper belt tension. Over-tightening strains bearings and under-tightening causes slipping and noise. Use a torque wrench or follow the tensioner’s specifications to ensure optimal performance. Regular inspection prevents unexpected failures during daily driving and protects critical engine components.

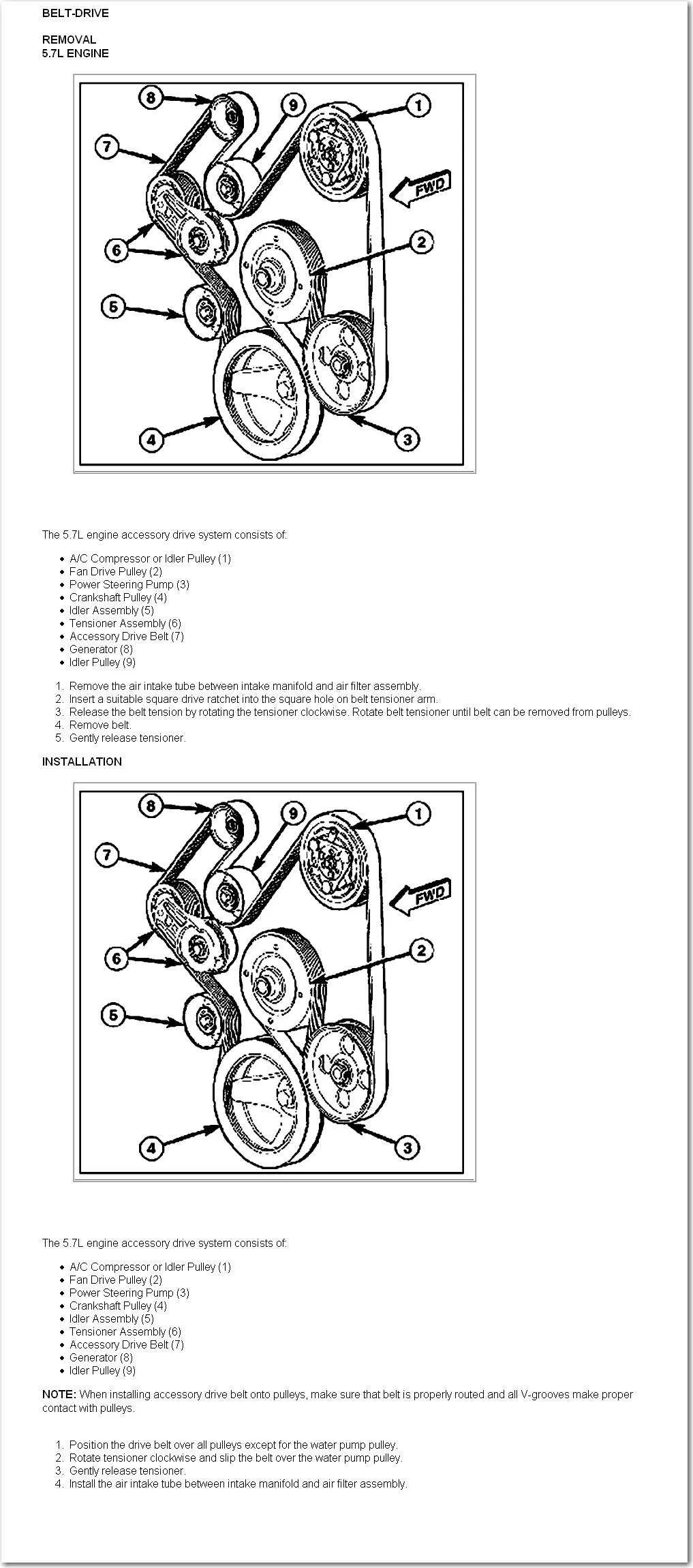

Dodge Hemi Serpentine Belt Diagram
Locate the tensioner pulley on the 5.7L Hemi engine; it sits near the front of the engine block, above the crankshaft pulley. Release tension by rotating the tensioner with a 3/8-inch ratchet, then remove the serpentine belt carefully, noting its routing.

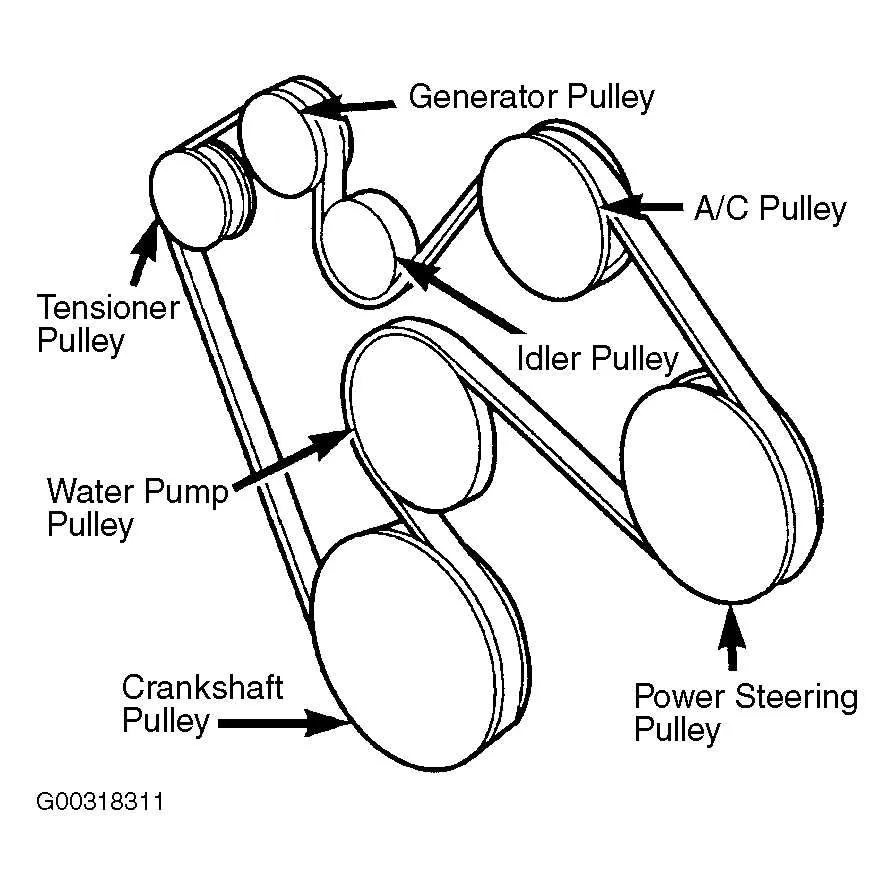

The serpentine belt wraps around the following components in sequence: crankshaft pulley, alternator, water pump, power steering pump, and air conditioning compressor. On some models, an idler pulley sits between the alternator and A/C compressor to maintain proper belt tension.
Inspect each pulley for wear or misalignment before installing a new belt. A worn pulley can cause squealing or premature belt failure. Use the diagram printed in the owner’s manual or under the hood sticker as a reference to route the belt accurately.
Ensure the belt sits fully in the grooves of each pulley. After placement, release the tensioner slowly, confirming the belt aligns properly. Start the engine briefly and observe the belt’s movement, listening for unusual noises or slippage.
Replace the serpentine belt every 60,000 miles or sooner if cracks, fraying, or glazing appear. Keep a spare belt in the vehicle to avoid roadside issues, as the 5.7L Hemi’s engine relies on this single belt to drive multiple accessories simultaneously.

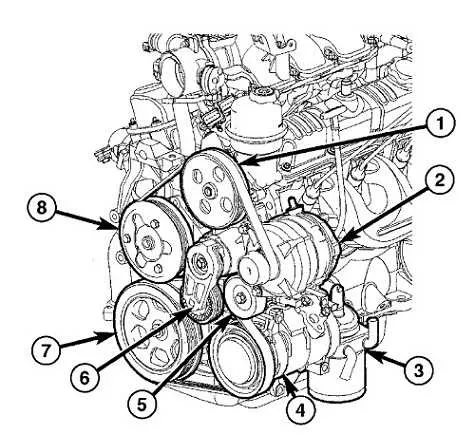

Locating Components for 5.7 Hemi Serpentine Belt Installation
Begin by identifying the crankshaft pulley at the bottom center of the engine; it drives the entire serpentine belt system. Move upward to locate the alternator on the passenger side, slightly angled toward the front. The power steering pump sits on the driver side, near the top, with its pulley clearly visible from the front.
The water pump pulley aligns just above the crankshaft pulley, directly behind the belt path, and the A/C compressor pulley is positioned lower on the passenger side, often partially obscured by wiring but accessible from the front. The tensioner pulley is mounted near the center, slightly offset toward the passenger side, and includes a square hole or bolt head for a ratchet to relieve tension.
Check the idler pulleys next; these are smooth, round pulleys without attachments and are distributed along the belt path to guide proper routing. The upper idler sits above the water pump, while the lower idler is near the bottom, closer to the crankshaft. Ensure each component rotates freely before threading the belt to avoid binding or misalignment.
Reference the belt routing diagram usually found on the radiator support or under the hood. Follow the path carefully, starting from the crankshaft, moving clockwise or counterclockwise according to the diagram, looping around each pulley without forcing the belt. Confirm alignment on each pulley before releasing the tensioner.
Double-check the alternator, A/C compressor, power steering, and water pump pulleys for correct seating in their grooves. Once the belt sits properly across all pulleys and the tensioner is released, rotate the crankshaft by hand two full turns to verify smooth motion and correct alignment.
Step-by-Step Routing of the Serpentine Belt on 5.7 Hemi
Release tension from the belt by rotating the tensioner clockwise using a 3/8-inch ratchet. Pull the old belt off the pulleys carefully, noting the routing path or taking a photo for reference.
Position the new serpentine belt around the crankshaft pulley first. Ensure the belt sits fully in the pulley grooves. Next, loop the belt over the water pump pulley, keeping alignment tight and avoiding twisting.
Guide the belt around the alternator pulley, checking that the ribbed side engages the pulley properly. Route the belt over the power steering pulley, maintaining consistent tension along the path.
Loop the belt around the A/C compressor pulley, verifying it follows the correct groove pattern. Position the belt over the tensioner pulley last, leaving it ready to be released for proper tensioning.
Slowly release the tensioner, allowing it to apply full tension to the belt. Inspect each pulley to ensure the belt is seated correctly, with no slack or misalignment. Rotate the engine manually two full turns to confirm smooth operation and correct tracking.
Troubleshooting Common Serpentine Belt Alignment Issues
Check pulleys for misalignment immediately if the belt squeals or shows uneven wear. A visual inspection under proper lighting can reveal slight tilts or grooves that cause tracking problems.
Use a straightedge or laser alignment tool to verify pulley positions. Place the straightedge across multiple pulleys; even a 1/16-inch deviation can affect belt performance.
- Inspect the tensioner for smooth operation. A weak or sticky tensioner can allow the belt to wander, producing noise and premature wear.
- Look for bent brackets or mounting bolts. Tighten or replace hardware that shifts pulley angles.
- Examine all accessory pulleys, including the alternator, power steering, and A/C. Minor misalignment on any pulley alters the belt path significantly.
Check for belt wear patterns. Feathered edges indicate misalignment, while shiny spots suggest slippage. Repositioning pulleys or replacing the tensioner usually corrects these issues.
- Loosen accessory mounting bolts slightly.
- Adjust the pulley until the belt runs true across all surfaces.
- Tighten bolts and manually rotate the belt to ensure smooth operation.
Replace the serpentine belt immediately if cracks, fraying, or deep grooves appear. Aligning a damaged belt may provide temporary relief but accelerates failure.
Recheck alignment after a few hundred miles, especially under load conditions. Vibrations from the engine can shift pulleys subtly, requiring minor adjustments.
