2016 Dodge Journey 24 Engine Belt Routing Diagram and Installation Guide
Check the belt routing before removing the serpentine belt on a 2016 Dodge Journey 2.4L. The belt wraps around the alternator, power steering pump, air conditioning compressor, tensioner, and crankshaft pulley. Visualizing the path helps avoid incorrect installation and potential engine damage.
Use the belt diagram located under the hood or in the owner’s manual to match the exact configuration. The tensioner pulley requires a 3/8-inch ratchet or breaker bar to release tension safely. Apply steady pressure and ensure the belt slides off smoothly without twisting or slipping off adjacent pulleys.
Inspect each pulley for wear, alignment, and smooth rotation. Replace the belt immediately if you notice cracks, fraying, or glazing. Align the belt carefully on each pulley following the diagram, then release the tensioner gradually to secure the belt. Start the engine briefly and watch for proper belt tracking and tension before completing the installation.
Comprehensive Guide to 2016 Dodge Journey 2.4 Serpentine Belt Layout and Maintenance
Locate the serpentine belt routing diagram on the engine’s radiator support or under the hood; it shows the exact path over the alternator, power steering pump, air conditioning compressor, and tensioner pulley. Confirm the diagram matches your engine layout before removal.
Inspect the belt for cracks, fraying, or glazing every 30,000 miles. Replace the belt immediately if you detect uneven wear or missing ribs, as these issues can cause slippage and reduce performance of connected components.
Release tension using a 3/8-inch ratchet or serpentine belt tool on the tensioner pulley. Slide the belt off the pulleys in the order indicated by the routing diagram. Avoid twisting or forcing the belt to prevent damage to its fibers.
Clean pulleys and check alignment. Misaligned pulleys can accelerate belt wear and create noise. Adjust or replace any pulley showing wobble, roughness, or visible grooves.
Install the new belt following the routing diagram, ensuring each rib sits correctly in the pulley grooves. Rotate the tensioner slowly to slip the belt into place and release it gradually to maintain proper tension. Spin the engine manually to confirm smooth operation without skipping.
Test under normal engine conditions. Listen for squealing or unusual vibration, which may indicate improper tension or a misaligned pulley. Recheck tension and routing if any issues appear. Maintain regular visual inspections every 6,000 miles to prolong belt life and prevent sudden failures.
Locate and Interpret the 2016 Dodge Journey 2.4 Belt Diagram

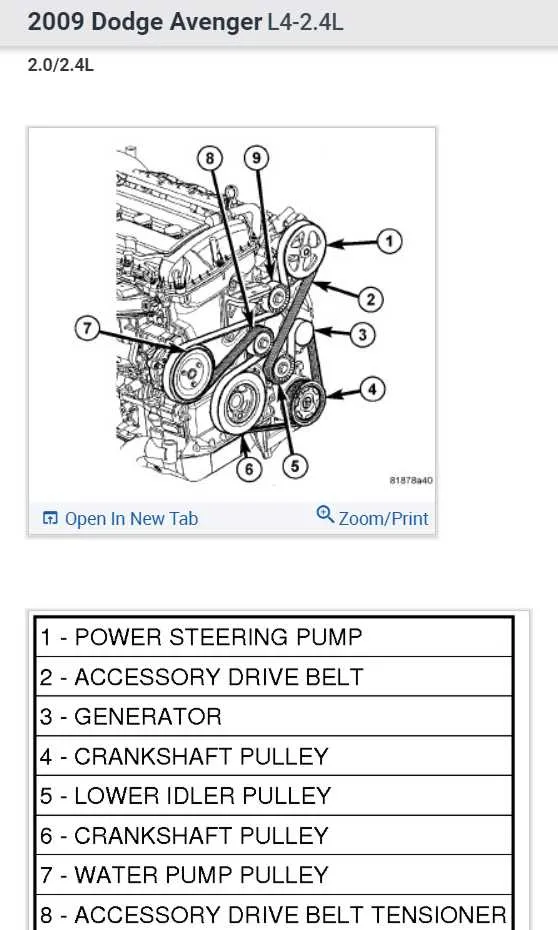

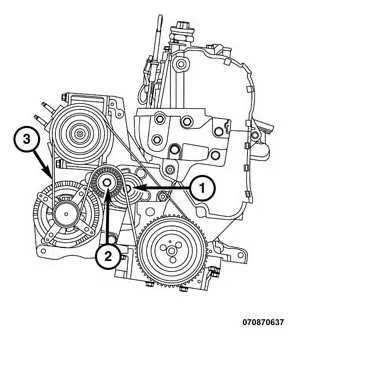

Access the belt diagram by opening the hood and checking the underside of the engine cover or the radiator support; the diagram is often printed on a decal near the serpentine belt assembly.
Identify the main components: the crankshaft pulley drives the belt, which loops around the alternator, water pump, power steering pump, and air conditioning compressor. Note the tensioner pulley location, which maintains proper belt tension.
Follow the path indicated on the diagram carefully, matching each pulley with its corresponding symbol. Pay attention to the direction of belt routing to prevent misalignment.
Use the diagram to trace worn areas or misalignment issues. Mark the belt path on paper or take a clear photo to ensure correct reinstallation after maintenance.
For replacement, release the tensioner using a suitable wrench, remove the old belt, and route the new belt according to the diagram. Confirm that the belt sits fully in all pulley grooves without twists.
Double-check alignment visually and rotate the engine by hand a few turns to ensure smooth operation and correct tension. Proper interpretation of the diagram avoids premature wear and reduces the risk of belt slippage or component damage.
Step-by-Step Replacement Process for the Serpentine Belt
Release the tension on the serpentine belt using a 3/8-inch ratchet on the tensioner pulley. Rotate the tensioner clockwise to free the belt from the pulleys.
Inspect the belt routing diagram located on the engine cover or under the hood. Ensure you understand the exact path before removing the old belt.
- Slide the belt off the pulleys, starting with the easiest accessible one. Avoid forcing the belt to prevent pulley damage.
- Compare the new belt to the old one to confirm length, rib count, and overall fit.
- Route the new belt along the correct path, leaving the tensioner pulley for last. Verify that each rib aligns properly with the pulley grooves.
- Rotate the tensioner again to allow the belt to slip over the final pulley. Slowly release the tensioner to apply proper tension to the belt.
- Double-check the routing against the diagram. Ensure there is no slack and all pulleys are correctly engaged.
- Start the engine and observe the belt. Watch for smooth operation and listen for unusual noises indicating misalignment.
- Turn off the engine and recheck tension. Adjust if necessary before securing any engine covers removed during installation.
Use a quality serpentine belt designed for the 2016 Dodge Journey 2.4L engine. Regularly inspect for cracks, fraying, or glazing to maintain proper performance.
Troubleshooting and Preventing Common Belt Issues
Check your serpentine belt regularly for visible cracks, fraying, or glazing on the ribs. A worn belt can slip, causing loss of power to the alternator, power steering, and AC compressor. Replace the belt if you notice deep cracks or missing chunks.
Listen for squealing or chirping noises from the engine. These often indicate improper tension or a misaligned belt. Use a belt tension gauge to verify proper tension and inspect pulleys for wear or debris that might cause misalignment.
Inspect the belt routing and alignment using the 2016 Dodge Journey 2.4 belt diagram. Misrouted belts create uneven wear and reduce lifespan. Ensure all pulleys spin freely and bearings do not produce grinding noises.
Check for oil, coolant, or power steering fluid contamination on the belt. Fluids degrade rubber, accelerating cracks and slippage. Clean surrounding surfaces and address any leaks immediately.
Rotate or replace pulleys and tensioners if they show signs of wear. A failing tensioner can cause the belt to slack or slip, leading to performance issues. Use the correct replacement parts for the 2.4L engine to maintain proper alignment.
Maintain a replacement schedule of approximately 60,000–100,000 miles for the serpentine belt. Track mileage and visual condition to prevent sudden failure and maintain smooth engine operation.
