2015 Dodge Durango 5.7 Serpentine Belt Diagram and Routing Guide

The 2015 Dodge Durango with the 5.7L HEMI engine requires proper routing of the serpentine belt to ensure smooth operation of various components like the alternator, power steering pump, and air conditioning compressor. Understanding the belt diagram is key to replacing or maintaining the belt without causing damage to the engine components.

The serpentine belt on the 5.7L HEMI engine follows a specific route to handle the tension and prevent slippage. The diagram provides a clear guide for the correct placement of the belt on the pulleys. Pay close attention to the direction and order of the pulleys for a hassle-free installation.

Before starting the replacement process, make sure to use a proper tool to relieve the tension on the belt and carefully remove the old one. Follow the diagram step-by-step when installing the new belt. Ensure each pulley groove is aligned correctly and that the belt is not twisted.

By following the belt diagram, you can extend the lifespan of the engine’s accessories and maintain the optimal performance of your Dodge Durango. Regular inspection of the belt for signs of wear and tear is also recommended for preventing potential issues.

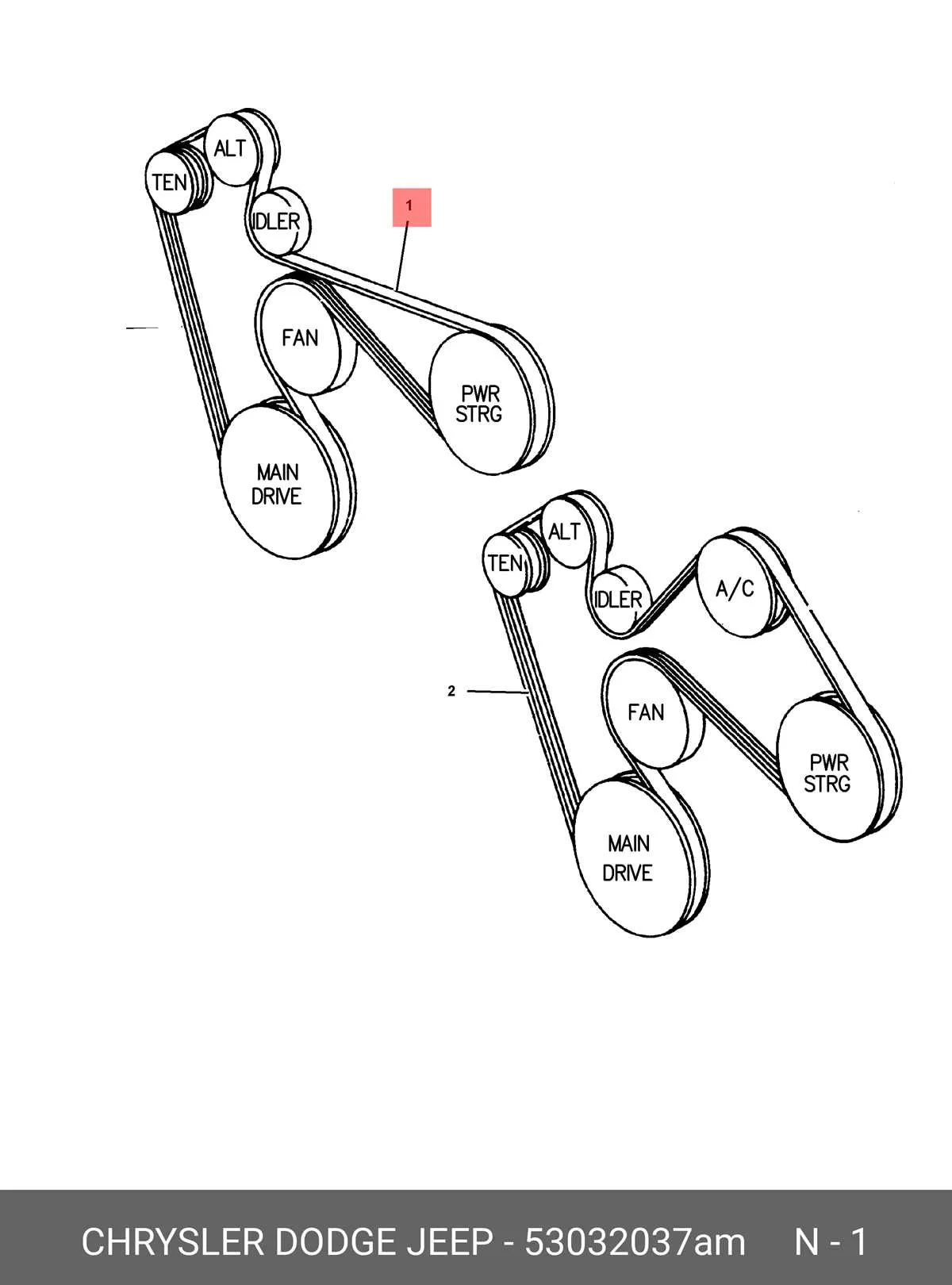

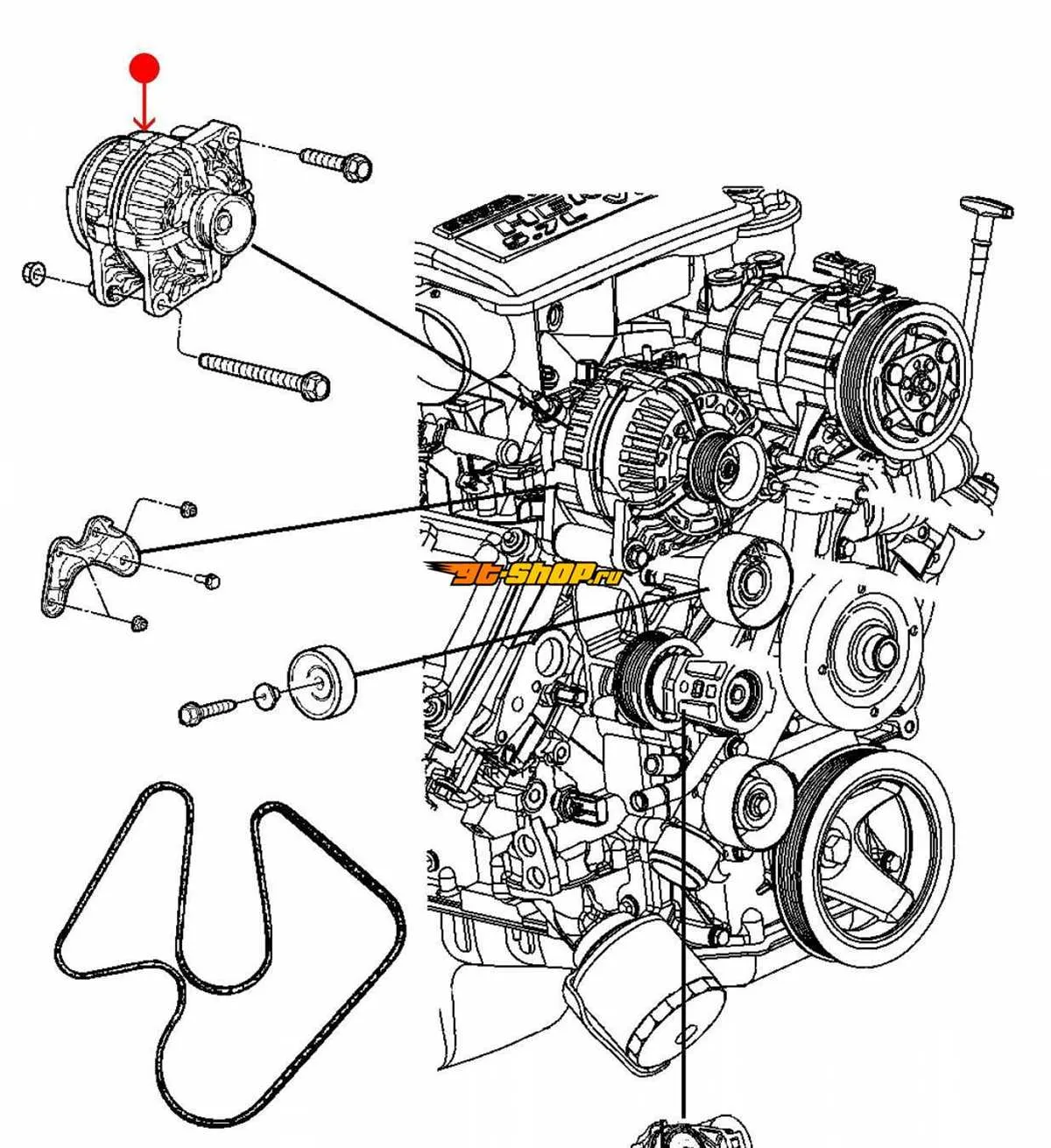

2015 Dodge Durango 5.7 Belt Diagram

For the 2015 Dodge Durango 5.7L, the serpentine belt diagram is essential for proper maintenance and troubleshooting. The belt drives multiple components like the alternator, power steering pump, and air conditioning compressor. Make sure to follow the correct routing to avoid damage to engine components.

The serpentine belt runs over the crankshaft pulley, power steering pump, alternator, air conditioning compressor, and tensioner. The tensioner keeps the belt tight, ensuring all components are properly powered. It’s key to check belt alignment and tension regularly to prevent slippage or wear.

Refer to the diagram when replacing or inspecting the belt. Ensure the grooves of the belt line up correctly with pulleys. If you’re replacing the belt, make sure to inspect each pulley for wear and tear. A worn pulley can cause improper belt function or even premature wear of the new belt.

If the belt shows signs of cracks, fraying, or glazing, replace it immediately. A damaged belt can lead to power loss to critical components and engine damage. Regularly inspect the belt every 30,000 miles or according to the manufacturer’s recommendations for replacement.

When installing a new belt, be sure to use the correct size and type specified in your owner’s manual. Incorrect installation can lead to misalignment or premature failure of the belt and its components.

How to Read the 2015 Dodge Durango 5.7 Belt Diagram for Maintenance

To properly maintain your 2015 Dodge Durango 5.7, understanding the belt diagram is essential. Start by locating the diagram, typically found on the front of the engine compartment or near the radiator support. This diagram will show the routing of the serpentine belt and the components it interacts with, including the alternator, power steering pump, and air conditioning compressor.

Next, pay attention to the belt tensioner, usually positioned along the belt path. The diagram will show the direction in which the belt needs to move, ensuring it aligns with all pulleys correctly. If the belt has deviated from the diagram, it can lead to misalignment or excessive wear, damaging components.

Check the diagram for the proper installation of the idler pulleys and the tensioner, which helps maintain the correct belt tension. Over time, the belt may stretch or wear, and understanding the correct routing helps you avoid misinstallation during replacements.

If you’re replacing the belt, remember to compare the new belt’s length and grooves with the old one before installation. Always verify that the tensioner is set to its proper position, preventing the belt from slipping or becoming too tight, which can cause overheating or premature wear.

After replacing or inspecting the belt, manually rotate the engine with the belt on and observe its movement. The diagram will help you confirm that the belt travels smoothly along all pulleys without any irregularities.

Finally, keep the belt diagram handy for future maintenance. A well-maintained belt ensures the longevity of your engine components and smooth vehicle operation.

Common Issues with the 2015 Dodge Durango 5.7 Serpentine Belt and Troubleshooting Tips

If the serpentine belt on your 2015 Dodge Durango 5.7 is showing signs of wear or failure, it’s crucial to address the issue quickly. A damaged belt can lead to engine overheating, loss of power steering, or even complete engine failure. One of the most common problems is belt slippage, which often occurs when the belt becomes stretched or glazed. This leads to poor performance of engine accessories like the alternator, power steering pump, and air conditioning compressor.

Another issue is belt misalignment, often caused by a faulty pulley or tensioner. This misalignment can cause the belt to wear unevenly, leading to premature failure. If you hear squealing or squeaking noises from the engine compartment, check for signs of belt misalignment or inadequate tension. Misalignment can also result from broken or worn-out pulleys, which need immediate attention to prevent further damage.

If the serpentine belt shows any visible cracks or fraying, it’s a clear sign that it needs replacement. These signs typically appear after extended use or exposure to extreme heat. Ignoring such damage can lead to the belt snapping while driving, causing a sudden loss of power to critical systems. Regular inspection of the belt’s condition is a good practice to avoid unexpected breakdowns.

To troubleshoot a failing serpentine belt, start by inspecting the belt for cracks, fraying, or excessive wear. If the belt is not visibly damaged but is still causing issues, check the tensioner and pulleys for proper function. A faulty tensioner may fail to maintain the correct tension on the belt, which can lead to slippage and noise. Replacing the tensioner or pulley often resolves the issue.

If you’re unsure about the condition of the serpentine belt or its components, consulting the vehicle’s service manual can help identify the correct specifications and recommended maintenance intervals. Replace the serpentine belt every 60,000 to 100,000 miles or sooner if wear is evident. Regular maintenance will extend the lifespan of your engine accessories and keep your Durango running smoothly.

Steps to Replace the Serpentine Belt on a 2015 Dodge Durango 5.7

1. Disconnect the vehicle’s battery to prevent accidental electrical shocks. Always remove the negative terminal first.

2. Locate the serpentine belt tensioner on the passenger side of the engine bay. It is responsible for maintaining the correct tension on the belt.

3. Use a 3/8-inch drive ratchet to rotate the tensioner counterclockwise. This will relieve the tension on the belt and allow you to remove it easily.

4. Take the serpentine belt off by sliding it off the pulleys one by one. Make a note of the belt’s routing before removal, or refer to the belt diagram located on the engine cover for guidance.

5. Inspect the new serpentine belt for any signs of wear or defects before installation. Ensure it is the correct replacement part for the 2015 Dodge Durango 5.7 model.

6. Route the new belt according to the diagram. Double-check the path and make sure the belt sits properly on all pulleys.

7. Rotate the tensioner counterclockwise again with the ratchet, and carefully slip the belt over the tensioner pulley. Once the belt is in place, slowly release the tensioner to apply proper tension to the belt.

8. Inspect the belt’s alignment once it’s installed. Ensure that it’s centered on all pulleys, and there are no misalignments.

9. Reconnect the vehicle’s battery, starting with the positive terminal.

10. Start the engine and listen for any unusual sounds that could indicate improper belt tension or installation. If everything sounds normal, the replacement is complete.
