2015 Dodge Dart Serpentine Belt Diagram and Routing Guide
For accurate belt routing on your 2015 Dodge Dart, understanding the exact configuration is key to maintaining your vehicle’s performance. The serpentine belt system in the Dart powers essential components, including the alternator, power steering pump, and air conditioning compressor. A clear belt diagram ensures that each part functions smoothly and prevents common issues such as belt slippage or misalignment.

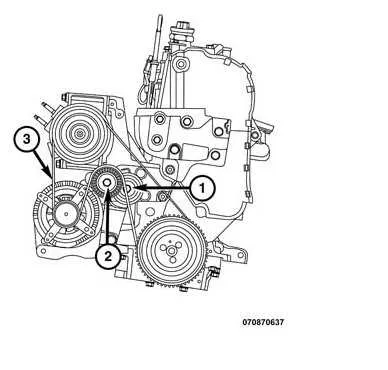

The diagram for this model is straightforward yet crucial for DIY maintenance or repair. It displays the path of the serpentine belt across pulleys, including the tensioner and idler pulley positions. For proper installation, make sure to align the belt according to this diagram, ensuring the proper tension to avoid premature wear or damage to the components it powers.
For those replacing the serpentine belt, using a diagram helps prevent costly mistakes. With the right routing, the belt will perform optimally, minimizing the chance of engine strain. Refer to this guide to keep your 2015 Dodge Dart’s accessory drive system in peak condition.
2015 Dodge Dart Belt Diagram

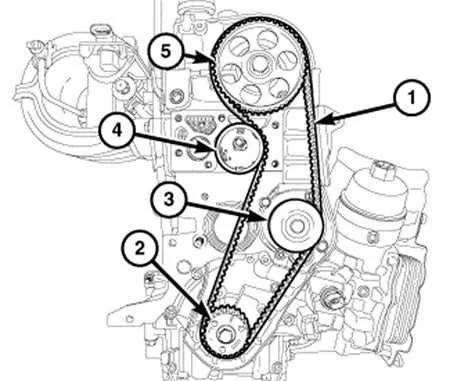

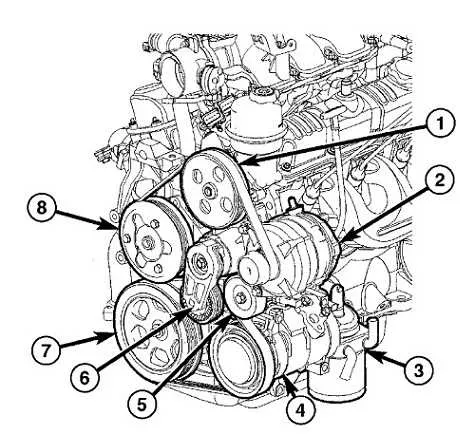

For accurate belt routing on your 2015 Dodge Dart, refer to the vehicle’s specific belt diagram. Make sure to use the correct routing to avoid premature wear or malfunction. The serpentine belt typically runs through the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor. It’s crucial that each pulley is properly aligned with the belt’s grooves to maintain tension and performance.
If you’re replacing the belt, first ensure the engine is off and cooled down. Locate the tensioner pulley, which controls belt tightness. Use a wrench or socket to relieve tension before removing the old belt. Note how the belt routes through the pulleys and follow the diagram precisely during installation. Incorrect routing may result in inefficient engine operation or damage to components.
Regularly inspect the belt for signs of wear such as cracks or fraying. If you notice these signs, replace the belt immediately to prevent further damage to the engine components. Maintaining proper belt tension is key for smooth operation, so always check tension after installation to ensure it’s correctly adjusted.
Understanding the Main Components of the Belt System
The belt system in your 2015 Dodge Dart includes several key components that work together to power various engine accessories. These parts are the serpentine belt, pulleys, tensioner, and idler pulleys. Each of them plays a specific role in ensuring smooth operation and preventing damage.
The serpentine belt, also known as the drive belt, is the primary component. It connects the engine’s crankshaft to the alternator, power steering pump, water pump, air conditioning compressor, and other accessories. The belt is long, wide, and designed to stretch over multiple pulleys to transfer power efficiently. When the belt wears down or becomes damaged, it can affect the performance of these accessories, causing issues like overheating or electrical failure.
The pulleys guide the serpentine belt along its path. These include the crankshaft pulley, which powers the entire system, and other smaller pulleys that drive each accessory. Pulleys are designed to withstand friction, wear, and heat, ensuring the belt moves smoothly without slipping off or breaking.
The tensioner maintains the correct level of tension on the serpentine belt. It keeps the belt tight enough to prevent slippage but not so tight that it causes premature wear. The tensioner is spring-loaded and automatically adjusts as the belt stretches or wears over time.
Idler pulleys help guide the belt in specific directions. They ensure the belt runs in a precise alignment, preventing it from coming off or getting misaligned, which could lead to serious mechanical issues. These pulleys are especially important when the serpentine belt has to travel across several accessories.
Inspecting each of these components regularly is key to maintaining your vehicle’s performance. Worn-out belts or malfunctioning pulleys can cause belts to slip or snap, which can lead to more severe engine problems. Replace any worn parts promptly to avoid costly repairs.
How to Properly Replace the Serpentine Belt in 2015 Dodge Dart
Begin by ensuring the engine is turned off and the car is cool. You’ll need a wrench, serpentine belt tool, and a new belt. Find the belt diagram under the hood or in the owner’s manual for reference.
Next, locate the tensioner pulley. Use the serpentine belt tool to release tension by rotating the pulley counterclockwise. This will loosen the belt, allowing you to remove it. Carefully slide it off the pulleys.
Compare the old belt with the new one to make sure they match in size and tooth pattern. Position the new belt according to the diagram, making sure it fits correctly on all pulleys, including the crankshaft, alternator, power steering, and air conditioning compressor.
Once in place, use the serpentine tool to relieve the tension again and slide the belt over the tensioner pulley. Double-check all pulleys to ensure the belt is aligned properly and doesn’t slip off any of them.
Start the engine and observe the belt in motion. Ensure it runs smoothly and quietly. If you notice any squealing or misalignment, turn off the engine and adjust the belt.
Finally, close the hood and test drive the car. Keep an eye on the belt for any signs of wear or issues in the first few days.
Troubleshooting Common Belt-Related Issues in 2015 Dodge Dart
Inspect the serpentine belt for visible wear or cracks. If the belt shows any signs of damage, it’s time for a replacement. A frayed or cracked belt will cause slipping, leading to reduced performance or failure of accessories like the alternator or air conditioning system.
Check the tensioner. A worn or faulty tensioner can result in improper belt tension, causing slipping or noise. To test it, manually apply pressure to the belt. If it moves too easily or too loosely, the tensioner may need replacing.
Inspect pulleys for misalignment. Misaligned pulleys can lead to excessive belt wear and potential damage to the belt and surrounding components. If pulleys appear off-center, adjust or replace them as needed.
If the belt squeals, particularly in the mornings, it might be due to moisture or dust buildup on the belt or pulleys. Clean the belt and pulleys and ensure they are free of contaminants.
Examine the alternator and power steering pump for proper function. A malfunctioning pump or alternator can strain the belt, causing it to wear out prematurely. If these components are not working smoothly, they may need repair or replacement.
Listen for any unusual noises like squealing or grinding, which often indicate that the belt is slipping, loose, or misaligned. These sounds can point to issues with the belt itself, tensioner, or pulleys.
