2014 Dodge Grand Caravan Serpentine Belt Routing Diagram and Maintenance Tips
If you’re replacing the serpentine belt on your 2014 Dodge Grand Caravan, it’s important to have a clear diagram to ensure proper installation. The serpentine belt drives several crucial components, including the alternator, power steering pump, air conditioning compressor, and water pump. A diagram helps you understand the routing and alignment of the belt with these components, preventing errors during installation.
The belt path typically runs through the crankshaft pulley, alternator, tensioner, power steering pump, and the air conditioning compressor. Ensure that the belt fits snugly around each pulley and that the tensioner maintains the right level of tightness. If the belt is installed incorrectly, it can slip, wear out prematurely, or even cause damage to surrounding components.
Check the tensioner for proper operation. If it’s not adjusting the belt tension adequately, replace the tensioner to prevent belt slippage or breakage. This will also help avoid costly repairs down the line.

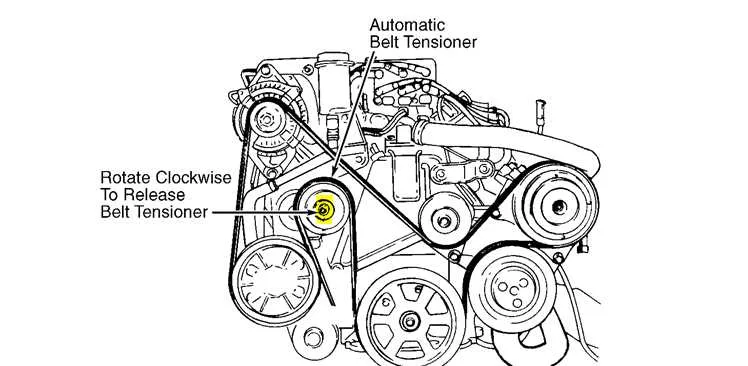

2014 Dodge Grand Caravan Serpentine Belt Diagram
To replace or inspect the serpentine belt on your 2014 Dodge Grand Caravan, follow the belt routing diagram carefully. The diagram shows how the belt connects various engine components like the alternator, power steering pump, and air conditioning compressor. Ensuring the belt follows the correct path will prevent misalignment or damage.
The serpentine belt on this model is driven by the crankshaft pulley and loops around the alternator, idler pulley, tensioner, power steering pump, and air conditioning compressor. To identify the correct routing, locate the belt tensioner. You’ll need to relieve tension from the belt using a wrench or socket to rotate the tensioner pulley. This will allow you to remove the belt easily.
Once removed, compare the new belt with the old one to ensure the proper size. Carefully route the new belt according to the diagram, ensuring that each section fits snugly around the pulleys. A misaligned belt can cause excessive wear or lead to malfunctioning of components.
After installation, check the tensioner to ensure it is operating correctly. The tensioner should maintain appropriate tension on the belt without slacking or over-tightening. Lastly, start the engine and listen for any unusual sounds, which might indicate a misrouted or defective belt.
How to Read the 2014 Dodge Grand Caravan Serpentine Belt Diagram

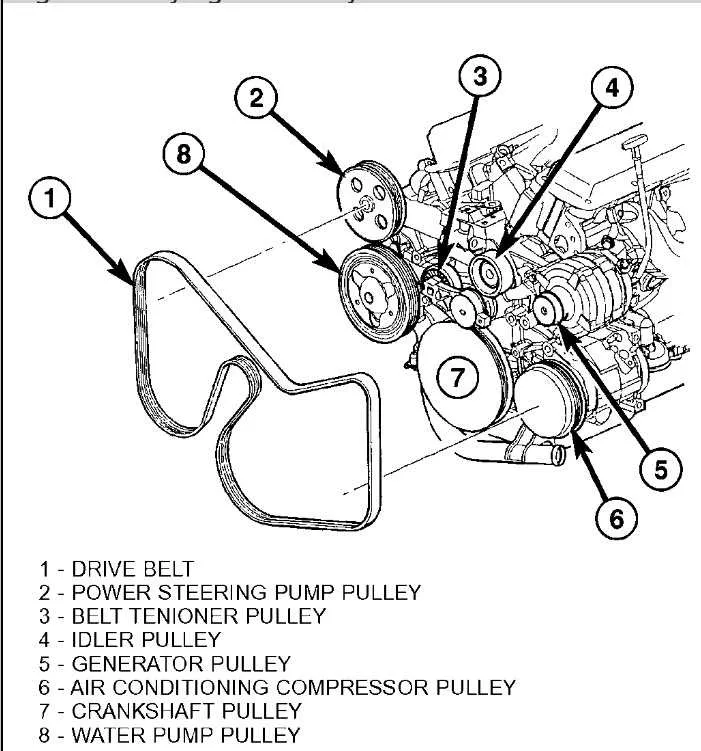

Examine the diagram carefully, focusing on the routing and components. Start with the location of the crankshaft pulley, which is typically at the bottom of the diagram. The belt will loop around this first before moving to the alternator, power steering pump, and air conditioning compressor. Follow each component’s position in the diagram to see the exact path the belt takes.
Check for arrows on the diagram, as these indicate the direction in which the serpentine belt moves. This helps ensure the belt is installed properly, aligning with the pulleys. The diagram will also show the tensioner pulley, which plays a key role in maintaining proper belt tension. Verify its placement to avoid issues with belt slack.
Note any additional components, such as the water pump or idler pulleys, that the belt passes over. These elements might vary depending on the specific model or trim of the 2014 Dodge Grand Caravan. Double-check the positioning of each component in relation to the others to avoid misrouting.
If you need to replace the serpentine belt, use the diagram as a guide to both the installation and removal process. Make sure you follow the belt’s exact routing and confirm all pulleys are aligned correctly after installation.
Step-by-Step Instructions for Replacing the Serpentine Belt on a 2014 Dodge Grand Caravan
To replace the serpentine belt on your 2014 Dodge Grand Caravan, follow these precise steps:
- Gather Necessary Tools:
- New serpentine belt
- Ratchet wrench and socket set
- Torque wrench
- Serpentine belt tool or breaker bar (optional but helpful)
- Locate the Serpentine Belt Tensioner:

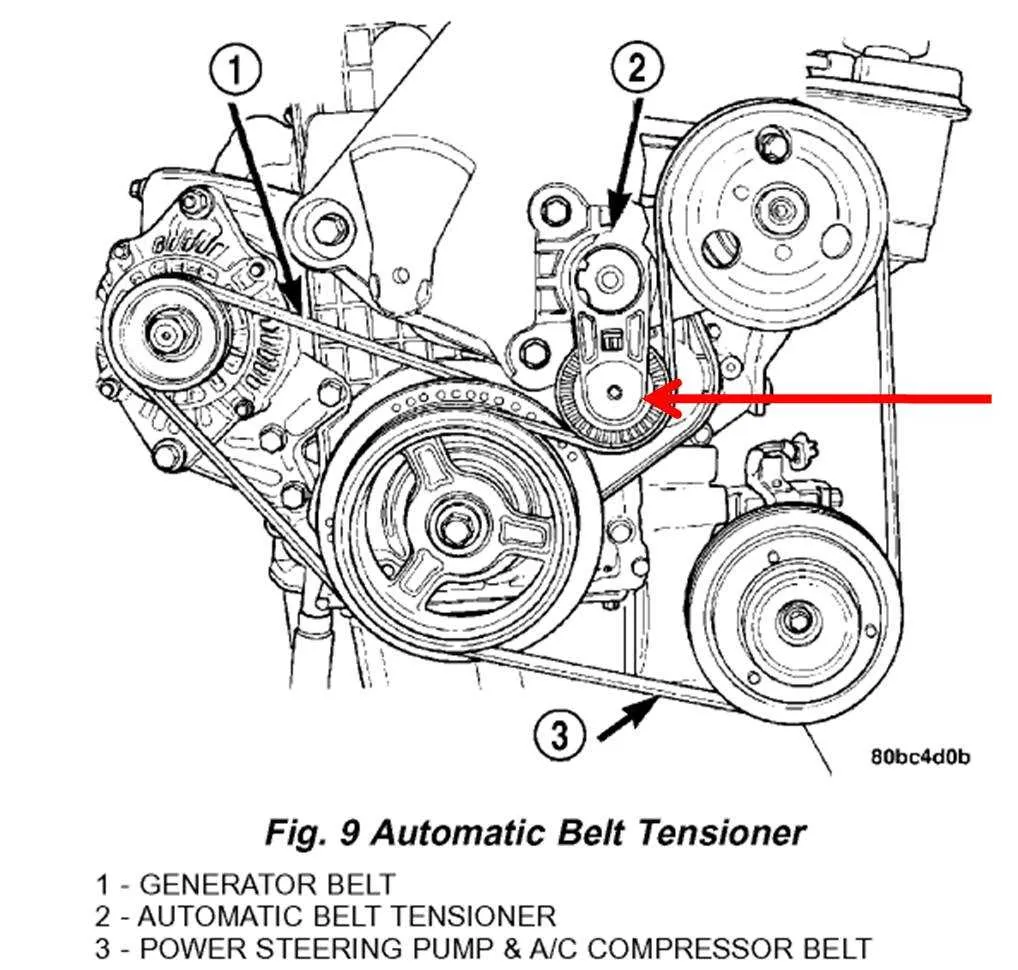

The serpentine belt tensioner is located near the front of the engine. Use a ratchet wrench with the appropriate socket to release the tension by turning the tensioner pulley clockwise.
- Release the Tension and Remove the Old Belt:
With the tensioner pulley relieved, remove the old serpentine belt by carefully sliding it off the pulleys. Ensure you note the routing of the belt for correct installation of the new one.
- Inspect the Pulleys:
Before installing the new belt, check all pulleys for damage, wear, or debris. Replace any faulty pulleys before continuing.
- Install the New Serpentine Belt:
Refer to the belt routing diagram on the engine bay for proper installation. Carefully loop the new belt around the pulleys, following the correct path. The tensioner pulley should be the last component to install the belt on.
- Apply Tension:
Using the ratchet wrench, rotate the tensioner pulley to provide the necessary tension for the belt. Ensure that the belt is tightly seated on all pulleys and runs smoothly.
- Check Belt Alignment:
Double-check that the belt is aligned with all pulleys and is not twisted or misaligned. You can rotate the engine by hand (or use the wrench to rotate the crankshaft pulley) to verify the belt’s proper seating.
- Test the New Belt:
Start the engine and observe the new serpentine belt’s movement. Listen for any unusual noises and make sure the belt is running smoothly without slipping or fraying.
- Final Tightening:
Use a torque wrench to verify the tensioner pulley is properly tightened according to the manufacturer’s recommended torque specifications.
Replacing the serpentine belt on your 2014 Dodge Grand Caravan requires a bit of time and attention to detail, but it’s a manageable task with the right tools and careful execution.
Common Issues with the Serpentine Belt on the 2014 Dodge Grand Caravan and How to Fix Them
The serpentine belt on the 2014 Dodge Grand Caravan can experience several issues over time. These problems often stem from wear and tear, improper tension, or damaged components. Below are the most common issues and how to address them.
| Issue | Cause | Solution |
|---|---|---|
| Cracking or Fraying | Age, heat, and exposure to elements can cause the belt to crack or fray. | Replace the belt immediately to avoid further damage to other components. Inspect the belt for signs of wear every 30,000 miles. |
| Squealing or Chirping Noise | A worn-out or improperly tensioned belt may slip, causing noise. | Check the belt tensioner and replace the belt if it’s loose or showing signs of wear. Adjust the tensioner as needed to restore proper tension. |
| Belt Slipping | Insufficient tension, worn pulleys, or a damaged tensioner. | Inspect the tensioner for wear. Replace any damaged components and ensure the belt is properly tightened. |
| Burning Smell | Friction caused by a slipping or misaligned belt can generate heat and lead to a burning odor. | Inspect for belt misalignment and address it. Replace any damaged components and ensure proper belt routing. |
| Shredding or Breaking | Old belts or misaligned pulleys can cause the belt to break or shred. | Replace the belt immediately if it shows signs of severe wear. Check pulley alignment and condition before installing a new belt. |
Regular inspections can help you catch most of these issues early. Addressing them as soon as they arise can save you from more expensive repairs down the road.
