2012 Dodge Ram 5.7 Serpentine Belt Routing Diagram and Maintenance Tips

For accurate belt routing on your 2012 Dodge Ram 5.7, refer to the factory belt diagram located in your owner’s manual or under the hood of the truck. Ensuring the serpentine belt is routed correctly is critical for the optimal performance of the engine’s accessories, such as the alternator, power steering pump, and air conditioning compressor.

The 2012 Dodge Ram 5.7 HEMI engine utilizes a single serpentine belt that connects multiple components. The diagram typically shows how the belt loops around pulleys, including the tensioner pulley, which plays a key role in maintaining proper belt tension. If you’re replacing the belt, make sure to check the condition of the tensioner and all pulleys to prevent any future issues.

Always double-check the routing with the diagram to ensure you’re following the correct path. Incorrect installation can lead to premature wear, inefficient operation, or even damage to the engine components. If the belt has slipped or you’re experiencing unusual noises, it could indicate that the belt routing or tension is off, requiring immediate attention.

2012 Dodge Ram 5.7 Belt Diagram: A Practical Guide

The serpentine belt on the 2012 Dodge Ram 5.7 HEMI engine powers several key components, including the alternator, power steering pump, water pump, and air conditioning compressor. To ensure smooth operation, understanding the exact routing of the belt is crucial for both replacement and maintenance.

Start by locating the tensioner pulley. It plays a key role in maintaining the correct belt tension. The tensioner on the 2012 Ram 5.7 is spring-loaded and requires a special tool to rotate it. Once relieved, the belt can be easily removed. When installing the new belt, make sure it follows the correct routing path.

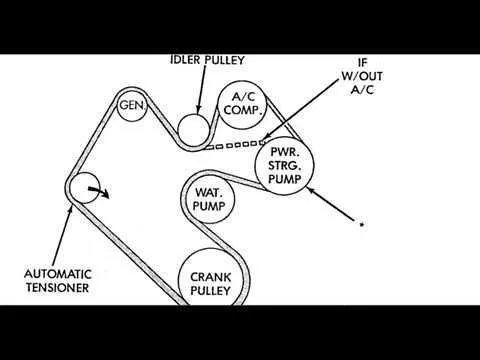

The belt routing diagram for the 2012 Dodge Ram 5.7 is as follows: The belt starts from the crankshaft pulley, moving to the tensioner, then loops around the alternator pulley. It continues through the idler pulley, the power steering pump, and wraps around the water pump before completing the loop at the AC compressor. Pay attention to the direction of rotation on the belt to avoid misalignment, which can lead to premature wear.

If the belt shows signs of cracking, fraying, or damage, it should be replaced immediately to prevent engine damage. Keeping an eye on the belt condition will save both time and costly repairs.

How to Read the 2012 Dodge Ram 5.7 Serpentine Belt Diagram

Check the diagram for the proper belt routing on your 2012 Dodge Ram 5.7. Follow the lines that indicate how the belt connects each component, starting from the crankshaft pulley, passing through the alternator, power steering pump, and other accessories like the A/C compressor or water pump. The path will also show if there are any idler pulleys or tensioners, along with their placement. Make sure the belt routing follows the specific direction indicated by arrows or numbers on the diagram.

Next, pay attention to the tensioner pulley. It’s usually positioned in such a way that it maintains belt tension. Ensure the diagram highlights how to release tension from the tensioner when you need to remove or replace the belt. In some cases, the diagram will include a notation about the tool required to release the tensioner. Always check for any specific markings indicating which side of the belt faces outward and which side contacts the pulleys. Proper orientation of the belt ensures maximum efficiency and prevents unnecessary wear.

If your vehicle comes with additional components like an air conditioning compressor or supercharger, verify that the belt routing matches your vehicle’s configuration. Any discrepancy could indicate an error or modification that requires attention. If unsure, compare the diagram with your current setup and ensure all parts are accounted for and routed correctly.

Finally, if the diagram includes tension specifications or pulleys with specific torque requirements, follow them to avoid improper tension, which can lead to premature belt wear or failure. Using the correct diagram and ensuring all components are in line with manufacturer specifications can save you time and money down the road.

Steps to Replace the Serpentine Belt on a 2012 Dodge Ram 5.7

To replace the serpentine belt on a 2012 Dodge Ram 5.7, first locate the tensioner pulley. Use a wrench or socket to relieve the tension on the belt by rotating the tensioner counterclockwise. Once the tension is released, slide the belt off the pulleys. Take note of the belt’s routing to ensure proper installation of the new one.

Next, remove the old serpentine belt and inspect all pulleys for wear or damage. If necessary, replace any worn-out pulleys or tensioner components to avoid future issues. Install the new belt by following the same routing pattern as the old one. Ensure it sits properly on all pulleys and the tensioner is fully engaged.

Once the belt is in place, slowly release the tensioner and check that the belt is correctly aligned. Start the engine and observe the belt’s operation, making sure it runs smoothly and without noise. If any irregularities are noticed, turn off the engine and recheck the belt’s routing and tension.

Finish by confirming all tools are removed and the engine bay is clean. The job is complete when the new belt is running smoothly with no slipping or noise.

Troubleshooting Common Belt Issues in 2012 Dodge Ram 5.7 Engines

If your 2012 Dodge Ram 5.7 engine is experiencing belt issues, the first step is to visually inspect the serpentine belt for wear or damage. Look for cracks, frays, or glazing, which indicate it needs replacement. Pay attention to any areas where the belt may be misaligned, as this can cause slippage and further damage to the belt and related components.

One common problem is a squealing sound coming from the engine bay. This usually signals a worn-out or loose belt. A quick check of the belt tensioner can reveal if it’s working properly. If the tensioner is faulty, it may not maintain the correct tension, leading to belt slippage and noise. Replace the tensioner if needed.

Another issue to watch for is overheating. If the belt driving the water pump is damaged or loose, the engine’s cooling system may fail, causing the engine to overheat. In this case, replace the belt and inspect the water pump for any damage.

If the alternator isn’t charging properly, check the belt connected to the alternator. A loose or worn-out belt may prevent the alternator from functioning efficiently. Tightening or replacing the belt should resolve this issue. Be sure to also inspect the alternator pulley for signs of wear or damage.

• Inspect the serpentine belt for signs of cracks, frays, or glazing.
• Check the tensioner for proper operation and replace if faulty.
• Ensure that the belt driving the water pump is intact to prevent overheating.
• Examine the alternator belt for any signs of looseness or wear.

Regularly inspecting and maintaining your vehicle’s belts is the best way to avoid breakdowns and costly repairs. If you notice any of the above issues, address them immediately to keep your 2012 Dodge Ram 5.7 running smoothly.
