2012 Dodge Charger Serpentine Belt Routing Diagram and Instructions
If you’re troubleshooting a belt issue on your 2012 Dodge Charger, understanding the belt diagram is key to making accurate repairs. The serpentine belt system powers several engine components, including the alternator, power steering pump, and air conditioning compressor. Ensuring everything runs smoothly requires knowing how the belt interacts with each part of the system.
Start by locating the belt routing diagram, typically found on a label near the radiator or the engine bay. This diagram shows the proper path for the serpentine belt and helps you avoid mistakes during installation. It’s important to check the condition of your current belt before replacing it, as wear and tear can cause slipping or damage to engine components.
When replacing the belt, use a tensioner tool to relieve the pressure on the tensioner pulley. This will make it easier to remove the old belt and install the new one. Pay attention to the alignment of the pulleys as you guide the new belt into place, ensuring it fits properly in each groove.

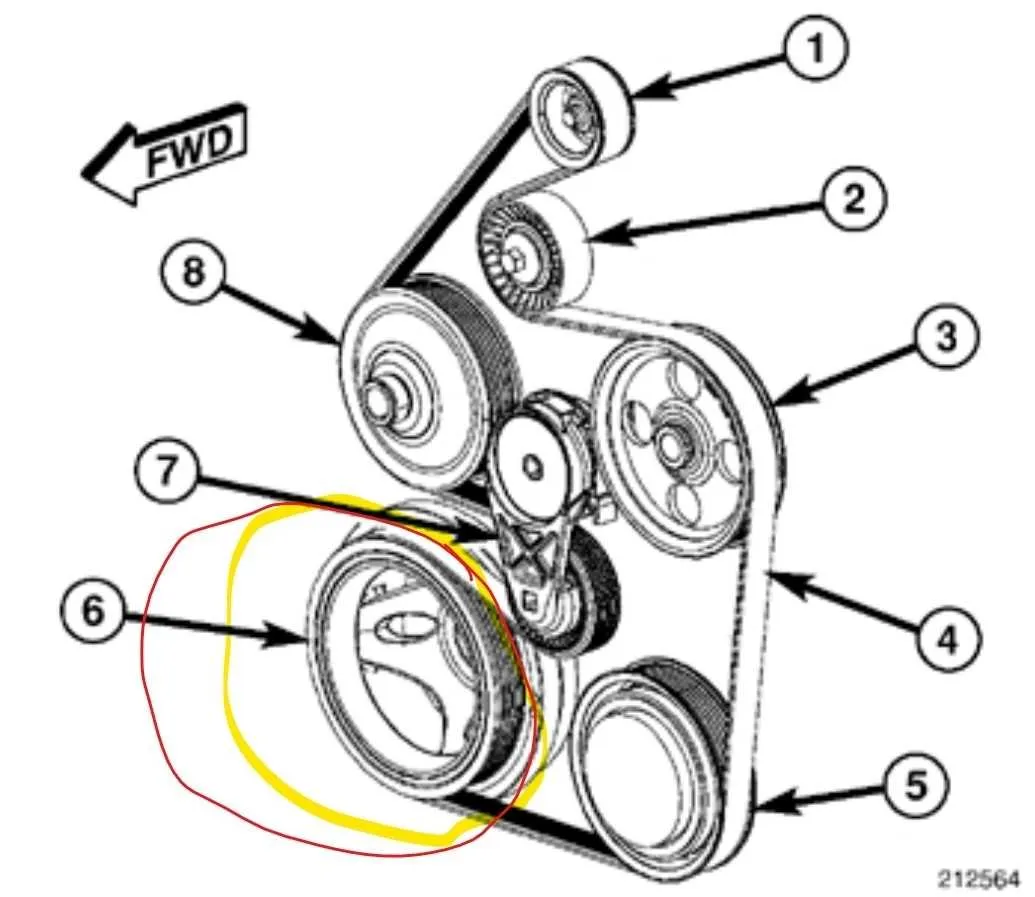

2012 Dodge Charger Belt Diagram
The 2012 Dodge Charger uses a serpentine belt system to drive multiple components, such as the alternator, power steering pump, and air conditioning compressor. The belt layout varies depending on the engine type, either the 3.6L V6 or the 5.7L V8. Be sure to check your vehicle’s manual for the correct routing specific to your model.

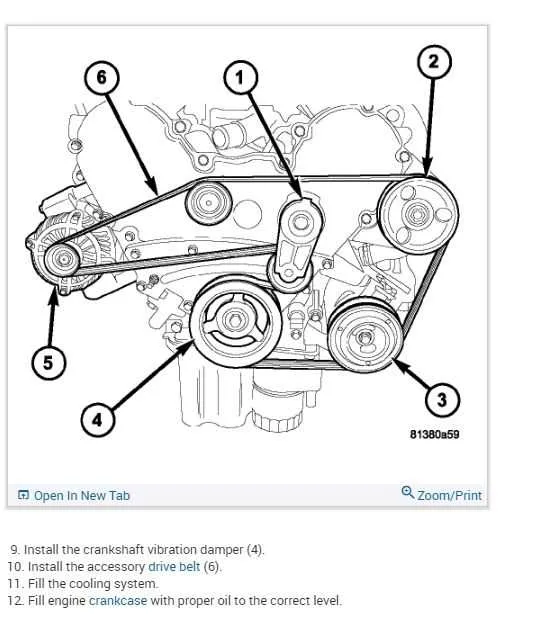

For the 3.6L V6 engine, the serpentine belt should be routed through the crankshaft pulley, power steering pump, water pump, alternator, and idler pulleys. It wraps around the tensioner pulley for proper adjustment. The diagram clearly marks each pulley and its location to prevent any confusion when replacing or adjusting the belt.
If you’re working with the 5.7L V8 engine, the belt routing differs slightly. The main components driven by the belt, such as the alternator, power steering pump, and A/C compressor, are arranged similarly, but the path may include additional idler pulleys or a different tensioning system. Double-check the diagram to ensure correct alignment.
Before replacing or adjusting the serpentine belt, always ensure that the tensioner is in good condition. A faulty tensioner can cause premature wear or slipping of the belt, affecting performance. If you notice squealing or cracking noises, it’s time to inspect the belt for damage or misalignment.
If you’re not comfortable with the task, consult a professional mechanic for proper installation and tension adjustments to avoid complications.
Understanding the Routing of Serpentine Belt in the 2012 Dodge Charger
The serpentine belt in the 2012 Dodge Charger is a key component that powers various accessories, such as the alternator, power steering pump, air conditioning compressor, and water pump. It’s vital to understand how this belt is routed to avoid costly repairs or replacements due to improper installation.
Start by locating the belt tensioner. This component is crucial because it maintains the proper tension on the serpentine belt, preventing slippage. In the 2012 Charger, the tensioner is positioned near the bottom of the engine, on the driver’s side. From here, the belt loops around the crankshaft pulley, which is typically the largest pulley on the system.
Next, the belt runs upwards to the water pump and alternator pulleys. The water pump, located at the front of the engine, helps circulate coolant throughout the system, while the alternator is responsible for charging the vehicle’s battery. These pulleys are positioned directly in line with each other, which makes routing the belt straightforward.
From the alternator, the belt moves to the power steering pump pulley. This component helps control the steering mechanism by providing hydraulic pressure. The power steering pulley is situated next to the alternator pulley, and the belt will loop around it next.
The last part of the belt route involves the air conditioning compressor, located near the passenger side of the engine bay. The belt wraps around this pulley before returning to the crankshaft pulley, completing the loop.
Make sure the belt is routed according to the factory diagram, which will show the exact placement of each component. Incorrect routing can lead to poor performance and premature wear of both the belt and the components it drives.
How to Identify and Replace the Drive Belts in Your 2012 Dodge Charger
Inspect the drive belts on your 2012 Dodge Charger regularly for signs of wear, such as cracks, fraying, or squealing noises. A damaged belt can lead to various engine issues, so early detection is key.
To identify the condition of the belts, follow these steps:
- Open the hood and locate the belts in the engine compartment.
- Visually inspect the belts for any cracks, fraying, or excessive wear.
- Check for tension. The belt should have a little give but shouldn’t feel loose.
- Listen for any squealing sounds while the engine is running, indicating a slipping or worn-out belt.
If the belts show any signs of damage, it’s time to replace them. Here’s a simple guide for replacement:
- Turn off the engine and disconnect the negative terminal of the battery to ensure safety.
- Locate the tensioner pulley and use a wrench or ratchet to release the tension on the belt.
- Carefully remove the old belt from the pulleys.
- Compare the old belt with the new one to ensure correct size and specifications.
- Route the new belt around the pulleys, following the belt diagram found on the under-hood label.
- Reapply tension to the belt by adjusting the tensioner pulley and make sure the belt is properly aligned on all pulleys.
- Reconnect the battery terminal and start the engine to check for proper operation and any unusual sounds.
Replacing the drive belt in your Charger is straightforward, but make sure to always use the correct belt type and specifications for your specific model. Regular maintenance will keep your vehicle running smoothly and prevent unexpected breakdowns.
Common Issues with the Belt System and How to Troubleshoot Them in a 2012 Dodge Charger
If you hear squealing noises coming from the engine or notice a loss of power steering, it’s likely related to the belt system. The most common issue is a worn-out or loose serpentine belt, which can slip or crack over time. To check this, inspect the belt for visible signs of wear, such as fraying, cracking, or glazing. If any of these are found, replacing the belt is necessary.
Another issue is a misaligned or damaged pulley. A misaligned pulley can cause uneven wear on the belt, resulting in noise and poor performance. To check, visually inspect the pulleys for any damage or signs of misalignment. You can also rotate the pulleys by hand to feel for resistance or grinding. If you feel any, it may be time to replace the pulley or check its mounting position.
The tensioner also plays a critical role in maintaining the correct belt tension. A faulty tensioner can cause the belt to become too loose, leading to slipping and poor performance. You can test the tensioner by applying light pressure on the belt to see if it moves excessively. If the belt feels too loose or doesn’t return to its original position, replacing the tensioner is the solution.
In rare cases, the belt can become misrouted. This typically happens during a belt replacement or if the belt system is disturbed. If the belt looks out of place or is riding on the wrong part of the pulleys, carefully follow the vehicle’s service manual for the correct routing procedure.
Lastly, be aware of possible issues with the alternator or air conditioning compressor. A failing alternator can cause the belt to wear unevenly, and a malfunctioning AC compressor can put unnecessary strain on the belt. If the belt appears fine but the charging system or AC isn’t functioning properly, a more detailed inspection of these components is required.
