2012 Dodge Avenger 2.4 serpentine belt diagram with routing and replacement guide
Check the belt tensioner first, since a weak spring or worn bearing often leads to squealing and misalignment. A healthy tensioner keeps the 2.4 engine belt routed correctly across the alternator, water pump, power steering pump, and A/C compressor. If the tensioner shows play or noise, replace it before fitting a new belt.
Use a 15 mm wrench on the tensioner pulley bolt to relieve tension and slide the belt off. Follow the factory diagram closely, as the 2012 Dodge Avenger 2.4 uses a specific routing that crosses seven pulleys. Skipping one rib or wrapping the belt in the wrong path can cause charging issues or engine overheating.
Inspect all pulleys for wear before installing the new belt. Run your fingers across the grooves of the alternator and crank pulleys; sharp edges or uneven surfaces shorten belt life. Spin the idler pulley by hand to confirm smooth rotation without grinding. These quick checks prevent repeat failures and ensure the new belt runs quietly.
Once the new belt is seated, release the tensioner slowly and verify alignment across every pulley. A straight path and proper rib seating are key to reliable operation. Start the engine and observe the belt for stable tracking without wobble or noise. A correct installation restores smooth accessory drive function on the Dodge Avenger 2.4.
2012 Dodge Avenger 2.4 Serpentine Belt Diagram
Follow the correct routing of the serpentine belt to keep the 2.4 engine running without unnecessary wear. The belt passes around the crankshaft pulley first, then continues to the A/C compressor, alternator, power steering pump, and water pump. A spring-loaded tensioner keeps the belt tight during operation.
When replacing the belt, release the tensioner with a suitable wrench and carefully remove the old belt. Align the new belt according to the routing path shown on the under-hood label or the diagram in the service manual. Make sure each groove sits fully inside the pulleys before applying tension again.
Check that the belt has no twists and sits evenly across all pulleys. Run the engine for a few minutes and observe the alignment. If the belt tracks off-center or squeals, recheck the routing and pulley surfaces for dirt or damage. Proper installation prevents premature wear of both the belt and accessories.
Correct Routing of the Serpentine Belt on 2012 Dodge Avenger 2.4
Place the belt so it wraps tightly around the crankshaft pulley first, then continue toward the A/C compressor. From there, guide it around the alternator and across the idler pulley. Maintain steady tension while fitting the belt onto each surface to avoid slack.
Next, route the belt across the power steering pump and over the water pump. The final step is to align it with the tensioner pulley, which should be pulled back carefully with a wrench. Once the belt is in position, slowly release the tensioner to lock the belt in place.
Check that each rib of the belt sits fully in the pulley grooves. A misaligned section can lead to squealing or early wear. After installation, run the engine for a short period and inspect the belt path visually. A smooth, centered alignment across all pulleys confirms correct routing.

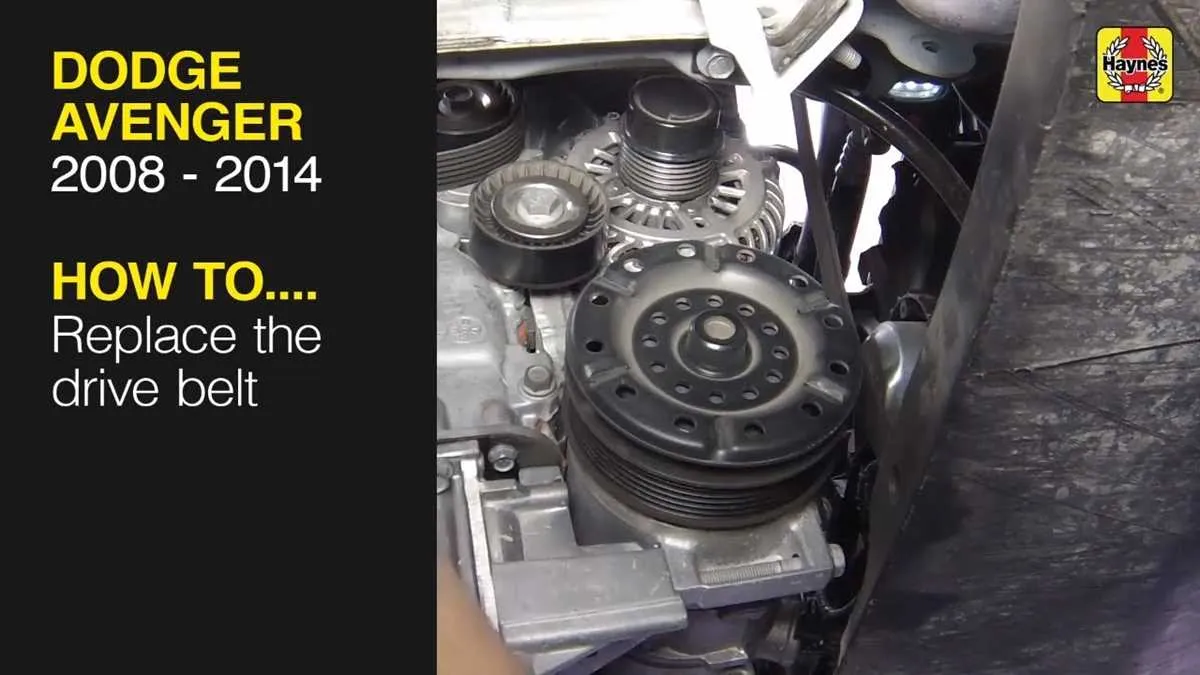

Steps to Replace the Serpentine Belt Safely and Accurately
Disconnect the negative battery cable to prevent accidental starts and ensure a safe workspace. Place the vehicle on a flat surface and secure it with the parking brake before working near the engine.
Use a serpentine belt tool or a long-handled ratchet to relieve tension from the automatic belt tensioner. Rotate the tensioner clockwise and carefully slide the belt off one pulley while keeping the tool in position.
Before removing the belt completely, check the routing diagram under the hood or take a clear photo. This prevents mistakes when installing the new belt.
- Remove the old belt from all pulleys and inspect them for cracks, uneven wear, or debris buildup.
- Place the new belt around the pulleys according to the correct routing pattern, leaving the tensioner pulley for last.
- Rotate the tensioner again and slip the belt into place, then slowly release the tensioner to apply pressure on the belt.
Check the alignment of the belt on each pulley to avoid premature wear or noise. Press on the belt between pulleys to confirm proper tension and ensure it is seated fully in the grooves.
Reconnect the negative battery cable, start the engine, and let it idle. Watch the belt for smooth rotation and listen for any unusual noises. Shut the engine off and make small adjustments if necessary.
Common Issues With Belt Tension and Pulley Alignment
Check belt tension first, because an over-tightened serpentine belt on the 2012 Dodge Avenger 2.4 can wear bearings in the alternator, water pump, or idler pulley. A loose belt, on the other hand, will slip on the crankshaft pulley, producing squealing noise and reducing accessory performance.
Inspect the automatic tensioner regularly. A weak spring or a seized pivot causes uneven belt tension, leading to premature belt glazing or cracks. If you notice the tensioner arm shaking while the engine runs, replace the assembly immediately.
Look closely at pulley alignment with a straightedge. Even a slight offset between the crankshaft pulley and the alternator can force the belt to ride off-center, creating edge fraying and vibration. Misalignment usually results from worn bearings or a pulley that is not fully seated on its shaft.
Replace any pulley that shows rough rotation, wobbling, or visible grooves. A noisy idler or tensioner pulley indicates bearing failure, which quickly damages the new belt. Always torque bolts to factory specifications to prevent misalignment after installation.
After fitting a new serpentine belt, run the engine for several minutes and observe belt tracking. Correct alignment ensures smooth operation and extends the lifespan of both the belt and accessory components.
