2011 Dodge Durango 5.7 Serpentine Belt Routing and Layout Guide

Check the routing of your 2011 Dodge Durango 5.7L serpentine belt to ensure proper alignment with the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Misaligned belts can cause squealing noises, premature wear, or accessory failure.

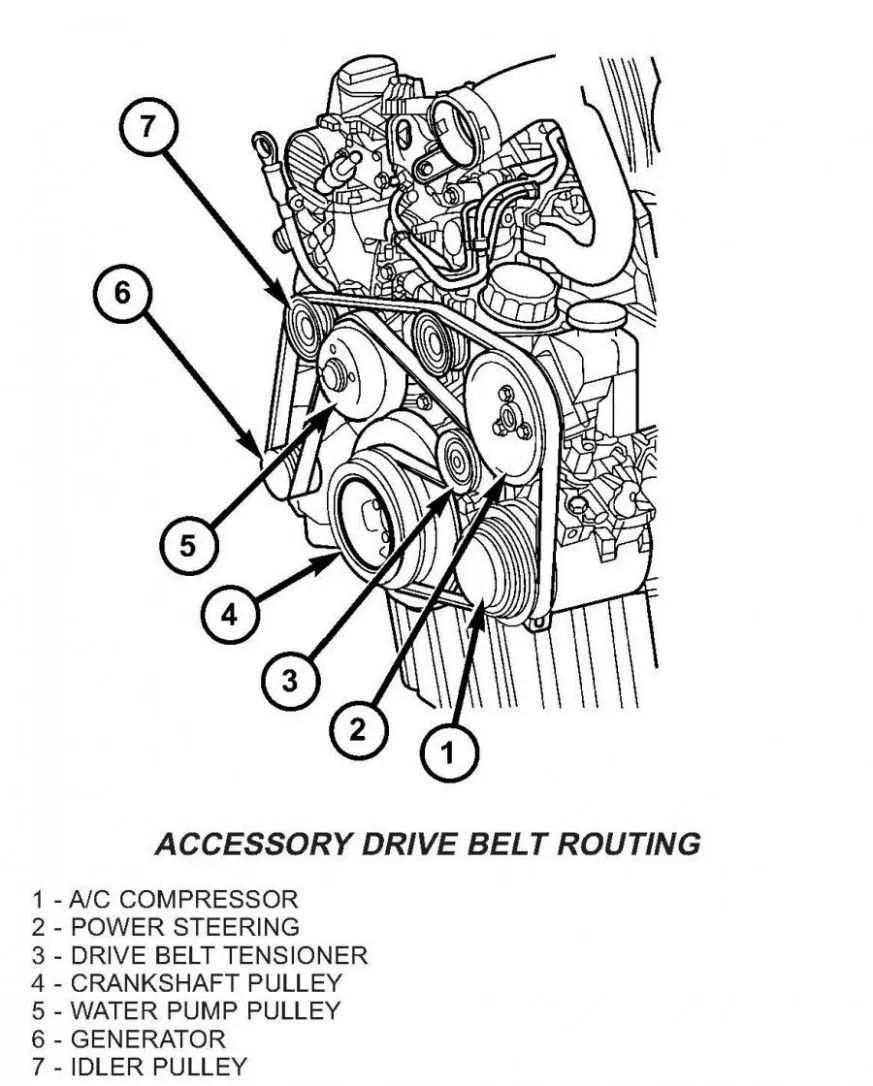

Use the diagram as a visual reference when replacing or inspecting the belt. Note that the Durango 5.7L engine typically uses a single serpentine belt with a tensioner located near the front of the engine. Release tension carefully with a wrench or serpentine tool before removing the old belt.

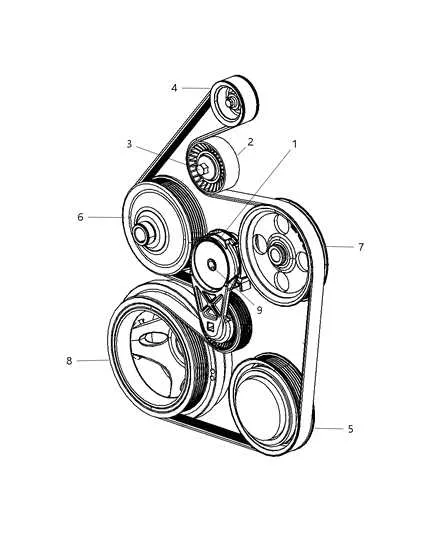

Follow the belt path shown in the diagram precisely. Start at the crankshaft pulley and loop the belt around each accessory according to the diagram. Double-check the belt’s seating in each pulley groove to prevent slipping or damage.

Inspect pulleys and tensioner while the belt is removed. Look for worn bearings, cracks, or misalignment that can shorten belt life. Replacing worn components along with the belt ensures smooth operation and reduces risk of unexpected breakdowns.

2011 Dodge Durango 5.7 Serpentine Belt Routing and Maintenance Guide

Place the serpentine belt on the crankshaft pulley first, then route it over the alternator, power steering pump, and water pump according to the factory diagram. Ensure the belt sits fully in each pulley groove without twisting or misalignment.

Use a 3/8-inch ratchet or breaker bar on the tensioner pulley to relieve tension, allowing the belt to slip over the last pulley easily. Release the tensioner slowly to maintain proper belt tension and avoid damage.

Inspect the belt for cracks, fraying, or glazing every 12,000 miles or during routine oil changes. Replace the belt immediately if any signs of wear appear, as a failed serpentine belt can stop the alternator, water pump, and power steering system simultaneously.

Clean all pulleys with a dry cloth to remove oil or debris before installing a new belt. Check that the tensioner moves smoothly and returns to its correct position. Confirm proper alignment by spinning the pulleys by hand and observing the belt track.

After installation, start the engine and watch the belt for several seconds to ensure it runs quietly and without slipping. Recheck tension after the first 50–100 miles, as new belts can stretch slightly during initial operation.

Locate and Identify All Components in the 5.7L Belt System

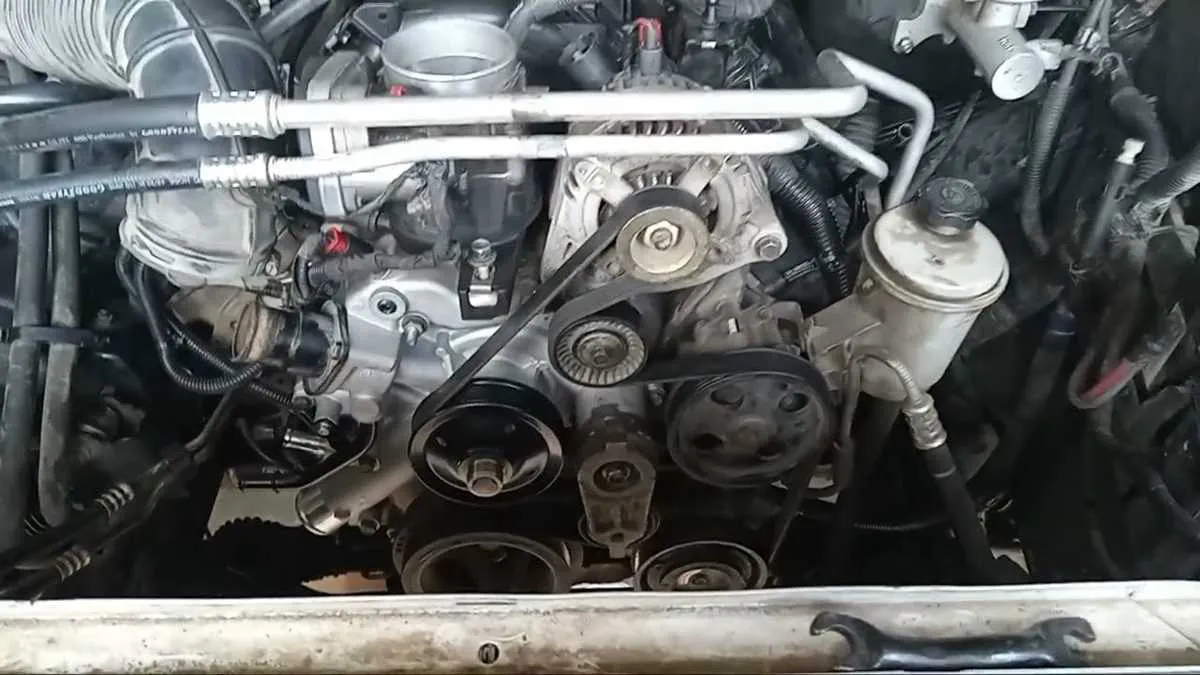

Begin by locating the serpentine belt at the front of the engine. Identify the crankshaft pulley at the bottom center, which drives the entire system. Above it, locate the alternator on the passenger side; this generates electrical power for the vehicle.

On the driver’s side, find the power steering pump, usually positioned near the top of the engine. Below the alternator, identify the water pump, responsible for circulating coolant. Adjacent to the water pump, locate the air conditioning compressor on the passenger side, which maintains climate control.

Locate the tensioner pulley near the center of the belt path; it maintains proper belt tension and allows smooth rotation of all components. Identify any idler pulleys, positioned to guide the belt around tight corners and maintain alignment. Confirm the belt routing by tracing it from the crankshaft pulley through all accessories, ensuring each component matches its intended position in the 5.7L system.

Check for markings or labels on each pulley to verify function. Note that some components may appear offset depending on engine layout, so follow the belt path carefully to avoid misidentification. Use a diagram for reference if necessary to distinguish between the water pump, tensioner, and idler pulleys accurately.

Step-by-Step Process for Removing and Installing the Serpentine Belt

Locate the belt routing diagram under the hood or in the service manual. Confirm the path of the serpentine belt around the crankshaft, alternator, power steering pump, air conditioning compressor, and tensioner.

Release belt tension using a 3/8-inch or 1/2-inch breaker bar on the tensioner pulley. Rotate the tensioner clockwise to relieve pressure and slide the belt off one of the pulleys, usually the easiest accessible one.

Remove the old belt completely by threading it off the remaining pulleys. Inspect each pulley for wear, cracks, or misalignment, and spin them manually to check for smooth operation.

Compare the new belt with the old one to ensure the length and rib count match exactly. Confirm there are no twists or damage before installation.

Route the new belt according to the diagram. Start by positioning it around the crankshaft pulley, then route it through the accessory pulleys, leaving the tensioner pulley for last.

Apply tension by rotating the tensioner again and sliding the belt onto the tensioner pulley. Slowly release the tensioner to set the belt firmly in place.

Check alignment of all belt ribs in the pulley grooves. Run the engine for a few seconds and observe the belt path, ensuring it tracks correctly and does not slip or squeal.

Final inspection includes verifying the belt sits flat against all pulleys and the tension is stable. Adjust if necessary by reapplying the tensioner and confirming proper seating.

Troubleshooting Common Belt Issues and Tensioner Adjustments

Inspect the serpentine belt for cracks, fraying, glazing, or missing ribs. Any of these signs indicate it needs replacement. Measure belt tension with a gauge; a healthy belt on the 5.7L Durango should deflect about ½ inch under moderate thumb pressure.

Check pulleys for wobbling or excessive play. Spin each pulley by hand; resistance should feel smooth and even. Noise such as squealing or chirping often points to a worn tensioner or misaligned pulley.

• To adjust the automatic tensioner, use a 3/8-inch ratchet on the tensioner arm. Rotate it clockwise to release tension and remove the belt safely.
• Inspect the tensioner pulley for smooth rotation and no side-to-side play. Replace if bearings feel rough or noisy.
• After installing a new belt, ensure it sits properly in all pulley grooves. Misalignment causes premature wear and noise.

If the belt keeps slipping, double-check alignment of the alternator, power steering, and A/C pulleys. Minor misalignment can be corrected by loosening the component mounting bolts and shifting slightly until the belt tracks evenly.

Regularly clean pulley surfaces from oil, dirt, or debris. Contaminants reduce friction and accelerate belt wear. For long-term reliability, inspect the belt every 15,000 miles and replace every 60,000 miles or sooner if any damage appears.
