2009 Dodge Ram 1500 Serpentine Belt Routing and Component Diagram

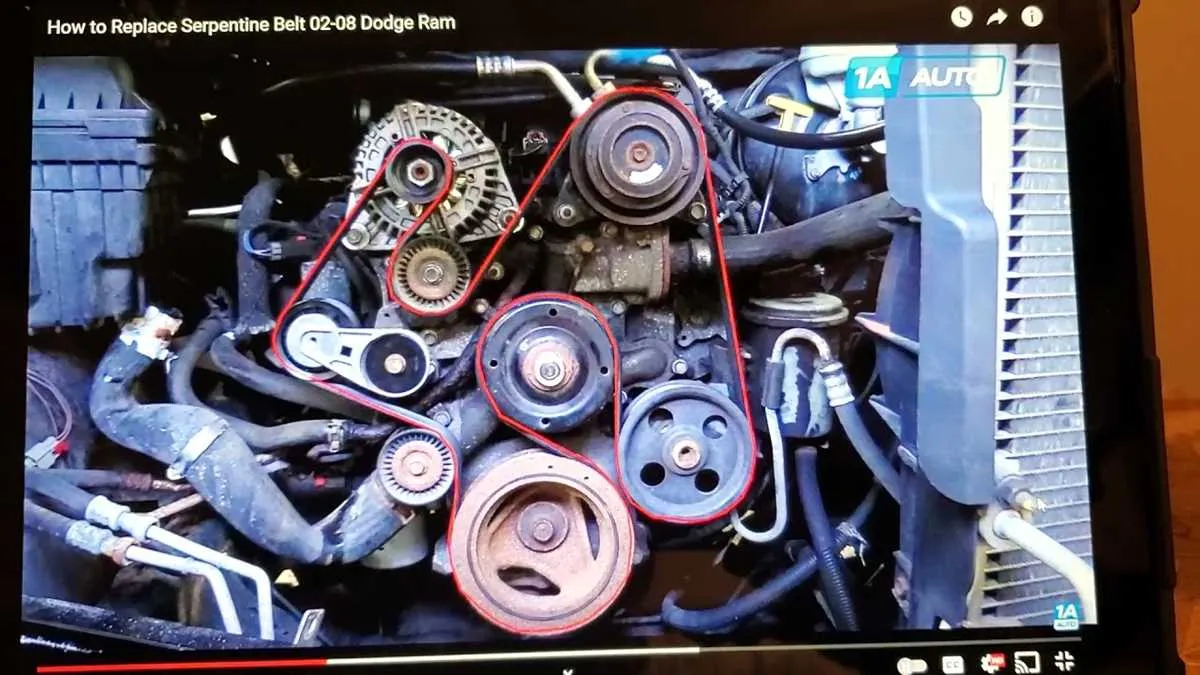

Locate the serpentine belt routing diagram under the hood on the driver’s side or in the owner’s manual. This diagram shows the exact path the belt follows around the alternator, power steering pump, air conditioning compressor, and crankshaft pulley, which prevents misalignment during replacement.

Inspect the belt for wear before removing it. Look for cracks, fraying, or glazing on the ribs. A worn belt reduces accessory performance and can cause squealing or complete failure. Check the tensioner pulley for smooth rotation and proper spring tension.

Follow a step-by-step removal process using a wrench to release the tensioner. Remove the old belt carefully, noting the routing sequence. Align the new belt according to the diagram, ensuring all grooves fit correctly on each pulley. Test the installation by rotating the crankshaft pulley by hand before starting the engine.

Maintain proper belt tension after installation. A belt that is too loose can slip, while an overtightened belt strains pulleys and bearings. Use a belt tension gauge if available or verify deflection according to Dodge specifications. Inspect periodically to extend the belt’s service life.

2009 Dodge Ram 1500 Serpentine Belt Diagram Detailed Layout and Maintenance

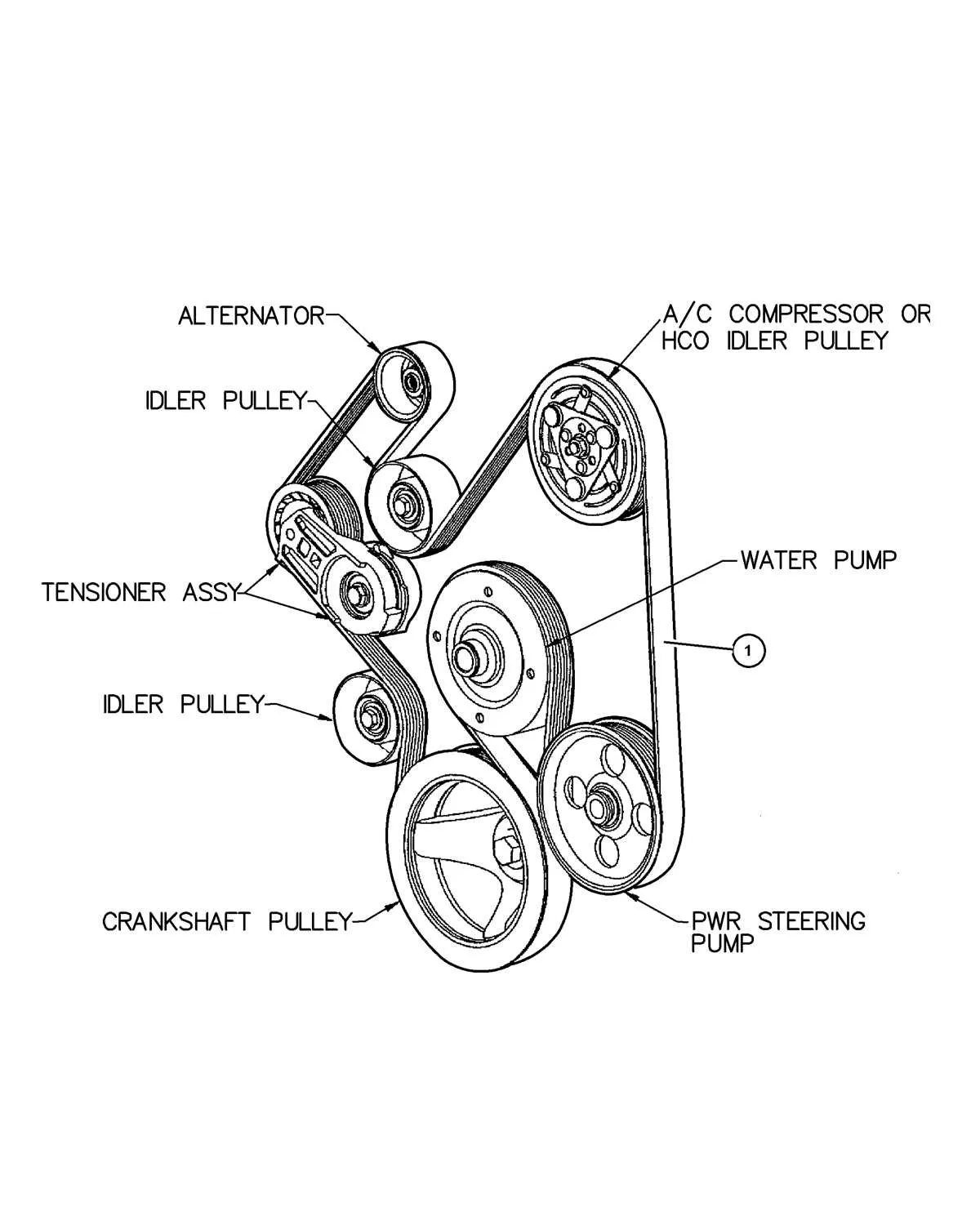

Follow the factory diagram to identify the exact serpentine belt routing. The belt wraps around the crankshaft pulley, alternator, power steering pump, A/C compressor, and tensioner. Confirm each pulley location before attempting removal.

Examine the belt for cracks, fraying, glazing, or uneven wear. Inspect pulleys for misalignment or damage. Check the tensioner movement and ensure it applies consistent pressure to maintain proper belt tension.

To replace the belt, relieve tension at the tensioner and remove the old belt while tracking its routing. Install the new belt according to the diagram, making sure it sits correctly on all pulleys. Rotate the crankshaft manually to verify proper seating and recheck tension.

Perform visual inspections at regular intervals or every 10,000 miles. Replace the belt if any damage or excessive wear appears. Correct routing and maintenance prevent slipping, reduce noise, and maintain consistent operation of all engine accessories.

Identifying All Components in the 2009 Dodge Ram 1500 Serpentine Belt System

Locate the serpentine belt routing diagram under the hood to correctly identify each component. The main parts include the crankshaft pulley, which drives the belt, and the alternator, responsible for charging the battery.

The power steering pump maintains hydraulic pressure for steering, while the air conditioning compressor handles the AC system. The water pump circulates coolant through the engine, and the tensioner pulley maintains proper belt tension.

Additional idler pulleys guide the belt along the correct path. Check each pulley for smooth rotation and absence of wobble. Inspect the belt for cracks, fraying, or glazing, which indicate replacement is needed.

Verify alignment by ensuring the belt sits fully in the grooves of each pulley. Adjust or replace the tensioner if the belt slips or makes noise. Identifying these components accurately ensures correct routing and prolongs belt life.

Step-by-Step Instructions for Removing and Installing the Serpentine Belt

Locate the serpentine belt routing diagram under the hood or in the vehicle manual to verify the belt path. Identify the tensioner pulley and prepare a wrench or serpentine belt tool suitable for the 2009 Dodge Ram 1500.

Position the tool on the tensioner pulley bolt. Rotate the tensioner clockwise to release tension from the belt. Carefully slide the belt off the pulleys, noting the routing for reinstallation.

Inspect all pulleys and the tensioner for wear or damage. Replace any worn components before installing the new belt to prevent premature failure.

Begin installation by placing the belt over the crankshaft pulley and then route it according to the diagram around the alternator, water pump, power steering, and A/C pulleys. Leave the tensioner pulley for last.

Apply pressure on the tensioner to allow the belt to slide over it. Release the tensioner slowly, ensuring the belt seats properly in all pulley grooves.

Double-check the belt alignment on every pulley. Turn the engine manually with a socket on the crankshaft pulley for two full rotations and observe the belt seating. Confirm correct tension and smooth movement without slipping or misalignment.

Common Belt Alignment and Tension Issues and How to Correct Them

Check the serpentine belt for signs of misalignment, such as uneven wear, fraying edges, or squealing noises. Misaligned belts often cause premature failure and reduce accessory performance.

Inspect all pulleys for proper alignment. Use a straight edge across pulley faces to verify they line up. Replace any pulley that shows wobble or excessive wear, as this directly affects belt tracking.

Evaluate belt tension using a belt tension gauge or the deflection method. For the 2009 Dodge Ram 1500, the belt should typically deflect about ½ inch (12 mm) at mid-span when moderate pressure is applied. Overly tight belts strain bearings, while loose belts slip and generate noise.

• Tighten the belt using the automatic tensioner. Check that the tensioner arm moves freely and maintains consistent pressure.
• If the belt continues to slip or squeal, inspect the tensioner pulley for wear or binding and replace it if necessary.
• Always follow the belt routing diagram exactly to prevent twisting or incorrect alignment.

After installation, run the engine briefly and observe the belt. Ensure it rides correctly on all pulleys without rubbing edges or deviating from grooves. Recheck tension and alignment after the first 50–100 miles of driving.

Regular inspection every 12,000 miles or during oil changes helps catch alignment and tension issues before they damage the belt or engine accessories.
