2009 Dodge Journey Serpentine Belt Diagram and Installation Guide

To replace or inspect the serpentine belt on a 2009 Dodge Journey, it’s critical to follow the precise path outlined in the diagram. Ensure the belt follows the correct routing to avoid damage to the engine components.

The serpentine belt connects various components such as the alternator, power steering pump, and air conditioning compressor. For this model, the belt’s tension should also be checked regularly to maintain optimal performance. A loose or damaged belt can cause multiple system failures.

Before starting any work, verify the belt size and tension specifications. You can refer to the vehicle’s manual for precise measurements. If the belt shows signs of wear, replacing it at the earliest is recommended to prevent breakdowns.

Key Points: Always check for proper alignment and belt tension. Use the diagram as a reference during the installation process to avoid incorrect routing. Misalignment can cause premature wear and possible system failure.

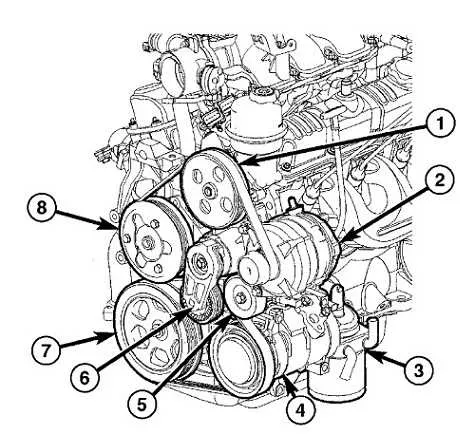

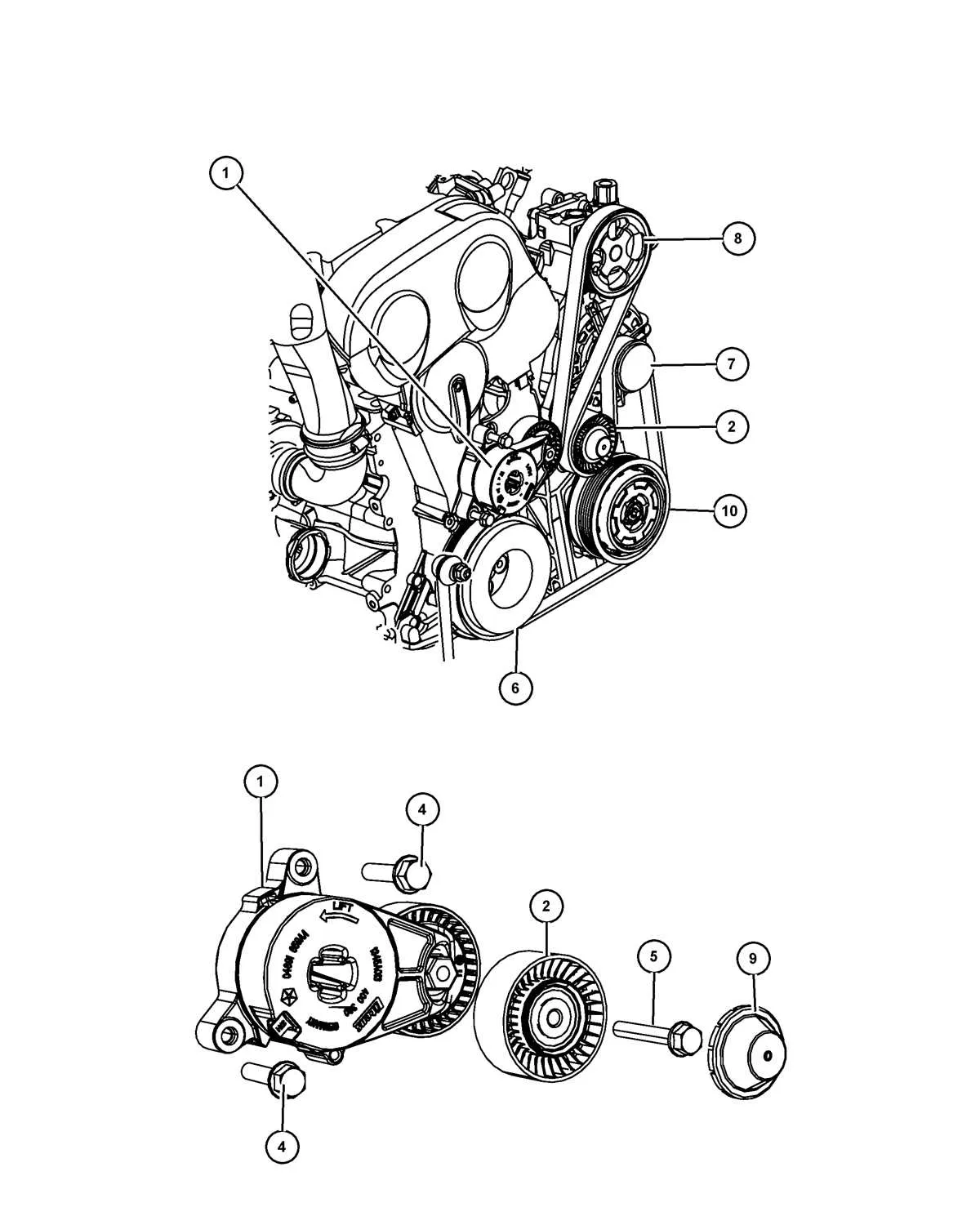

2009 Dodge Journey Serpentine Belt Diagram

The serpentine belt on the 2009 Dodge Journey is responsible for driving multiple engine components like the alternator, power steering pump, and air conditioning compressor. Understanding the belt diagram is vital for maintaining proper belt alignment and preventing issues with these systems.

Refer to the diagram for the correct routing path of the serpentine belt. It loops around several pulleys, ensuring that each component operates smoothly. If the belt is improperly routed, it can lead to wear or malfunctioning of the systems it powers. The diagram will typically include the path over the alternator, water pump, crankshaft pulley, and tensioner pulley.

Ensure the belt is correctly tensioned. A loose or worn belt can slip, causing a loss of power to essential components. Check for any visible signs of wear such as cracks, fraying, or glazing, and replace the belt if needed. The diagram will help you identify the precise tensioner location to adjust the tension correctly.

For the replacement process, it’s crucial to follow the exact sequence shown in the diagram. Improper installation can lead to belt misalignment or even damage. Always refer to the 2009 Dodge Journey owner’s manual or the specific diagram for accurate routing and adjustments.

Step-by-Step Guide for Installing the Serpentine Belt on 2009 Dodge Journey

Begin by raising the front of the vehicle and securing it with jack stands. This will provide easy access to the underside of the engine. Ensure the parking brake is engaged for safety.

Locate the serpentine belt tensioner on the front of the engine. Use a wrench or socket to rotate the tensioner counterclockwise, releasing tension from the belt. This allows you to remove the old belt easily.

Before removing the belt, take note of its routing. If necessary, refer to the belt routing diagram found on the engine compartment for reference. This will help ensure the new belt is installed correctly.

Remove the old belt carefully, avoiding damage to any components. Once removed, compare the old belt with the new one to ensure they match in size and length.

Position the new serpentine belt on the pulleys, starting with the crankshaft pulley and following the routing guide. Make sure the belt fits snugly into the grooves of each pulley. Double-check that the belt is aligned correctly with all pulleys.

Rotate the tensioner counterclockwise once again to add tension to the new belt. Ensure the belt is tight and properly positioned on all pulleys. You should be able to see minimal slack, but not too tight.

Inspect the installation one more time to verify the belt is properly routed and the tensioner is in its original position. Start the engine to check for any unusual noises, which may indicate an improperly installed belt.

If everything seems in order, lower the vehicle from the jack stands and test drive to ensure proper functionality of the serpentine belt system.

Troubleshooting Common Serpentine Belt Issues on 2009 Dodge Journey

If you notice strange noises or poor performance from your 2009 Dodge Journey, the serpentine belt may be the culprit. A loose, worn, or damaged serpentine belt can affect multiple engine components. Here’s how to address common issues:

1. Belt Squealing Noise: A high-pitched squeal often means the belt is slipping. Check the belt for wear or damage. If the belt appears glazed or cracked, replace it immediately. Also, inspect the tensioner. If it’s faulty, it may not maintain the correct tension on the belt.

2. Belt Fraying: Fraying edges are a sign of excessive wear or misalignment. Inspect the pulley system to ensure it’s functioning correctly. Replace the serpentine belt if it’s frayed, as it can break during operation and lead to more significant engine damage.

3. Power Steering or Alternator Failure: A failing serpentine belt can cause the power steering or alternator to stop working. If you notice difficulty steering or dimming lights, check the belt’s condition and the tensioner. A loose belt may slip, leading to a lack of power for critical systems.

4. Belt Slipping Off: A belt that slips off the pulleys can cause loss of function in multiple components. Check the belt’s alignment, and ensure that pulleys are in good condition. If pulleys are misaligned or the belt is too worn, replace the belt and realign the pulleys.

5. Cracked or Torn Belt: Over time, the serpentine belt can develop cracks or tears. These can cause the belt to break, potentially damaging other engine parts. Always replace the belt at the first sign of damage to prevent further complications.

How to Identify and Replace Worn Serpentine Belt Components on 2009 Dodge Journey

Inspect the serpentine belt and components regularly to prevent potential issues. Start by checking for visible cracks, fraying, or glazing on the belt. If any of these are present, it’s time to replace the belt. Pay attention to the tensioner and pulleys as well.

Check the belt tensioner for any signs of wear or malfunction. A worn-out tensioner may not keep the belt tight enough, causing slippage or uneven wear. If the tensioner feels loose or fails to maintain the correct pressure, it must be replaced.

Examine the pulleys for any signs of misalignment or damage. A worn pulley can cause the belt to slip, wear unevenly, or even break. Spin the pulleys by hand to check for smooth rotation. If a pulley makes noise or doesn’t spin smoothly, it should be replaced.

If you notice any of these issues, it’s important to replace the damaged components promptly. Start by removing the old serpentine belt and loosening the tensioner. Carefully inspect the new belt before installation to ensure it’s the correct size. Replace any worn pulleys or tensioners during the process to prevent further issues.

When installing the new belt, make sure it’s properly aligned with all pulleys and tensioners. Incorrect installation can lead to improper belt operation, causing premature wear or even failure.

• Inspect the belt for cracks, fraying, or glazing.
• Check the tensioner for proper pressure and alignment.
• Examine pulleys for smooth rotation and proper alignment.
• Replace any damaged components before installing the new belt.
• Ensure the new belt is correctly aligned during installation.
