2008 Dodge Ram Serpentine Belt Diagram and Routing Guide

To properly replace or inspect the serpentine belt in a 2008 Dodge Ram, first ensure that the engine is turned off and cool. Begin by locating the belt tensioner, which keeps the serpentine belt taut. Use a wrench or ratchet to relieve the tension on the belt by rotating the tensioner pulley. This will allow you to remove the belt from its pulleys.

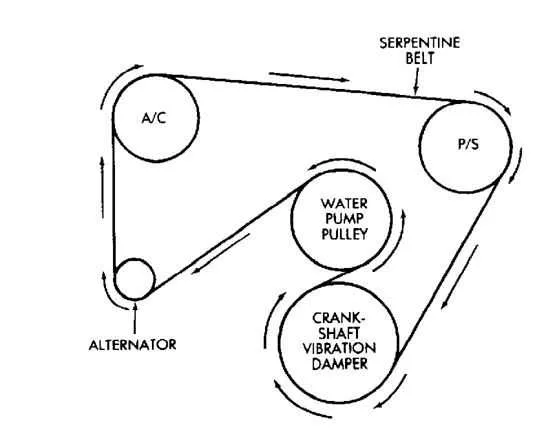

The diagram for the 2008 Dodge Ram serpentine belt includes specific routing instructions that ensure proper functionality of various components, including the alternator, air conditioning compressor, and power steering pump. Refer to the diagram to see the exact path the belt follows around each pulley, paying attention to the direction of the pulleys’ rotation.

When installing a new belt, make sure it fits snugly into each pulley groove without being too tight or too loose. Ensure the belt is aligned correctly and does not have any twists or kinks. If you notice any wear, cracking, or fraying on the old belt, it is best to replace it to prevent any future issues.

Lastly, check the tensioner’s functionality. If it shows signs of wear or improper tension, replace it as well to avoid issues with the new serpentine belt. Always use the manufacturer’s recommended belt size and follow the routing diagram carefully to ensure a smooth operation of all engine components.

2008 Dodge Ram Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2008 Dodge Ram, start by understanding its routing. The serpentine belt is responsible for driving multiple components like the alternator, power steering pump, and air conditioning compressor. If it becomes worn or damaged, replacing it promptly is necessary to prevent engine component failure.

The belt routing for the 2008 Dodge Ram involves the belt looping around several pulleys. Ensure the belt runs in the correct direction and aligns properly with each pulley groove. Use the tensioner pulley to adjust the belt’s tension and keep it in place.

When replacing the serpentine belt, make sure to check the belt’s condition regularly. Look for cracks, fraying, or wear. If any damage is found, it’s best to replace the belt before it fails completely, causing further damage to engine components.

To help ensure proper installation, refer to the manufacturer’s diagram for the specific engine model. This diagram will guide you in correctly routing the belt. Be sure to follow the diagram exactly, as any mistakes could result in operational issues or premature wear of the belt and engine components.

If you’re uncertain about the process, consider consulting a mechanic to verify the belt is installed correctly and functioning as intended.

How to Identify the Components of the 2008 Dodge Ram Serpentine Belt System

Start by locating the serpentine belt. It’s a long, continuous belt that connects several components of the engine, such as the alternator, power steering pump, and air conditioning compressor.

To identify the main components of the system, look for the following key parts:

• Serpentine Belt: This is the primary component that drives various engine accessories. It runs across several pulleys and is typically located at the front of the engine.
• Idler Pulley: A smooth pulley that helps guide the serpentine belt around other components. It doesn’t drive anything but helps maintain tension in the belt system.
• Tensioner Pulley: This pulley adjusts the tension of the serpentine belt. It is spring-loaded and keeps the belt tight enough to prevent slippage.
• Alternator Pulley: The alternator is driven by the serpentine belt, supplying power to the vehicle’s electrical systems and charging the battery.
• Power Steering Pulley: Located near the power steering pump, this pulley helps drive the pump, enabling smooth steering.
• Air Conditioning Pulley: Found next to the air conditioning compressor, it drives the compressor to circulate refrigerant in the system.
• Crankshaft Pulley: This is the main drive pulley that powers the serpentine belt and all the components it connects.

Inspect each component for wear, cracks, or misalignment. A visual inspection can often identify if a pulley or belt needs replacement.

Step-by-Step Guide for Properly Routing the Serpentine Belt on 2008 Dodge Ram

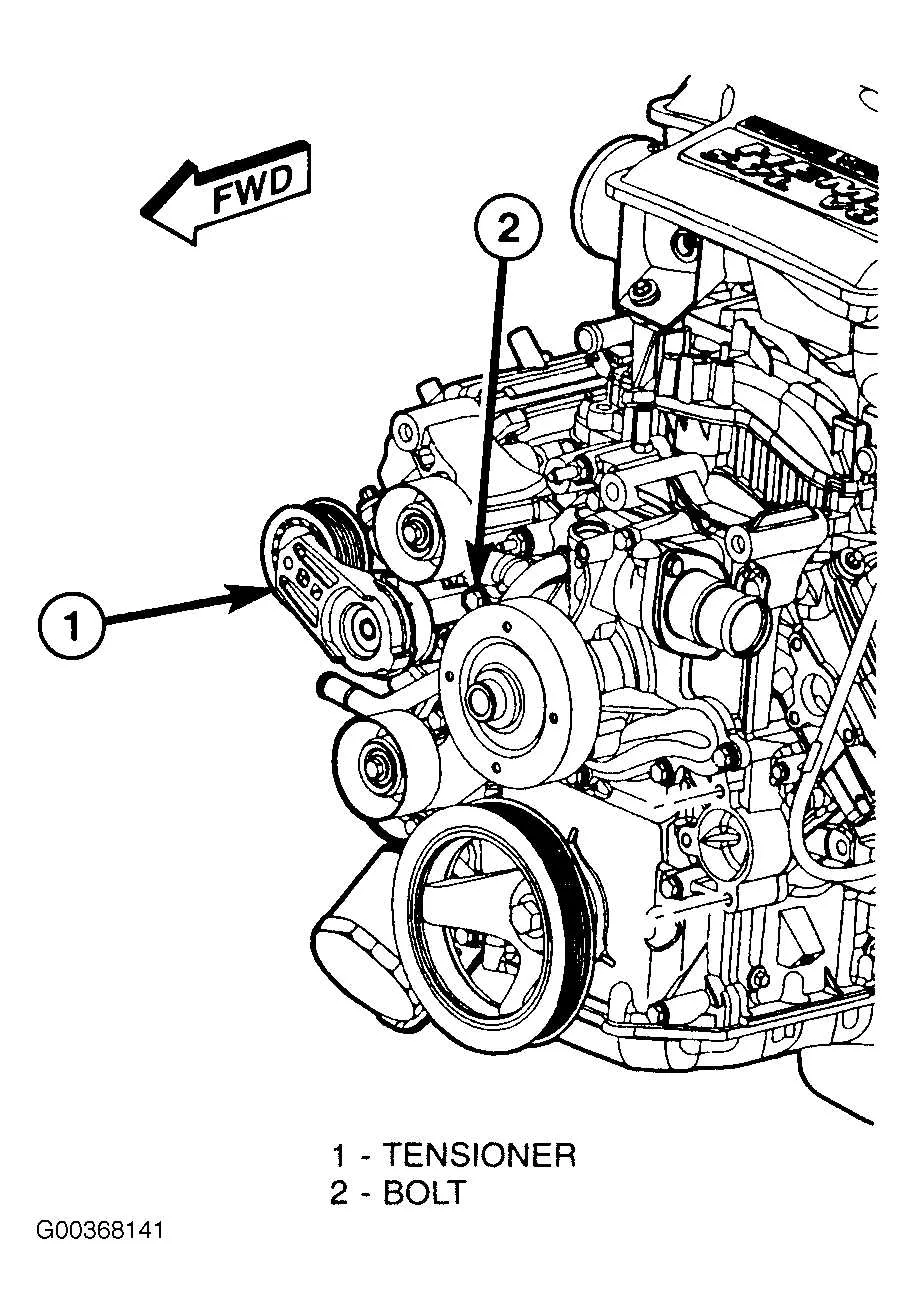

Begin by locating the tensioner pulley, which controls the belt’s tightness. Use a socket wrench to relieve tension from the belt. Rotate the tensioner counterclockwise to release the belt from the pulleys.

Next, remove the belt from the pulleys, taking note of the routing pattern. This pattern will be critical when you install the new belt. You can find the belt routing diagram on the radiator support or in the owner’s manual.

Now, compare the new serpentine belt with the old one to ensure they match in length and width. Place the new belt around the pulleys, following the exact path as the original belt. Ensure it is seated properly in each groove of the pulleys to prevent slipping.

Start with the crankshaft pulley and work your way up to the tensioner pulley. Make sure the belt runs along the alternator, power steering pump, air conditioning compressor, and any other components listed in the routing diagram.

Once the belt is in place, rotate the tensioner pulley clockwise to apply tension. Check the belt’s alignment, ensuring it sits properly in each pulley groove. If everything is aligned, test the belt by starting the engine and observing its operation.

If the belt appears to be misaligned or squeaking, double-check the routing and tension. Make adjustments as needed to ensure smooth operation.

Troubleshooting Common Issues with the Serpentine Belt on 2008 Dodge Ram

If you notice strange noises like squealing or chirping coming from the engine, check the serpentine belt for signs of wear or damage. Worn-out or cracked belts can cause these sounds and indicate the need for replacement.

In case of engine overheating, inspect the belt’s alignment. A misaligned belt may slip or fail to operate the water pump effectively. Look for any loose or misaligned pulleys and adjust them as necessary.

If you experience power steering failure or difficulty with steering, the serpentine belt might not be properly driving the power steering pump. Examine the belt for slack or wear and ensure it’s properly tensioned to restore power steering function.

A slipping serpentine belt may also cause the alternator to undercharge the battery, leading to electrical issues. Test the belt tension and replace it if there’s any visible stretch or damage. Ensure the tensioner is functioning correctly to maintain the proper belt tightness.

Lastly, if your vehicle’s air conditioning isn’t cooling properly, inspect the belt for any wear or damage around the A/C compressor. A damaged belt can cause the compressor to stop working, leading to insufficient cooling. Replace the belt if necessary and check the compressor for additional issues.
