2008 Dodge Ram 1500 Serpentine Belt Routing and Diagram Guide

To replace or troubleshoot the serpentine belt on your 2008 Dodge Ram 1500, it is crucial to follow the correct routing and diagram. Start by locating the belt routing diagram, typically found on the fan shroud or radiator support. This diagram illustrates the path the serpentine belt follows through various engine components, ensuring proper functionality of the alternator, power steering pump, and other essential accessories.

Step 1: Examine the belt for any visible signs of wear, such as cracks, fraying, or glazing. If the belt appears damaged, it is recommended to replace it immediately to prevent engine performance issues.

Step 2: Use the diagram to verify the correct routing. The 2008 Dodge Ram 1500 serpentine belt should follow a specific path, which includes routing around the crankshaft pulley, tensioner, and other pulleys. A misrouted belt can cause premature wear or failure of engine components.

Step 3: If you are replacing the serpentine belt, release the tension on the belt using a socket wrench on the belt tensioner. Carefully remove the old belt and install the new one according to the diagram. Reapply tension and check the belt’s alignment before starting the engine.

This diagram is a valuable tool for ensuring that the serpentine belt is installed correctly, which is key for maintaining the smooth operation of your 2008 Dodge Ram 1500’s engine system.

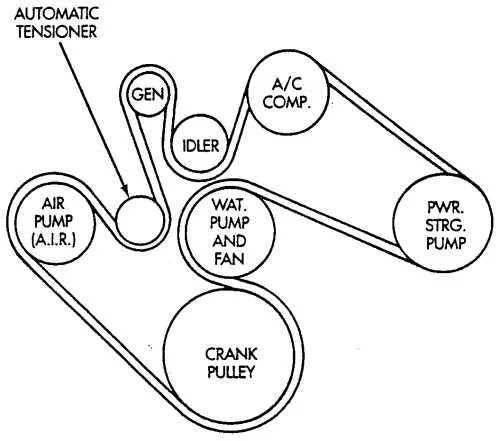

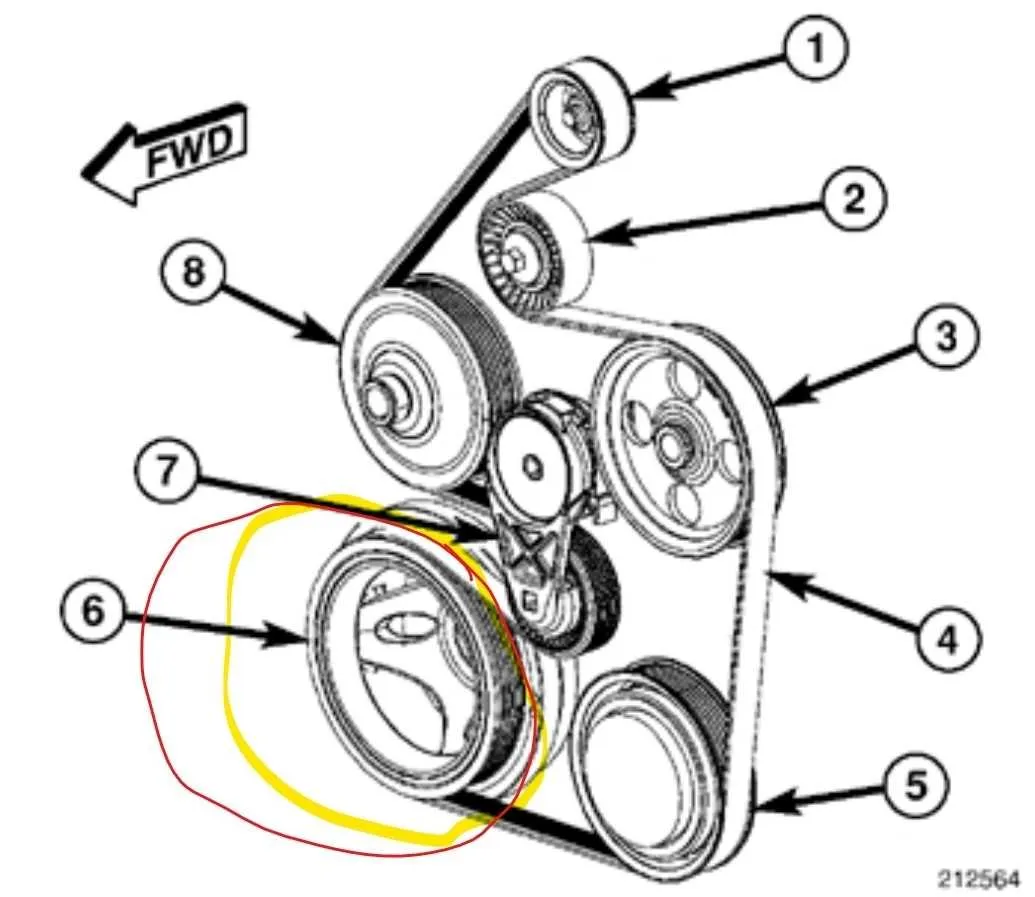

2008 Dodge Ram 1500 Serpentine Belt Diagram

To ensure proper engine performance, the serpentine belt in your 2008 Dodge Ram 1500 should be routed according to the manufacturer’s specifications. The belt connects multiple engine components like the alternator, power steering pump, air conditioning compressor, and water pump.

First, locate the belt tensioner. Using a wrench, rotate it to release the tension and remove the old belt. Make sure to follow the precise routing path shown in the diagram to avoid misalignment, which could lead to premature wear or failure of the belt.

The routing for the 2008 Dodge Ram 1500 serpentine belt should be as follows: the belt wraps around the crankshaft pulley, moves over the tensioner pulley, around the alternator, under the water pump, and around the power steering pump. The air conditioning compressor is also included in the routing path.

Double-check the belt’s alignment before tightening it with the tensioner. It’s also advisable to inspect the condition of the pulleys for any damage or wear. A smooth, properly routed belt is critical for your vehicle’s engine efficiency and longevity.

How to Read the 2008 Dodge Ram 1500 Serpentine Belt Diagram

To read the serpentine belt diagram for the 2008 Dodge Ram 1500, focus on understanding the routing path and key components involved. Start by locating the belt routing diagram on the radiator support or under the hood. It usually shows the position of each pulley and the belt’s path around them.

Identify the main pulleys: crankshaft, alternator, power steering pump, and air conditioning compressor. The diagram should indicate how the belt loops around each of these components. Note the direction of the belt movement; the arrows on the diagram will help you understand which direction the belt travels.

Pay attention to the tensioner pulley. This is a crucial part of the diagram as it keeps the belt under the correct tension. If you notice any discrepancies or if the belt is improperly aligned, this could point to issues with the tensioner or other components.

Make sure to compare the diagram with the actual layout in your engine bay. The diagram is a guide, but in some cases, pulleys may appear slightly different depending on modifications or model variations.

If you need to replace the serpentine belt, use the diagram as a guide to follow the belt’s exact routing. Incorrect installation can lead to system failures, so double-check the path and pulley positions before securing the new belt.

Common Issues with Serpentine Belt Routing in 2008 Dodge Ram 1500

Incorrect serpentine belt routing can cause several issues with the 2008 Dodge Ram 1500’s engine. Common problems arise from improper belt installation, misaligned pulleys, and worn-out tensioners. Addressing these issues quickly will prevent more severe damage to the engine components.

• Incorrect Routing: Ensure the serpentine belt follows the exact pattern outlined in the diagram. A misrouted belt can lead to uneven tension, which might cause it to slip or break.
• Misaligned Pulleys: If the pulleys are not aligned properly, the belt may wear unevenly or slip off entirely. Inspect all pulleys for signs of damage or misalignment.
• Worn Tensioner: A faulty tensioner can cause insufficient pressure on the belt, leading to slippage or belt failure. Replace the tensioner if it shows signs of wear.
• Damaged Belt: Check for any cracks, fraying, or signs of excessive wear. A damaged belt will not maintain proper contact with the pulleys and may cause the engine to lose power or overheat.
• Foreign Objects: Inspect the area around the belt and pulleys for any debris or foreign objects that could obstruct the belt’s movement, causing friction or damage.

To avoid these issues, follow the factory-specified serpentine belt routing diagram carefully during installation. Regular maintenance checks will help prevent these problems and extend the life of the belt and related components.

Steps to Replace the Serpentine Belt in a 2008 Dodge Ram 1500

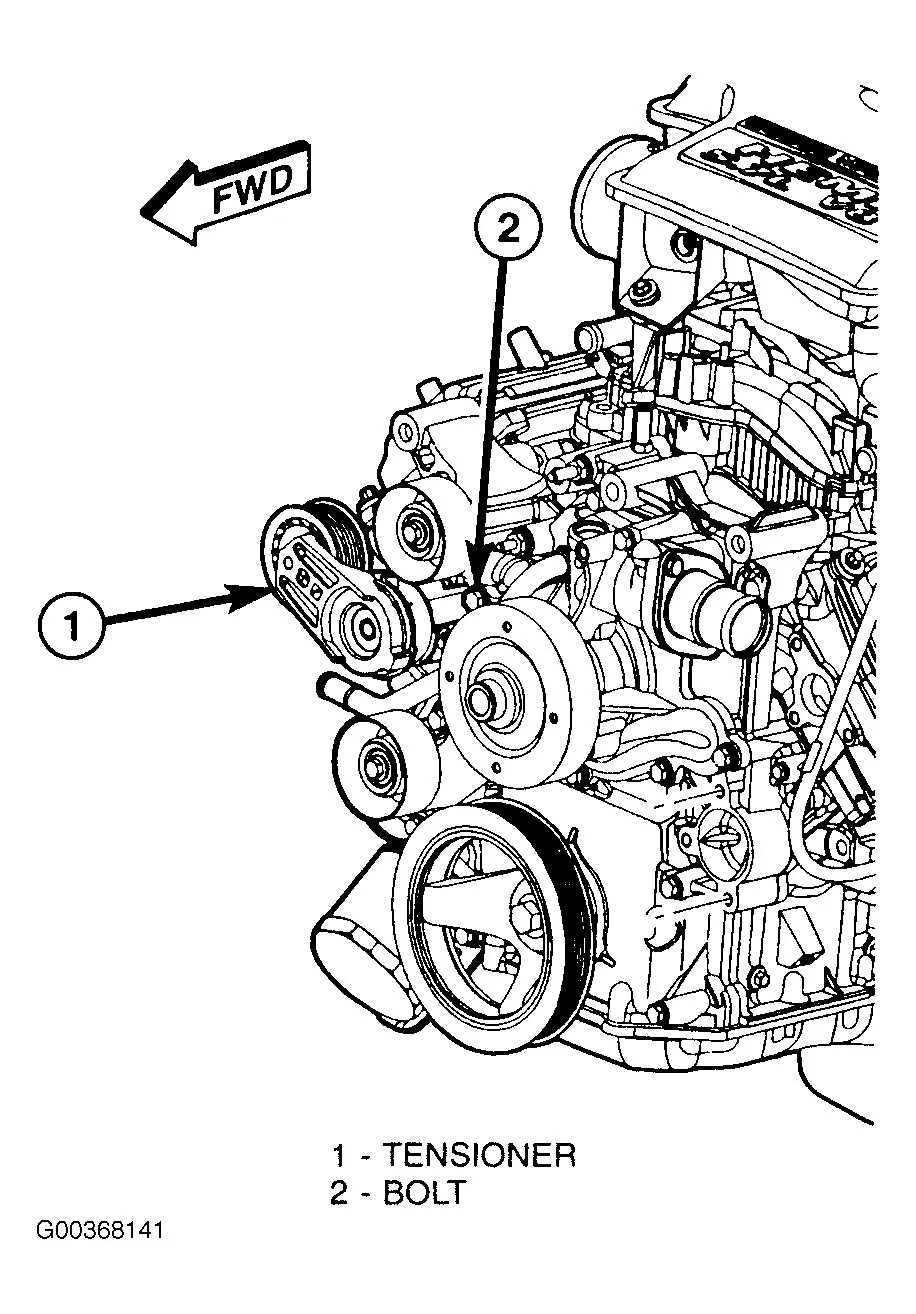

Begin by ensuring the engine is off and cooled down. Disconnect the negative terminal of the battery to avoid any electrical mishaps. Locate the serpentine belt tensioner, typically on the front of the engine. Use a socket wrench to relieve tension on the belt by rotating the tensioner pulley clockwise or counterclockwise, depending on the design.

Once the tension is relieved, slide the old serpentine belt off the pulleys. Take note of the belt’s routing or refer to the vehicle’s service manual for the correct diagram. This will be important when installing the new belt. Inspect the pulleys and tensioner for any wear or damage before proceeding.

Position the new serpentine belt around the pulleys, following the routing diagram. Ensure the belt fits snugly into the grooves of each pulley. Once the belt is correctly positioned, rotate the tensioner again to allow the belt to slide into place. Make sure the belt is properly tensioned and seated correctly on each pulley.

Double-check the belt’s alignment and ensure there is no slack. Reconnect the negative battery terminal and start the engine. Verify that the belt is running smoothly without any squealing or misalignment. If any issues arise, recheck the installation and make adjustments as necessary.
