2008 Dodge Ram 1500 5.7 Serpentine Belt Routing Diagram and Maintenance Tips
For smooth engine performance and to prevent unnecessary wear on your vehicle’s accessories, understanding the serpentine belt routing for your 2008 Dodge Ram 1500 with the 5.7L HEMI engine is key. Proper installation and tensioning ensure your alternator, power steering pump, air conditioning, and other components work efficiently without causing strain on the engine.
The serpentine belt on the 2008 Dodge Ram 1500 is designed to power multiple accessories with a single continuous belt. The routing pattern may seem complex, but once you understand the layout, it’s straightforward to replace or maintain. In case you’re replacing a worn-out belt or simply need to inspect the system, refer to the diagram for the exact order in which the belt runs around the pulleys. This will help prevent mistakes during installation and ensure everything runs smoothly.
Ensure the tensioner is properly adjusted and that the belt is correctly routed to avoid any unnecessary friction. A belt that’s too tight can strain the components, while a loose belt may slip, leading to failure of key systems. If you’re unfamiliar with the belt replacement process, using the correct diagram as a guide makes the task easier and minimizes the risk of improper installation.

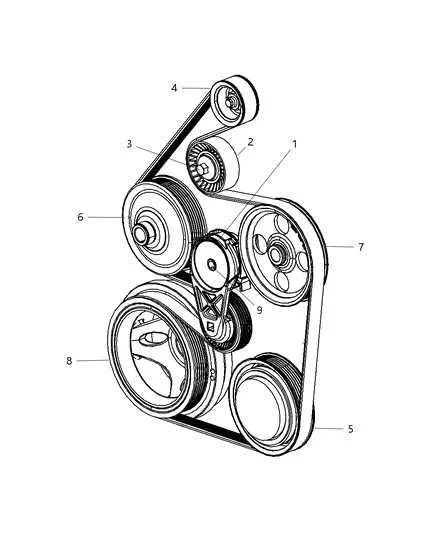

2008 Dodge Ram 1500 5.7 Serpentine Belt Diagram
For the 2008 Dodge Ram 1500 5.7, the serpentine belt diagram is crucial for understanding the routing of the serpentine belt around various pulleys and components. This setup ensures proper operation of the engine’s accessories, like the alternator, power steering pump, air conditioning compressor, and water pump.
The belt routing follows a specific path that is clearly marked on a diagram typically found on the engine compartment, often on the radiator support or under the hood. If the diagram is missing or unclear, using a reliable repair manual or online resources can provide an accurate reference.

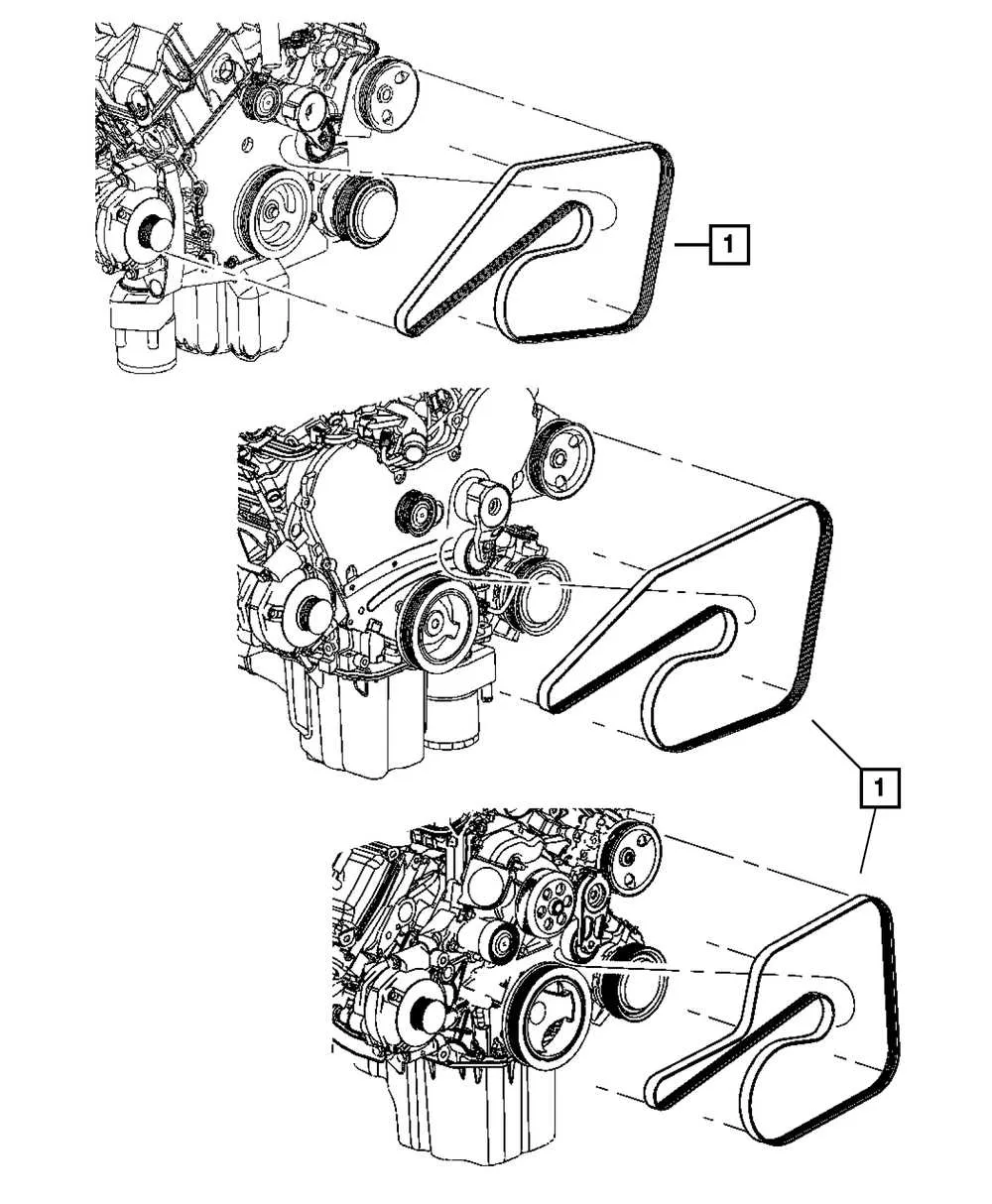

The serpentine belt for the 2008 Dodge Ram 1500 5.7 typically wraps around several pulleys in a specific order. Starting from the crankshaft pulley, it goes to the tensioner pulley, followed by the alternator, power steering pump, air conditioning compressor, and the water pump. The belt then returns to the crankshaft pulley, completing the loop.
Replacing the serpentine belt on this model involves first releasing the tension on the belt by using a wrench or serpentine belt tool on the tensioner pulley. After removing the old belt, the new one must be routed precisely according to the diagram to avoid improper installation that could lead to belt slippage or damage to components.
Before installing the new serpentine belt, inspect the pulleys for wear or damage. It’s also important to check the belt tensioner for any signs of failure, as it plays a key role in maintaining the right tension for the belt’s operation.
How to Identify the Correct Routing for the Serpentine Belt
To identify the correct serpentine belt routing for your 2008 Dodge Ram 1500 5.7, check the belt routing diagram on the radiator support or under the hood. If this diagram is missing or damaged, you’ll need to refer to the vehicle’s service manual for the exact routing sequence. Many auto parts stores also provide these diagrams for specific models, and online resources can help you find detailed instructions.
Start by locating the main components the serpentine belt drives: alternator, power steering pump, water pump, and air conditioning compressor. Ensure the belt wraps around each pulley in the correct sequence. The belt should move smoothly across pulleys without slack or tension issues.
Pay attention to the tensioner pulley, which keeps the correct tension on the belt. It should rotate freely when the engine is off, and the belt should be positioned within the grooves of the pulley to prevent slipping.
Double-check the belt size. If the new belt is too short or long, it won’t fit the routing correctly, causing wear or failure. Using the wrong size also puts unnecessary strain on the components.
Before starting the engine, inspect all pulleys and tensioners for damage or excessive wear. A visual inspection ensures that everything is in good condition and free of debris that could interfere with the belt’s movement.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Dodge Ram 1500
Follow these steps to replace the serpentine belt on your 2008 Dodge Ram 1500 with the 5.7L engine.
- Gather Your Tools
- Socket wrench
- Serpentine belt tool or breaker bar
- Replacement serpentine belt
- Ratchet and socket set
- Safety gloves and eye protection
- Locate the Serpentine Belt Routing Diagram
Find the diagram showing the belt’s route under the hood. It is often located on the fan shroud or near the front of the engine bay. If it’s not visible, refer to the service manual for the exact routing instructions.
- Release Tension from the Serpentine Belt
Using the serpentine belt tool or a breaker bar, insert it into the tensioner pulley and apply pressure to release tension. The tensioner will move away from the belt, allowing you to slip it off the pulleys. Take note of how the belt is routed as you’ll need to replicate this pattern with the new belt.
- Remove the Old Belt
With the tension released, carefully slide the serpentine belt off the pulleys. Remove the belt from the engine bay and dispose of it properly.
- Check the Pulley System
Before installing the new belt, inspect each pulley for damage or wear. Ensure all pulleys spin smoothly without any grinding noises or wobbling. If any pulleys show signs of failure, replace them before proceeding.
- Install the New Serpentine Belt
Position the new serpentine belt according to the routing diagram. Start by placing the belt over the pulleys in the correct order, ensuring it sits properly in each groove. Double-check that the belt is aligned correctly with all the pulleys before moving on.
- Reapply Tension
Using the serpentine belt tool or breaker bar, return the tensioner pulley to its original position. This will tighten the belt. Make sure the belt is snug and there’s no slack in the system.
- Inspect the New Belt
Double-check that the belt is routed properly and sitting securely on all pulleys. Ensure the tension is correct and the belt is aligned in its grooves. Start the engine and observe the belt’s operation for any unusual noises or movements.
- Test Drive
After confirming everything is functioning smoothly, take the vehicle for a short test drive. Listen for any abnormal sounds and check the belt’s performance once more before finishing the job.
Replacing the serpentine belt is a straightforward task if you follow the steps carefully. Make sure to replace the belt on time to avoid engine performance issues and further complications.
Troubleshooting Common Serpentine Belt Issues in the Dodge Ram 1500 5.7
If the serpentine belt on your Dodge Ram 1500 5.7 shows signs of wear or malfunction, act quickly to avoid further engine damage. A squealing noise or slipping belt can indicate tension or alignment issues. First, inspect the belt for visible cracks, fraying, or glazing. Replace the belt if you see any of these signs to maintain proper engine function.
Another common issue is incorrect belt tension. If the belt feels loose or too tight, it may be due to a malfunctioning tensioner. Check the tensioner for wear or loss of spring pressure. If the tensioner is faulty, replacing it can restore proper belt tension and prevent the belt from slipping or stretching prematurely.
Misalignment of the pulleys can cause uneven wear on the serpentine belt. Examine the pulleys for damage or misalignment. A misaligned pulley can increase stress on the belt, leading to premature failure. If necessary, replace or realign the pulleys to ensure the belt runs smoothly.
Overheating can also impact the serpentine belt. Excessive heat from the engine can cause the belt to deteriorate faster, leading to cracks and stretching. Ensure your engine cooling system is functioning properly, and check for leaks or blockages that could be causing overheating.
In some cases, debris or oil buildup on the belt or pulleys can interfere with belt operation. Clean the pulleys and belt using a gentle degreaser. Avoid using harsh chemicals that could damage the rubber belt. Keep an eye on the belt’s performance after cleaning to ensure the issue is resolved.
Lastly, always double-check that the belt routing is correct. A misrouted serpentine belt can result in excessive wear or even complete failure. Refer to the owner’s manual for the correct routing diagram to avoid installation mistakes.
