2007 Dodge Ram 1500 Serpentine Belt Diagram and Routing Guide

If you’re tackling a serpentine belt replacement or maintenance for your 2007 Dodge Ram 1500, understanding the correct routing of the belt is key. This detailed diagram will guide you through the precise path, ensuring that everything is aligned and functioning properly. A misaligned belt can cause a number of engine performance issues, from poor power steering to overheating, so getting this right is crucial.

The serpentine belt in your Dodge Ram 1500 plays a critical role in driving the engine’s accessories such as the alternator, power steering pump, water pump, and air conditioning compressor. Knowing the exact routing of the belt is important for both replacements and inspections. This guide provides the exact sequence and any tensioner adjustments needed to maintain the vehicle’s performance and prevent any potential failures down the road.

Once you’ve located the belt routing diagram, check the condition of the belt for any cracks, fraying, or excessive wear. If any issues are present, replacing the belt as soon as possible is recommended to avoid further engine damage. With this simple, clear diagram, you can ensure your Dodge Ram 1500 remains in top shape, avoiding unnecessary repairs and costly downtime.

2007 Dodge Ram 1500 Belt Diagram Guide

To properly maintain your 2007 Dodge Ram 1500, you must understand the serpentine belt layout. Follow this guide to ensure you’re routing the belt correctly for optimal performance.

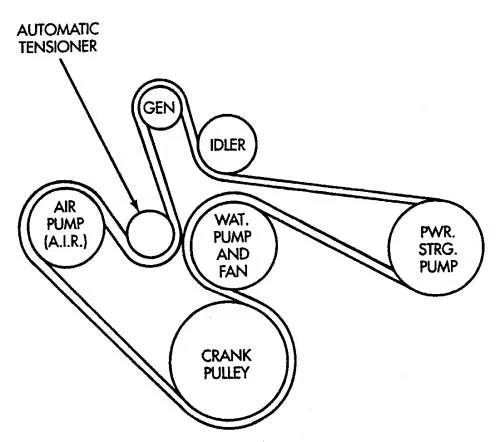

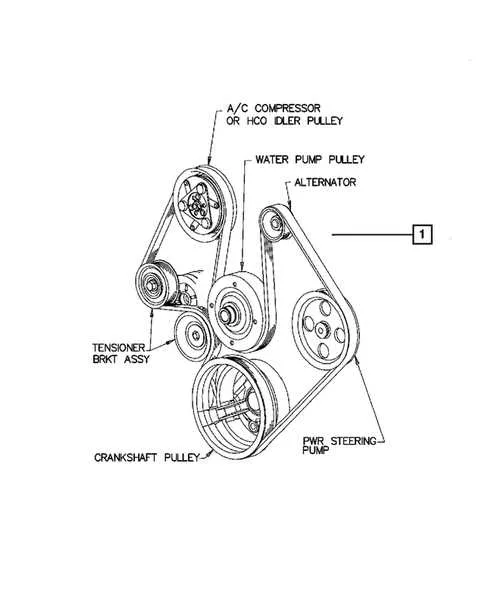

The diagram typically shows the belt path over components such as the alternator, power steering pump, water pump, AC compressor, and tensioner pulley. You’ll see a clear illustration of how the belt loops through each part, ensuring that it runs smoothly without slipping or causing excess wear on any part of the engine.

Before replacing or inspecting the belt, check the tensioner. It should have sufficient spring tension to keep the belt in place. If the tensioner isn’t functioning correctly, it could lead to premature belt wear. Make sure to replace the belt if it shows signs of damage like cracks or fraying. An old or worn belt can lead to engine overheating, power loss, and even engine failure if it breaks while driving.

When installing a new serpentine belt, always start by routing it around the pulleys as indicated by the diagram. Ensure that it’s aligned properly and is taut but not over-tightened. The diagram often includes a specific order for routing, which helps avoid mistakes. If the belt seems too loose after installation, inspect the tensioner for wear or damage.

If you don’t have the diagram handy, you can often find it in the vehicle’s manual or search for it online using your vehicle’s year, make, and model. This can save you time and ensure you get the correct belt replacement diagram for your specific engine type (e.g., 4.7L or 5.7L V8). Double-check the part number to avoid any confusion.

Finally, after the belt is installed, it’s a good idea to run the engine for a few minutes and visually inspect the belt’s operation. Listen for unusual sounds like squealing, which could indicate improper tension or misalignment.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2007 Dodge Ram 1500

First, gather the necessary tools: a socket set, a ratchet wrench, a serpentine belt tool, and a replacement belt compatible with your 2007 Dodge Ram 1500. Make sure the engine is off and the vehicle is parked on a flat surface with the parking brake engaged.

Next, locate the serpentine belt. On the 2007 Dodge Ram 1500, the belt runs across various engine components like the alternator, power steering pump, and air conditioning compressor. Use the belt diagram, which you can find in the engine bay or your vehicle’s manual, to identify the exact routing of the belt.

To relieve tension on the belt, find the tensioner pulley. This is a spring-loaded pulley that keeps the belt tight. Use a serpentine belt tool or a wrench to rotate the tensioner counterclockwise. While holding the tensioner in place, slip the belt off the pulleys carefully.

Once the belt is removed, check the condition of all pulleys, especially the tensioner. If any pulleys feel loose or make noise, consider replacing them. Also, verify the condition of the new serpentine belt to ensure it matches the routing of the old one.

Install the new belt by following the diagram. Make sure the belt sits securely in all the grooves of the pulleys, and ensure that it’s properly aligned with the components it drives. Once the belt is in place, use the tensioner tool to rotate the tensioner back to its original position, applying enough tension to the belt.

Finally, double-check the belt alignment and make sure everything is properly seated. Start the engine and observe the belt in motion to ensure it runs smoothly. If the belt moves off-center or makes any noise, turn off the engine immediately and recheck the installation.

By following these steps, you’ll have successfully replaced the serpentine belt on your 2007 Dodge Ram 1500, restoring your vehicle’s drive system to full functionality.

Common Issues with Belt Alignment and Tensioner on the 2007 Dodge Ram 1500

Improper belt alignment and tensioner issues are common in the 2007 Dodge Ram 1500, often causing noise, vibrations, or even component failure. Here are the main concerns:

• Misaligned Serpentine Belt: When the belt isn’t aligned properly, it can cause uneven wear, leading to belt slippage or premature damage. Misalignment often results from worn-out pulleys or improper tensioner positioning.
• Tensioner Failure: The tensioner’s spring mechanism can weaken over time, causing it to lose the correct tension on the serpentine belt. This results in the belt being too loose or too tight, leading to squealing sounds, increased wear, or belt breakage.
• Worn Pulleys: Pulley misalignment or wear can affect the belt’s performance. Damaged pulleys may cause friction or lead to belt slippage, making it essential to inspect them periodically for wear and ensure they spin freely.
• Incorrect Tension: A belt that is too tight or too loose can cause various problems, from poor engine performance to premature wear on the alternator, water pump, or air conditioning compressor. Adjusting the tension to manufacturer specifications is key to avoiding these issues.
• Contaminated Belt: Oil, coolant, or other fluids leaking onto the belt can cause it to slip, crack, or stretch. Ensure no leaks are present in the engine area to avoid contaminating the serpentine belt.

Regularly check the belt alignment, tensioner condition, and pulley wear to maintain optimal performance and prevent premature belt failure. Replacing worn components before they fail can save time and money in the long run.

How to Identify the Correct Belt Routing for Various Engine Configurations

Check the engine type to begin with. The 2007 Dodge Ram 1500 offers different engine configurations, such as the 3.7L V6, 4.7L V8, and 5.7L HEMI V8. Each configuration has its own unique belt routing.

Look for the belt routing diagram under the hood. This label is typically located near the radiator support or on the engine’s fan shroud. If the diagram is missing or illegible, refer to the owner’s manual or service manual for accurate routing details.

Identify the key components the belt drives. This includes the alternator, power steering pump, air conditioning compressor, and the water pump. Take note of which components are powered by the belt for each engine configuration.

For multi-belt systems, identify which specific belt drives each component. Some engines may have a separate belt for the air conditioning compressor or other accessories. It is important to ensure each belt is routed correctly to prevent strain or improper tension on individual components.

If you’re replacing a worn-out belt, use a new one that matches the original specifications. A new belt will have the necessary flexibility to ensure proper routing. If the new belt is too tight or too loose, the engine components may not function efficiently, leading to premature wear.

When reinstalling the belt, follow the direction of rotation indicated by the routing diagram. Check that the belt fits into all pulleys properly without slipping or riding off any edges. A belt that’s out of alignment will cause unnecessary friction, shortening its lifespan.

Double-check the tension. A loose or too-tight belt will impact engine performance. If using an automatic tensioner, ensure it’s working correctly. Manual tensioners should be adjusted according to the manufacturer’s specifications to avoid slippage or damage to components.
