2006 Dodge Dakota 3.7 serpentine belt routing guide with pulley layout

Check the belt routing on the 2006 Dodge Dakota 3.7 directly before removing the old serpentine belt. A quick photo or a printed diagram saves time during reinstallation. The belt drives the alternator, power steering pump, water pump, and A/C compressor, so correct alignment keeps all systems running smoothly.

Use a 15 mm wrench or serpentine belt tool to rotate the tensioner clockwise and release tension. Slide the belt off the pulleys, beginning with the smooth idler, then route the new belt according to the factory layout. Always place the ribbed side against grooved pulleys and the smooth side against flat pulleys.

After installation, double-check alignment on every pulley. Even a slight misplacement can cause squealing, wear, or premature failure. Start the engine and watch the belt track; it should run straight without vibration. Keeping the diagram handy helps avoid mistakes during future replacements.

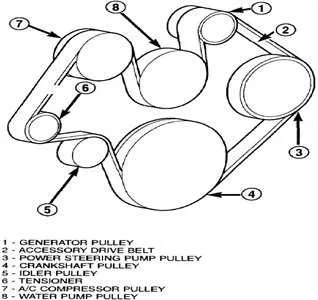

2006 Dodge Dakota 3.7 Belt Diagram

Check the belt routing before removing the old serpentine belt to avoid installation errors. On the 2006 Dodge Dakota with the 3.7L engine, the belt snakes around multiple pulleys that drive the alternator, power steering pump, air conditioning compressor, and water pump.

• The belt starts at the crankshaft pulley and moves upward.
• It loops around the power steering pump on the driver’s side.
• From there it passes under the water pump pulley in the center.
• Next, it runs over the alternator located at the top passenger side.
• It then travels downward to the air conditioning compressor pulley.
• Finally, the belt wraps around the automatic tensioner before returning to the crankshaft.

Always release tension using the square drive slot on the belt tensioner. Rotate it counterclockwise to slip the belt off. During reinstallation, route the belt exactly as described, leaving the tensioner pulley for last to make the process smoother.

Inspect pulleys for wear and ensure the belt sits properly in each groove. Misalignment can cause noise, premature wear, or belt failure.

Serpentine Belt Routing Layout for 2006 Dodge Dakota 3.7

Place the belt around the crankshaft pulley first, ensuring it sits evenly in all grooves. From there, route it upward over the water pump pulley and then toward the alternator. Keep the belt snug while guiding it along each surface to avoid misalignment.

Continue by wrapping the belt around the power steering pump and then direct it across the air conditioning compressor. After this step, run it under the idler pulley, maintaining firm tension on every segment. Finish the routing by positioning it around the automatic tensioner pulley.

Apply a ratchet to the tensioner to create slack, then slide the belt into its final groove. Release the tensioner slowly and confirm the belt is fully seated across all pulleys. Check alignment visually along the entire path to prevent premature wear or squealing during operation.

How to Replace the Serpentine Belt on Dodge Dakota 3.7

Disconnect the negative battery cable to prevent accidental starts. Position the vehicle on a flat surface and allow the engine to cool completely before handling the belt area.

Locate the serpentine belt routing diagram under the hood or keep a printed copy nearby. Use a 3/8-inch drive ratchet or serpentine belt tool to rotate the tensioner pulley clockwise, which relieves pressure on the belt.

Slide the old belt off the pulleys, noting the path around the alternator, power steering pump, A/C compressor, crankshaft pulley, and idler pulleys. Remove the worn belt fully from the engine bay.

Route the new belt following the diagram precisely. Ensure each rib sits squarely in the grooves of the pulleys. Hold the belt tight while rotating the tensioner again to slip the final section of the belt into place.

Release the tensioner slowly to apply proper tension. Double-check alignment across all pulleys to avoid slippage or premature wear. Reconnect the battery cable and start the engine to confirm smooth belt movement without squeaks or wobble.

Common Symptoms of Belt Wear in Dodge Dakota 3.7

Inspect the serpentine belt if you hear high-pitched squealing during startup or while accelerating, as this noise often signals slipping or glazing on the belt surface.

Check for visible cracks, fraying, or missing ribs along the belt edges. These signs indicate material fatigue and reduced grip on the pulleys.

Watch for loss of power steering assist or alternator charging issues. A worn belt may slip enough to prevent these accessories from running at full capacity.

Notice engine overheating if the belt fails to spin the water pump consistently. Temperature spikes are a clear warning that the drive system is compromised.

Pay attention to unusual vibrations coming from the front of the engine. Belt wear can cause misalignment on pulleys, creating irregular movement that transfers into the cabin.
