2005 Dodge Ram 1500 5.7 Serpentine Belt Routing and Diagram

The serpentine belt on your 2005 Dodge Ram 1500 5.7 is responsible for driving multiple components, including the alternator, power steering pump, and air conditioning compressor. A correct understanding of the belt layout ensures smooth operation and prevents potential damage to your engine.

First, inspect the condition of the serpentine belt regularly. Any signs of wear, cracks, or fraying indicate the need for replacement. Pay attention to the tensioner; it should maintain the proper tension on the belt for optimal performance.

Next, refer to the serpentine belt diagram located in your vehicle’s engine compartment or owner’s manual for the correct routing. The belt must be routed precisely to prevent slipping or misalignment, which can cause components to fail.

Finally, replacing the serpentine belt is a relatively simple task for most owners. However, it’s essential to use the correct part number for your specific model to ensure compatibility and proper operation. Regular maintenance will keep your engine running smoothly and reduce the risk of costly repairs.

2005 Dodge Ram 1500 5.7 Serpentine Belt Diagram

The serpentine belt on the 2005 Dodge Ram 1500 5.7 is responsible for powering several components, including the alternator, power steering pump, air conditioning compressor, and water pump. A properly installed belt ensures smooth operation of these systems, while a worn or misaligned belt can lead to various issues.

To replace or inspect the serpentine belt, follow the diagram specific to this model. The belt routing is simple, but it’s important to note the correct placement around each pulley. The tensioner pulley plays a key role in maintaining the right amount of tension for the belt’s efficiency.

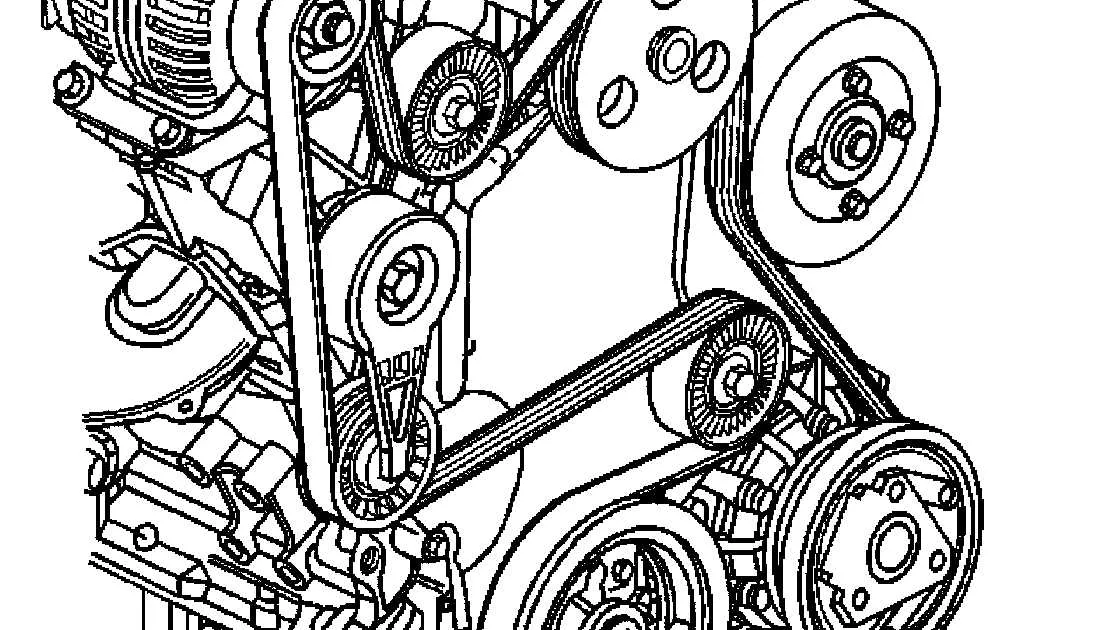

The diagram shows that the belt runs from the crankshaft pulley to the alternator, power steering pump, and air conditioning compressor. Pay attention to the direction of rotation for each pulley, as this ensures correct installation. Be sure to check for any damage or excessive wear on the belt during your inspection, including cracks or fraying.

For easy replacement, use a belt tensioner tool to relieve the pressure on the tensioner pulley. Once tension is released, remove the old belt and replace it with a new one, following the diagram closely. Always verify that the belt is seated properly on each pulley before securing the tensioner pulley back in place.

Maintaining the correct belt tension is vital to prevent slipping or squealing noises. If the belt is too loose, it may not power components effectively; if it’s too tight, it could damage the pulleys or cause the belt to wear out prematurely.

How to Read the 2005 Dodge Ram 1500 Serpentine Belt Diagram

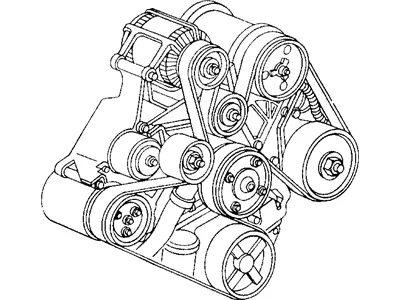

To accurately interpret the serpentine belt diagram of the 2005 Dodge Ram 1500 5.7, focus on the specific components shown and their relationship to each other. The diagram usually illustrates the routing path of the belt around various pulleys and accessories such as the alternator, power steering pump, and air conditioning compressor.

Follow these steps to read the diagram effectively:

• Identify the Belt Routing: The diagram outlines the exact path the serpentine belt follows around the pulleys. It should start from the crankshaft pulley and show its route through each component. This helps ensure correct installation.
• Locate Tensioner and Idler Pulleys: The diagram will also highlight the location of the tensioner pulley, which maintains the necessary belt tension. Pay attention to its position to ensure proper belt tension after installation.
• Understand Pulley Functionality: Each component that the belt drives will be labeled (e.g., alternator, water pump, AC compressor). Recognizing these parts helps in troubleshooting if the belt slips or fails.
• Double-Check Rotation Direction: Some diagrams also show the direction in which each pulley rotates. This is important for ensuring that the belt and pulleys work together smoothly.

By following the belt routing and confirming pulley functionality, you can easily troubleshoot or replace the serpentine belt on the 2005 Dodge Ram 1500 5.7 without errors. Always double-check the diagram before starting any maintenance work.

Step-by-Step Guide for Replacing the Serpentine Belt on a 2005 Dodge Ram 1500 5.7

Before starting, gather the necessary tools: a serpentine belt, a ratchet wrench, a 15mm socket, and a belt tensioner tool. Make sure the engine is off and cool to avoid injury.

1. Disconnect the negative terminal of the battery to prevent electrical accidents while working on the engine.

2. Locate the serpentine belt. It’s typically routed around the alternator, power steering pump, water pump, and other components. The belt routing diagram can be found under the hood or in the vehicle’s manual.

3. Use the belt tensioner tool to release tension on the serpentine belt. Insert the tool into the tensioner pulley and rotate it clockwise to loosen the belt. Once the tension is released, slide the belt off the pulleys.

4. Inspect the old belt for wear, cracks, or damage. If it’s damaged, ensure the new belt matches the size and routing of the old one before proceeding.

5. Position the new serpentine belt onto the pulleys, starting with the lowest pulley and working your way up. Make sure the belt is aligned correctly with each pulley groove.

6. Use the belt tensioner tool again to apply tension to the new belt. Once the belt is tight, ensure it sits properly in all grooves and there’s no slack.

7. Double-check the alignment of the belt on each pulley. Ensure it runs smoothly without misalignment or twisting.

8. Reconnect the negative battery terminal.

9. Start the engine and observe the serpentine belt in motion. Listen for any unusual noises and check for any signs of slippage or irregular movement. If everything runs smoothly, the job is complete.

Common Issues with the Serpentine Belt on 2005 Dodge Ram 1500 5.7 and How to Solve Them

One of the most common issues with the serpentine belt on the 2005 Dodge Ram 1500 5.7 is wear and tear due to age and use. The belt can crack, fray, or stretch, leading to poor performance and potential failure. If you notice any signs of damage, it’s essential to replace the serpentine belt promptly to avoid further issues.

Another issue is belt misalignment. Misalignment occurs when pulleys are damaged or when the tensioner is faulty. This can cause the belt to wear unevenly or slip off. Regularly check the pulleys for any signs of wear or damage, and replace any faulty components before they cause a more significant issue.

Noises such as squealing or chirping often indicate that the belt is slipping or the tension is incorrect. This could be a sign that the tensioner spring is worn out, leading to insufficient tension. Replacing the tensioner can resolve this problem and restore proper belt tension.

Lastly, excessive vibration or the belt jumping off the pulleys can be a result of improper installation. Ensure that the belt is properly routed according to the factory diagram and check that all pulleys are in good condition. If the belt continues to slip, a professional inspection of the pulley system may be required to identify underlying issues.
