2004 Dodge Ram Engine Belt Routing Diagram for Accurate Installation and Maintenance
Check the belt routing immediately if you notice squealing or irregular engine performance on a 2004 Dodge Ram. The serpentine belt connects the alternator, power steering pump, water pump, and air conditioning compressor, ensuring synchronized operation. Following the correct path prevents slipping and extends belt life.
Locate the tensioner pulley on the front of the engine; this allows you to release tension safely while removing or installing the belt. Applying steady pressure with a wrench ensures the belt slides off without damaging the pulley or nearby components. Always inspect the pulleys for wear before reinstallation.
Use a clear diagram specific to your engine configuration. The 2004 Dodge Ram offers variations in 3.7L, 4.7L, and 5.7L engines, each with a slightly different routing. Following the diagram reduces installation errors, prevents engine misalignment, and avoids unnecessary trips to the mechanic.
Regularly check the belt for cracks, fraying, or glazing. Replacing a worn belt according to the diagram keeps your vehicle running smoothly and prevents unexpected breakdowns. Keep a printed or digital copy of the 2004 Dodge Ram belt diagram in the glove compartment for quick reference during maintenance.

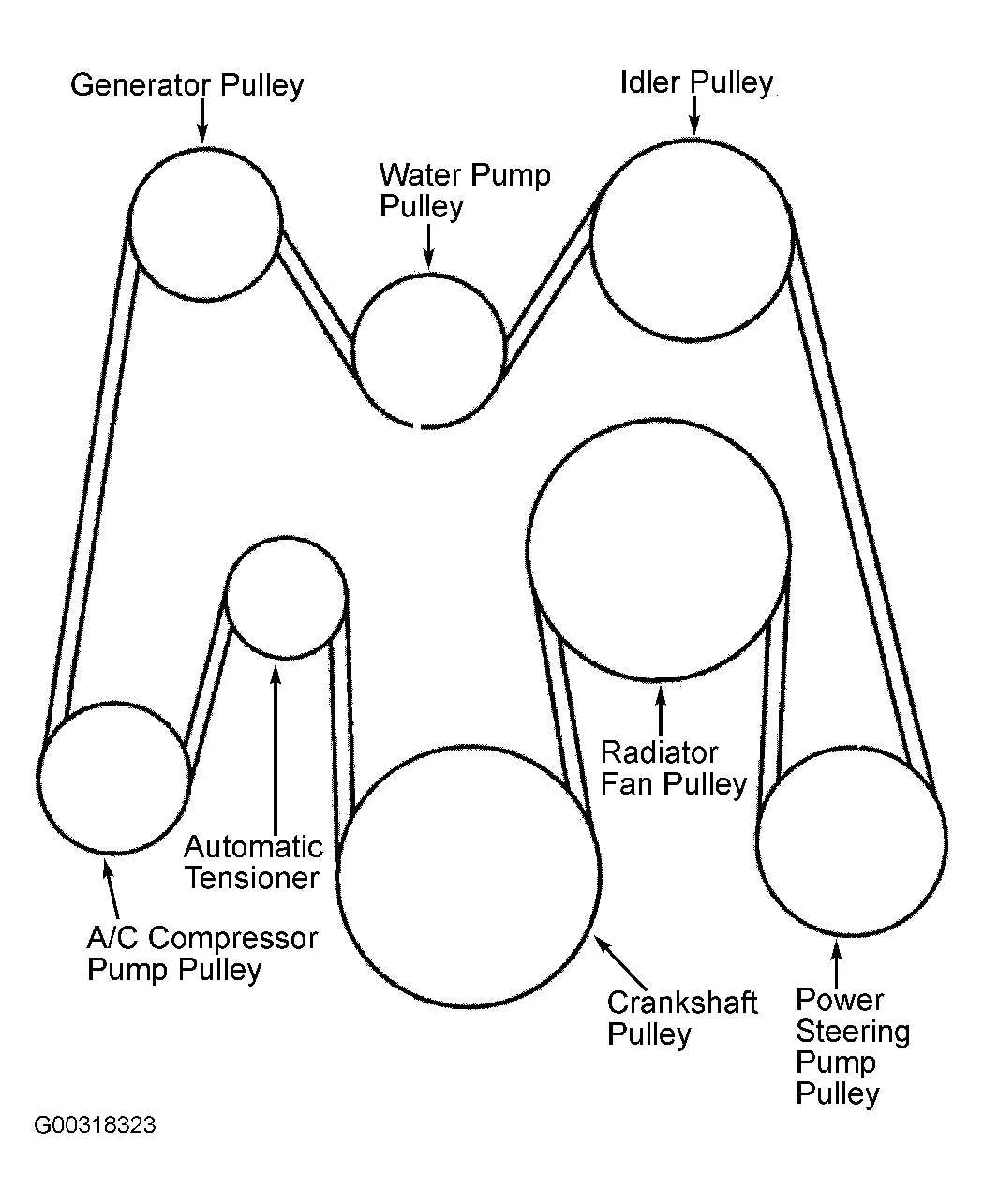

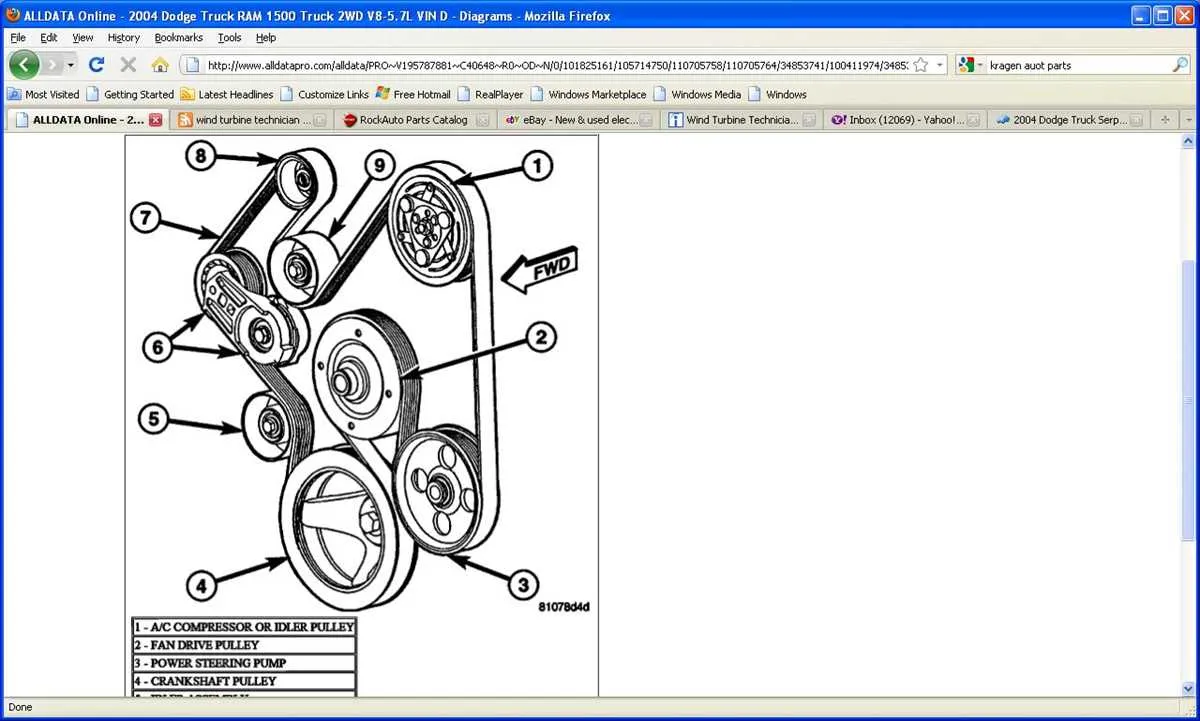

2004 Dodge Ram Belt Diagram
Locate the correct belt routing immediately by referring to the factory diagram for the 2004 Dodge Ram. The serpentine belt drives multiple components including the alternator, power steering pump, air conditioning compressor, and water pump. Following the diagram ensures proper tension and alignment, preventing premature wear.
The 2004 Dodge Ram offers different engine configurations, so confirm your engine type before proceeding:
- 3.7L V6
- 4.7L V8
- 5.7L HEMI V8
- 5.9L V8
Each engine has a specific belt path. Use the following steps for accurate installation:
- Locate the tensioner pulley and use a wrench to relieve tension.
- Route the belt according to the diagram, ensuring it sits correctly on each pulley.
- Release the tensioner slowly to apply proper tension on the belt.
- Check alignment visually and rotate the engine manually if needed to confirm the belt tracks correctly.
Visual references in the diagram highlight pulleys and accessory positions. Pay attention to the ribbed side of the belt aligning with the grooved pulleys to prevent slipping or squealing. Keep the belt free from cracks, frays, and oil contamination for reliable performance.
Store a printed copy of the 2004 Dodge Ram belt diagram in the vehicle or service area for quick reference during maintenance. This reduces errors and helps identify the correct routing when replacing the belt or tensioner components.
Identifying the Correct Belt Routing for 2004 Dodge Ram Engines
Locate the engine type before selecting a belt routing diagram. For 2004 Dodge Ram, the 3.7L V6, 4.7L V8, and 5.7L HEMI V8 engines each follow distinct paths. Use the diagram stamped on the radiator support or under the hood as a reference to match your engine configuration.
Follow the belt around the crankshaft pulley first, then loop it over the alternator, power steering pump, water pump, and air conditioning compressor in sequence. Ensure the belt sits properly in all pulley grooves to avoid slipping or noise.
Check for alignment marks on the tensioner pulley and adjust tension using a 3/8-inch ratchet. The tensioner must apply enough pressure to prevent belt flutter without over-tightening. Inspect each pulley for wear, and replace any that show signs of cracking or rough rotation before completing installation.
Double-check the routing against a printed or manufacturer-provided diagram specific to your engine. Misrouting can cause accessory failure, overheating, or battery charging issues. Turn the crankshaft by hand twice to verify smooth movement and correct tension before starting the engine.
Maintain a spare belt in your tool kit and label the diagram in the engine bay for future replacements. This practice reduces downtime and ensures consistent performance of all engine-driven components.
Step-by-Step Guide to Replacing the Serpentine Belt
Loosen the tensioner using a 3/8-inch ratchet and rotate it clockwise to release pressure on the serpentine belt. Slide the belt off the pulleys carefully, noting the routing for reinstallation. Keep a diagram or take a photo to avoid mistakes.
Inspect all pulleys for wear or damage. Spin each pulley by hand to check for rough spots or wobble. Replace any pulley showing cracks, excessive play, or noise before installing the new belt.
Align the new serpentine belt along the same path as the old one, making sure it sits fully in the grooves of each pulley. Avoid forcing the belt; it should fit snugly without twisting.
Apply pressure to the tensioner again and slip the belt over the final pulley. Slowly release the tensioner so it holds the belt firmly. Double-check the belt alignment across all pulleys to prevent slipping or premature wear.
Start the engine briefly and observe the belt in motion. Listen for unusual noises and watch for any signs of misalignment. Shut off the engine and adjust if necessary to maintain smooth operation.
Common Belt Alignment Issues and How to Troubleshoot Them
Check the tensioner pulley first if your 2004 Dodge Ram shows uneven belt wear. A misaligned pulley can cause the belt to track improperly, creating squealing noises and accelerated wear. Use a straight edge across the pulleys to confirm alignment, ensuring the belt sits flush against each groove.
Inspect all accessory pulleys for wobble or side-to-side movement. Even a slight deviation of 1–2 mm can shift the belt and reduce lifespan. Replace bearings showing play and tighten mounting bolts to factory torque specifications.
Look for belt glazing or fraying along the edges. These signs indicate the belt is rubbing against a pulley flange or is partially off-track. Adjust the tensioner or reposition the belt manually to eliminate rubbing points, then run the engine briefly and recheck alignment.
Check for worn brackets or engine mounts. Misaligned components can tilt pulleys, affecting belt tracking. Measure pulley angles with a protractor or alignment tool and replace any bracket that deviates more than 2 degrees from spec.
Ensure the serpentine belt routing matches the 2004 Dodge Ram belt diagram exactly. Reversing even a single pulley can cause tension imbalances and increase stress on the belt. Follow the diagram step by step during installation and rotate the engine by hand to confirm smooth operation before starting.
