2004 Dodge Ram 5.7 Serpentine Belt Diagram and Routing Instructions

The correct belt routing for your 2004 Dodge Ram 5.7 engine is crucial for proper engine function. A malfunctioning or misrouted serpentine belt can lead to power loss, overheating, or even severe engine damage. Understanding the belt diagram will make replacing or adjusting the belt a more straightforward task.

The 5.7L engine uses a serpentine belt system that drives several key components, including the alternator, power steering pump, air conditioning compressor, and water pump. The belt routing involves a series of pulleys, tensioners, and idlers designed to keep the belt tight and aligned. Always use a diagram specific to the 5.7 model, as variations can occur with other engines in the Dodge Ram lineup.

For installation, begin by ensuring that the tensioner is in the correct position to allow proper belt slack. Pay close attention to the direction of the belt’s grooves and ensure they align with each pulley. Referencing the diagram during installation ensures that all components are driven in the right sequence, minimizing wear and preventing costly damage.

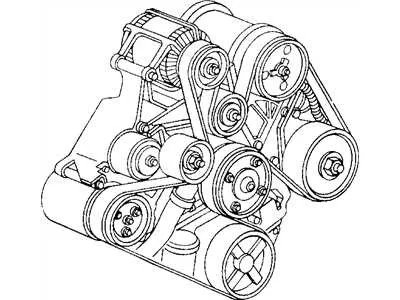

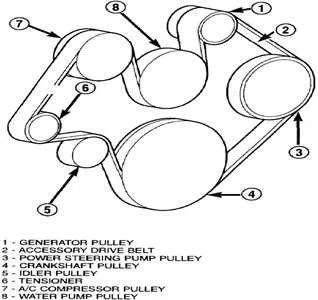

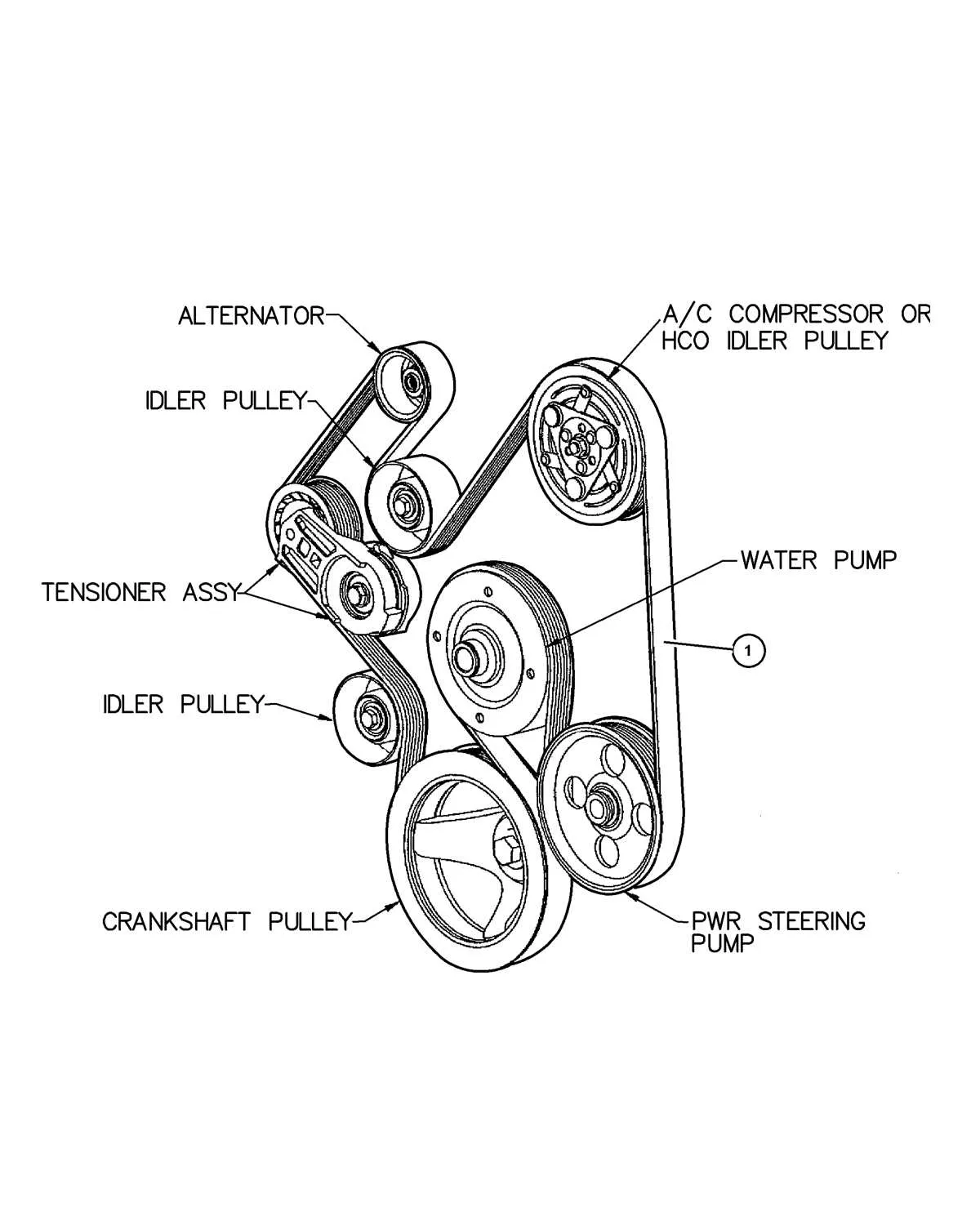

2004 Dodge Ram 5.7 Belt Diagram

For the 2004 Dodge Ram 5.7L HEMI engine, the serpentine belt routing follows a specific path to drive multiple components such as the alternator, power steering pump, water pump, and air conditioning compressor. Ensuring the belt is routed correctly is crucial to avoid engine damage or belt failure. The belt diagram for this vehicle typically shows a clockwise loop starting at the crankshaft pulley.

The tensioner pulley plays a key role in maintaining the correct tension on the belt, ensuring smooth operation. The water pump is located near the front of the engine, while the alternator sits just above it, driven by the same belt. The A/C compressor is positioned lower, typically toward the passenger side of the engine bay, and is included in the serpentine belt loop.

Refer to the diagram for the precise alignment of each component. Double-check the routing to ensure no overlap or incorrect placement that could result in malfunction or premature wear on the belt. Replacing the belt regularly and inspecting it for signs of wear (such as cracks or fraying) can prevent issues and extend the lifespan of the engine components it drives.

How to Identify the Serpentine Belt Routing for a 2004 Dodge Ram 5.7

Locate the serpentine belt diagram for the 2004 Dodge Ram 5.7 on the radiator support, front of the engine, or near the alternator. This is the first step to understanding the belt routing.

Begin by ensuring the engine is off and cool. Remove the old belt if necessary, by using a 3/8″ drive ratchet or serpentine belt tool to release tension from the tensioner pulley. The belt will come off easily once the tension is released.

Next, check the pulleys: the crankshaft pulley is at the bottom, and the alternator, water pump, power steering pump, and AC compressor are located higher. The tensioner pulley should be on the side, with the idler pulley either above or below it.

Referring to the diagram, position the belt starting from the crankshaft pulley. Ensure the belt runs over the alternator, water pump, power steering pump, and AC compressor, following the route shown. It is crucial the belt loops correctly around each pulley in the same order as the diagram indicates.

Once the belt is in place, use the tensioner tool again to apply tension and lock it into position. Check for any slack in the belt and ensure the routing matches the diagram precisely.

Common Issues with the Serpentine Belt and Troubleshooting Tips for the 2004 Dodge Ram 5.7

Inspect the serpentine belt regularly for cracks or visible wear. The 2004 Dodge Ram 5.7 engine uses a single serpentine belt to drive multiple accessories, which makes its condition critical for engine performance. If you notice any fraying or damage, replace the belt immediately to avoid system failures.

If the belt squeals, especially during startup or turning on the A/C, the tensioner could be worn out or the belt might be too loose. Check the belt tension by pressing down on it–if it moves more than half an inch, the tensioner likely needs adjustment or replacement.

Slipping belts can cause the alternator, A/C compressor, and power steering to lose power. This can happen if the belt has become glazed from excessive heat. In this case, replacing the belt and ensuring proper tension is critical. Make sure the pulleys are clean and in good shape to avoid further damage to the new belt.

Overheating can also be a sign of belt issues. If the water pump isn’t turning properly, the engine can overheat. Inspect the belt’s routing and ensure it’s properly aligned on all pulleys. Misalignment often results from a failing pulley or worn tensioner.

• Inspect for cracks, fraying, or wear on the serpentine belt.
• Check the tension by pressing the belt down to ensure it isn’t too loose.
• Replace the belt if it appears glazed or excessively worn.
• Clean and inspect pulleys to avoid additional wear on the new belt.
• Ensure proper alignment of the belt to avoid overheating issues.

Regular maintenance is key to prolonging the life of your serpentine belt and preventing costly repairs. Always follow the manufacturer’s recommendations for belt inspection and replacement intervals.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2004 Dodge Ram 5.7

To replace the serpentine belt on your 2004 Dodge Ram 5.7, follow these steps for a smooth process:

1. Prepare your tools and vehicle

You’ll need a socket wrench, a 15mm socket, a serpentine belt tool or a long breaker bar, and a new serpentine belt. Park the truck on a level surface, engage the parking brake, and disconnect the negative battery terminal to avoid any electrical issues.

2. Locate the serpentine belt tensioner

The serpentine belt tensioner is located near the front of the engine. It has a pulley with a bolt in the center. This is where you’ll apply force to release the tension on the belt.

3. Release tension on the belt

Using your serpentine belt tool or breaker bar, fit it into the tensioner bolt. Turn it counterclockwise to relieve the tension on the belt. Once the tension is released, carefully remove the belt from the pulleys.

4. Remove the old serpentine belt

Once the belt is loose, take it off the pulleys. Pay attention to how the belt is routed, as you’ll need to install the new one in the same pattern.

5. Compare the old and new belt

Before installing the new belt, compare it with the old one to ensure they’re the same size and have the same number of grooves. This ensures a proper fit on all pulleys.

6. Install the new serpentine belt

Route the new belt around the pulleys, following the correct pattern. Double-check that it fits snugly into all grooves and pulleys, particularly the tensioner and idler pulleys.

7. Apply tension to the new belt

Once the belt is properly routed, use your breaker bar to rotate the tensioner again, this time in the clockwise direction, to apply tension to the new belt. Ensure the belt is tight and properly aligned on all pulleys.

8. Reconnect the battery and check the belt

Reconnect the negative battery terminal and start the engine. Observe the belt to ensure it’s running smoothly, with no wobbling or slippage. If everything looks good, you’re done!
