2004 Dodge Ram 4.7 Serpentine Belt Routing Diagram and Overview

The 2004 Dodge Ram 4.7 engine uses a serpentine belt to drive multiple components, such as the alternator, power steering pump, and air conditioning compressor. It is important to understand the routing and tensioning of the belt for proper maintenance and repair.

Before starting any work, ensure the engine is off and cool. The serpentine belt should be inspected regularly for signs of wear, cracking, or damage. If the belt appears frayed or damaged, replace it immediately to avoid causing further engine issues.

To find the correct routing for the 2004 Dodge Ram 4.7 serpentine belt, refer to the belt routing diagram located on the engine compartment or consult the vehicle’s manual. The belt must be routed in the correct direction to ensure the proper functioning of all driven accessories.

Use a serpentine belt tool to relieve tension on the tensioner pulley when removing or installing the belt. This will help avoid damaging the tensioner or other components. After installation, make sure the belt is properly aligned on all pulleys, and check for any slack or misalignment.

Regular maintenance and timely replacement of the serpentine belt can prevent costly repairs and keep your 2004 Dodge Ram running smoothly. If in doubt, consult a professional mechanic for further assistance.

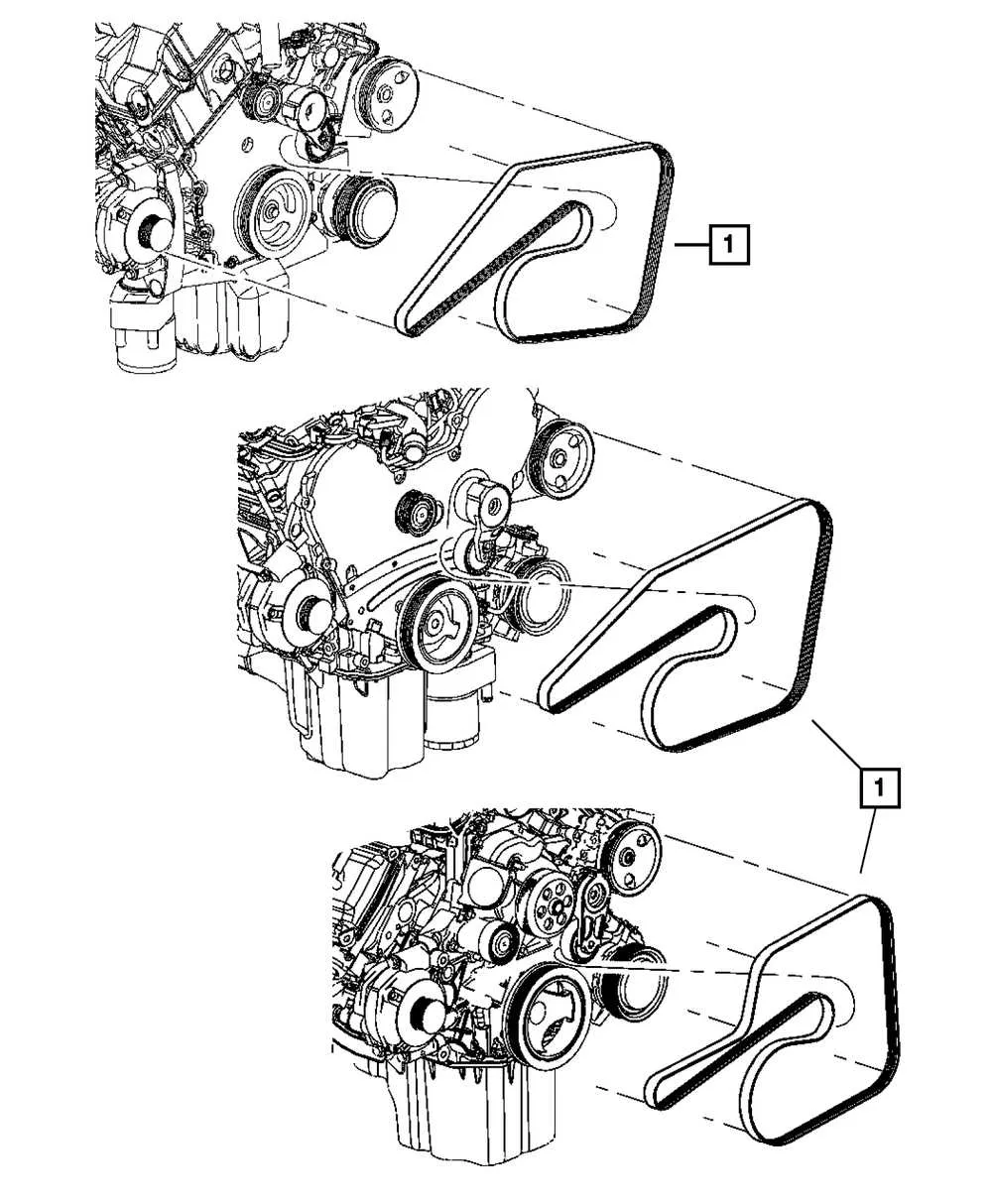

2004 Dodge Ram 4.7 Belt Diagram

The 2004 Dodge Ram 4.7L engine uses a serpentine belt to power various components like the alternator, power steering pump, and air conditioning compressor. Understanding the belt routing is crucial for replacement and maintenance. Here is a breakdown of the belt diagram for the 2004 Dodge Ram 4.7L:

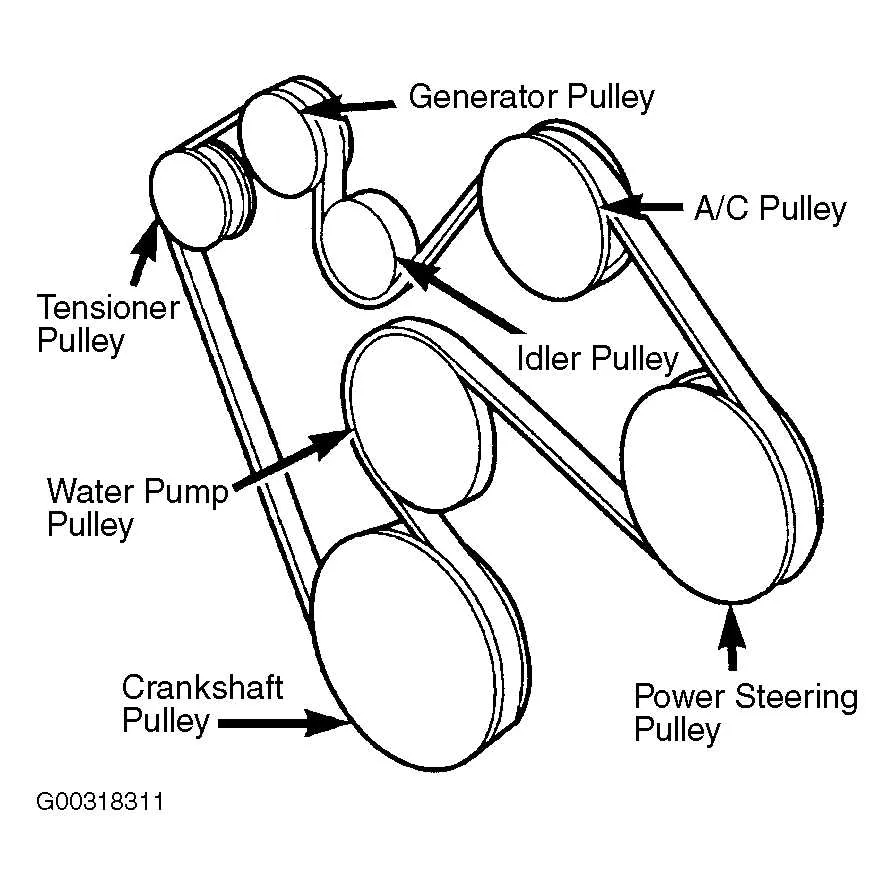

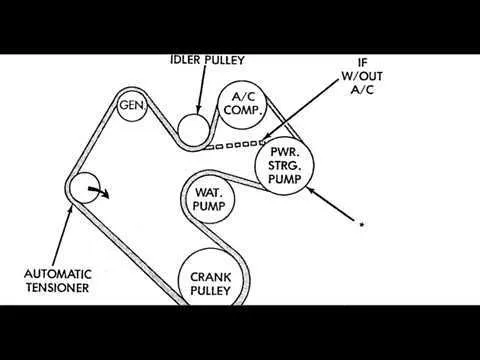

• The serpentine belt is routed around the crankshaft pulley, the alternator, power steering pump, A/C compressor, and the idler pulley.
• The tensioner pulley is responsible for keeping the belt tight and can be adjusted using a special tool to relieve tension when replacing the belt.
• The belt is driven by the crankshaft, which powers all components. Make sure the belt follows the correct path as shown in the diagram to avoid damage or wear.

Refer to the diagram in your vehicle’s service manual for a clear visual of the belt’s path. Always check the belt’s condition during maintenance to ensure it is not cracked or worn out, which could lead to failure and potential damage to the engine components.

If you are unsure about the installation, it is recommended to consult a professional mechanic to ensure proper belt alignment and tension.

Understanding the Serpentine Belt Layout for 2004 Dodge Ram 4.7

Inspect the serpentine belt layout for your 2004 Dodge Ram 4.7 to ensure it’s correctly routed, which is crucial for proper engine function. The layout diagram is located near the engine bay and provides a clear guide for belt installation. Be sure to follow the routing sequence to avoid slippage or damage.

Begin by identifying the components driven by the serpentine belt. These include the alternator, power steering pump, air conditioning compressor, and the water pump. The belt runs in a specific direction, often clockwise or counterclockwise, depending on the configuration.

To remove the serpentine belt, use a wrench or socket on the tensioner pulley to release the tension. Once the tension is off, carefully slide the belt off the pulleys. Before replacing it, inspect the belt for wear and tear, such as cracks or fraying, which could affect its performance.

When installing the new belt, ensure it sits properly on each pulley. Start with the tensioner and work your way around the pulleys. Double-check the belt routing against the diagram to confirm all components are correctly engaged.

Once the belt is in place, release the tensioner and make sure the belt is tight but not overly so. A loose belt will slip, while an overly tight belt can damage components. Run the engine briefly to check the operation of the belt and ensure everything is functioning smoothly.

Step-by-Step Process for Replacing the Serpentine Belt on 2004 Dodge Ram 4.7

First, disconnect the vehicle’s battery to ensure safety while working around the engine components.

Locate the serpentine belt tensioner, which is responsible for keeping the belt tight. Use a wrench or socket to rotate the tensioner and relieve tension on the belt.

Carefully remove the old serpentine belt by sliding it off the pulleys. Take note of the belt’s routing as it is critical for proper installation of the new one. Refer to the vehicle’s belt diagram if needed.

Inspect the pulleys for wear, and replace any that appear damaged or worn. This is an ideal time to check the condition of the tensioner and idler pulleys, which should spin freely and smoothly.

Install the new serpentine belt, following the correct routing as per the vehicle’s diagram. Ensure the belt sits properly on each pulley, with no twists or misalignments.

Once the belt is in place, rotate the tensioner again to tighten the new belt. Double-check the belt’s alignment on the pulleys before proceeding.

Reconnect the battery and start the engine to check for any unusual noises or vibrations. Verify that the belt operates smoothly without slipping or squealing.

If everything checks out, you’re done! Keep an eye on the belt’s performance over the next few days, and check periodically for any signs of wear.

Troubleshooting Common Issues with the Serpentine Belt on 2004 Dodge Ram 4.7

If the serpentine belt on your 2004 Dodge Ram 4.7 is making noise, it could be due to wear and tear or misalignment. Inspect the belt for any visible cracks or fraying. If the belt appears worn out, replace it immediately to prevent further damage to other components.

Another common issue is a squealing noise when starting the engine. This is often caused by the belt slipping due to worn pulleys or inadequate tension. Check the tensioner to ensure it’s functioning properly. If it’s loose, tighten or replace the tensioner as needed.

Occasionally, the serpentine belt might be misaligned. This can lead to uneven wear and affect the performance of accessories like the alternator and air conditioning. Verify that all pulleys are aligned and rotate smoothly without wobbling. If you notice any misalignment, adjust or replace the affected components.

Be cautious of belt tension. If it’s too tight or too loose, it can cause damage to both the belt and the engine. Use a belt tension gauge to check the correct tension, as outlined in the vehicle’s manual. Adjust accordingly if the tension is outside the recommended range.

If you experience poor charging or overheating, it might indicate a problem with the alternator or water pump driven by the serpentine belt. Inspect these components for proper operation. If necessary, replace the alternator or water pump and ensure the belt is properly routed.
