2004 Dodge Ram 1500 Serpentine Belt Diagram and Routing Guide
Understanding the serpentine belt configuration of your 2004 Dodge Ram 1500 is key for proper engine performance and longevity. This belt drives essential components such as the alternator, power steering pump, and air conditioning compressor. Having the correct diagram on hand ensures you’re replacing or adjusting the belt in the right order, avoiding unnecessary repairs.
The serpentine belt on your 2004 Dodge Ram 1500 uses a specific routing pattern to ensure all components are powered efficiently. Typically, the belt wraps around the crankshaft pulley, powering the alternator, air conditioning compressor, water pump, and power steering pump. It’s important to follow the exact routing shown in the diagram to prevent belt slippage or damage to components.
If you’re replacing the serpentine belt or performing maintenance, start by inspecting the belt for wear. Look for cracks, fraying, or signs of aging that may indicate it’s time for a replacement. The diagram will help you align the new belt correctly, ensuring all components are driven without any interruptions. Proper tensioning is also crucial; too loose, and the belt may slip, too tight, and it can strain the pulleys.
Refer to the official Dodge service manual for the exact diagram, or consult online resources to find the routing pattern specific to your truck’s engine. The 2004 Ram 1500 comes in several engine configurations, so make sure you’re looking at the correct diagram for your specific model.

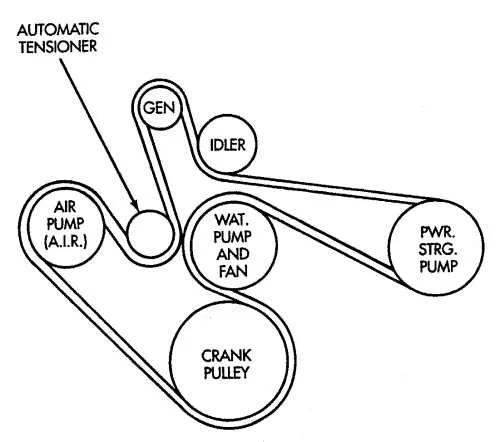

2004 Dodge Ram 1500 Serpentine Belt Diagram
To replace or inspect the serpentine belt on a 2004 Dodge Ram 1500, follow the routing diagram specific to your engine configuration. This ensures all accessories, such as the alternator, power steering pump, air conditioning compressor, and water pump, are properly powered. Incorrect routing can lead to belt wear or engine overheating.

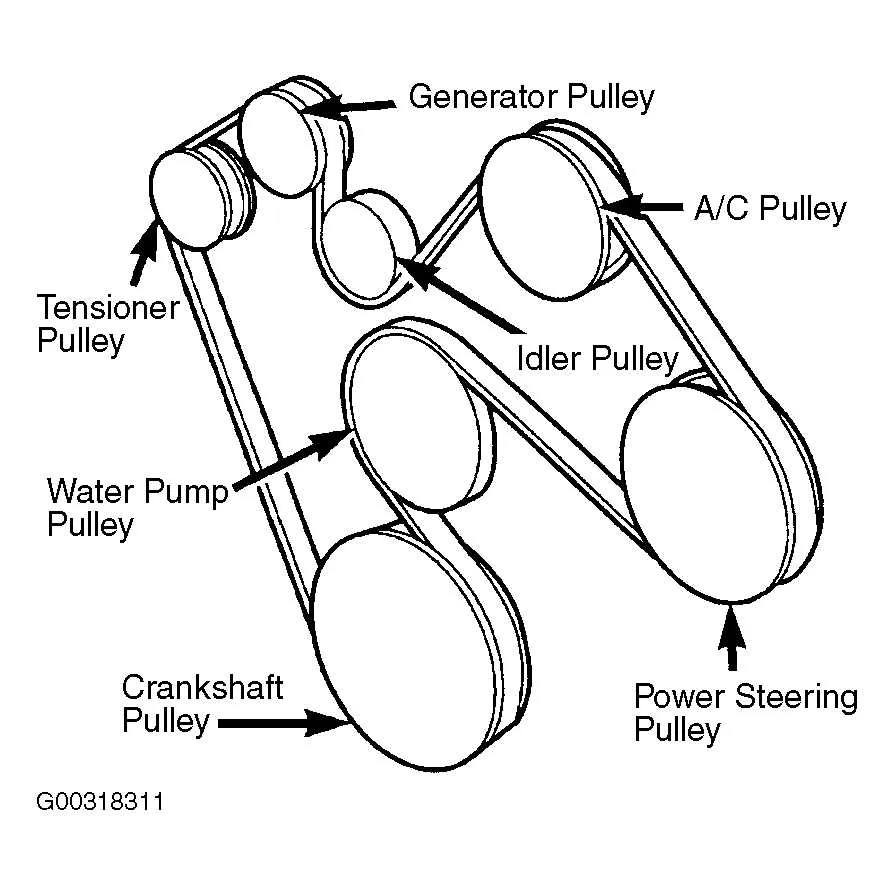

The diagram varies slightly depending on whether your Ram is equipped with a 3.7L V6 or a 4.7L V8 engine. Both configurations use a single serpentine belt, but the routing and tensioner placement differ. The diagram shows the belt looping around the crankshaft pulley, alternator, power steering pump, and other accessories, guided by a spring-loaded tensioner pulley.
For the 3.7L V6 engine, the belt typically passes over the tensioner first, looping down to the power steering pump and around the alternator. The belt then goes across the water pump and finally wraps around the crankshaft pulley. Ensure the tensioner is in good condition before installing the new belt, as an old or weak tensioner can cause improper belt tension.
The 4.7L V8 configuration, on the other hand, features a slightly different routing pattern. The tensioner remains in the same position, but the belt has a slightly different path to accommodate the additional components, such as the air conditioning compressor. The belt should be snug but not overtightened, as excessive tension can damage the pulleys and increase wear.
Always check for wear and replace the serpentine belt if it shows signs of cracking, fraying, or glazing. Regular inspection is key to keeping your engine running smoothly and preventing breakdowns.
Step-by-Step Guide to Reading the 2004 Dodge Ram 1500 Serpentine Belt Diagram

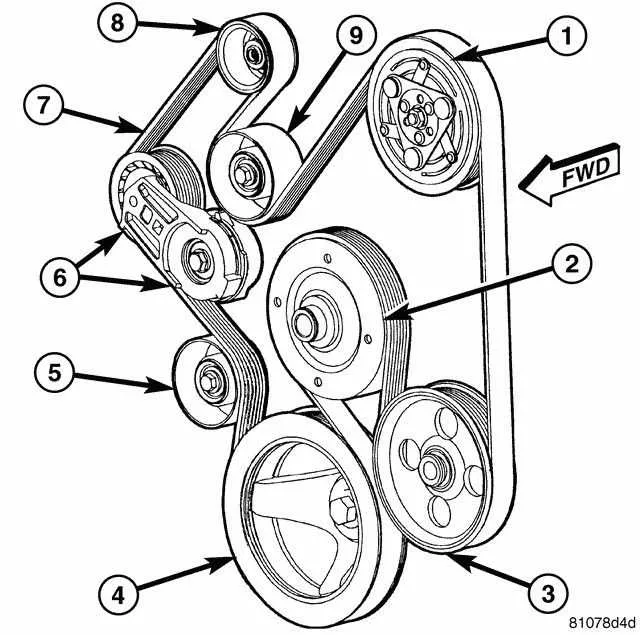

Start by identifying the layout of the serpentine belt diagram for your 2004 Dodge Ram 1500. The diagram shows the belt’s path, indicating how it wraps around various pulleys and components. Typically, the diagram is located on the radiator support, engine bay, or near the front of the engine block.
Next, locate the components listed on the diagram. These usually include the alternator, power steering pump, air conditioning compressor, idler pulley, and tensioner. Each component will be represented with a symbol or label, so be sure to match each one with its corresponding pulley in your engine.
Pay close attention to the routing of the belt. The arrows on the diagram will show the direction in which the belt should be routed. This is particularly important when replacing the belt or checking if it has been installed correctly.
Find the tensioner pulley, usually positioned in a way that it can be moved to relieve tension on the belt. The diagram often shows this pulley in a different style to indicate that it’s adjustable. Be sure to note which direction the tensioner needs to be moved to remove the belt.
Double-check the specific model variant of your Dodge Ram 1500, as the belt routing diagram might vary slightly depending on the engine type. This is important to ensure that you’re reading the correct diagram for your vehicle’s setup.
After familiarizing yourself with the diagram, it’s easier to install or replace the serpentine belt correctly. Follow the diagram precisely, making sure the belt runs smoothly over each pulley without twisting.
How to Identify and Replace a Damaged Serpentine Belt on a 2004 Dodge Ram 1500
If your 2004 Dodge Ram 1500 is making strange noises or experiencing issues with its power steering, alternator, or air conditioning, the serpentine belt might be the problem. A damaged belt can lead to a number of engine performance issues, so addressing the problem promptly is key.
Start by inspecting the belt for visible damage. Look for:
- Cracks or splits along the belt.
- Shiny or glazed surfaces, indicating excessive wear.
- Fraying edges or missing sections of the belt.
If you notice any of these signs, it’s time to replace the serpentine belt. Here’s how:
- Gather the tools: You’ll need a socket wrench, a serpentine belt tool or a ratchet, and a new serpentine belt.
- Locate the belt tensioner: On the 2004 Dodge Ram 1500, the belt tensioner is located near the front of the engine. Use the serpentine belt tool to relieve tension on the belt.
- Remove the old belt: With the tension relieved, slide the belt off the pulleys. Take note of the belt routing; you can find a diagram in the engine bay or refer to the service manual.
- Install the new belt: Match the new belt to the diagram and install it over the pulleys, ensuring it’s properly seated on all grooves.
- Check the tension: Ensure the belt is tight enough but not overly stretched. The tensioner should keep it securely in place.
- Test the system: Start the engine and check for any unusual noises or belt misalignment. If everything runs smoothly, you’re good to go.
Replacing the serpentine belt is a straightforward process, but always double-check your work to avoid any potential engine issues down the road.
Common Issues with the Serpentine Belt System in the 2004 Dodge Ram 1500
If you hear squealing noises or notice reduced engine performance, the serpentine belt system could be the culprit. A common issue in the 2004 Dodge Ram 1500 involves premature wear of the serpentine belt, which may crack or fray over time. This damage can lead to belt slippage, affecting the performance of critical engine components like the alternator, power steering pump, and air conditioning compressor.
Another problem arises from a failing tensioner. If the tensioner becomes weak or malfunctions, it may fail to maintain the proper tension on the serpentine belt. This can lead to the belt loosening, causing it to slip or even break. If you notice any unusual sounds or erratic behavior in engine accessories, it’s a good idea to inspect the tensioner and belt for damage.
Worn-out pulleys are also a concern. These can create uneven wear on the belt, leading to excessive noise and premature damage. If you notice visible rust or damage to the pulleys, replace them along with the belt to ensure smooth operation. Always check the alignment of the pulleys, as misalignment can lead to rapid belt degradation.
Lastly, extreme weather conditions, such as high heat or cold, can affect the serpentine belt’s durability. In hotter climates, the belt can become brittle and crack, while cold temperatures can make the belt stiff and prone to snapping. Regular inspection of the belt, especially in extreme conditions, can help prevent unexpected failures.
