2004 Dodge Ram 1500 5.7 Hemi Serpentine Belt Diagram and Routing Guide

To replace or inspect the serpentine belt on your 2004 Dodge Ram 1500 with the 5.7 Hemi engine, it’s crucial to understand the exact routing of the belt. This diagram ensures you install the belt correctly, preventing potential damage to engine components. The serpentine belt drives critical accessories, such as the alternator, power steering pump, and air conditioning compressor, so correct installation is non-negotiable.

Refer to the diagram for a step-by-step guide on belt routing. Begin by loosening the tensioner using a wrench or serpentine belt tool, then remove the old belt. Ensure the new belt follows the exact path shown, with the grooves properly aligned to each pulley. It’s important to check the belt tension after installation to avoid slippage and excessive wear.

Use the diagram to verify each pulley and component in the system. Keep an eye on the tensioner, which is critical in maintaining appropriate belt tension throughout its life. If you find any damage to the belt or pulleys during this process, replace the affected components to keep your engine running smoothly.

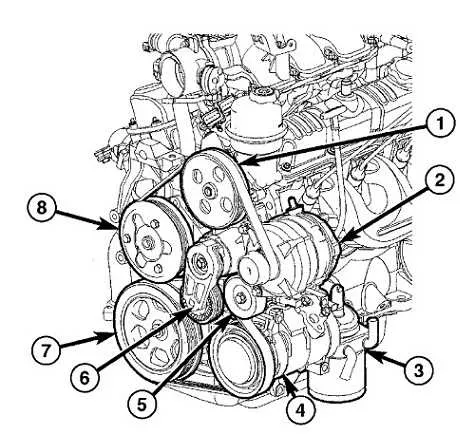

2004 Dodge Ram 1500 5.7 Hemi Serpentine Belt Diagram

For replacing or inspecting the serpentine belt on a 2004 Dodge Ram 1500 with a 5.7 Hemi engine, it’s important to follow the correct routing. This will ensure all accessories function properly, including the alternator, power steering, water pump, and air conditioning compressor.

The serpentine belt on this vehicle follows a specific path around pulleys and tensioners. Here’s the typical routing:

• The belt starts at the crankshaft pulley, moving up to the tensioner pulley.
• From the tensioner, it loops around the alternator pulley, then moves to the power steering pulley.
• It continues to the water pump pulley before going around the air conditioning compressor.
• Finally, the belt loops back around to the crankshaft pulley.

Ensure the tensioner is properly adjusted, as incorrect tension can lead to belt slippage or damage. To avoid unnecessary wear, inspect the belt for cracks or fraying before installation.

For those unfamiliar with the process, here’s a quick reminder of tools needed: a ratchet, a serpentine belt tool, and a replacement belt matching your vehicle’s specifications. Always verify the part number before purchasing a new belt.

Once installed, manually rotate the engine a few times using a wrench on the crankshaft to confirm the belt is seated correctly and has adequate tension.

Refer to the official service manual for any special procedures or torque specifications related to the serpentine belt system.

Understanding the Serpentine Belt Routing for 2004 Dodge Ram 1500 5.7 Hemi

For proper maintenance of your 2004 Dodge Ram 1500 5.7 Hemi, ensuring correct serpentine belt routing is crucial. The serpentine belt drives multiple components, including the alternator, power steering pump, water pump, and air conditioning compressor. Misalignment or wear of the belt can lead to engine performance issues and potential damage to other accessories.

Start by confirming the correct belt path. For the 2004 Dodge Ram 1500 with the 5.7 Hemi engine, the belt should follow this route: from the crankshaft pulley, it loops over the A/C compressor, around the idler pulley, and under the power steering pump. The belt then goes around the alternator and the water pump, before returning to the tensioner. The tensioner helps maintain the belt’s tightness and prevents slipping.

Ensure the belt follows this routing pattern precisely, as incorrect installation can lead to system failures or premature belt wear. Use a belt routing diagram if needed to cross-check the alignment. Tightening the belt too much or too little may cause excessive wear or inefficient power transfer to the components it drives.

When replacing the serpentine belt, inspect the pulleys for wear and replace any that show signs of damage. It’s also wise to check the belt tensioner for proper operation. If the tensioner is not working correctly, the belt may not remain tight enough, leading to slippage and poor performance.

Regular maintenance, including checking the belt for cracks, frays, or signs of wear, can help avoid unexpected failures. Replace the serpentine belt if it’s in poor condition or if it starts making noise, as this may signal that the belt is slipping or misaligned.

How to Properly Install the Serpentine Belt on a 2004 Dodge Ram 1500 5.7 Hemi

Ensure the engine is off and cool before starting the installation process. Disconnect the negative battery cable to avoid any electrical issues.

Begin by locating the serpentine belt routing diagram, typically found on the radiator support or the engine bay. This will guide you in placing the belt correctly around all pulleys.

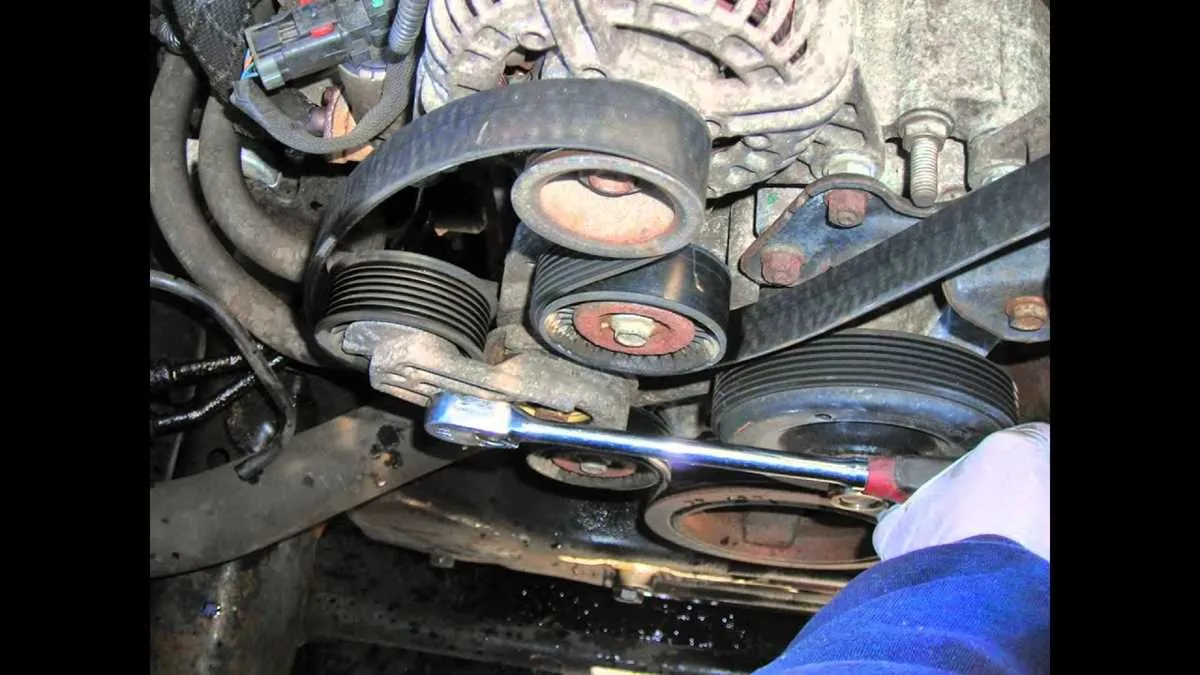

Next, use a wrench or serpentine belt tool to rotate the tensioner pulley counterclockwise. This will relieve the tension on the old belt. Carefully remove the old belt from the pulleys and set it aside.

Now, take the new serpentine belt and follow the routing pattern shown in the diagram. Ensure the belt is aligned properly on each pulley, making sure the grooves face the pulleys’ ribs and the smooth side faces the flat pulleys.

With the belt in position, slowly rotate the tensioner pulley counterclockwise again to create space. Slide the belt over the tensioner pulley and release the tensioner to apply tension to the belt.

Check the belt for proper alignment on all pulleys, making sure it’s seated correctly. Rotate the engine manually (using a socket on the crankshaft bolt) to confirm that the belt moves smoothly and remains in place.

Reconnect the negative battery cable. Start the engine and inspect the belt to ensure it’s running smoothly without any abnormal sounds or vibrations.

Common Problems with the Serpentine Belt System in 2004 Dodge Ram 1500 5.7 Hemi

The serpentine belt in your 2004 Dodge Ram 1500 5.7 Hemi plays a crucial role in driving multiple components like the alternator, power steering, and air conditioning. Over time, it can face several issues that impact performance.

One common problem is belt wear and cracking. With frequent use, the belt can lose its flexibility, causing visible cracks or fraying along the edges. This often leads to reduced efficiency or even a sudden failure if not addressed.

Another issue is belt tension. If the tensioner malfunctions, the belt may either be too loose or too tight, both of which can cause significant damage. A loose belt can slip, leading to loss of power to critical systems like the alternator, while a tight belt can strain pulleys, causing premature wear.

The pulleys themselves can also wear out. When the pulleys become misaligned or worn, it leads to excessive friction, making the belt work harder than necessary. This can also cause noise, such as squealing or whining sounds, which are signs that something is wrong with the system.

Lastly, fluid contamination is another issue. Oil or coolant leaks can drip onto the serpentine belt, degrading its material and weakening its grip on the pulleys. It’s crucial to check for leaks and replace the belt if any signs of contamination are found.
