2003 Dodge Ram 1500 4.7 Serpentine Belt Routing and Diagram Guide

If you’re replacing or repairing the serpentine belt on your 2003 Dodge Ram 1500 4.7, understanding the proper routing of the belt is key. The serpentine belt drives several crucial components such as the alternator, power steering pump, and air conditioning compressor. A proper belt routing ensures that all systems are functioning efficiently, preventing unnecessary wear and tear on the engine.

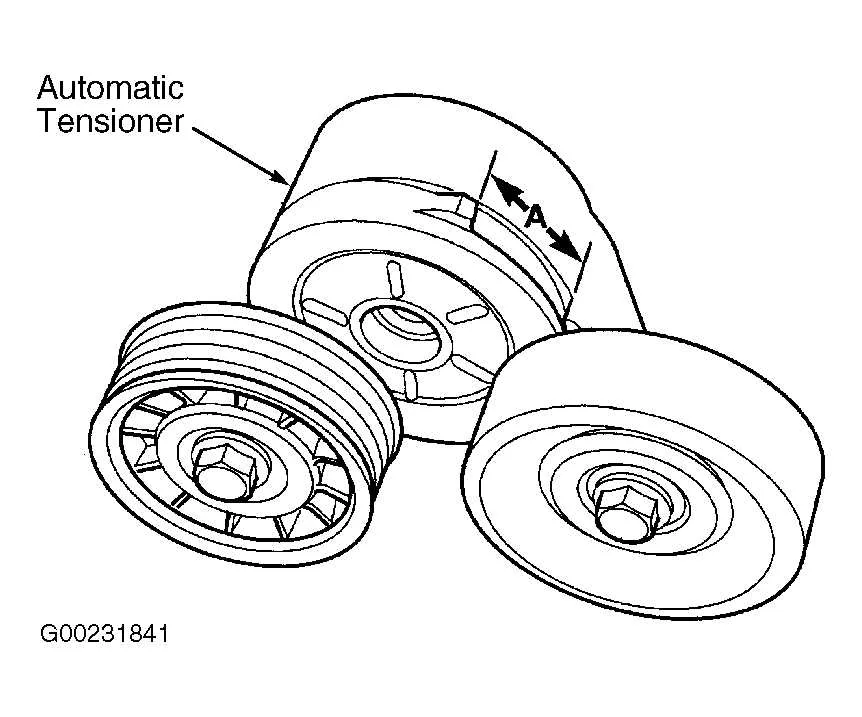

To begin, locate the tensioner pulley. This pulley is responsible for keeping the belt tight. Use a wrench or socket to move the tensioner, releasing tension on the belt so you can remove it easily. Afterward, take note of the routing pattern to help guide the installation of the new belt.

The 2003 Dodge Ram 1500 4.7 engine uses a specific belt routing configuration. Begin by placing the belt around the crankshaft pulley, ensuring it’s positioned correctly over each component in the system. The belt should be threaded through the alternator, power steering pump, and air conditioning compressor, following the exact route as outlined in the diagram. Ensure the belt sits properly in each groove of the pulleys to avoid slippage.

Once the new belt is in place, release the tensioner to apply the necessary tension to the belt. Double-check the routing once again to confirm that everything is aligned. A well-installed serpentine belt will keep your engine running smoothly without unnecessary strain on any of the driven components.

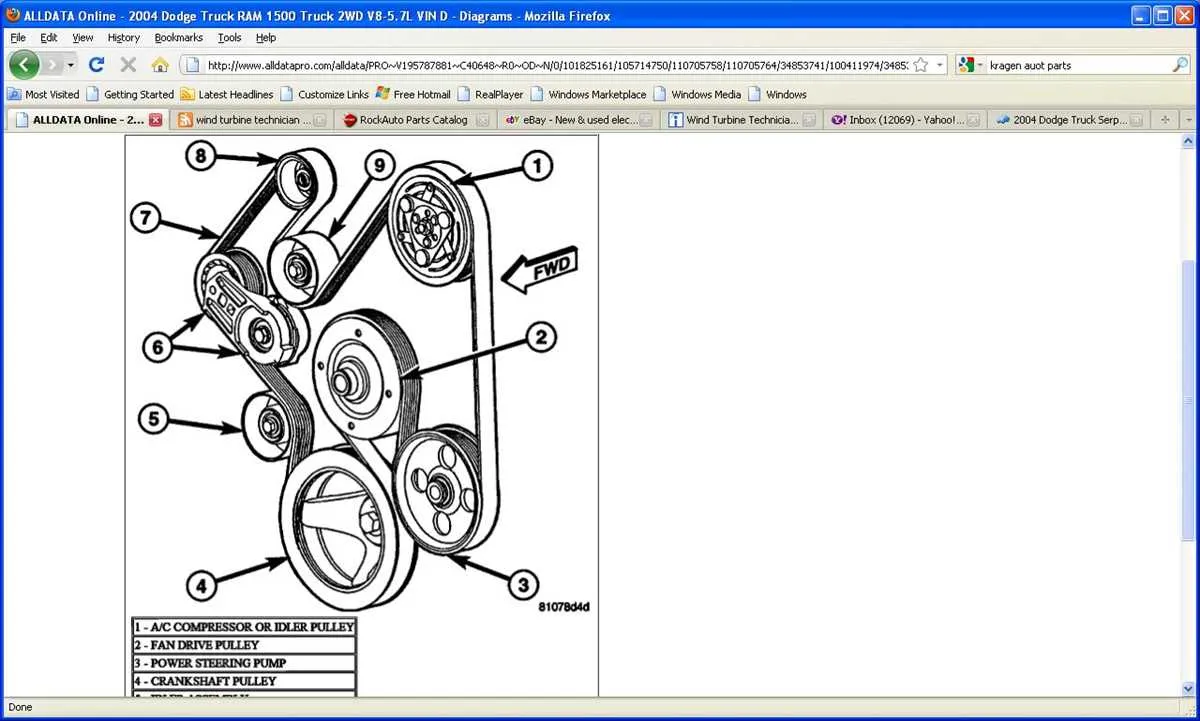

2003 Dodge Ram 1500 4.7 Serpentine Belt Diagram

For proper installation and maintenance of the serpentine belt on a 2003 Dodge Ram 1500 4.7, follow this guide to ensure a smooth operation of your engine components. The belt drives critical parts like the alternator, power steering pump, air conditioning compressor, and water pump. Understanding its routing is key to preventing issues.

The serpentine belt follows a specific path through the engine bay. It loops around the crankshaft pulley, alternator, power steering pump, and air conditioning compressor. A tensioner pulley keeps the belt tight. To remove or replace the serpentine belt, use a 3/8-inch ratchet to relieve tension on the belt tensioner. Ensure the belt is installed in the same path it was before removal to avoid misrouting, which can lead to component failure.

Step-by-step routing overview:

• The belt starts at the crankshaft pulley, loops around the tensioner pulley, and continues to the alternator.
• It then moves to the power steering pump, the air conditioning compressor, and finishes at the water pump.
• The tensioner pulley should maintain consistent tension across the entire length of the belt.

Check the belt regularly for any signs of wear, such as cracks or fraying, and replace it if necessary. Using the diagram provided for your model year will help you install the new belt correctly and avoid unnecessary engine damage.

Understanding the Belt Routing for 2003 Dodge Ram 1500 4.7

For a smooth-running engine, follow the precise belt routing diagram for the 2003 Dodge Ram 1500 4.7. The serpentine belt powers various engine components like the alternator, power steering pump, water pump, and air conditioning compressor. Incorrect routing can lead to improper function and potential damage.

To ensure proper installation, here’s the belt routing for the 2003 Dodge Ram 1500 4.7:

• The serpentine belt starts at the crankshaft pulley, which is the largest pulley at the bottom of the engine.
• From there, it loops around the water pump pulley, which is located just above it.
• Next, it runs to the power steering pump pulley on the driver’s side of the engine.
• After that, it moves across to the alternator pulley on the passenger side, keeping tension across the system.
• The belt then passes over the air conditioning compressor pulley, which is on the driver’s side near the front of the engine.
• Finally, the belt returns to the crankshaft pulley, completing the loop.

Make sure to inspect the belt for any signs of wear, like cracking or fraying. Replace it if necessary to maintain optimal performance. If you’re unsure of the belt’s condition or the routing, refer to the manufacturer’s diagram or a service manual for the most accurate and detailed information.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2003 Dodge Ram 1500 4.7

To replace the serpentine belt on your 2003 Dodge Ram 1500 with a 4.7L engine, follow these straightforward steps to get the job done right.

1. Gather Your Tools
You’ll need a socket set, a wrench, and a serpentine belt tool or breaker bar. A new serpentine belt for the 4.7L engine is also required.

2. Disconnect the Battery
Start by disconnecting the negative terminal of the battery to avoid any electrical accidents.

3. Locate the Belt Tensioner
The serpentine belt tensioner on the 2003 Dodge Ram 1500 is located near the bottom of the engine, next to the alternator. Use a wrench or serpentine belt tool to relieve tension on the belt.

4. Release the Tension on the Belt
Insert the serpentine belt tool into the tensioner’s bolt and rotate it counterclockwise. This will loosen the belt, making it easier to remove. Be careful as the tensioner can spring back if not held properly.

5. Remove the Old Serpentine Belt
Once the tension is released, slide the belt off the pulleys. Take note of the belt routing so you can install the new one correctly.

6. Compare the New Belt
Before installing the new serpentine belt, compare it with the old one to ensure it’s the correct size. If they don’t match, double-check your part number.

7. Install the New Belt
Start by looping the new belt over the pulleys in the same configuration as the old one. Ensure the belt is seated properly in each pulley groove.

8. Reapply Tension to the Belt
Use the wrench or serpentine belt tool to rotate the tensioner again, allowing the belt to slip into its final position. Slowly release the tensioner and ensure the belt is tight but not too tight.

9. Double Check the Routing
Make sure the belt is routed correctly, with no twists or misalignment. A misaligned belt can cause premature wear and reduce the efficiency of the engine components.

10. Reconnect the Battery
After confirming that the belt is properly installed, reconnect the negative terminal of the battery.

11. Test the Engine
Start the engine and visually inspect the serpentine belt to ensure it is running smoothly over the pulleys without any noise or slippage.

By following these steps, you’ll have your serpentine belt replaced quickly and with confidence, ensuring your Dodge Ram 1500 runs smoothly.

Troubleshooting Common Serpentine Belt Issues in a 2003 Dodge Ram 1500 4.7

Inspect the serpentine belt for visible wear, cracks, or fraying. If the belt shows any of these signs, replace it immediately to avoid potential engine failure. A worn belt can cause loss of power steering, alternator failure, or overheating due to the water pump not functioning properly.

If you hear a squealing noise, it’s often caused by a loose or misaligned belt. Check the tensioner pulley and adjust the tension or replace the tensioner if it’s faulty. A belt that’s too tight can also cause this noise, so ensure the tension is within manufacturer specifications.

To troubleshoot belt misalignment, inspect the pulleys for any visible damage or signs of wobbling. A misaligned pulley can cause the belt to wear unevenly, leading to premature failure. Replace any pulleys that are damaged or worn out.

If you notice power loss or poor engine performance, it could be due to the serpentine belt slipping. This issue often results from a worn belt or faulty pulleys. If the belt has not been replaced for a long period, replacing it and checking the condition of the pulleys can solve the problem.

In some cases, the tensioner pulley may seize, causing the belt to lose tension and slip. A seized pulley will need to be replaced to restore proper function to the serpentine belt system. Regular maintenance can prevent this issue.

For smoother operation, keep an eye on the belt’s overall condition, checking for signs of oil or coolant contamination, which can degrade the rubber. If contamination is found, clean or replace the affected components to prevent further damage to the belt.

Finally, always verify the routing of the serpentine belt with the diagram specific to the 2003 Dodge Ram 1500 4.7. Improper installation can lead to excessive wear and malfunction. Use the proper tools to re-route the belt if necessary and ensure it’s properly seated in each pulley groove.
