2002 Dodge Ram 1500 4.7 Serpentine Belt Routing Diagram

The serpentine belt in your 2002 Dodge Ram 1500 4.7 plays a key role in driving multiple engine components such as the alternator, power steering pump, and air conditioning compressor. Ensuring that the belt is correctly installed and in good condition is vital for maintaining the vehicle’s performance.

If you’re planning to replace or inspect the serpentine belt, start by referring to the specific diagram for the 2002 Ram 1500 4.7. This diagram outlines the precise routing and tensioning of the belt. Knowing the correct belt configuration prevents damage to the engine components and ensures smoother operation.

For a successful serpentine belt replacement, follow the exact steps in the diagram. Pay close attention to the belt’s tensioning system. A loose or worn belt can cause poor engine performance and lead to costly repairs down the line. Regular inspections are necessary to spot wear and tear early, avoiding unexpected breakdowns.

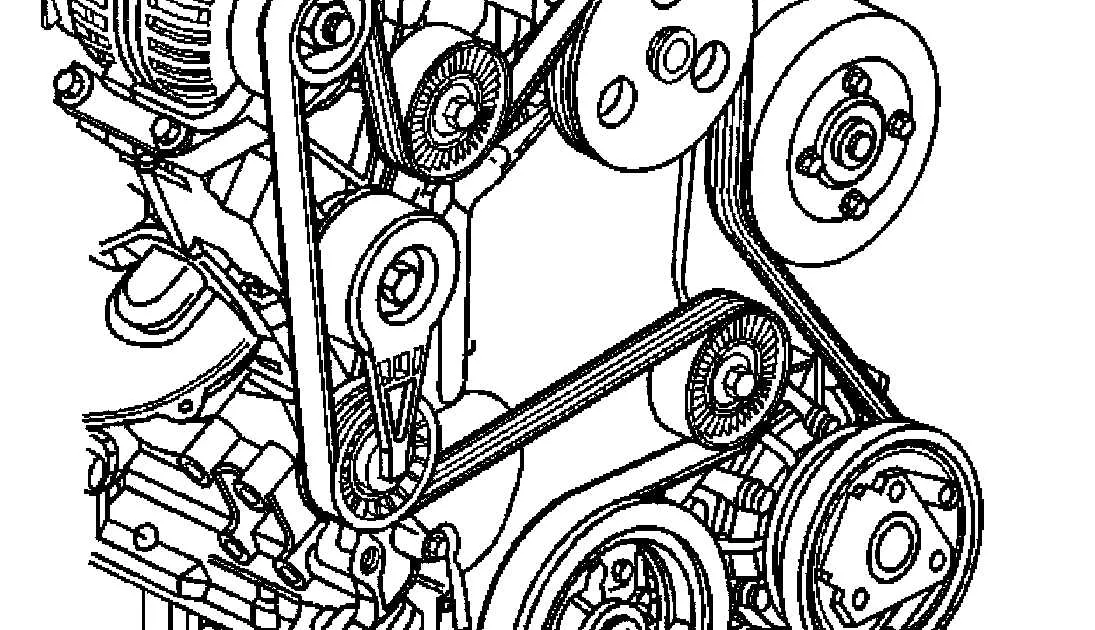

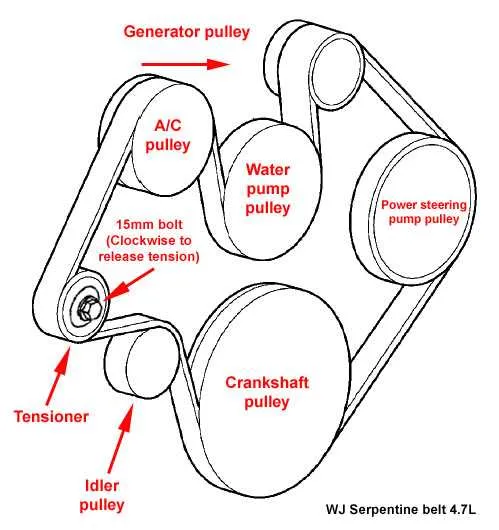

2002 Dodge Ram 1500 4.7 Serpentine Belt Diagram

The serpentine belt on the 2002 Dodge Ram 1500 4.7 ensures proper operation of various engine components, including the alternator, power steering pump, and air conditioning compressor. To maintain optimal performance, it is crucial to correctly install and route the belt as shown in the diagram.

Refer to the diagram for the exact path of the serpentine belt. The belt should follow a specific routing sequence over the pulleys to prevent slipping or premature wear. Ensure the tensioner is properly adjusted, as a loose belt can lead to poor engine performance or damage to components.

If replacing the serpentine belt, check for signs of wear such as cracks, fraying, or glazing. Replacing the belt at the correct interval will help avoid unexpected breakdowns. Use the correct belt length and size as recommended by the manufacturer for a secure fit.

For installation, start by loosening the tensioner and removing the old belt. Install the new belt according to the diagram, ensuring it fits snugly on each pulley. Once installed, check the belt tension and adjust it if necessary to avoid any slack.

How to Identify the Serpentine Belt Layout for 2002 Dodge Ram 1500 4.7

To correctly identify the serpentine belt layout for the 2002 Dodge Ram 1500 4.7, start by locating the belt diagram. This diagram is typically found on the fan shroud or radiator support, near the engine bay. It visually represents the exact path the serpentine belt follows around various pulleys.

Ensure that the diagram you refer to matches your vehicle’s specific engine type and configuration. There might be slight variations depending on whether your model has air conditioning or specific accessories, so it’s important to confirm the details. You can also consult the owner’s manual for this diagram or access online resources for further guidance.

For visual clarity, compare the diagram with the actual pulley system under your hood. Verify that the belt’s routing aligns with the positions of the alternator, power steering pump, water pump, and other components. Pay attention to the direction of the belt on each pulley to avoid installation errors.

If the diagram is missing or damaged, consider using a serpentine belt tool to manually trace the correct belt path, or consult a professional mechanic for accurate belt routing advice.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2002 Dodge Ram 1500 4.7

To replace the serpentine belt on a 2002 Dodge Ram 1500 4.7, follow these steps carefully:

1. Gather Tools and Parts
Before starting, ensure you have the correct replacement serpentine belt for the 4.7 engine and the necessary tools: a 15mm socket wrench, a serpentine belt tool, and safety gloves.

2. Disconnect the Battery
Disconnect the negative terminal of the battery to avoid any electrical accidents while working under the hood.

3. Locate the Serpentine Belt
The serpentine belt on the 2002 Dodge Ram 1500 4.7 is located at the front of the engine. It loops around various pulleys connected to components like the alternator, power steering pump, and air conditioning compressor.

4. Release Tension from the Belt
Use the serpentine belt tool or a wrench to relieve the tension on the belt by rotating the tensioner pulley counterclockwise. This will loosen the belt, allowing you to remove it from the pulleys.

5. Remove the Old Belt
Once the tension is released, carefully slip the serpentine belt off the pulleys and remove it from the engine.

6. Inspect the Pulley System
Before installing the new belt, inspect all pulleys for wear or damage. Ensure that the tensioner pulley moves smoothly and that none of the pulleys are misaligned.

7. Install the New Serpentine Belt
Lay the new serpentine belt over the pulleys according to the diagram specific to the 2002 Dodge Ram 1500 4.7. Follow the routing carefully to ensure the belt runs correctly.

8. Apply Tension to the Belt
Using the serpentine belt tool or wrench, rotate the tensioner pulley clockwise to apply tension to the belt. Ensure the belt is tight but not overly stretched.

9. Double-Check the Routing
Before fully tightening everything, check that the belt is properly aligned with the pulleys and is not twisted or slack.

10. Reconnect the Battery
Reconnect the negative terminal of the battery and ensure the electrical system is back to normal.

11. Test the New Belt
Start the engine and visually confirm the belt runs smoothly without any unusual noises or misalignments. If everything appears to be functioning correctly, you’ve successfully replaced the serpentine belt.

Common Issues with the Serpentine Belt on 2002 Dodge Ram 1500 4.7 and How to Address Them

Worn or cracked serpentine belts often result in poor performance or failure of key engine components, such as the alternator, power steering pump, and air conditioning compressor. If you notice any of the following issues with your 2002 Dodge Ram 1500 4.7’s serpentine belt, prompt action is needed:

• Visible Cracks or Fraying: Over time, the serpentine belt may develop cracks or fray due to wear and exposure to heat. This compromises the belt’s integrity, leading to slipping or complete failure. Inspect the belt regularly and replace it if visible damage is present.
• Squealing or Chirping Sounds: A squealing sound when the engine is running often indicates that the belt is slipping. This can happen when the belt becomes loose or misaligned. Tighten the tensioner or adjust the alignment to prevent further slipping and wear.
• Overheating Engine: If the serpentine belt slips or breaks, components like the water pump or alternator stop working, which can cause the engine to overheat. To fix this, replace the belt promptly and ensure all related components are functioning properly.
• Power Loss: A slipping belt can reduce the performance of critical engine components, such as the power steering pump, leading to difficulty steering. If this happens, inspect the belt for tension issues or damage and replace it as needed.
• Burning Rubber Smell: A strong burning rubber odor often indicates excessive friction caused by a slipping or improperly aligned serpentine belt. If this occurs, stop the engine immediately and check the belt for any signs of misalignment or wear.

To address these issues, regularly inspect the serpentine belt for signs of damage or wear. If any of these symptoms appear, replace the belt with a new one and check the belt tensioner for proper operation. Ensuring correct alignment and tension can extend the life of the new belt and improve engine efficiency.
