05 Dodge Ram 1500 Serpentine Belt Routing Diagram and Maintenance Guide
For a smooth engine performance in your 2005 Dodge Ram 1500, having the correct belt diagram is key. It’s essential to identify the correct routing for the serpentine belt and accessories. A clear belt diagram ensures the belt operates without slipping or causing damage to components like the alternator, water pump, and power steering pump.
Start by locating the tensioner pulley, which is responsible for maintaining the correct belt tension. It’s crucial to inspect the tensioner regularly and ensure it moves freely. A worn or stuck tensioner can cause belt misalignment or even lead to belt failure.
The diagram shows the exact routing path, which may vary depending on whether your truck has air conditioning or additional accessories. Double-check the belt size and check for any wear or cracks. Replacing a worn-out belt early on will save you from unexpected breakdowns on the road.
Ensure the pulleys are aligned and in good condition to avoid unnecessary friction. Regularly check for oil or coolant leaks, as these can degrade the belt and affect its lifespan. Following the proper diagram will extend the service life of both your engine components and the belt itself.
05 Dodge Ram 1500 Belt Diagram
For the 2005 Dodge Ram 1500, the serpentine belt routing is straightforward but crucial for the proper functioning of your engine’s accessories. The belt drives components like the alternator, power steering pump, air conditioning compressor, and water pump. The correct routing is essential to prevent wear and ensure smooth operation.
The serpentine belt system in the 2005 Dodge Ram 1500 uses an automatic tensioner to maintain proper belt tension. The belt follows a specific path, looping around the crankshaft pulley, water pump, alternator, power steering pump, and A/C compressor. Make sure the belt is routed in the correct order to avoid slipping or misalignment.
Check the tension regularly. If the belt is loose or damaged, it can cause engine overheating, electrical issues, or power steering failure. If your belt shows signs of wear, like fraying or cracking, it’s time to replace it. Always replace the belt with the proper size and type recommended by the manufacturer to maintain optimal performance.
To replace the serpentine belt, use a socket wrench to rotate the tensioner and relieve tension on the belt. Then, carefully remove the old belt and install the new one by following the diagram for your specific engine configuration. Double-check the belt is routed properly and that it’s snug but not too tight.
How to Read and Interpret the 05 Dodge Ram 1500 Belt Diagram

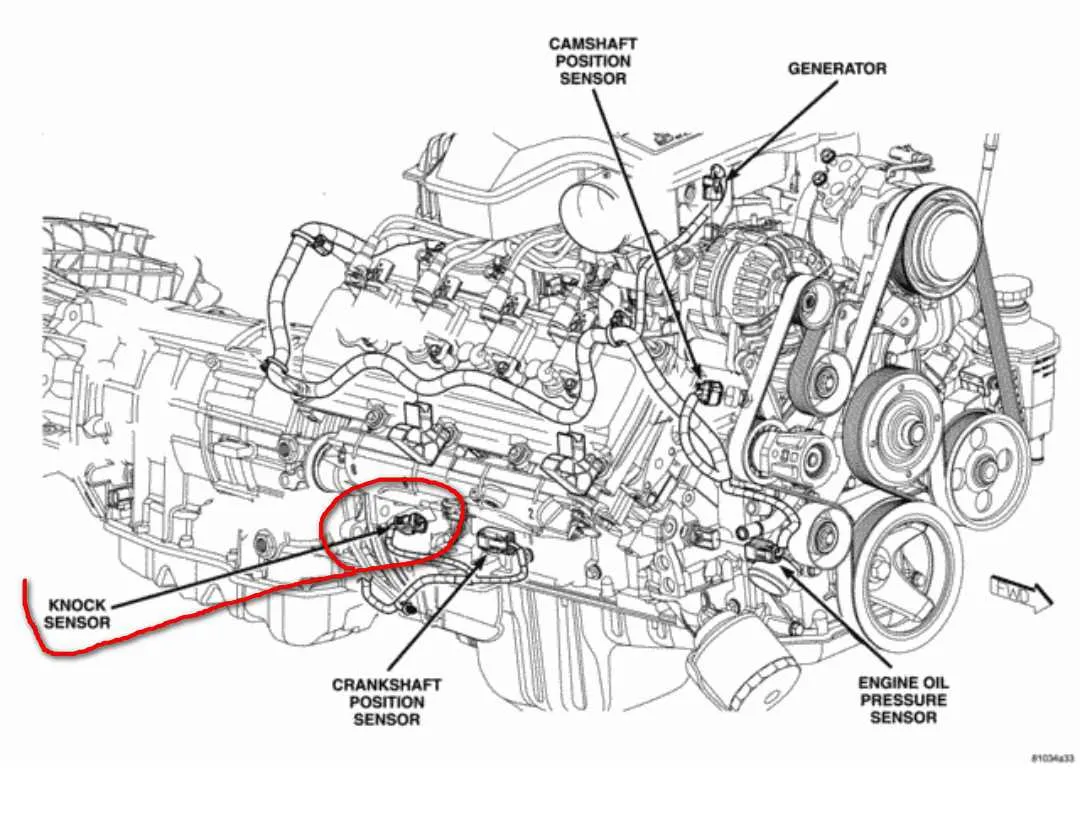

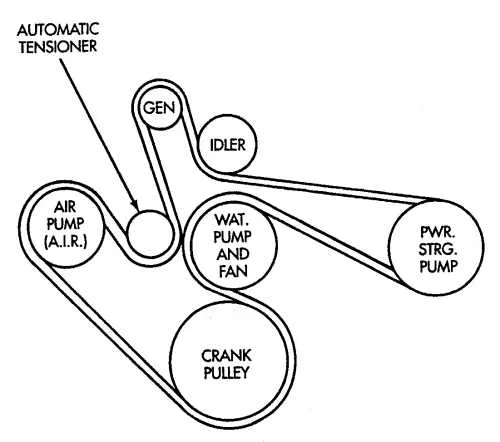

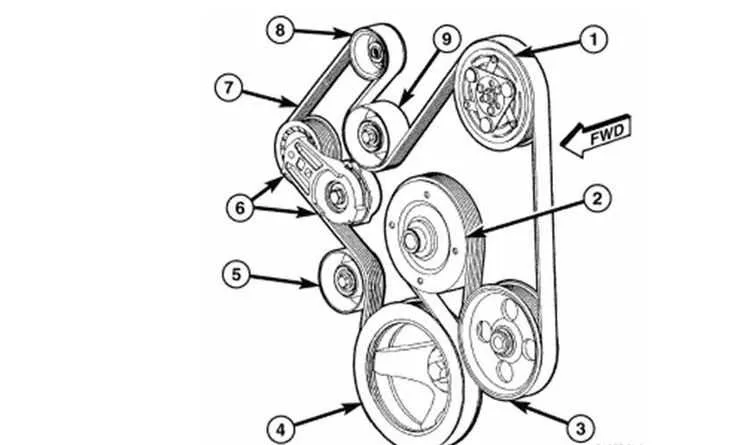

To decode the 05 Dodge Ram 1500 belt diagram, focus on the direction of the belt’s travel. Look for arrows indicating how the belt wraps around various pulleys and components. The serpentine belt typically runs around the crankshaft pulley, alternator, power steering pump, air conditioning compressor, and the idler pulley. The diagram usually provides clear marks for each part, making it easier to follow the path the belt takes.
Begin with the largest component, which is often the crankshaft pulley. Follow the belt’s path from here, noting how it loops around each subsequent pulley. Identify components such as the tensioner pulley, which helps maintain the correct belt tension. In most diagrams, this pulley will have a spring-loaded mechanism that allows it to pivot, adjusting as needed. The correct belt tension is critical for the proper functioning of all connected accessories, so make sure the diagram clearly shows this adjustment system.
Once you understand the direction and path, check the diagram for any specific details about the belt’s routing. Some diagrams will highlight specific pulleys, like the air conditioner or alternator, to indicate their position and relationship to the others. These labels often provide valuable hints for troubleshooting if the belt starts to wear or slip.
If your belt diagram includes a list of part numbers or belt specifications, refer to this information for accuracy when replacing the belt. The length and width of the belt can vary depending on your truck’s configuration, so cross-reference the diagram with the truck’s manual to ensure the proper fitment.
Step-by-Step Guide to Replacing the Serpentine Belt on a 05 Dodge Ram 1500
To replace the serpentine belt on your 2005 Dodge Ram 1500, follow these steps carefully:
- Gather the necessary tools:
- New serpentine belt
- Socket wrench set
- Breaker bar (optional)
- Car jack and jack stands
- Lift the vehicle: Secure the truck on jack stands, ensuring it’s level. This gives you enough space to work underneath if necessary.
- Locate the serpentine belt tensioner: The tensioner is usually near the bottom or side of the engine. It’s a pulley that keeps the belt tight.
- Release tension: Use a socket wrench to rotate the tensioner and relieve tension on the serpentine belt. If you have trouble, a breaker bar can help you apply more force.
- Remove the old belt: Once the tension is released, slide the belt off the pulleys. Pay attention to how the belt routes over each pulley for reinstallation.
- Inspect pulleys and components: Check the pulleys for wear, such as grooves or cracks, and make sure the tensioner moves freely.
- Install the new belt: Route the new serpentine belt according to the belt diagram located on the engine bay. Ensure it’s properly seated on all pulleys.
- Reapply tension: Use the socket wrench to rotate the tensioner and secure the belt in place.
- Double-check alignment: Verify the belt is properly aligned and fully seated on all pulleys before lowering the truck.
- Lower the vehicle: Carefully remove the jack stands and lower the vehicle back to the ground.
- Test the engine: Start the engine and listen for any unusual noises. Ensure the belt is running smoothly without slipping.
By following these steps, you’ll have your serpentine belt replaced and your 2005 Dodge Ram 1500 back to its smooth-running state in no time.
Common Issues with the Serpentine Belt System in the 05 Dodge Ram 1500
The serpentine belt in the 2005 Dodge Ram 1500 often experiences wear and tear that can lead to several common issues. One of the most frequent problems is belt slippage, caused by a worn-out or loose belt. When this happens, the belt can’t maintain proper tension, affecting performance. You might notice squealing or chirping sounds coming from the engine compartment as a result.
Another issue is belt fraying or cracking. This occurs due to constant exposure to heat and friction. It’s important to inspect the belt regularly for signs of damage, as a compromised belt can snap while driving, leading to a sudden loss of power steering, AC, and alternator function.
Improper alignment of the belt pulleys can also cause issues. If the pulleys aren’t in sync, the belt may wear unevenly or slip off completely. In some cases, a pulley might become misaligned due to a failing component, such as the tensioner or idler pulley.
A faulty tensioner is another culprit. If the tensioner fails to maintain the right tension, it can cause the serpentine belt to become loose or too tight. A loose belt will affect performance, while a tight one could prematurely wear out the belt and associated components.
Regular inspection and timely replacement of the serpentine belt and associated components, like pulleys and tensioners, will help avoid these issues. Look for signs of wear during routine maintenance and replace any damaged parts as soon as possible to prevent further damage.
