04 Dodge Ram 1500 Serpentine Belt Routing Diagram with Pulley Labels
If you’re working on a 2004 Dodge Ram 1500 and need to replace or inspect the serpentine belt, the first step is understanding its layout. A clear diagram of the belt routing will save you time and frustration. This diagram helps you correctly position the belt around the various pulleys and components of the engine, ensuring everything runs smoothly. Without it, improper installation could lead to belt wear, poor engine performance, or even damage to other engine parts.
The 04 Dodge Ram 1500 typically uses a serpentine belt that powers several key components, including the alternator, power steering pump, air conditioning compressor, and water pump. It’s important to check the belt’s condition regularly for signs of wear or cracking. If the belt starts showing wear, it’s time to replace it, as a broken belt can cause significant engine problems and leave you stranded.
Refer to the belt diagram often found under the hood or in the owner’s manual for specific instructions. The diagram shows the proper routing around each pulley. When replacing the belt, be sure to use the correct replacement part designed for your vehicle model to ensure proper tension and fit. A quick visual inspection of the belt routing can save you from costly repairs and unnecessary stress in the future.

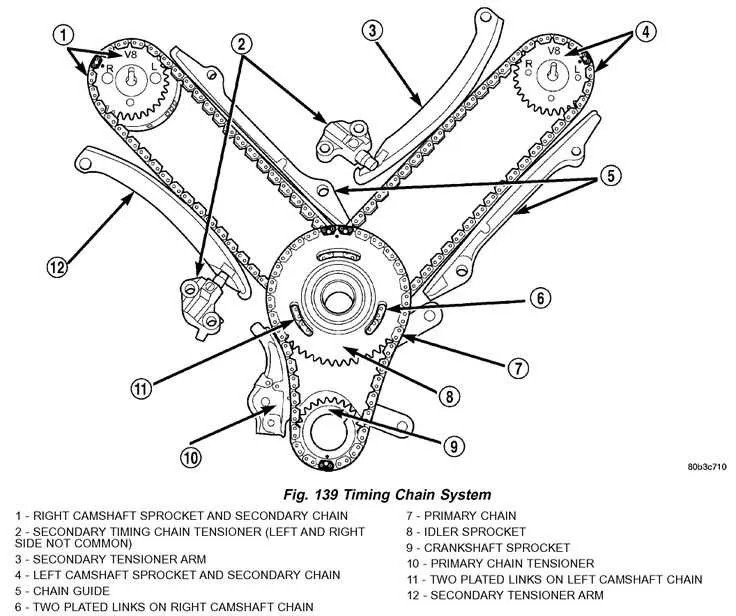

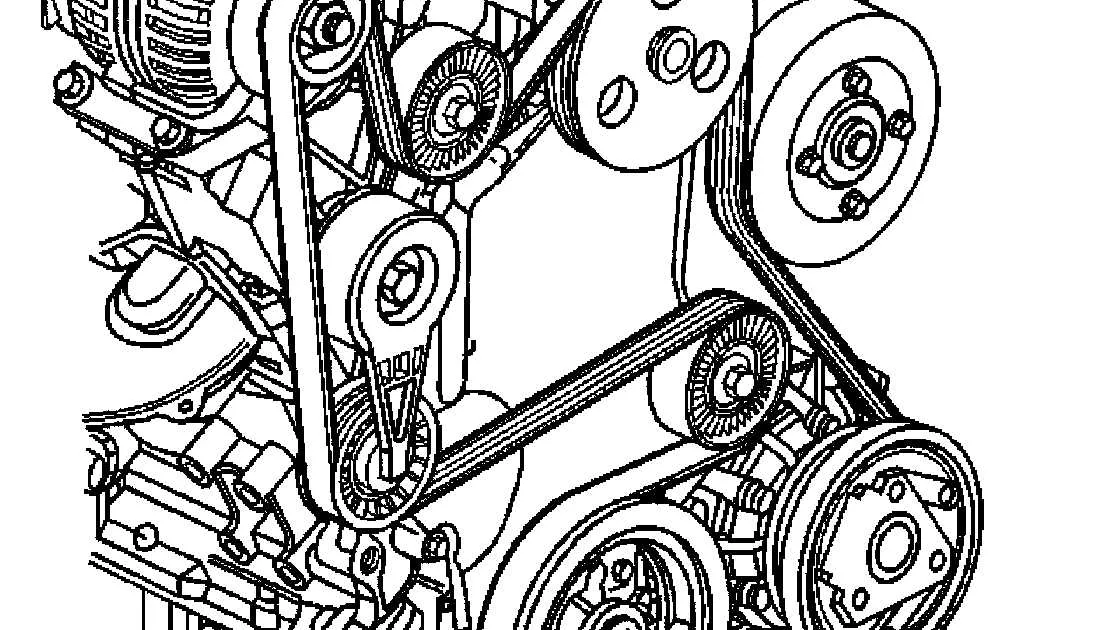

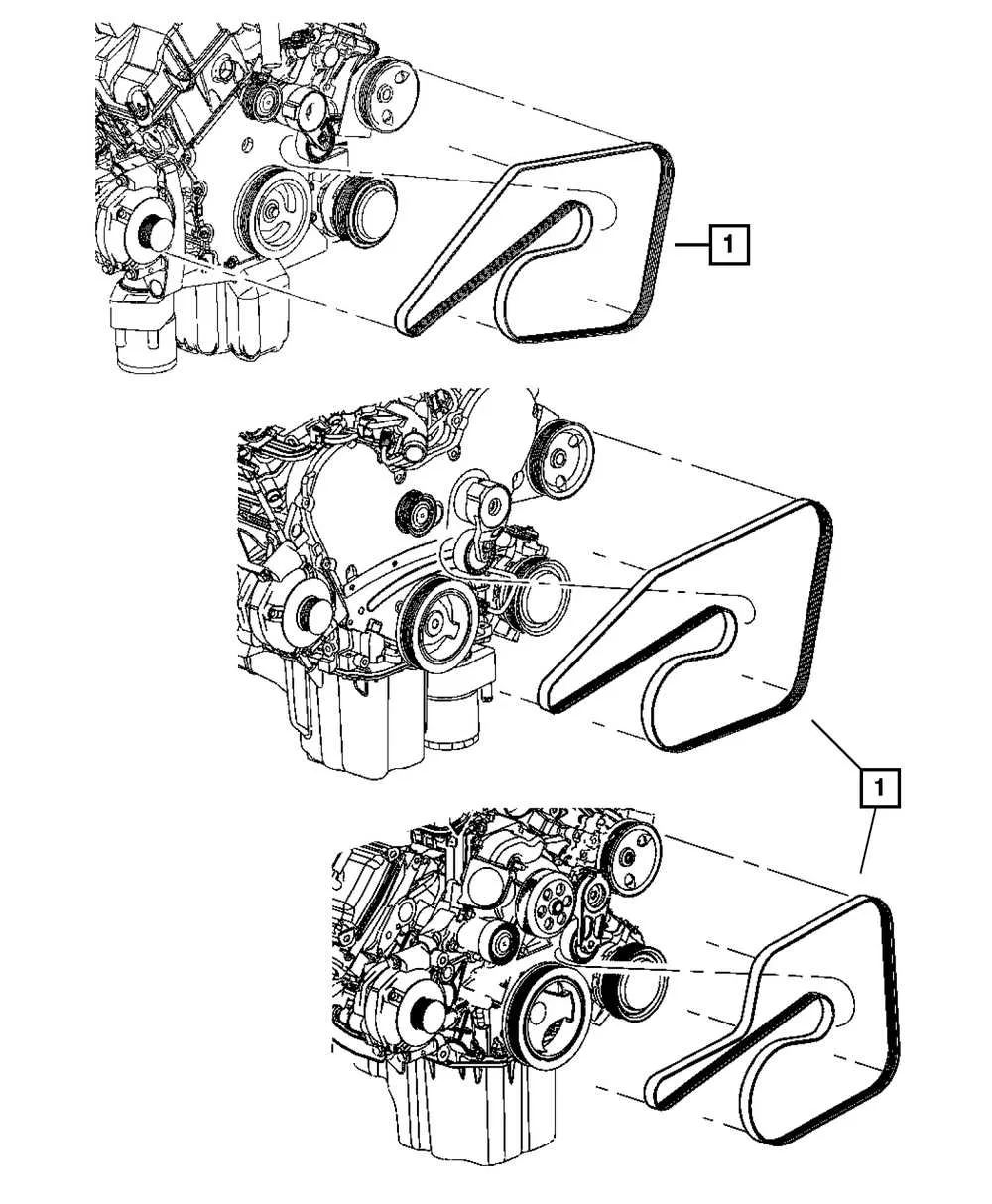

04 Dodge Ram 1500 Belt Diagram
For the 2004 Dodge Ram 1500, the serpentine belt system is designed to power various accessories, including the alternator, power steering pump, and air conditioning compressor. It’s essential to ensure the correct routing of the belt to prevent any premature wear or failure of components.
To replace or inspect the serpentine belt, locate the tensioner pulley, which is typically located near the top of the engine. Use a ratchet or belt tool to relieve tension, allowing you to remove the old belt and install the new one. Ensure that the belt follows the correct path, wrapping around the crankshaft, alternator, power steering pump, and other components as specified in the diagram.
For the 04 Ram 1500, the typical belt routing includes:
- Crankshaft pulley at the bottom.
- Alternator pulley on the left side.
- Power steering pump pulley located towards the front right.
- Air conditioning compressor pulley positioned on the right side.
If you’re unsure about the exact routing, check the diagram label usually found near the radiator or on the engine bay. This can serve as a quick reference to ensure proper alignment and belt tension.
Replacing the serpentine belt is a straightforward process, but it’s important to check for wear signs like cracks or fraying every 30,000 miles or so. Regular maintenance of the belt system helps maintain smooth engine operation and reduces the risk of a belt failure while driving.
How to Identify the Correct Serpentine Belt Path for 04 Dodge Ram 1500
To find the correct serpentine belt path for your 04 Dodge Ram 1500, start by locating the belt routing diagram. This diagram is usually found on a sticker near the front of the engine bay, often on the radiator support or the underside of the hood. If the diagram is missing or hard to read, you can also refer to the owner’s manual or search online for a detailed belt routing guide specific to your truck’s engine model.
Next, pay attention to the arrangement of pulleys and tensioners in your engine. The serpentine belt must loop around the crankshaft pulley, the alternator, the power steering pump, and possibly other accessories, depending on the configuration of your truck. The tensioner pulley, which keeps the belt taut, is key in determining the correct belt path, so ensure the belt is routed around it properly.
Double-check that the belt goes around the pulleys in a consistent direction–clockwise or counterclockwise–depending on the placement of each component. A common mistake is missing a pulley or routing the belt in the wrong direction, which can cause the engine to malfunction or lead to damage.
If you need help visualizing the correct path, consider using an online belt diagram generator, where you input the vehicle year, make, and model, and receive a custom diagram. Be sure to confirm the engine type, as a 4.7L engine may have a slightly different configuration than the 5.7L or 3.7L engine.
Once the belt is installed, manually rotate it on each pulley to check for smooth movement. A belt that’s too tight or too loose will not perform well, so make sure the tensioner holds it in place without excess slack.
Step-by-Step Guide to Replacing the Serpentine Belt on Your 04 Dodge Ram 1500
To replace the serpentine belt on your 2004 Dodge Ram 1500, follow these straightforward steps. Make sure you have a replacement belt and the necessary tools: a wrench, socket set, and a belt tensioner tool or breaker bar.
- Locate the Serpentine Belt
The serpentine belt is located at the front of the engine, wrapping around various pulleys. It powers the alternator, power steering, air conditioning, and more. Check the belt routing diagram, often found on the radiator support or inside the engine bay, to understand how the belt is positioned. - Release the Tension
Use a socket wrench to move the belt tensioner and release the tension on the belt. You may need a breaker bar or belt tensioner tool for better leverage, depending on your truck’s configuration. Move the tensioner counterclockwise to loosen the belt. - Remove the Old Belt
Once the tension is released, slide the belt off the pulleys, starting with the most accessible one. If you’re replacing a worn-out belt, check for any visible cracks or fraying before discarding it. - Install the New Belt
Position the new serpentine belt on the pulleys, following the diagram for correct routing. Start at the top or the most visible pulley and work your way around. Ensure the belt sits properly in the grooves of each pulley and is aligned correctly. - Reapply Tension
Use the wrench to rotate the belt tensioner back into place and allow it to tighten the new belt. Make sure the belt feels taut but not overly tight. The tensioner should return to its original position once the belt is secure. - Double-Check the Routing
Before starting the engine, visually inspect the belt’s routing once more to ensure everything is in the correct position. A misrouted belt can cause damage to components or lead to belt failure. - Start the Engine
Start the truck and watch the belt in motion. If you notice any unusual noises or the belt slipping, stop immediately and recheck the installation.
Replacing the serpentine belt on your Dodge Ram 1500 doesn’t take long but ensures your engine accessories run smoothly. A correctly installed belt keeps everything working as it should and avoids unexpected failures on the road.
Troubleshooting Common Belt Issues in 04 Dodge Ram 1500: What You Need to Know
If you notice unusual noises or a drop in engine performance, your serpentine belt might be the culprit. Start by checking for visible wear like cracks, fraying, or glazing. A worn or damaged belt won’t properly drive the alternator, air conditioning compressor, power steering pump, or other critical components.
Listen for squealing sounds when starting the engine or accelerating. These noises often point to a loose or worn belt. A simple tension adjustment can sometimes fix this. If the belt is cracked or has missing sections, replace it immediately, as it can snap and leave you stranded.
If the belt appears to be in good condition but you’re still experiencing issues, inspect the pulleys. They should spin smoothly without any wobbling or grinding noises. A misaligned or damaged pulley can cause the belt to wear unevenly, leading to premature failure.
Pay attention to any changes in vehicle performance, like the battery warning light turning on. A slipping serpentine belt can reduce the alternator’s output, leading to a loss of power to critical systems, including the battery charging. In such cases, the belt might need tightening or replacement.
To avoid further damage, replace the belt tensioner if it shows signs of wear. A faulty tensioner won’t keep the belt tight enough, and this leads to slippage. This issue often results in the alternator or other components underperforming.
Always use the proper tools to check the belt tension and alignment. Incorrect installation can cause the belt to slip or wear unevenly, leading to more frequent repairs. If unsure, consulting the vehicle’s manual for the correct tension specifications is a good move.
