Dixon ZTR Belt Diagrams and Maintenance Guide
The Dixon ZTR belt system is a critical component in ensuring your mower operates smoothly and efficiently. If you’re experiencing issues with belt alignment or wear, referring to a detailed belt diagram can help identify the root cause. The diagram clearly shows the exact routing of belts, helping you troubleshoot and replace parts correctly.
Start by inspecting the belt for any signs of wear or damage. Look for cracks, fraying, or stretching that could compromise the belt’s performance. If you notice these, replacing the belt might be necessary to prevent further mechanical problems.
Check the alignment of the belt regularly. Misalignment can lead to uneven wear and, eventually, belt failure. The Dixon ZTR belt diagram will guide you in ensuring the belt is properly routed around pulleys and tensioners.
Dixon ZTR Belt Diagrams
Understanding the layout of the belt system in Dixon ZTR mowers is crucial for proper maintenance. Refer to the diagram regularly to ensure correct installation and alignment of the belts, reducing wear and enhancing performance.
The main drive belt connects the engine to the mower deck, and its alignment must be precise. Ensure that the belt is neither too tight nor too loose, as either condition can lead to premature failure or reduced cutting efficiency. If the belt is worn or damaged, replace it promptly to avoid further complications.
Pay attention to the routing of the secondary belts. These belts transfer power to the cutting deck’s pulleys. Misalignment or improper installation can result in uneven cutting or damage to the mower deck components. Always verify the tension on these belts to ensure optimal power distribution.
Consult the manufacturer’s diagram for specifics on belt sizes and routing paths. These details are critical for maintaining the longevity of your mower. Using incorrect belts or misrouted paths can cause severe mechanical issues, requiring costly repairs.
Finally, periodically inspect the pulleys and idlers for any signs of wear or damage. Replace them when necessary to prevent further stress on the belts. This attention to detail will keep your Dixon ZTR mower running smoothly throughout its lifespan.

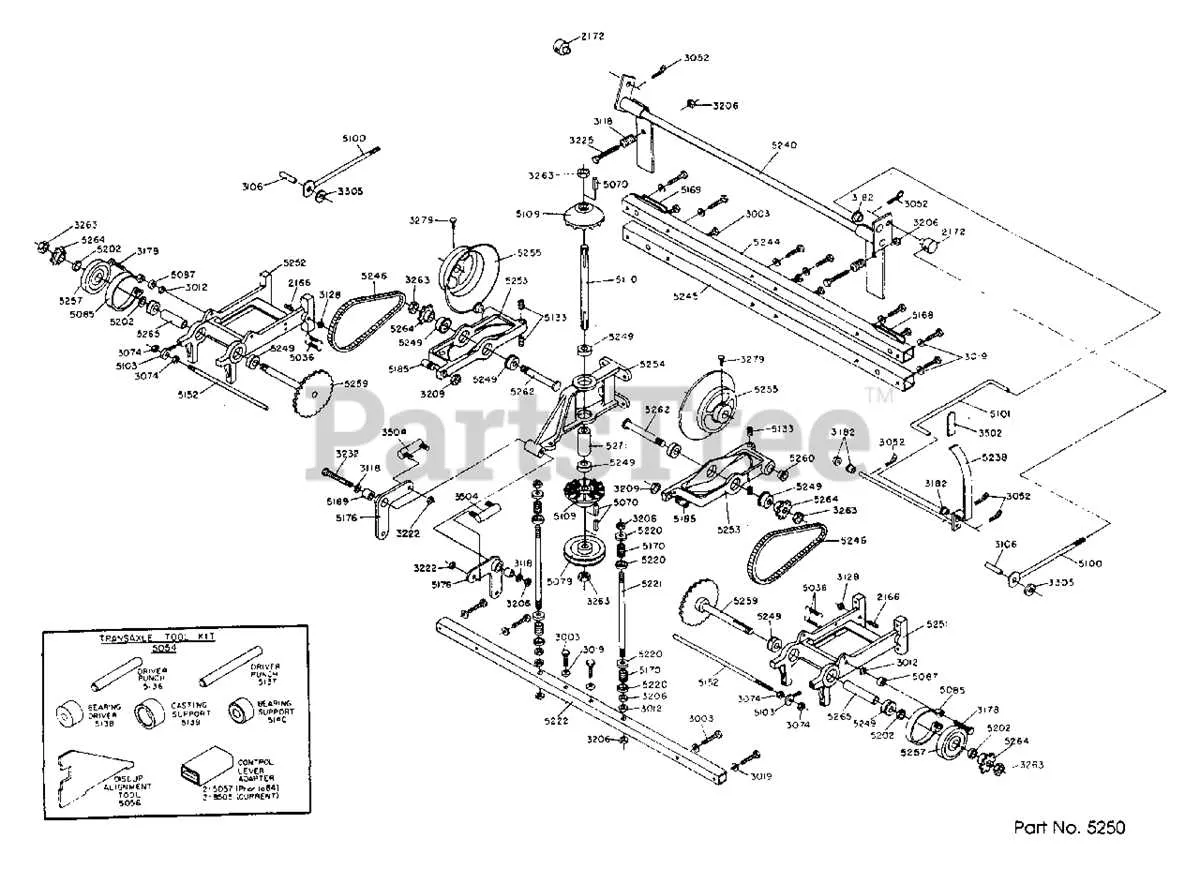

Identifying Key Components of Dixon ZTR Belt System
The Dixon ZTR belt system consists of several key components that work together to ensure smooth operation. Identifying these parts is crucial for effective troubleshooting and maintenance.

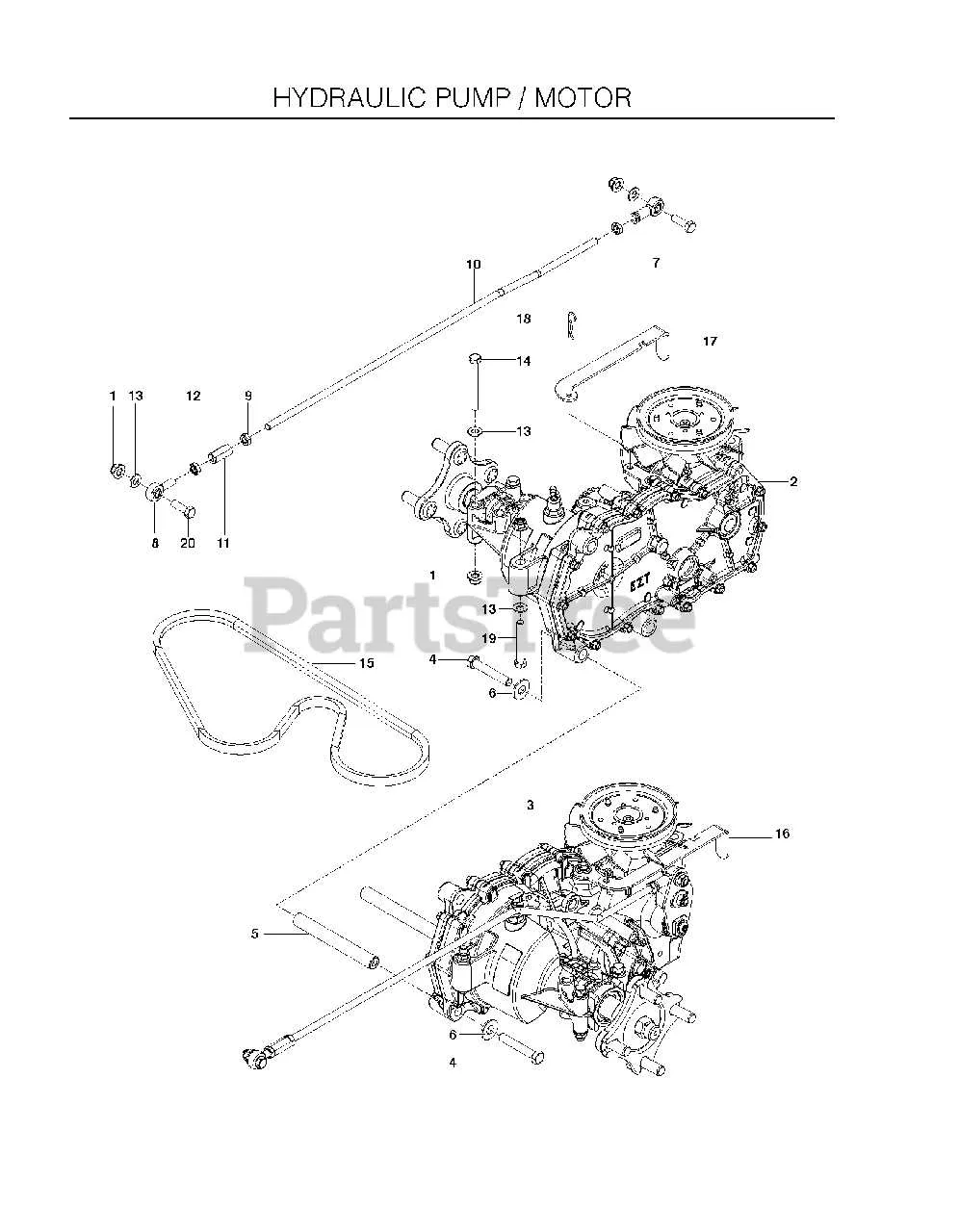

- Main Drive Belt: This belt connects the engine to the drive system, transmitting power for the mower’s movement. It must be checked regularly for signs of wear and proper tension.

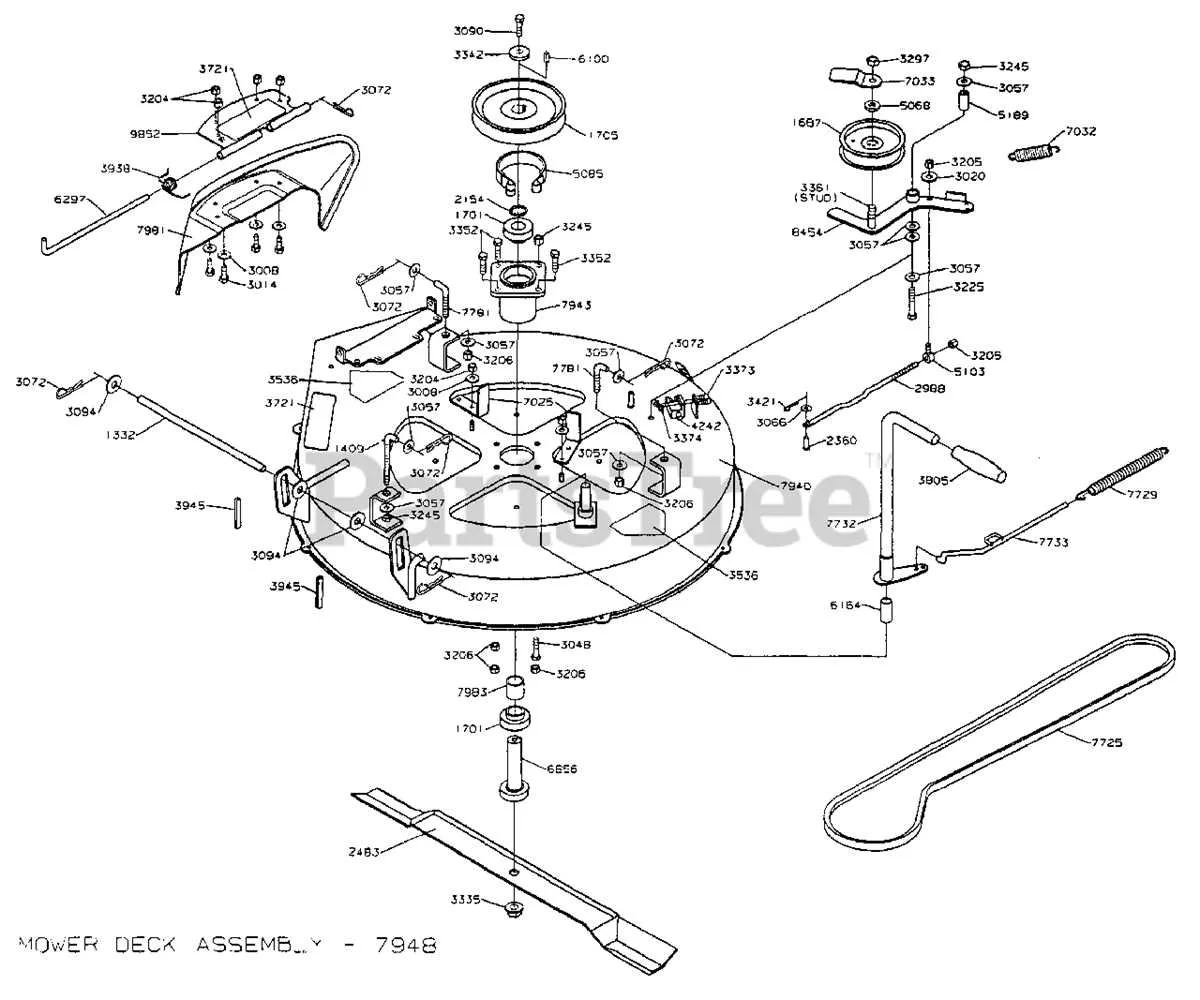

- Deck Belt: The deck belt drives the cutting blades. Over time, it can stretch or wear out, leading to reduced performance. Make sure the deck belt is properly aligned and free from debris.
- Idler Pulley: This pulley helps maintain the correct tension on the belts, preventing them from slipping. Inspect it for any damage or wear and replace it if it shows signs of excessive wear.
- Engine Pulley: The engine pulley is connected to the main drive belt and plays a critical role in transferring power from the engine. Ensure it is tightly secured and free from any obstructions.

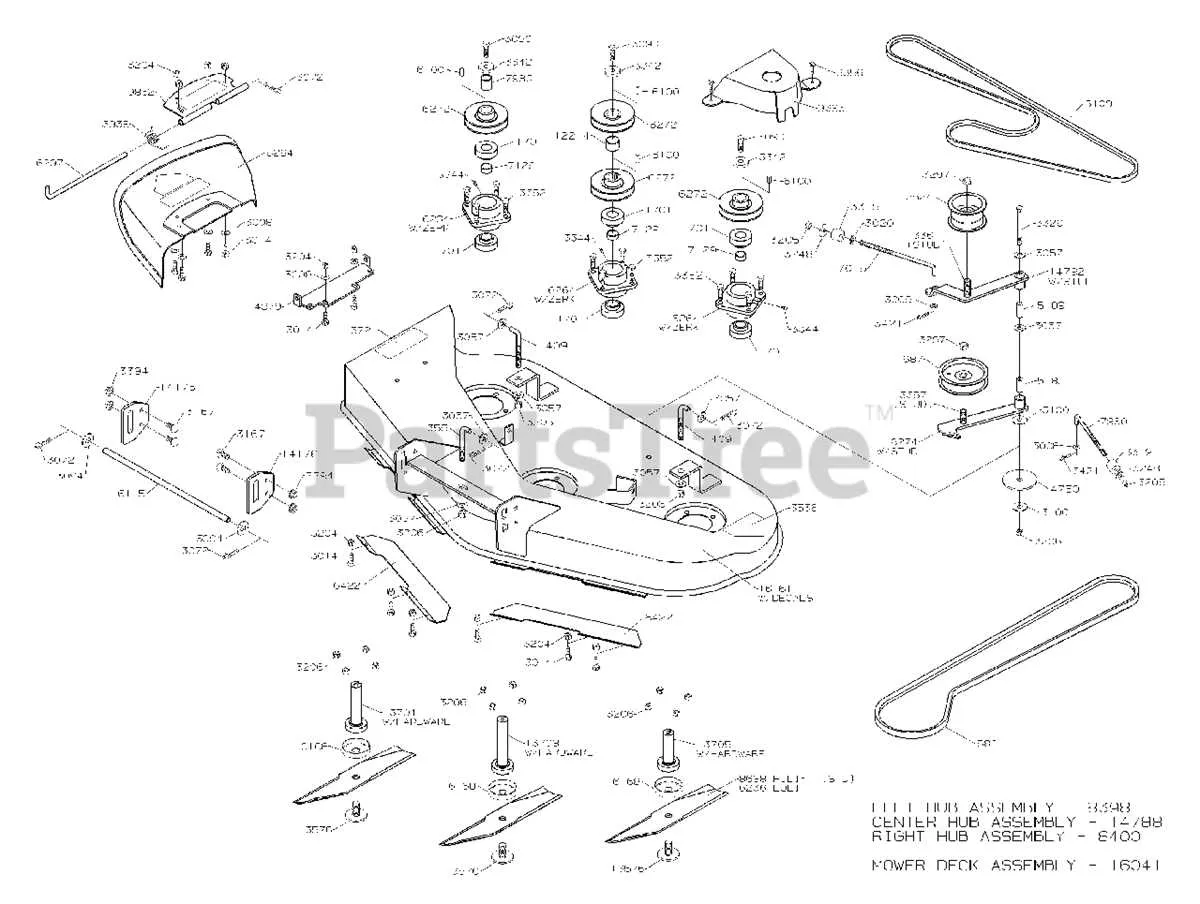

- Spindle Pulley: This pulley is responsible for driving the mower deck blades. It’s important to inspect it for wear and ensure it rotates freely.
Regular inspection of these components will help prevent unexpected breakdowns and ensure that the Dixon ZTR mower runs efficiently. Always refer to the specific model’s manual for detailed part numbers and maintenance intervals.
Step-by-Step Guide to Replacing the Belt in Dixon ZTR
1. Prepare the Necessary Tools and Parts
Ensure you have the correct replacement belt for your Dixon ZTR model. Gather a socket wrench, a ratchet, pliers, and a belt tensioning tool. Having these ready will make the process smoother.
2. Lift the Mower Deck
Use a jack or lift to raise the mower deck high enough to access the belt. Secure the deck in place to avoid accidents during the replacement process.
3. Remove the Old Belt
Locate the old belt, typically running through pulleys near the mower deck. Loosen the tension by adjusting the tensioner pulley with a wrench. Remove the belt from the pulleys carefully, noting its routing for later reference.
4. Inspect the Pulleys
Before installing the new belt, check the pulleys for any wear or damage. Clean them if necessary and replace any components that show signs of significant wear.
5. Install the New Belt
Starting from the pulley near the engine, route the new belt through all the pulleys following the path of the old belt. Ensure the belt is seated correctly in each groove of the pulleys.
6. Tension the Belt
Adjust the tensioner pulley to apply the correct tension to the belt. This will ensure it runs smoothly without slipping or becoming too tight, which could lead to premature wear.
7. Test the System
Lower the deck and start the mower to check for any unusual noises or issues with the belt operation. Run the mower at different speeds and ensure the belt stays in place and operates quietly.
8. Final Adjustments
If necessary, fine-tune the tension again, ensuring the belt runs freely without excessive slack or tightness. Tighten all bolts and screws, and you’re ready to go.
Troubleshooting Common Dixon ZTR Belt Issues
If the belt on your Dixon ZTR mower slips or breaks, inspect it immediately. A loose or worn-out belt can affect performance and may cause further damage. Start by checking the belt tension and alignment.
Check the belt tension using a tension gauge. If the tension is too loose, adjust the idler pulleys to restore the correct tension. Make sure the belt is properly aligned with all pulleys to avoid unnecessary wear.
In some cases, debris may get stuck between the belt and pulleys, causing slipping or misalignment. Clean the area thoroughly to ensure the belt moves smoothly.
If the belt shows signs of fraying or cracks, replace it. Refer to the manufacturer’s specifications for the correct replacement belt. A damaged belt will not perform properly, leading to further issues.
It’s also important to inspect the pulleys and idlers for wear. A worn pulley can cause the belt to slip or even break. If pulleys are damaged, replace them before installing a new belt.
Here’s a table summarizing common belt issues and their solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Belt Slipping | Incorrect tension, misalignment | Adjust tension, realign pulleys |
| Belt Breakage | Fraying, cracks, excessive wear | Replace with a new belt |
| Pulley Misalignment | Pulley wear or debris buildup | Clean pulleys, replace if damaged |
| Excessive Noise | Loose or misaligned belt | Adjust belt tension, realign |
By maintaining proper belt tension, ensuring alignment, and regularly checking for wear, you can prevent common belt issues and extend the lifespan of your Dixon ZTR mower.
