Dixon Ram ZTR 50 Belt Diagram and Troubleshooting Guide
To accurately maintain and repair the Dixon Ram ZTR 50, understanding the belt system is crucial. Start by reviewing the belt diagram to ensure proper installation and tensioning. This diagram provides a detailed layout of the belt routing, which is vital for ensuring the mower’s optimal performance and avoiding unnecessary wear on components.
Refer to the diagram before any belt replacement or maintenance. Ensure the drive belt is correctly aligned and positioned around the pulleys as shown in the diagram. Misalignment or improper routing can lead to slippage, overheating, and premature wear of the belt and other related parts.
When replacing the belt, check for signs of wear such as cracking or fraying. If the belt appears damaged, it’s crucial to replace it with the correct part as specified in the owner’s manual. Using a non-matching belt can cause operational issues, including reduced cutting efficiency and mechanical strain on the mower.

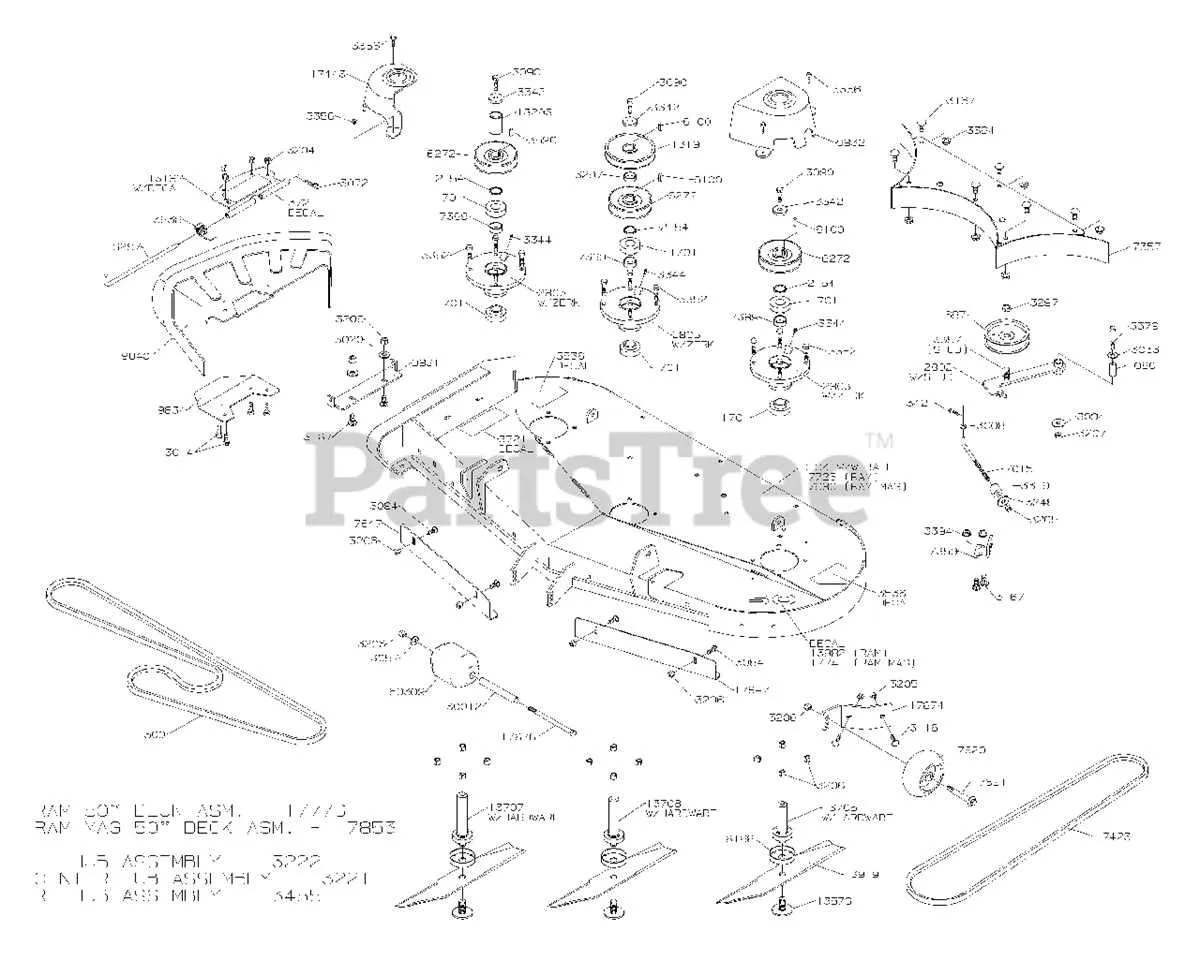

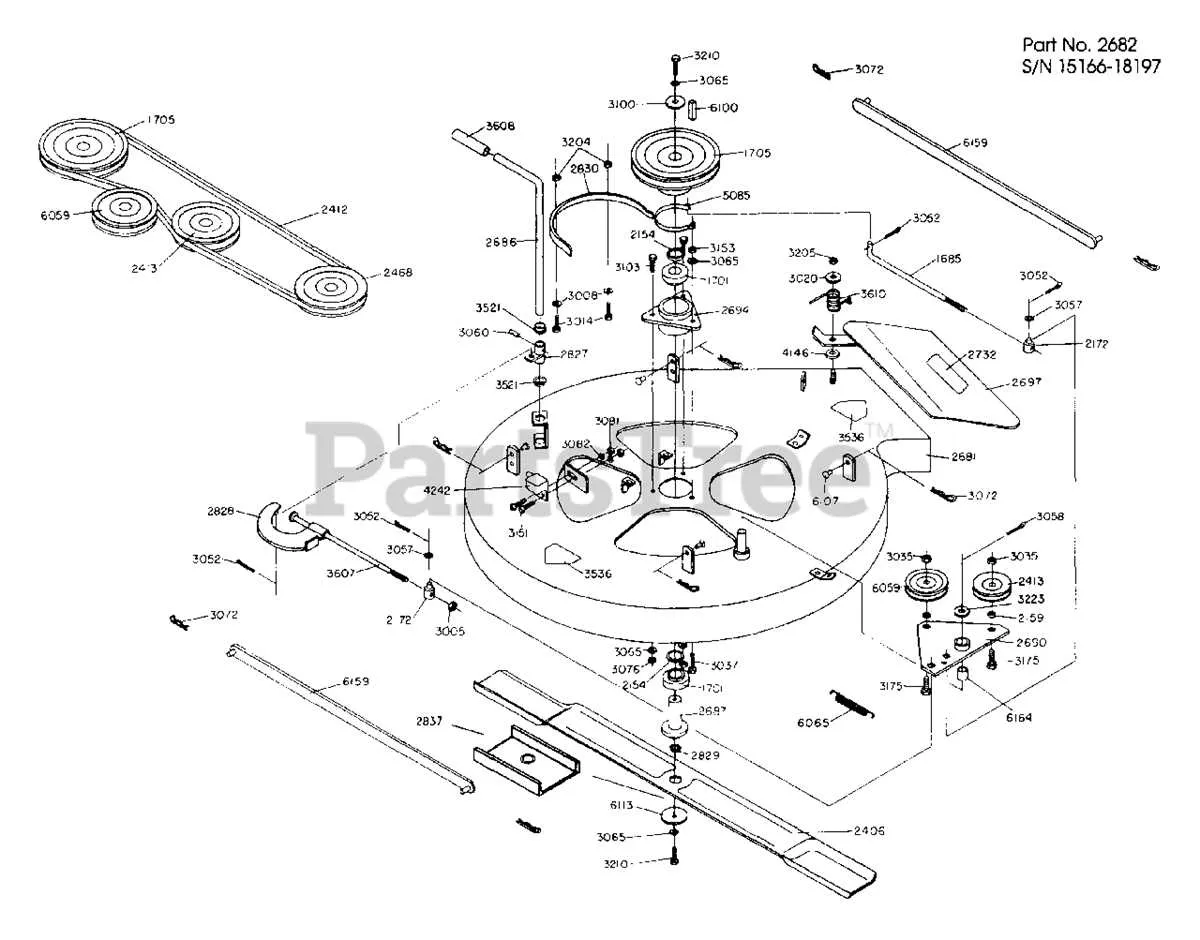

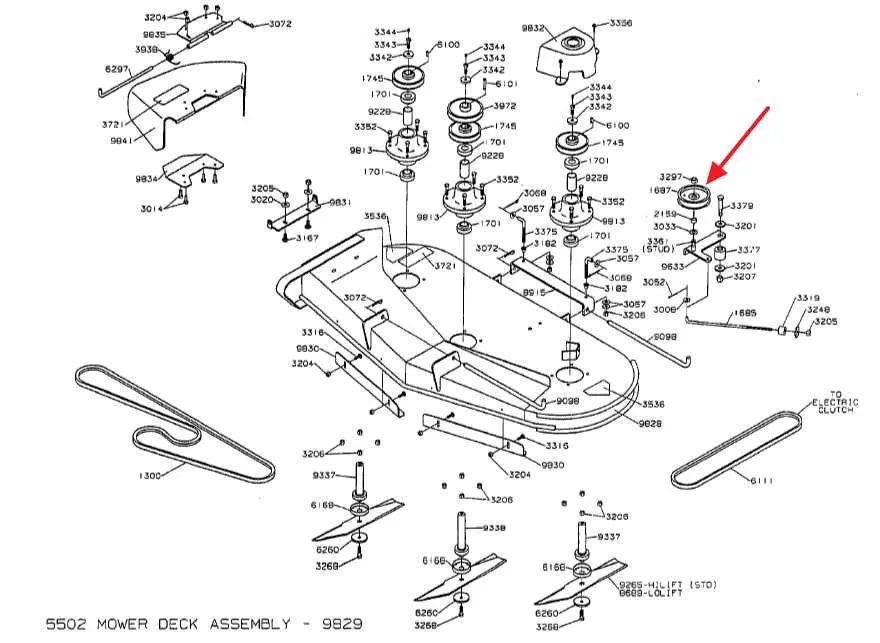

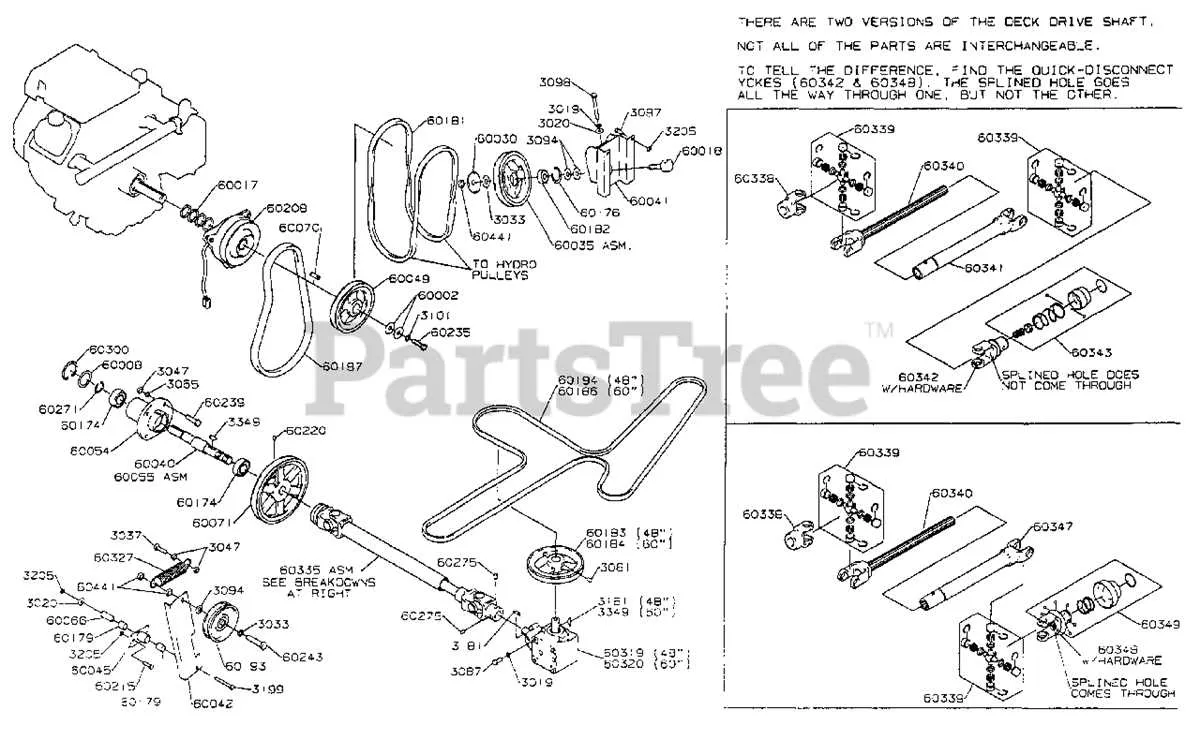

Dixon Ram ZTR 50 Belt Diagram
To correctly assemble or replace the belt on your Dixon Ram ZTR 50, follow this diagram carefully. This will ensure the proper routing of the belt, preventing damage and ensuring smooth operation of your machine. The belt is an essential part of the mower’s drive system, transmitting power from the engine to the wheels and blades.
First, identify the main components of the system: the engine pulley, the idler pulleys, the tensioner, and the drive pulleys. Start by locating the engine pulley at the front of the mower. This pulley is connected to the engine shaft, where the belt will begin its path. Next, follow the belt routing through the idler pulleys, which maintain tension and control the movement of the belt. The tensioner pulley is located along the belt path and should be adjusted to ensure the belt stays in place and operates correctly.
When replacing the belt, it is crucial to check for any signs of wear or damage on the pulleys. A worn pulley can cause the belt to slip, reducing the mower’s efficiency. Ensure the belt is properly tensioned, as a loose belt can slip off or cause the engine to overheat. Follow the diagram for the precise routing path to avoid misalignment. Once the belt is in place, double-check the tension and ensure the belt moves smoothly over all pulleys.
After installation, test the mower at low speed to ensure the belt functions as expected. If there is any unusual noise or the belt slips, adjust the tensioner pulley accordingly or check for any obstructions in the path of the belt. Proper belt maintenance is vital for the longevity of your Dixon Ram ZTR 50 mower.
Understanding the Belt Configuration of Dixon Ram ZTR 50
Check the belt routing diagram for the Dixon Ram ZTR 50 before starting any maintenance. The drive belt system is designed to deliver power to the transmission, allowing the mower to operate efficiently. If the belt is not properly routed, it can cause slipping, reduced performance, or even damage to components.
Start by identifying the path of the main drive belt. It runs from the engine’s PTO (Power Take Off) pulley to the transmission pulleys. Ensure the belt is snug but not over-tightened. A loose belt will slip and a tight belt can cause excessive wear on pulleys and bearings.
The belt should pass around the idler pulleys, which help adjust tension and keep the belt in place. If there’s any sign of wear or damage on the belt, replace it immediately to prevent further issues.
Double-check the alignment of all pulleys and ensure no obstructions block the belt’s path. The belt’s position relative to the pulleys is critical for smooth operation and efficiency. If the belt seems off-center, adjust the pulleys or replace worn-out components to restore correct alignment.
Make sure the tension springs are securely attached and providing the right amount of tension to the idler pulleys. Insufficient tension can cause the belt to lose grip, leading to power loss.
Finally, after routing the belt, spin the pulleys by hand to verify the belt’s movement. It should turn smoothly without slipping or grinding. If any resistance is felt, inspect the pulleys for debris or damage.
Step-by-Step Guide to Replacing the Belt on Dixon Ram ZTR 50
To replace the belt on the Dixon Ram ZTR 50, follow these steps to ensure smooth operation of your mower.
- Gather the necessary tools: Before starting, make sure you have the right tools. You’ll need a socket wrench, screwdrivers, and the replacement belt.
- Park on a flat surface: Ensure the mower is on a stable, flat surface to avoid any accidents while working on it.
- Disconnect the battery: For safety, disconnect the battery to avoid any electrical issues while replacing the belt.
- Lift the mower deck: Use a jack or lifting device to raise the mower deck to access the belt. Make sure it’s secure before proceeding.
- Remove the existing belt: Start by loosening the tension on the belt by adjusting the tensioner pulley. Once it’s loose, carefully remove the belt from the pulleys. Pay attention to the belt’s routing for reinstallation.
- Install the new belt: Position the new belt on the pulleys exactly as the old one was routed. Double-check the routing to avoid installation errors.
- Adjust the tension: Re-tighten the tensioner pulley until the belt is properly tensioned. The belt should have a slight amount of slack but shouldn’t be too loose.
- Test the belt: Turn the mower on briefly to ensure the belt is functioning correctly and there are no unusual noises. If everything runs smoothly, lower the deck back to its operating position.
- Reconnect the battery: Once you’ve confirmed the belt is functioning properly, reconnect the battery to complete the replacement process.
By following these steps, you can easily replace the belt on your Dixon Ram ZTR 50 and keep your mower in good working order.
Troubleshooting Common Belt Issues on Dixon Ram ZTR 50
Slipping Belt: If the belt on your Dixon Ram ZTR 50 slips during operation, it may be due to a worn or stretched belt. Inspect the belt for signs of wear such as cracks or fraying. Replace it if necessary. Additionally, check the tensioner for proper adjustment, as a loose tensioner can cause the belt to slip. Tighten or replace the tensioner if required.
Belt Squealing: A squealing sound when the mower is running often indicates that the belt is too tight or misaligned. Check the pulley system for any misalignment and adjust accordingly. If the belt is too tight, release some tension to prevent unnecessary strain on the components.
Belt Disengagement: If the belt keeps disengaging, inspect the idler pulleys and tensioner. A damaged or misaligned pulley can cause the belt to come off the track. Make sure the pulleys are free of debris and rotate smoothly. Replacing worn pulleys can prevent this issue from recurring.
Uneven Cutting: If the mower is cutting unevenly, it could be a result of a misaligned belt, which affects the deck engagement. Check the belt’s path and ensure that it is routed correctly according to the manufacturer’s diagram. Realign the deck if necessary and ensure the belt is properly seated in all pulleys.
Belt Sticking: In some cases, the belt may stick or seize due to dirt or debris buildup. Clean the pulleys and the belt thoroughly to remove any obstructions. A buildup of grease or oil on the belt or pulleys can also cause sticking; wipe down the components with a clean cloth to restore proper movement.
