John Deere Z355e Z335e Drive Belt Diagram and Replacement Guide

To replace or inspect the drive belt on your Z335e John Deere mower, start by understanding the layout of the belt system. The diagram is key to locating the proper routing, ensuring smooth operation and preventing unnecessary wear on the components.

The drive belt connects critical parts like the engine, transmission, and wheels. Proper tension and alignment of the belt are important for the mower’s functionality. Follow the diagram step by step to ensure the belt is routed correctly through the pulleys, avoiding damage to both the belt and surrounding parts.

If you need a visual reference, ensure the diagram clearly shows the direction and placement of the belt in relation to the drive components. This eliminates confusion and helps identify potential issues like misalignment or wear spots. After ensuring the belt is correctly placed, check the tension to avoid slippage and improve performance.

John Deere Z355e Z335e Drive Belt Diagram Guide

To replace or adjust the drive belt on your John Deere Z355e or Z335e, refer to the detailed belt routing diagram. It is key to align the belt correctly to avoid wear or damage. Begin by lifting the deck and ensuring the mower is turned off with the ignition key removed. The diagram shows the exact path the belt follows across pulleys and idlers.

The belt itself runs from the engine’s pulley, over the deck’s idler pulleys, and onto the transmission. The route needs to be smooth, with no kinks or twists that could strain the belt over time. Follow the diagram carefully to ensure you’re routing the belt in the correct direction, with proper tension at all points. Double-check the placement around each pulley and idler before reassembling the deck.

When replacing the belt, make sure it fits snugly around the pulleys without being too tight or too loose. A belt that’s too tight could put unnecessary strain on the engine or transmission, while a loose belt can slip, reducing mower performance. Use the diagram to double-check the belt’s tension after installation and make any adjustments if needed.

It’s important to use the correct replacement belt that matches the original in size and material. Over time, belts can wear or break, causing the mower to lose power or function improperly. Following the diagram ensures the belt functions as intended, providing a smooth and reliable operation for your mower.

Identifying the Z355e and Z335e Drive Belt Layout

The drive belt layout for both the John Deere Z355e and Z335e mowers is similar, with only minor variations depending on the specific model. The belt connects the engine to the transmission, powering the mower’s cutting deck. Correctly identifying the path of the belt ensures smooth operation and prevents damage to the system.

Here’s a breakdown of the layout:

• Engine Pulley: The belt begins at the engine pulley, which drives the movement of the mower. Check for any signs of wear here.
• Idler Pulley: Located between the engine and the transmission, the idler pulley keeps the belt tensioned. Make sure it’s properly aligned.
• Transmission Pulley: The drive belt loops around the transmission pulley, sending power to the wheels for movement.
• Deck Pulley: The belt also connects to the deck pulleys that rotate the blades. Ensure the path remains free of debris.

For both models, the drive belt follows a similar route. Ensure the tension is consistent and check for any fraying along the belt. Replacing a worn-out belt promptly will avoid issues with the mower’s performance.

Consult the manual to confirm the exact belt configuration for your specific mower, especially if the mower has been modified or serviced previously.

Step-by-Step Instructions for Replacing the Drive Belt

To replace the drive belt on your John Deere Z335E, follow these clear steps:

1. Safety First – Before starting, disconnect the battery to avoid any electrical mishaps. Wear gloves and safety glasses throughout the process to protect yourself from debris and sharp edges.

2. Lift the Mower – Use a jack or a lift to raise the mower to a safe working height. Secure the mower with jack stands to ensure stability.

3. Remove the Mower Deck – Begin by loosening the bolts that hold the mower deck in place. Typically, these are located on each side and near the rear. Once they’re removed, slide the deck out from under the mower.

4. Locate the Old Drive Belt – Identify the old drive belt by tracing it along the pulleys and idlers. It should run from the engine pulley to the rear wheel assembly. Take note of its routing as you’ll need this for the new belt.

5. Remove the Old Belt – Release the tension on the idler pulley by loosening the bolt that holds it in place. This will give you enough slack to remove the old belt. Carefully pull it out of the pulleys.

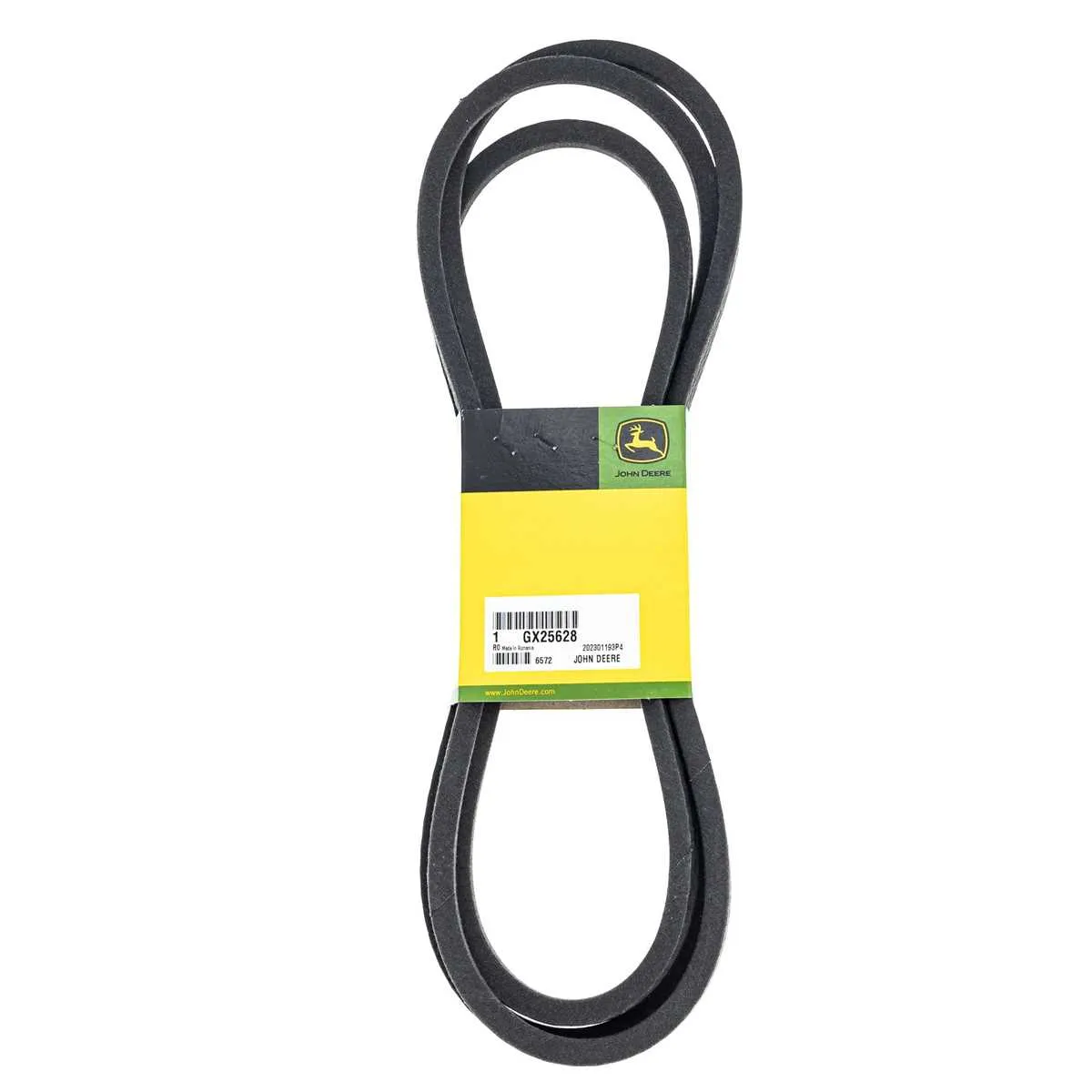

6. Install the New Drive Belt – Position the new belt on the pulleys, following the same routing as the old one. Make sure the belt sits correctly in each groove and that it runs smoothly over all pulleys.

7. Tension the Belt – Reinstall the idler pulley and tighten the bolt. Adjust the tension as necessary to ensure the belt isn’t too loose or too tight. The belt should have a small amount of give when pressed with your fingers.

8. Reattach the Mower Deck – Slide the mower deck back under the mower and reattach the bolts you previously removed. Tighten them securely to hold the deck in place.

9. Test the Mower – Reconnect the battery and start the mower. Test the belt by running the mower for a few minutes to ensure it operates smoothly without any slipping or unusual noises.

10. Final Check – After testing, double-check the belt’s tension and the deck’s attachment to ensure everything is secure. Keep an eye on the belt for any signs of wear over time.

Troubleshooting Common Drive Belt Issues on John Deere Mowers

If your John Deere mower isn’t performing as expected, the drive belt might be the culprit. One of the most common problems is belt slippage. This happens when the belt isn’t tight enough to grip the pulleys properly. Check the tension by using a tension gauge, and adjust it according to the manufacturer’s specifications. A loose belt can cause slow or uneven mower speed.

A worn or damaged belt is another frequent issue. Inspect the belt for cracks, fraying, or signs of wear. If the belt looks damaged, it’s time for a replacement. Ensure you use the correct part number to avoid fitting issues. A worn belt can slip off or break, disrupting your mower’s operation entirely.

Misalignment of the drive belt also leads to performance problems. Check the pulleys to ensure they are correctly aligned. Misalignment can cause uneven wear and premature damage to the belt. Adjust or replace any misaligned pulleys as needed.

A clogged or dirty pulley can also interfere with proper belt function. Clean all pulleys thoroughly to remove debris that could be causing friction. This will help the belt run smoothly and prevent unnecessary wear.

If you experience loud noises or vibrations, the belt may not be properly tensioned or aligned. These sounds are often a sign of slippage or misalignment. Tightening the belt or adjusting the pulleys should reduce or eliminate these noises.

Lastly, always refer to the operator’s manual for any specific guidelines on belt maintenance and adjustments. Regular checks and timely replacements will keep your mower running at its best.
