L118 John Deere Belt Diagram and Maintenance Guide
For anyone maintaining or repairing the John Deere L118, understanding the correct belt configuration is a must. The diagram provides a detailed visual guide for assembling the drive belts, ensuring that each component is properly aligned. This prevents wear and tear on the engine and drive system, enhancing both performance and longevity.
The diagram highlights the belt routing for both the mower deck and the drive system. Start by identifying the key components–pulleys, idlers, and the belt tensioner–shown in the diagram. It’s important to follow the path as indicated, as any deviation can cause improper belt tension or even damage to the system.
Ensure the belts are routed in the correct sequence to maintain proper functionality. The L118 uses a two-belt system for the mower deck and a single belt for the drive. Carefully inspect the belts for signs of wear and replace them if needed, as using old or damaged belts can lead to slipping or inefficient operation.
If you’re unsure about your belt setup, cross-check the diagram with your mower’s manual. It’s always best to consult the manual for additional maintenance tips and belt specifications to keep your John Deere L118 running smoothly.

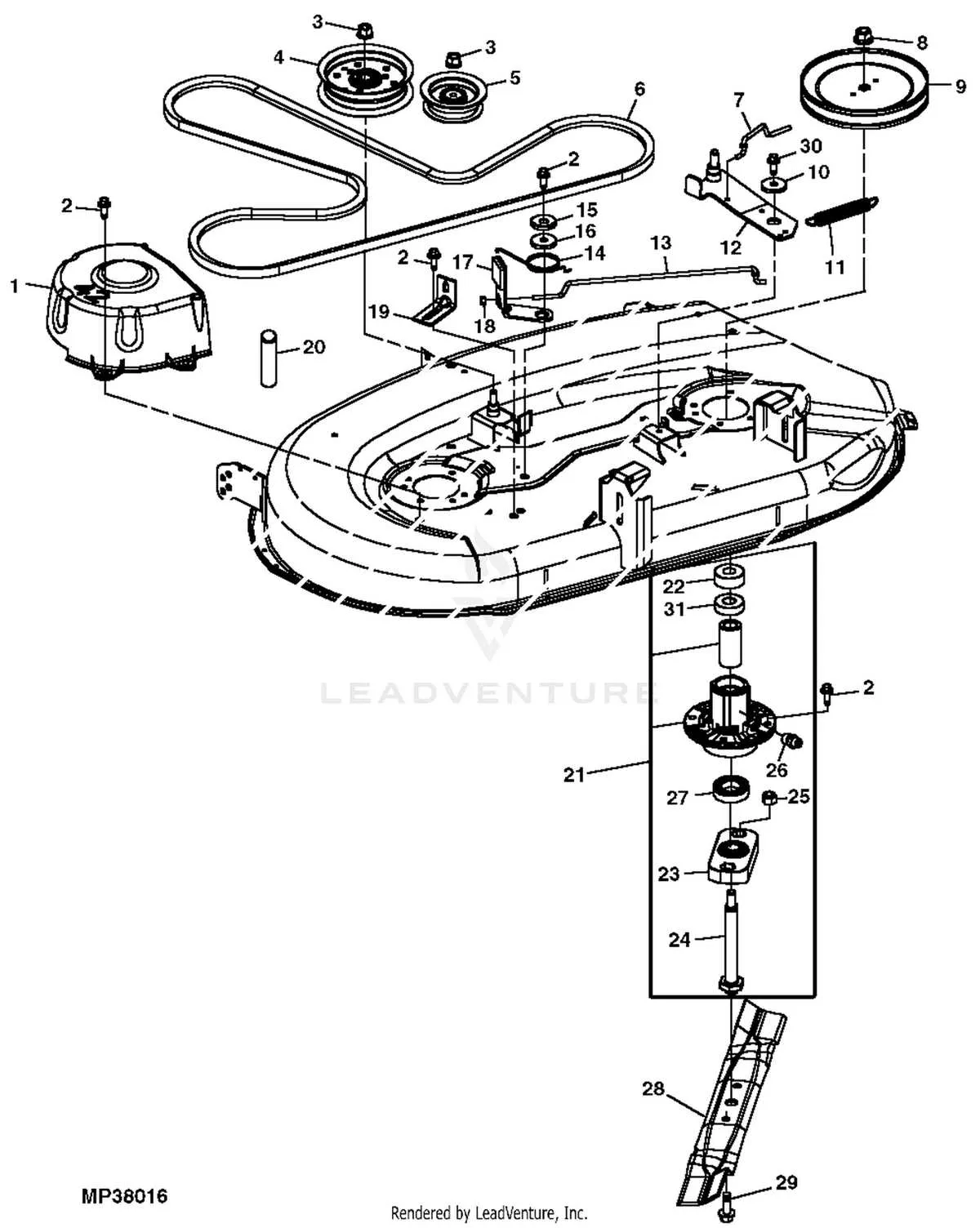

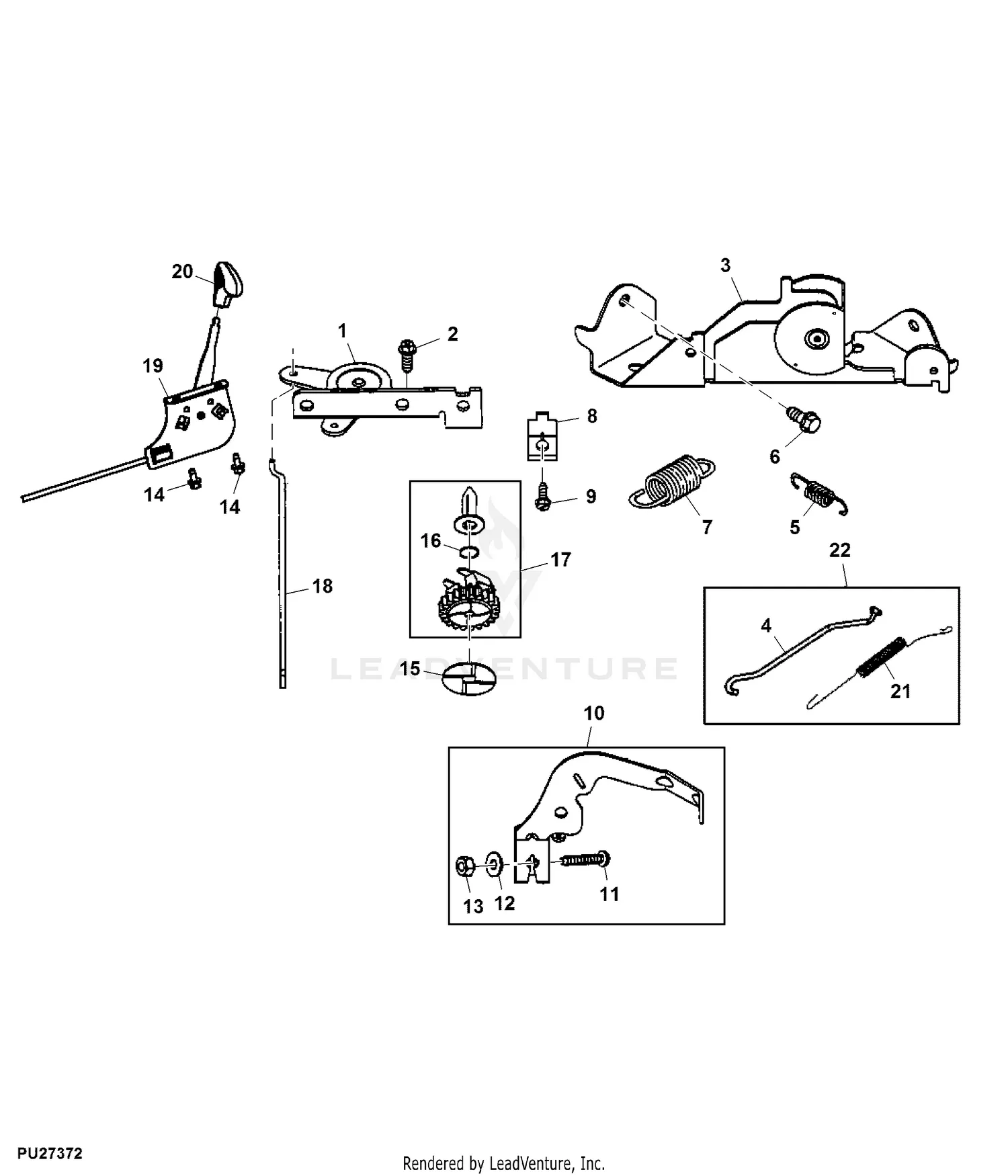

L118 John Deere Belt Diagram

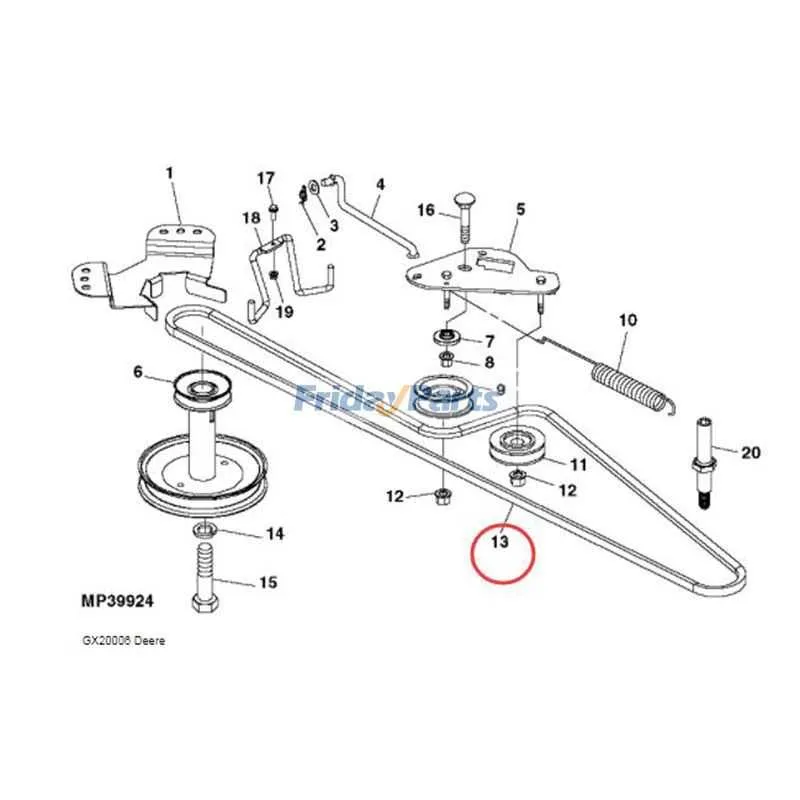

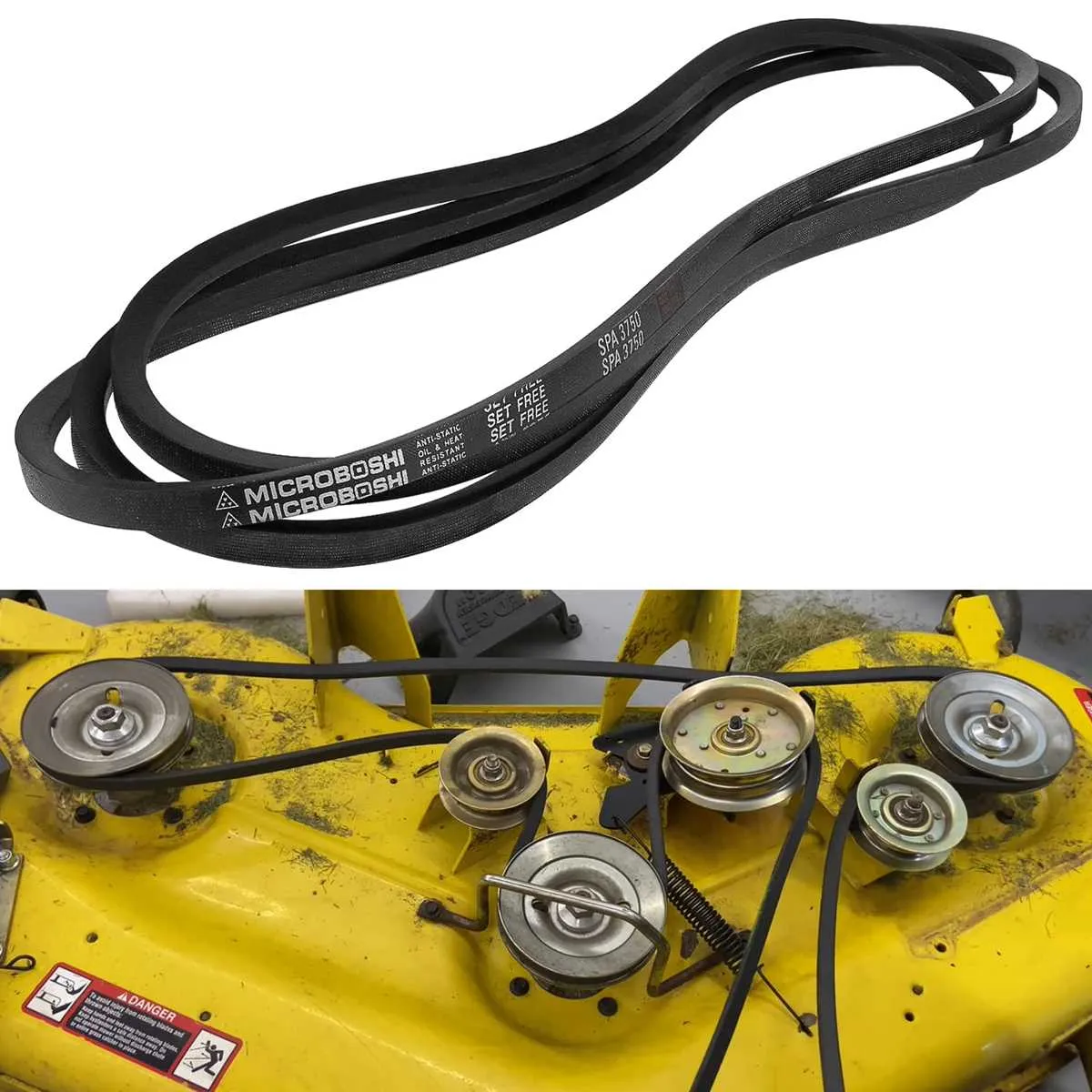

To replace or adjust the belt on your L118 John Deere, follow this diagram for clear steps. First, locate the belt around the engine pulleys, idler pulleys, and blades. The diagram shows how the belt routes through each component, ensuring the right tension and alignment for optimal performance.

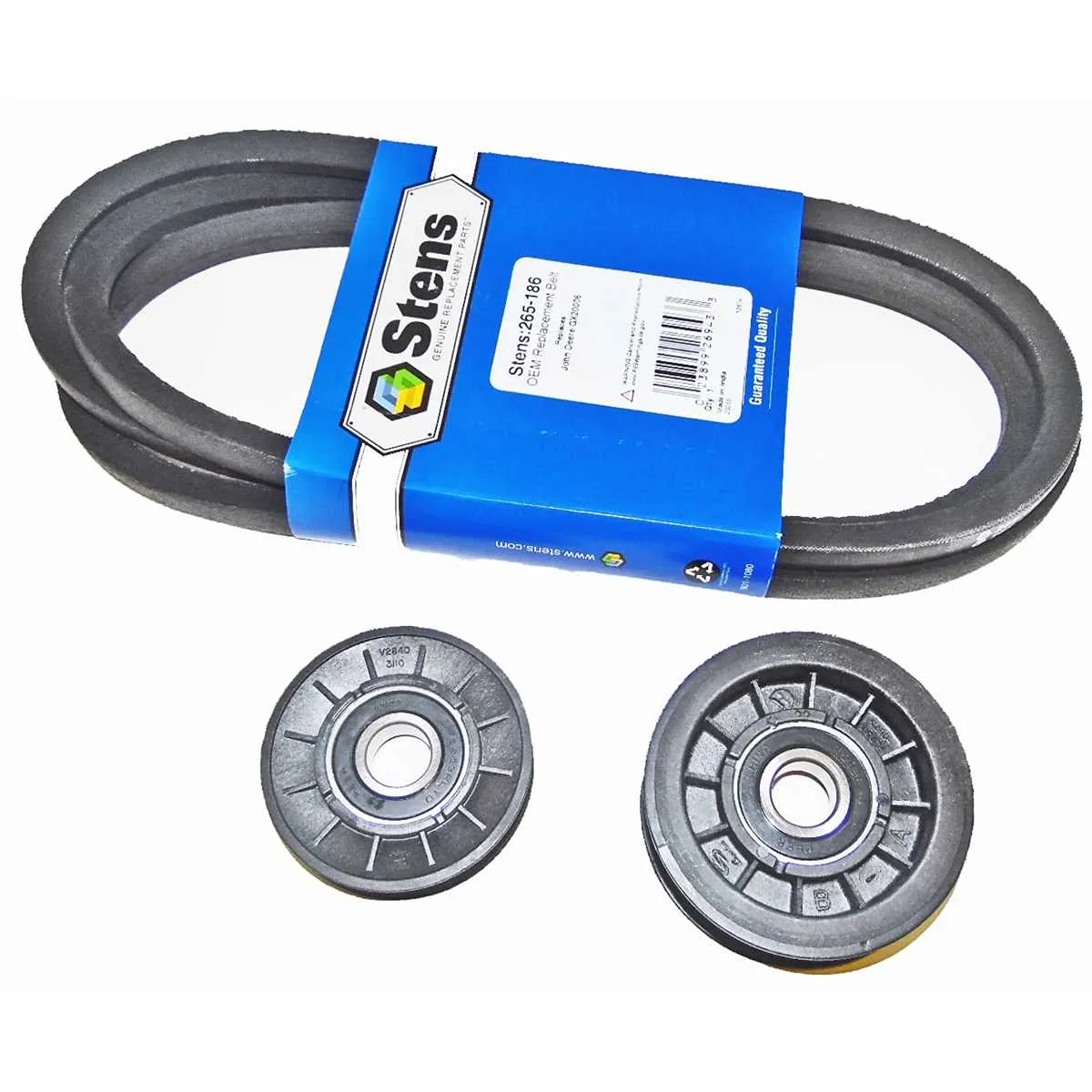

When replacing the belt, ensure it matches the correct size and specification as shown in the manual. Improper sizing may lead to reduced performance or premature wear. Keep an eye on the pulleys, as worn-out components can affect the belt’s longevity.
The diagram highlights the path from the engine pulley to the idler pulleys, ensuring smooth operation. Pay close attention to the tensioning idler to keep the belt in place. An incorrectly installed belt can cause slippage or misalignment, impacting the mower’s cutting ability.
Regularly inspect the belt for wear, cracking, or damage. If any signs of wear appear, replace the belt immediately to avoid further damage to other components. Refer to the diagram for guidance on proper installation and adjustments.
By following the L118 John Deere belt diagram, you’ll ensure smooth and reliable mower operation. Keep the belt and components in top condition for efficient performance throughout the mowing season.
How to Interpret the L118 John Deere Belt Diagram
To interpret the L118 John Deere belt diagram correctly, start by locating the main drive components: the engine pulley, the mower deck, and the tensioner. The diagram shows the path the belt follows to transfer power from the engine to the cutting blades. Pay close attention to the routing direction, as the belt loops around these components in a specific order. Make sure to identify the correct side of the belt for placement–usually, one side has a smooth surface, while the other side is ribbed.
Next, observe the tensioner’s placement in the diagram. The tensioner keeps the belt under proper tension for optimal performance. If the tensioner is not in the correct position, the belt may slip, reducing efficiency and possibly causing damage. The diagram typically includes arrows to indicate the movement direction and pulley positioning, making it easier to follow the belt’s path.
Finally, verify the belt’s length and width based on the specifications indicated in the diagram. If the diagram shows specific measurements or part numbers, cross-reference these with your manual to ensure the replacement belt matches. Pay close attention to any notations about belt alignment and any potential adjustments for tension or wear over time.
Steps to Replace Belts in the L118 John Deere Model
1. Start by turning off the engine and removing the key from the ignition for safety. Disconnect the spark plug wire to prevent accidental starts while working.
2. Lift the mower deck. Use the deck lift lever to raise the deck to its highest position, giving you more room to work with the belts.
3. Locate the belt covers. These are usually positioned around the spindle pulleys and the engine pulley. Remove any screws or bolts securing the covers in place using a wrench or screwdriver.
4. Remove the old belts. Carefully note how the old belts are routed over the pulleys. It may be helpful to take a picture for reference. Slide the belt off the pulleys, starting with the tensioned pulleys first.
5. Install the new belt. Position the new belt on the pulleys following the same routing as the old belt. Ensure the belt sits properly in the grooves of each pulley. Avoid twisting the belt during installation.
6. Reassemble the covers. Once the new belt is in place, reinstall the belt covers and secure them with the screws or bolts you removed earlier.
7. Lower the mower deck back to its normal position.
8. Reconnect the spark plug wire, start the engine, and test the mower. Make sure the new belt runs smoothly and doesn’t slip or make excessive noise. If everything works as expected, the replacement is complete.
Common Issues with L118 John Deere Belts and Troubleshooting Tips
If your L118 John Deere mower is experiencing belt issues, first check for obvious wear or damage. Belts should be replaced if they show cracks, frays, or excessive stretching. A damaged belt will slip, causing the mower to lose power or fail to engage the blades properly. Replace the belt immediately to prevent further damage.
One common issue is the belt slipping off the pulleys. This usually happens when the tension is too loose. Check the tension adjustment and ensure the spring-loaded idler pulley is functioning correctly. If the tensioner is stuck or broken, it may need to be replaced to maintain proper belt tension.
Another issue is misalignment. If the pulleys are not aligned properly, it can cause the belt to wear unevenly or slip. Inspect the pulleys for any signs of wear, and ensure they are aligned according to the L118’s specifications. If misalignment persists, check the deck for any bent components that could be causing the problem.
A noisy belt could indicate that it is too tight or improperly routed. Tight belts can cause unnecessary friction, leading to noise and premature wear. Review the belt routing diagram for your L118 and make sure the belt is installed correctly. If the belt is too tight, adjust the tension accordingly.
Sometimes, dirt and debris can accumulate on the belt or pulleys, causing them to slip or overheat. Regularly clean the area around the belts to remove any grass, dirt, or other materials. Keeping the mower clean can significantly extend the life of your belts and prevent performance issues.
Lastly, if you replace the belt but the mower still doesn’t perform correctly, inspect the engine pulleys and the clutch system. A faulty clutch may not engage properly, causing the belt to slip. In this case, further investigation of the clutch components or seeking professional assistance might be necessary.
